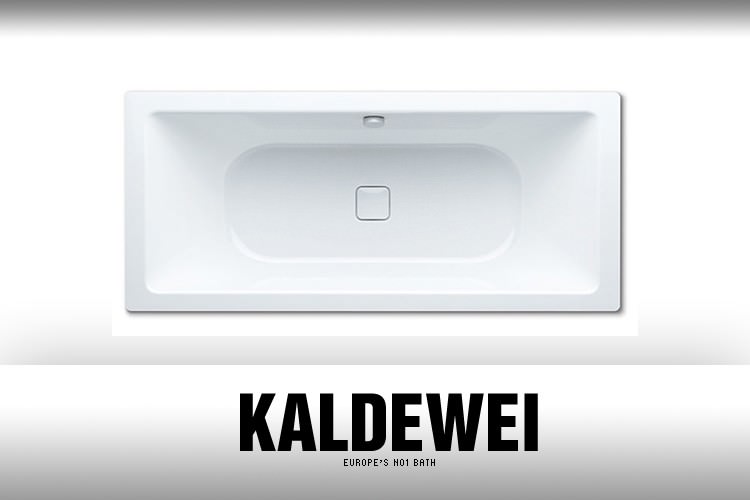

Kaldewei Avantgarde Conoduo Double Ended 1700 x 750mm Steel Bath White

Kaldewei Avantgarde Details

MFC: 235010110001

A masterpiece that is what Kaldeweis Conoduo Double-Ended Steel Bath is Designed to excel, this classic four-cornered model comes with a concealed drain. The tub, designed by Sottsass Associati, has already won many awards and accolades. While a straight-lined purist design adds to its visual appeal, two identical backrests will enhance your comfort level. Extremely durable, it also enjoys a 30-year guarantee against manufacturing defects. Pair it up with a designer bath tap to give your bathroom a complete picture-perfect look.

Key Features

✔Classic 4 Cornered Model
✔Constructed Using Steel Enamel
✔Straight-Lined and Purist Design
✔2 Identical Backrests and Centrally Positioned Waste

Choice of Grip Holes: With or Without
Choice of Coatings: Standard and EasyClean
Choice of Variants: Without Anti-Slip, Semi Anti-Slip and Full Anti-Slip
Choice of Grips for Bath
Comes in a White Finish
Enamelled Waste Cover and Overflow Knob Integrated into the Bath Design (Also Available with Filling Function)
Size [mm]: 1700 x 750 x 420mm [Length x Width x Depth]
Size [cm]: 170 x 75 x 42cm [Length x Width x Depth]
Water Capacity: 122 Litres
Weight: 51.5kg
For Grip Hole Bath Only - 1-Sided Drilling for Grip
The Images Shown are for Illustration Purposes Only
Leg Set Required, Please Order Adjustable Feet Set 5037 - [Optional]
Comodo Waste Especially Designed for Conoduo Bath - [Optional]
Refer to the Technical Drawing for Complete Technical Details
30-Year Guarantee from Kaldewei Against Manufacturing Defects
Waste, Overflow and Grip Shown in the Image are not Included

Please Note: Bath variants may be special order and delivery lead time may vary.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Bath Type
: Double-Ended
⤷ Position of Drain
: Centered Waste
⤷ Range
: Conoduo
⤷ Interior Shape
: Rounded Rectangular
⤷ Coating
: EasyClean - Sold Separately
⤷ External Length
: 1700
⤷ External Width
: 750
⤷ Tub Depth
: Internal - 420 External - 445
⤷ Feets Included
: Sold Separately
⤷ Height Including Feet or Panel
: 565-600
⤷ Front Panel Included
: No
⤷ End Panel Included
: No
⤷ Colour
: White
⤷ Grips Included
: Sold Separately
⤷ Internal Bottom Length
: 1080
⤷ Internal Bottom Width
: 470
⤷ Internal Top Length
: 1540
⤷ Internal Top Width
: 590
⤷ Height of Rim
: 50
⤷ Distance Tub edge to centre of drain hole
: 850

⤷ Distance Top edge to centre of overflow hole
: 70
⤷ Diameter of overflow hole
: 52
⤷ Diameter of Drain hole
: 90
⤷ Distance foot end of tub edge to center of foot
: 555
⤷ Distance between the feet
: 590
⤷ Distance tub edge (foot end) to where handle start
: 702
⤷ Distance tub edge (Foot end) to where handle end
: 998
⤷ Rim Width
: 80
⤷ Weight in kg
: 52
⤷ Slip Resistant
: No
⤷ Shape
: Rectangular
⤷ Capacity in litres
: 122
⤷ Country of Origin
: Denmark
⤷ Warranty/Guarantee
: 30 Years
⤷ Material
: Steel
⤷ No. of Bathers
: 2
⤷ Waste Included
: Sold Separately
⤷ Tap Holes
: Un-drilled
⤷ Barcode
: 4001112865620

Technical Images

Kaldewei Avantgarde Conoduo 1700 x 750mm Double Ended Steel Bath White

Add-Ons

Bath Leg Set 5037

Installing a bathtub is particularly quick and straightforward with the all-around bathtub base frame model 5037 by Kaldewei. The bath feet positions on the external points of the base of the bathtub guarantee optimum stability.

No Option Selected
OP-29713 - Leg Set 5037 + £53.71

Bath Waste

Specially Designed for ConoDuo bath - It Comes in White Colour, concealed and Centrally positioned in the tub. Please Note: the image shown is for illustration purposes only.

No Option Selected
OP-211072 - Comfort Level - Trim Set Waste And Overflow Fitting Chrome + £179.38
OP-29746 - Special waste and overflow fitting KA4080 alpine white + £202.18
OP-211073 - Comfort Level Plus - Integrated Waste With Filling Function + £364.72
OP-29747 - Special Waste And Overflow Fitting KA4081 Integrated Filling Function Alpine White + £433.44

£876.98

RRP: ~~£1654.80~~

Stock Availablity: 6 Working Days Approx

QS Supplies

10 Features Included In This Product Explained

Heat Resistant

The surface will not show any burn or smoke marks when hot objects are in contact.

Scratch And Impact Resistant

KALDEWEI steel enamel combines steel and glass, making it durable and greatly resisting mechanical stress. Its resilience is greater than standard material as it is tougher than Acrylic.

Easy To Clean & Hygienic

The surfaces of KALDEWEI steel enamel will not allow dirt and bacteria to gather, making it extremely hygienic and easy to clean.

UV Resistant

KALDEWEI steel enamel has unique properties that help the product retain its original colour for a long time; it does not fade or turn yellow.

100% Sustainable

All products made using special KALDEWEI steel enamel are entirely recyclable as their source is natural raw materials, i.e. glass and steel.

Chemical Resistant

Most detergents, cosmetics, perfumes, bath salts, oils and other additives or general-purpose household cleaning agents cannot damage the KALDEWEI steel enamel.

Beautiful Shape Forever

The durable KALDEWEI steel enamel remains unaffected by changes in temperature and, therefore, will not suffer cracks or moisture damage.

Optional: EasyClean Finish

KALDEWEI EASY-CLEAN FINISH can be opted for so that the water will roll off the surface of the bathtub, sweeping away all dirt and lime particles along

Optional: Full Or Semi Anti-Slip Enamel

KALDEWEI full or Semi anti-slip system comes certified with the German technical inspection association TUV Rhineland for full anti-slip properties compliant with quality class B for wet barefoot areas (DIN 51097) and quality class R 10 for full anti-slip characteristics within working or work areas with enhanced slipping risk (DIN 51130).

Steel Enamel

Steel enamel is a mixture of steel and glass - natural materials with unique properties. It harnesses the strengths of both materials and is hard-wearing enough for bathtubs, showers and basin surfaces, as it protects the surface and retains its value over the decades.

Questions & Answers

Submit Your Questions 2 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Jane Asked :
Do I need to get a separate valve to turn the water on and off with the Comfort Level Plus Integrated Waste With Filling Function for this bath? Or does it come as part of it?

Answered By QS Team

We offer a Comfort Level Plus waste and overflow system, which includes the filler function; you will still need valves to control water flow into the bath.

Was this answer helpful?

Geoff Asked :
I want to use my existing deck mounted mixer taps. I am looking at double-ended Kaldewei baths. Are there any recommendations on which it can be drilled for tap installation?

Answered By QS Team

We can potentially do what is called special drilling. If you can provide details of where on the bath you require the drilling and the technical specification of the taps you wish to be fitted, we can see if possible.
