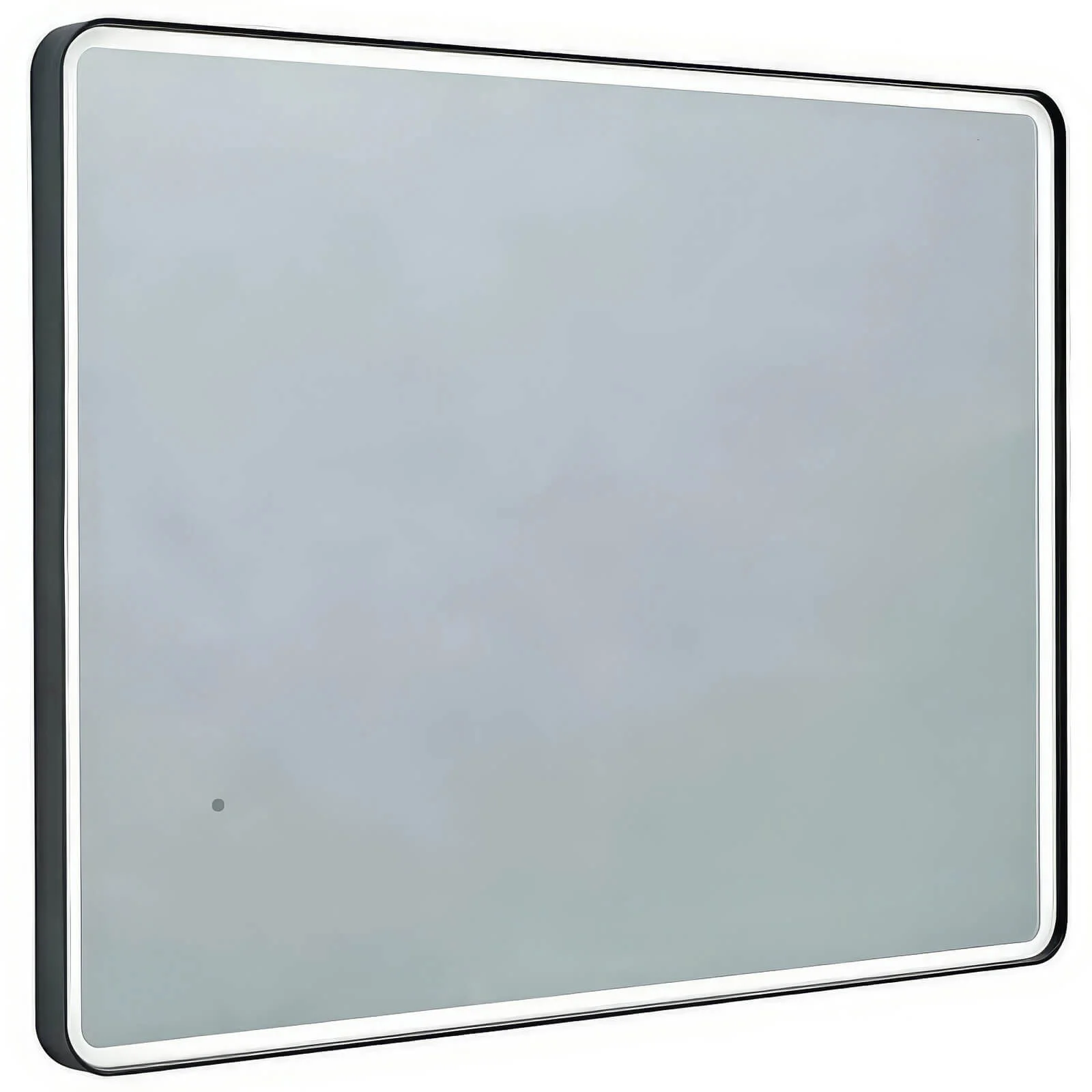

Roper Rhodes Frame Illuminated Rectangular LED Mirror

Roper Rhodes Frame FR50SG Details

Roper Rhodes Frame Illuminated Rectangular Mirror is so luxurious that it can transform your bathroom into a designer space. Available in a white and grey finish and two different sizes, this framed illuminated mirror can be beautifully co-ordinated with compatible vanity units available separately. Manufactured to the highest standards under strict quality control supervision, this rectangular framed illuminated mirror will be suitable for use in bathroom zone 2 and comes with an IP44 rating. For ensuring your peace of mind, it comes with 5mm PVC backed Mirror Glass construction and can be placed in Landscape or Portrait.

Key Features

✔Multi-function infrared no-touch on/off switch
✔Demister pad will turn on when the lights are turned on
✔Ten-year guarantee from Roper Rhodes against manufacturing defects
✔Adjustable LED brightness and integrated light temperature-changing technology

Choice of different finishes: Black and White - [Optional].
Available in different sizes: 500 x 700mm and 600 x 800mm - [Optional].
Depth: 38mm (3.8cm).
Suitable to use in bathroom zone 2.
IP44 rated mirror.
Orientation: Landscape / Portrait.
Edged with slim metal surround.
Frame material: Extruded Aluminium.
5mm (0.5cm) PVC-backed Mirror Glass.
Supplied with removable 500mm mains cable.
Energy Rating F.
Coordinates with Frame Furniture.
A heated demister pad prevents the mirror from steaming up.
Design: Square contemporary illuminated bathroom mirror.
It comes with integrated motion sensor technology, allowing you to control illumination with just the wave of a hand.
Position of IR Sensor: Front Bottom Right.

Coordinates with Frame furniture Combined dimmable/light temperature changing sensor to adjust the light temperature from 2700K (warm white) to 6500K (daylight white).
Download the Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section.
The technical drawing is available for more technical details.
Detail For 500 x 700mm Mirror:.
Size: Width 700mm (70cm) x Height 500mm (50cm).
Power Consumption: 56.4 W.
Wattage: 21.5W.
The output of demister: 34.9W.
Size of demister pad: Width 310mm x Height 450mm.
Detail For 600 x 800mm Mirror:.
Size: Width 800mm (80cm) x Height 600mm (60cm).
Power Consumption: 58W.
Wattage: 23W.
The output of demister: 35W.
Size of demister pad: Width 310mm x Height 450mm.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour temperature (K)
: 6500 | 2700
⤷ Light Colour
: Daylight | Warm White
⤷ Switch Position
: Downward
⤷ Range
: Frame
⤷ Colour
: Black
⤷ Shape
: Rectangular
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Aluminium
⤷ Theme
: Modern
⤷ Installation Type
: Landscape
⤷ Width
: 500

⤷ Depth
: 38
⤷ Height
: 700
⤷ Fixings included
: Yes
⤷ Barcode
: 5057199952097
⤷ Glass Thickness
: 5
⤷ Product Type
: Illuminated
⤷ IP44 rated
: Yes
⤷ Light Included
: Yes
⤷ Mirror Type
: Illuminated
⤷ Demister Pad Included
: Yes
⤷ On /Off Operation
: Yes

Additional Info & Downloads

Download the Customer Data Sheet Pdf File Download the Installation Instruction Pdf File

Technical Images

Roper Rhodes Frame Illuminated Rectangular LED Mirror

Total: £307.20 3-4 Working Days Approx QS Supplies

8 Features Included In This Product Explained

Demister/Heated Pad

It is a small appliance to heat a portion of your mirror. It prevents steam and condensation from collecting on the surface, making it no longer necessary to wipe the mirror after a hot shower/bath.

Mains-Operated

Mains-operated devices work on electricity by plugging into electrical wall sockets. These require higher electrical energy and can't be operated using batteries as small batteries can't power the device. Large, non-portable electrical appliances are typically mains operated.

IP44 Rated

An Ingress Protection (IP) Rating is code manufacturers use to indicate how well a product is protected against water and solid particles like dust. Products rated IP44 are safe from particles larger than 1mm and can withstand water splashes, making them ideal for use in bathrooms, where steam, dampness and splashes are inevitable.
Read more...

Dimmable

With dimmable lighting in your bathroom mirror, you can control the brightness of the LED bulb used to illuminate it. You can turn the light down to create a more relaxed atmosphere or increase visibility.

PIR Sensor

The Integrated PIR sensor lights up the unit when movement is detected. It automatically switches off after 10 seconds when there is no movement.

Landscape

Landscape orientation is the positioning of a mirror, or accessory using its width, so that it is more wide than it is tall. Widths are normally more than the height, covering a greater area and reflecting more light.

Portrait

Portrait orientation is the one in which the longer sides of the mirror are vertical. It looks like the orientation in a portrait, or a photograph of a person and hence the name. Typically this kind of mirror is taller than it is wide, just like real life pictures of people.

PVC Material

PVC or Polyvinyl chloride is a kind of plastic made of carbon, hydrogen, and chlorine atoms. It is a thermoplastic material, which means that it can be melted and reshaped again and again without any chemical degradation or change. It offers extreme durability, impact, chemical and water resistance, and is popular in manufacture of fittings, pipes and containers.
