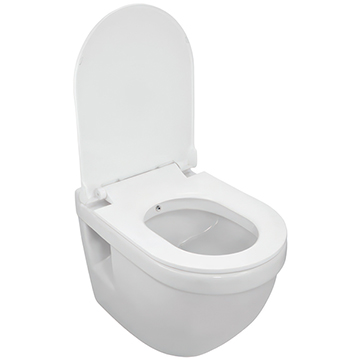

Lecico Atlas Pro 521mm Projection White Wall Hung WC Pan

Available In 2 Variations




RRP: £183.50


5-7 Working Days Approx

Shipping: £50.00

Other Variation Available
OP-198008 - WC Pan Only
+  Read what's included.. & options available
Please Note all the measurements are in 'mm'
  • Colour
  • White
  • Warranty/Guarantee
  • Lifetime
  • Material
  • Vitreous China
  • Theme
  • Modern
  • Installation Type
  • Wall Hung
  • Projection (Depth)
  • 521
  • Width
  • 357
  • Height
  • 400
  • Bowl Shape
  • Round
  • Front Of Bowl To Centre Of Seat Holes
  • 425
  • Outlet Diameter
  • 102
  • Base to centre of outlet
  • 170

Lecico Atlas ASTWHWHP Details

High on hygiene and easy on the pocket! Because this product is from a reputed brand like Lecico, you dont have to worry about quality either. Apart from its dirt repellant surface finish, this Atlas Pro Projection Wall Hung WC Pan comes with two variations, thus guaranteeing you a choice. The WCs modern profile carries a white finish throughout and comes with assured durability, thanks to the vitreous china material. The CE Compliant pan includes a dual flush cistern and chrome flush plate and can be used wall hung.

  • Available Variations: WC Pan Only, WC Pan With Frame Cistern Flush Plate And Seat
  • It comes in a white finish
  • Toilet seat shown in the image is not included supplied only in WC Pan With Pack.
  • Refer to the technical diagram for complete technical dimensions
  • Lifetime guarantee against any manufacturing defects.
  • Features Of WC Pan :
  • Size : 357mm x 400mm [Width x Height]
  • Projection: 521mm
  • CE Compliant
  • Modern compact design
  • Outlet: Horizontal
  • Weight: 14.5kg
  • Manufactured using vitreous china material
  • Features Of WC Frame :
  • Includes dual flush cistern and chrome flush plate
  • Full flush of 6ltr and half flush of 4ltr
  • Can be adjusted to full flush of 4ltr and half flush of 2.6ltr
  • Material: Mixed Metal and Plastics
  • Strong and sturdy design
  • Delayed fill-inlet valve
  • WRAS approved
  • Flush plate located above seat radius
  • Suitable for bearing up to a 400kg load
  • Designed for wall installation
  • Size : 350mm x 1100mm-1300mm [Width x Height]

Info / Size (mm)

  • Toilet
  • Width: 357 mm
  • Projection: 521 mm
  • Height: 400 mm

Product Variations Info & MFC Code
  • Available Variations :
  • WC Pan Only - ASTWHWHP
  • WC Pan With Frame Cistern Flush Plate And Seat - AP-ASWALLHCOMB
