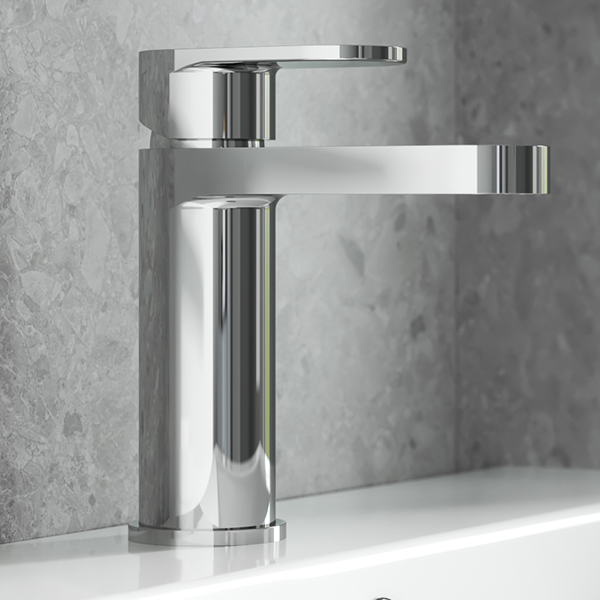

Nuie Binsey Monobloc Basin Mixer Tap with Push Button Waste, Flat Handle

Nuie Binsey Details

MFC: BIN315

If you want to have a efficient washbasin tap then, Nuie Binsey Single Lever Basin Mixer Tap With Push Button Waste is the perfect option. It is constructed from hard-wearing materials that will make it last a lifetime. It comes with 5 years of guarantee against any manufacturing faults. Install this chrome polished mixer and have an exceptional experience with your new or old basin. If you also wish to purchase a basin, then browse our collection of wall-hung, corner, vanity and pedestal basins.

Key Features

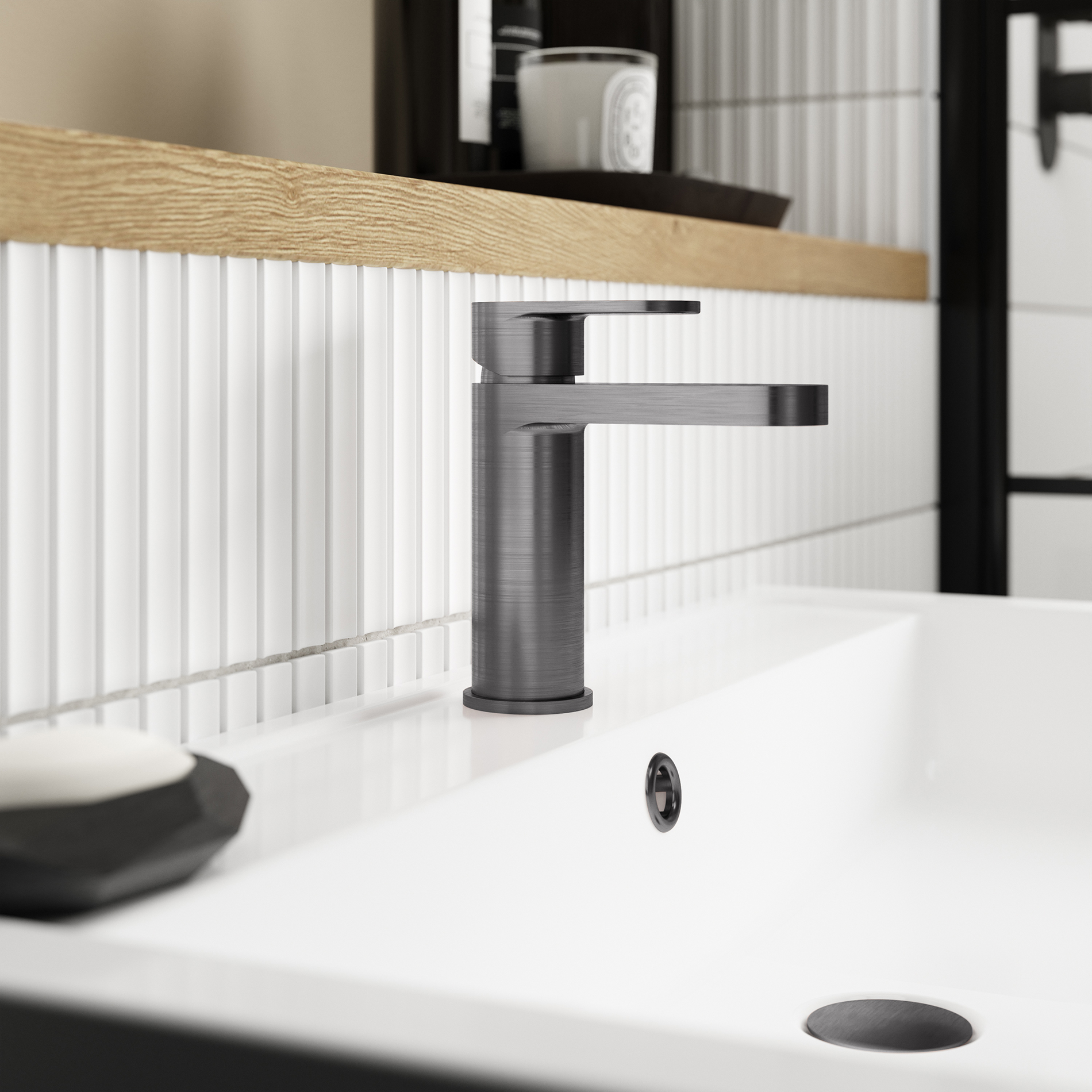

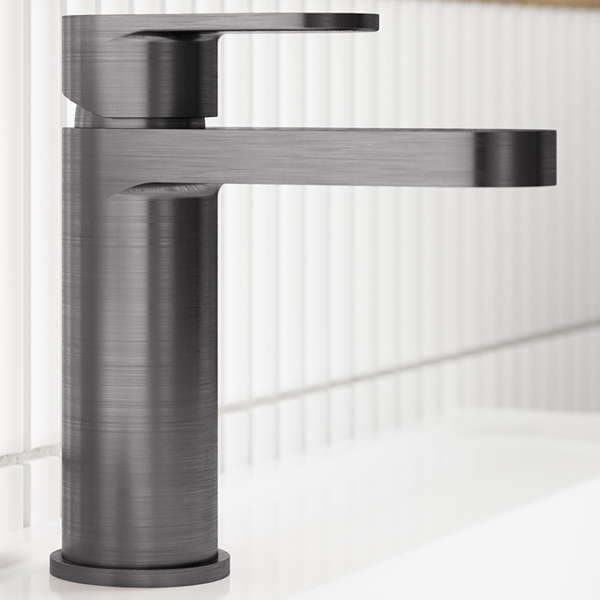

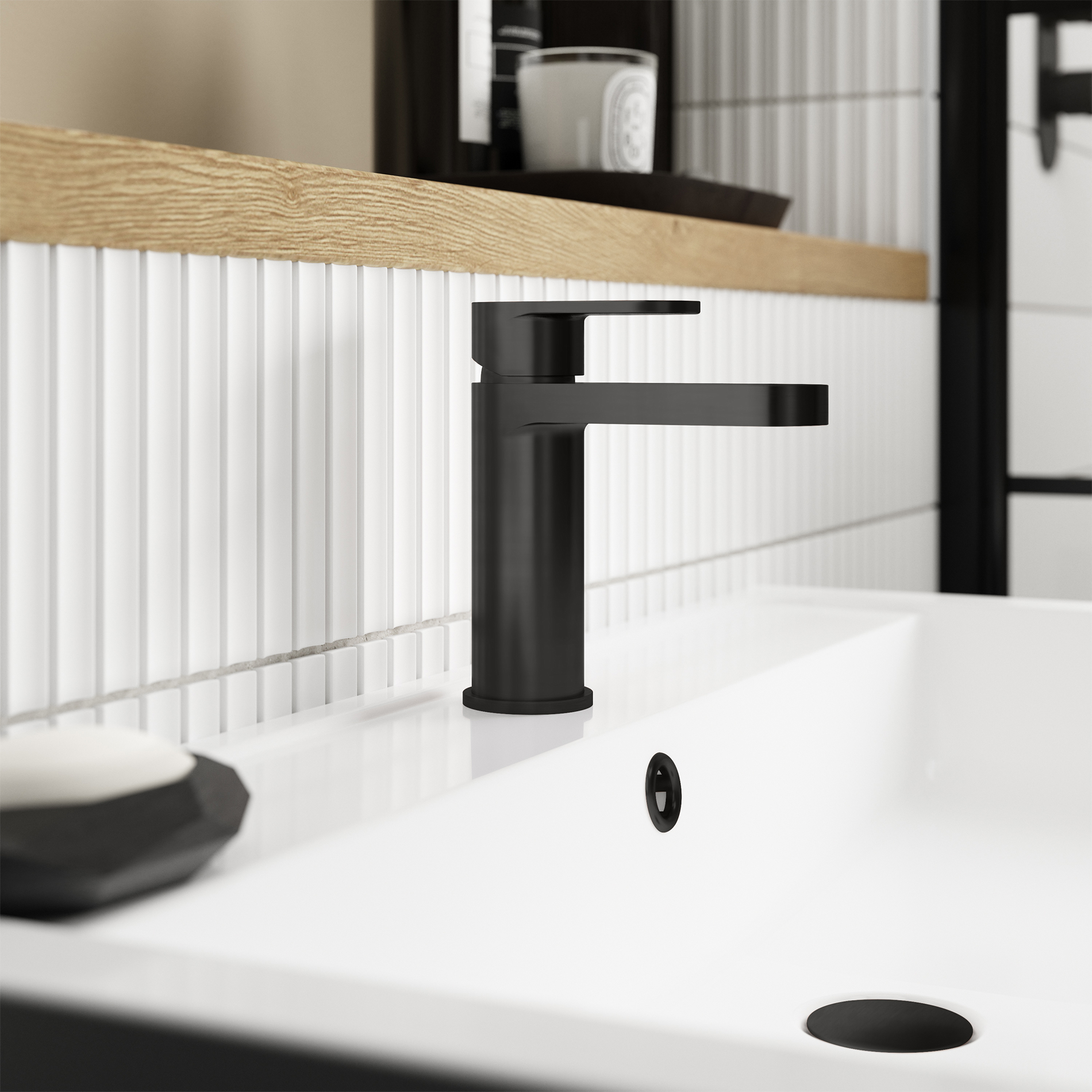

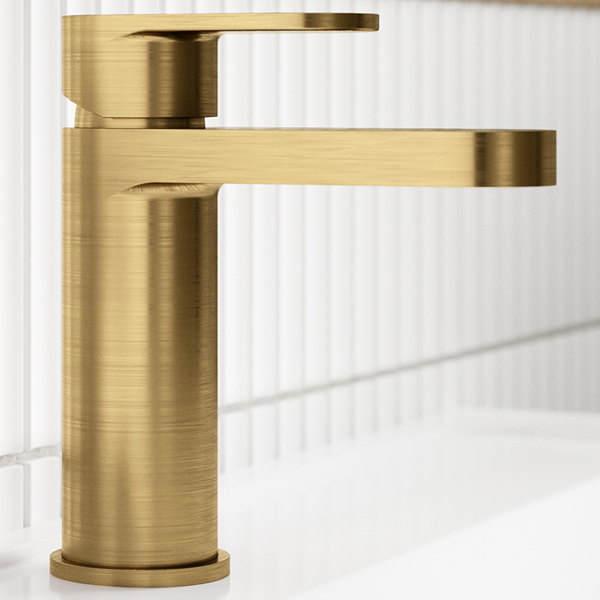

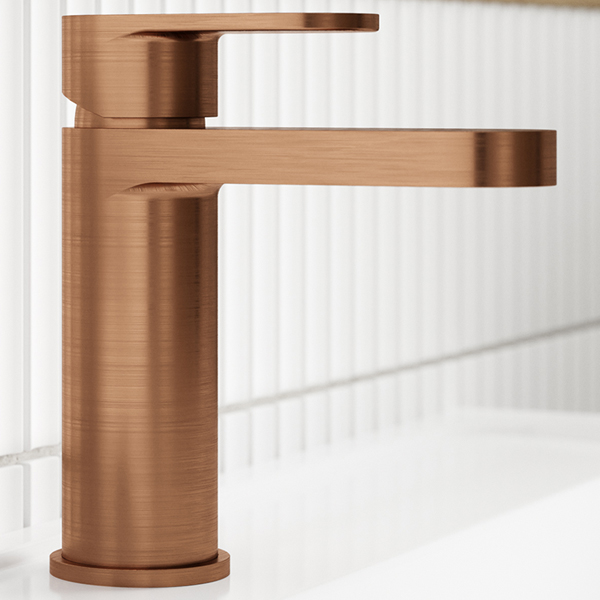

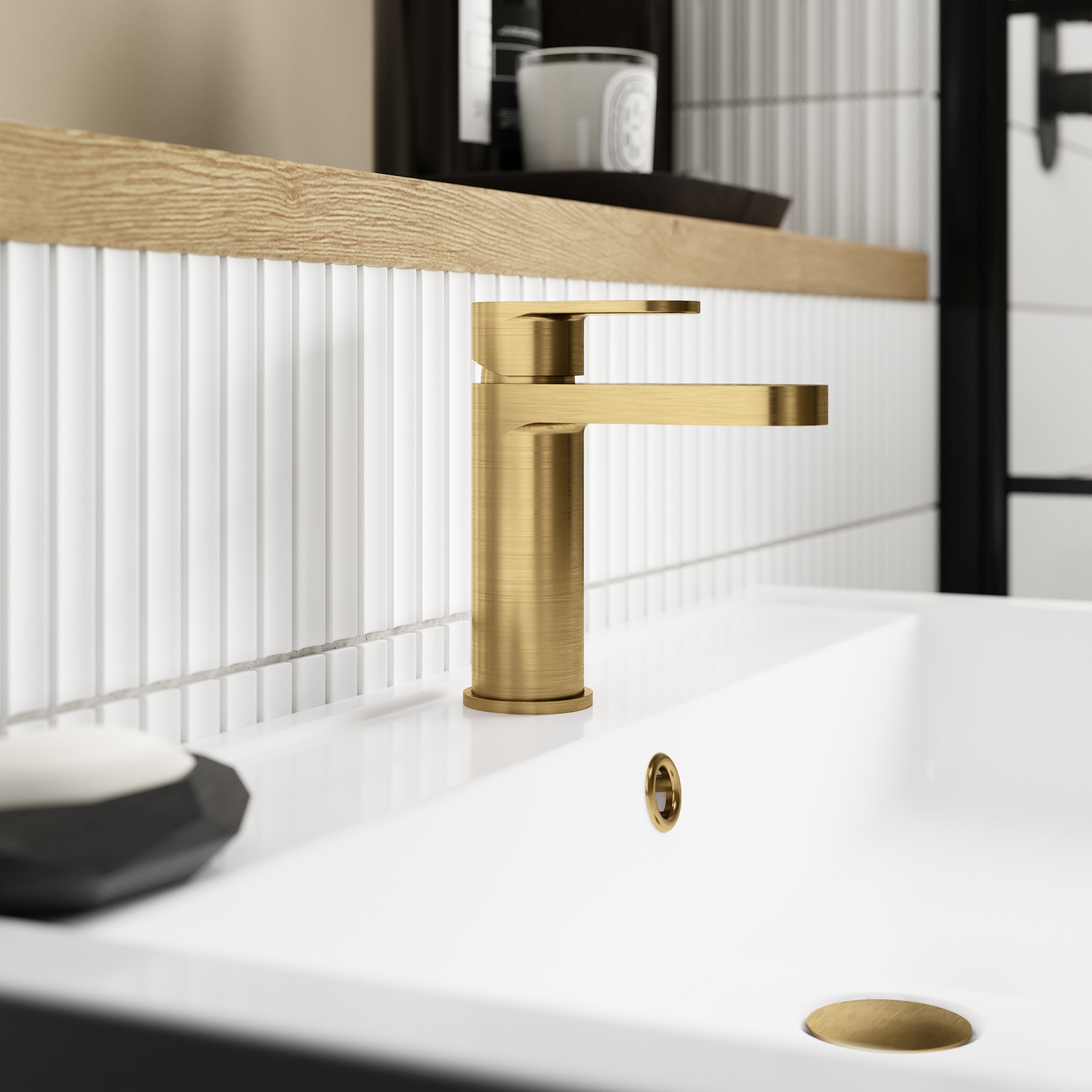

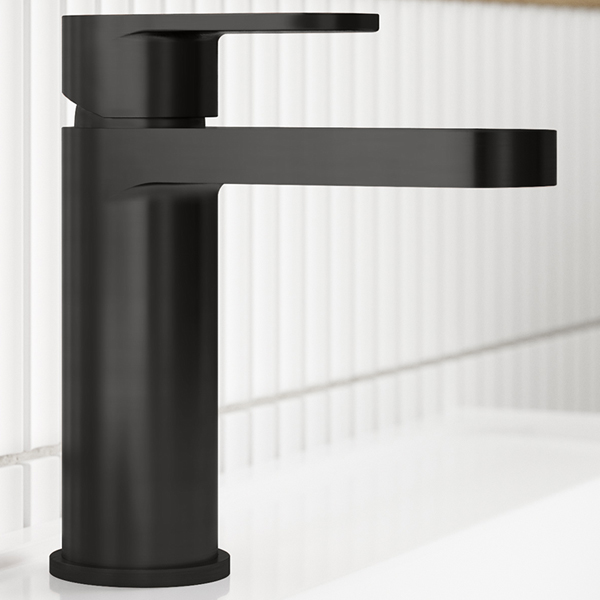

✔Choice of Finishes: Chrome, Matt Black, Brushed Pewter, Brushed Brass and Brushed Bronze
✔Manufactured using Brass Material
✔Tap Tails, Mounting Hardware, and Fixings Included
✔Ceramic Disc Technology Provides Smooth Operation and Long Life
✔5-Year Guarantee on Chrome and 3-Year on Other Finishes from Nuie against Manufacturing Defects

Choice of Heights: 140mm and 160mm - [Optional]

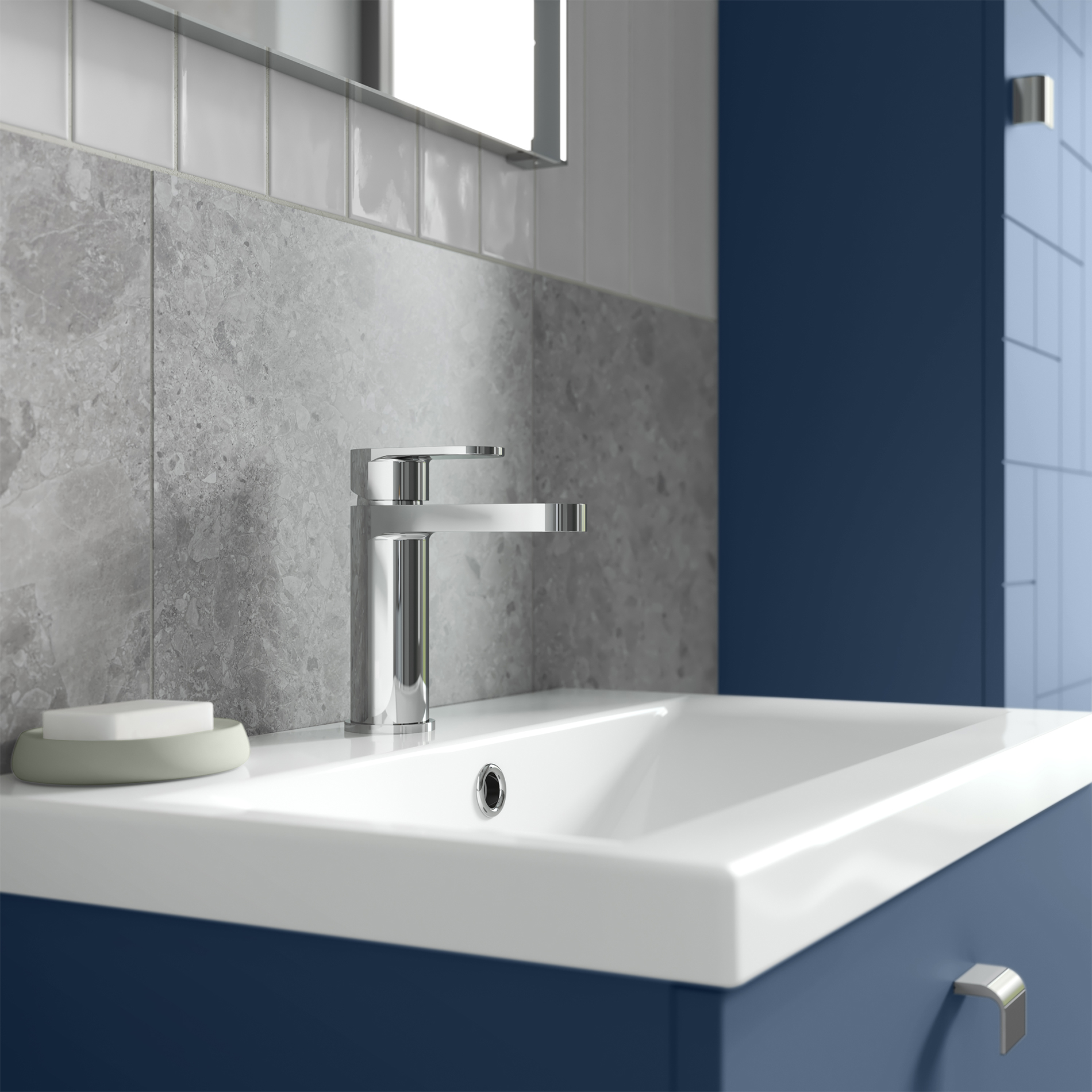

It comes in a luxury Chrome Finish
Suitable for Deck-Mounted Installation
Contemporary Stunning Curved Design
Supplied with Co-ordinating Push-Button Waste
Pipe Size: 1/2-Inch
Cartridge Material: Plastic
Suitable for Low-Pressure Water System
Requires 0.2 Bar Operating Water Pressure
Download Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section
Refer to the Technical Drawing for Size Details
Details For 140mm Height Tap:
Excellent Flow Rates, even at Low Pressure
Flow Rates (l/min): 0.1 Bar- 2.5, 0.5 Bar- 6.9, 1 Bar- 10, 2 Bar- 14.4, 3 Bar- 17.7
Size [mm]: 45 x 128.5mm [Width x Depth]
Size [cm]: 4.5 x 12.85cm [Width x Depth]
The Centre of the Inlet to the Centre of the Outlet: 90mm (9cm)
Base to Spout: 95mm (9.5cm)
Perfect Compact Design for Use in En-suites, Cloakrooms and Smaller Bathrooms
Details For 160mm Height Tap:
Excellent Flow Rates, even at Low Pressure
Flow Rate (l/min): 0.1 Bar-2.9, 0.5 Bar-7.7, 1 Bar-11.2, 2 Bar-16.1, 3 Bar-20
Size [mm]: 52 x 150.5mm [Width x Depth]
Size [cm]: 5.2 x 15.05cm [Width x Depth]
Base to Spout: 113mm (11.3cm)
The Centre of the Inlet to the Centre of the Outlet: 110mm (11cm)

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Binsey
⤷ Water Activation
: By Lifting | Tilting
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upward
⤷ Colour
: Chrome | Matt Black | Brushed Pewter | Brushed Brass | Brushed Bronze
⤷ Warranty/Guarantee
: Chrome: 5 Years | Other Finishes: 3 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Disc Cartridge

⤷ Base To Spout
: 95
⤷ Spout Reach
: 90
⤷ Overall Height
: 140
⤷ Width
: 45
⤷ Inlet Connections
: 1/2 Inch
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Waste Type
: Push Button
⤷ Flow Rates (l/min)
: 0.1 bar- 2.5 | 0.5 bar- 6.9 | 1 bar- 10 | 2 bar- 14.4 | 3 bar- 17.7
⤷ Handle Style
: Lever
⤷ Waste Included
: Yes
⤷ Barcode
: 5056211898771
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Customer Data Sheet Pdf File Download the Installation Instructions Pdf File

Nuie Binsey Deck Mounted Monobloc Basin Mixer Tap with Push Button Waste - Flat Lever Handle

£48.93

RRP: ~~£145.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

3 Features Included In This Product Explained

Push Button Basin Waste

It is the perfect choice for many sink designs because of its ease of use and efficiency. The sink drain gets blocked by simply pushing the central button, allowing the water to fill in the sink. Once you are done, the water can be drained by releasing the same.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Reviews & Ratings

By: Mark From : RICHMOND Overall Rating: Date: November 26, 2021 Stylish and Modern Basin Tap

Beautiful tap which is well made and feels solid when used. Lovely controlled flow into the basin. Tap has an adjustable filter nozzle that slightly redirects the water into the basin. Very pleased with the quality and price of QS Supplies. Have bought all of my bathroom and ensuite fittings in the Nuie range from QS Supplies.
