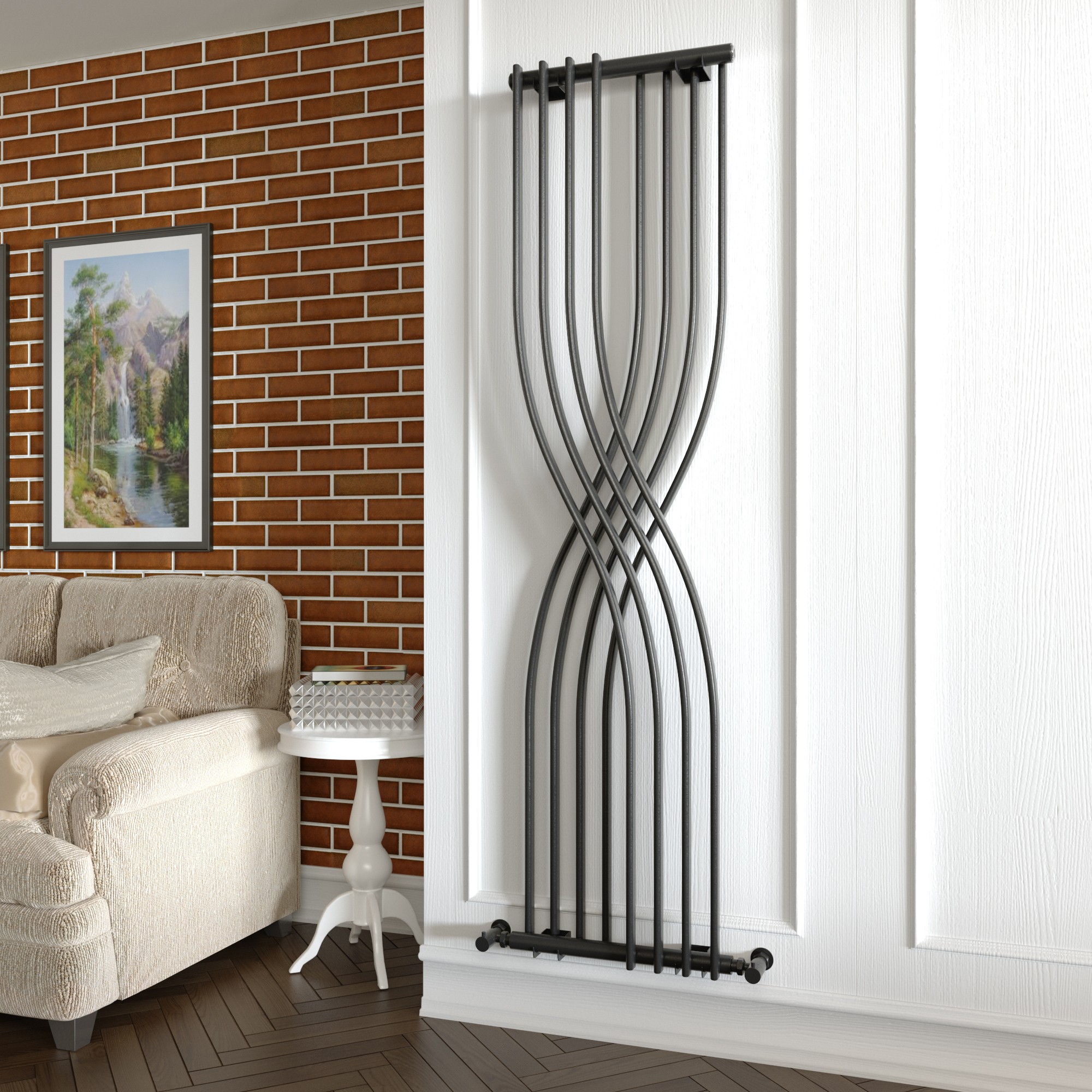

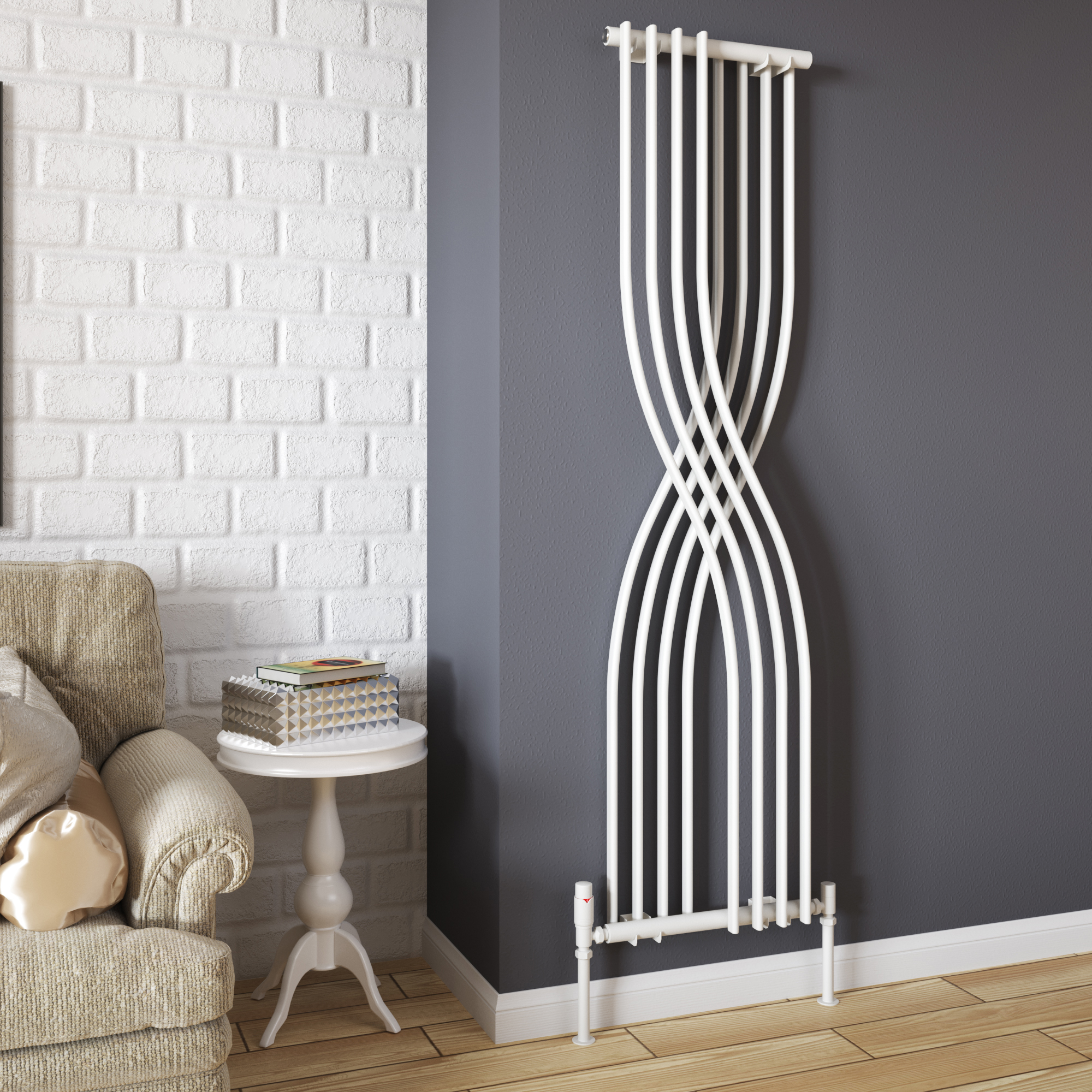

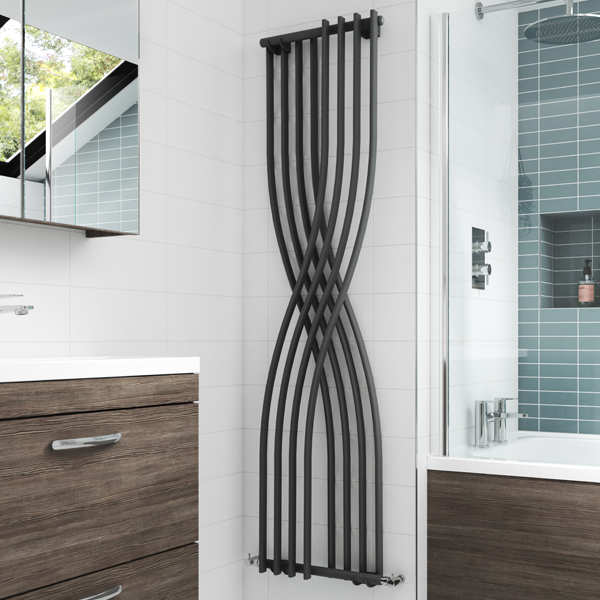

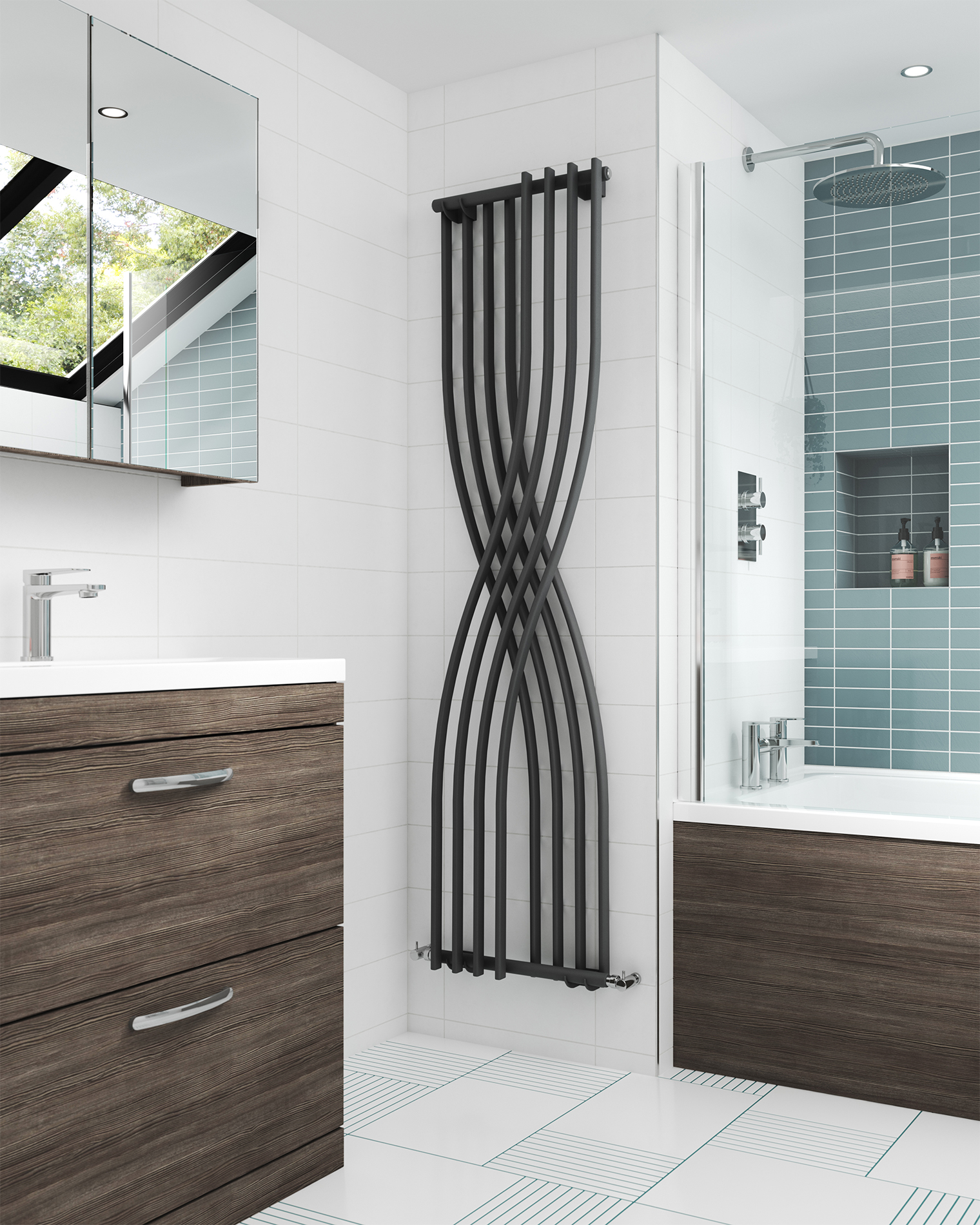

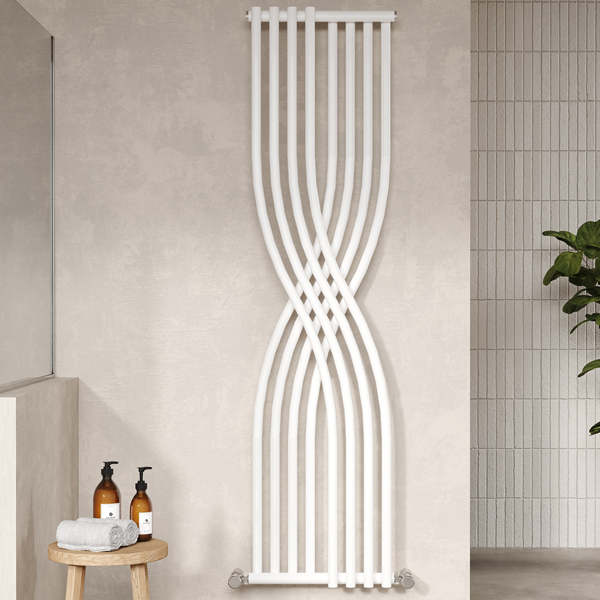

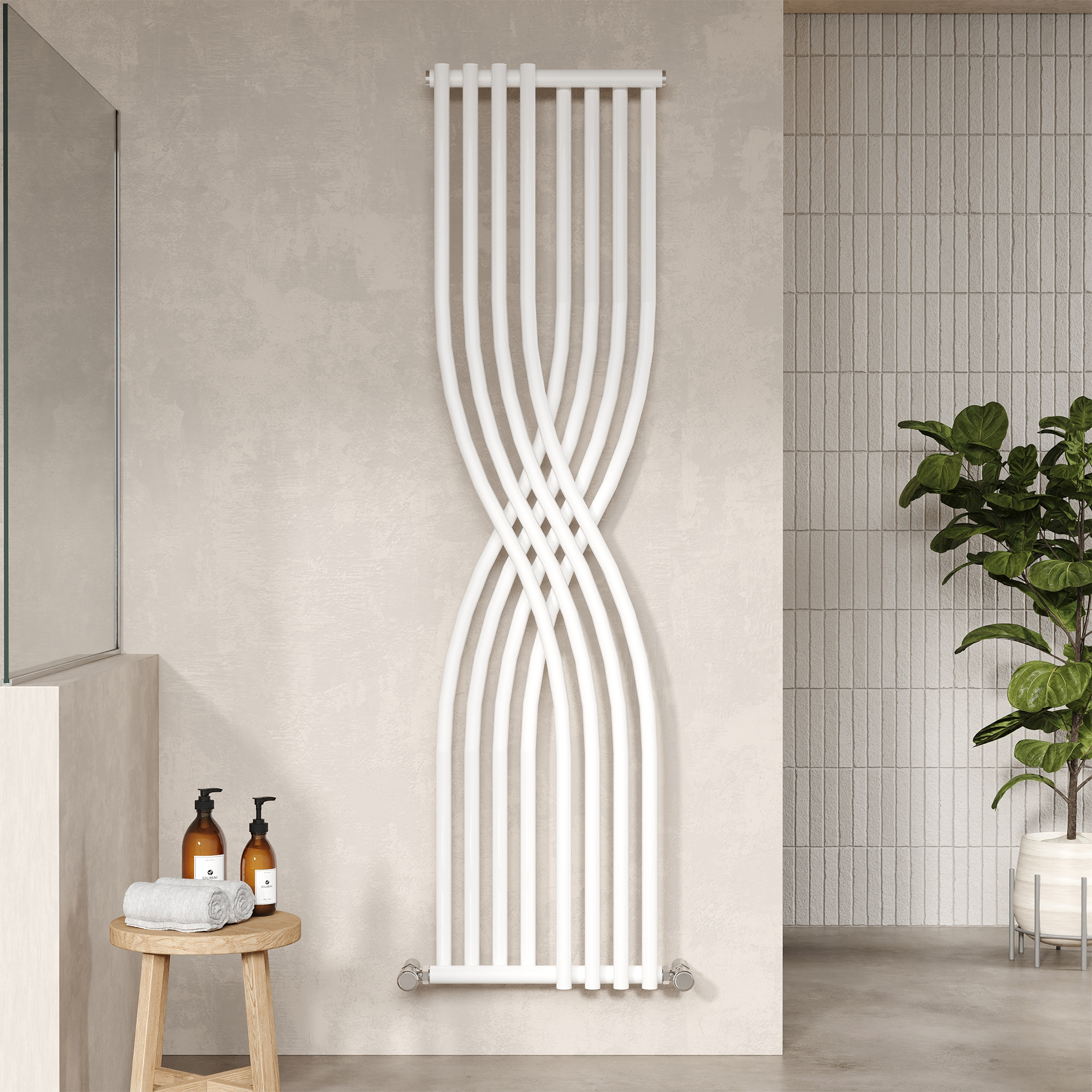

Hudson Reed Xcite 450 x 1775mm Designer Radiator

Hudson Reeds Xcite range of Designer Radiators besides being functionally exceptional embodies an avant-garde form capable of stirring contemporary sentiments and positioning itself as an aesthetically attractive accessory. Predisposed to wall mounted installation bolstered by 51 wall to centre tappings fabricated from 1/2 inch British standard pipe. This unit has 8 panels and programmed to a single heat setting. Xcite is supplied with fixing screws and brackets; valves are not included in this purchase and must be procured separately. Xcites steel form is covered in High Gloss White finish, and it is backed by a 5-year manufacturers guarantee against any manufacturing defects.

• Size [mm]: 450mm x 95mm x 1775mm [Width x Depth x Height].
• Size [cm]: 45cm x 9.5cm x 177.5cm [Width x Depth x Height].
• Suitable for wall-mounted installation.
• Floor to the centre of tappings: Gloss white - 51 and Anthracite - 60.
• Type of heat: water.
• No. of heat setting: 1.
• Number of Sections/Panels: 8.
• BTU @ 30°C: 946 / Thermal Output @ 30°C (Watts): 277.

• BTU @ 50°C: 2020 / Thermal Output @ 50°C (Watts): 592.
• BTU @ 60°C: 2559 / Thermal Output @ 60°C (Watts): 599.
• After installing any new radiators, when refilling the system, it is recommended a suitable inhibitor is used.
• All tappings are 1/2inch British standard pipe.
• Valves shown in the image are not included - sold separately.
• Suitable valve available in Compatible Valves tab below [Optional].
• Refer to the technical drawing for detailed technical dimensions.
• Download the Technical Data Sheet and Installation Instruction PDF File from the Additional Info Section.

Note: It is recommends that the pipework should not be done until the heated towel rail is receipt. After installing any new radiators, when refilling the system, it is recommended that a suitable inhibitor is used. Dimensions are subject to minor deviations.
