Vado Edit Contemporary Concealed Manual Shower Valve, EDI-145A-C/P

Vado Edit Details

MFC: EDI-145A-C/P

Vado Edit 1 Outlet Single Lever Manual Concealed Valve offers the right control and precision and style. The valve is available as single outlet and double outlet options and with and without diverter options. The wall-mounted installation is made from top quality brass and has been given a chrome finish for lasting you the years. The Wall mounted installation features a solid profile with rectangular back-plate. It is backed by a 15 years guarantee against any manufacturing defects.

Key Features

✔Single Lever Operation
✔With Rectangular Back-Plate
✔Ceramic Cartridge CAR-K35A
✔15-Year Guarantee Against any Manufacturing Defects

Choices of 6 Finishes
Choices of Variations: With Diverter and Without Diverter
Wall-Mounted Installation
Features Of Without Diverter Shower Valve:
No. of Outlet: 1
2 x 1/2-Inch Female Inlets
2 x 1/2-Inch Female Outlets [One is Blanked Off]
Minimum-Maximum Wall Mount 40-65mm
Minimum Operating Pressure
0.2 Bar LP [Shower] 1.5 Bar HP [Bath]
Size: 100 x 160mm [Width x Height]
Features Of With Diverter Shower Valve:
No. of Outlets: 2
2 x 1/2-Inch Female Inlets
2 x 1/2-Inch Female Outlets
Minimum-Maximum Wall Mount 50-70mm
Minimum Operating Pressure
0.2 Bar LP [Shower] 1.5 Bar HP [Bath]
Size: 100mm x 185mm [Width x Height]
Refer to the Technical Diagram for Complete Technical Dimensions
Download the Installation Instruction PDF and Product Data Sheet File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Edit
⤷ Colour
: Chrome
⤷ Shape
: Rectangular
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Min-Max Wall Mount
: 40-65, 50-70
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Stick Handle
⤷ Temperature Control
: Manual

⤷ Backplate Width
: 100
⤷ Backplate Height
: 160, 185
⤷ Number of Outlet
: 1, 2
⤷ Orientation
: Portrait
⤷ Barcode
: 5052120171523
⤷ Product Type
: Manual Shower Valve
⤷ Plumbing Option
: Concealed
⤷ Maximum Operating Pressure (Bar)
: 1.5
⤷ Cartridge Included
: Yes
⤷ Cartridge Type
: Ceramic Cartridge

Additional Info & Downloads

Download the Product Datasheet of Without Diverter Valve Pdf File Download the Product Datasheet of With Diverter Valve Pdf File Download the Installation Instructions of Without Diverter Valve Pdf File Download the Installation Instructions of With Diverter Valve Pdf File

This item can also be found in:

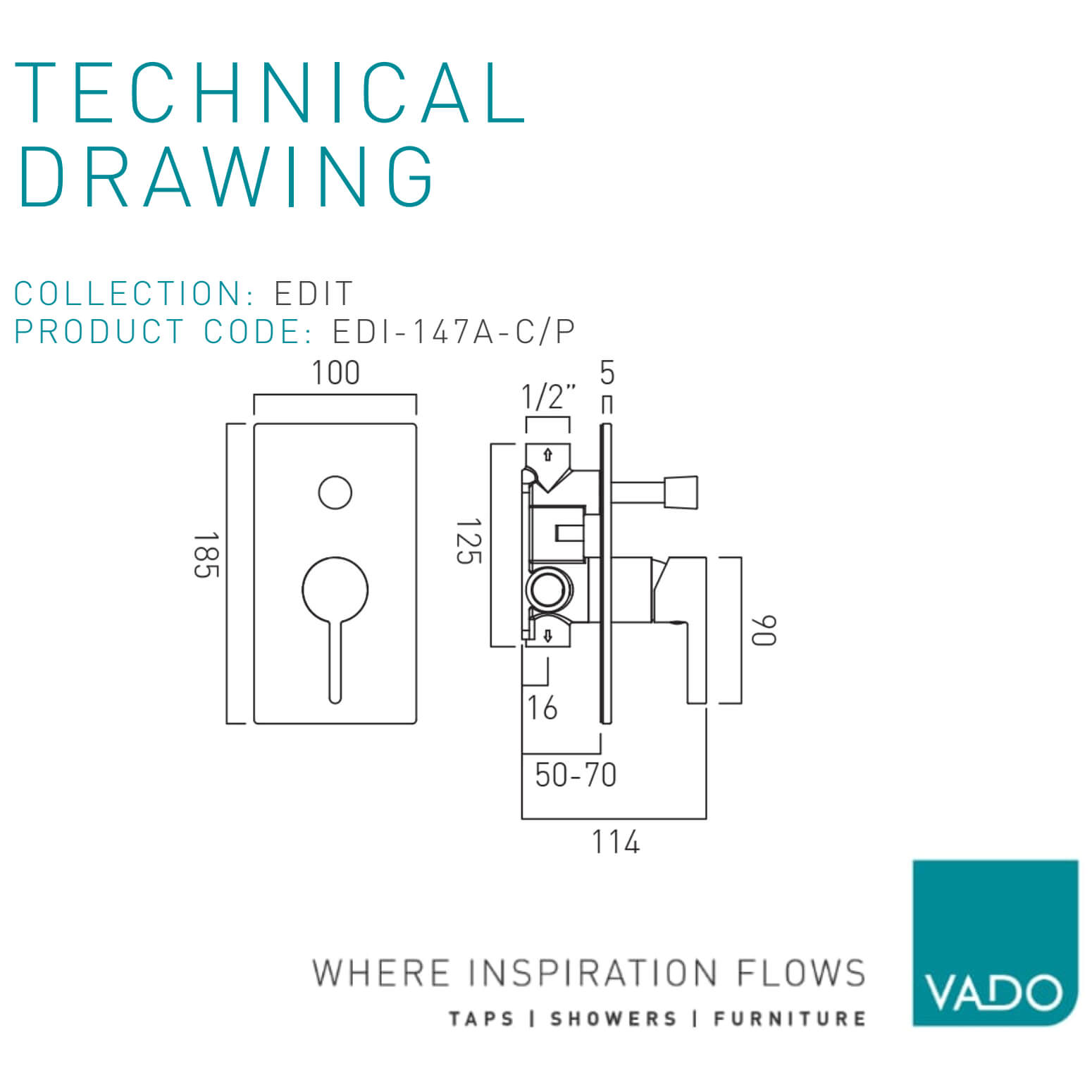

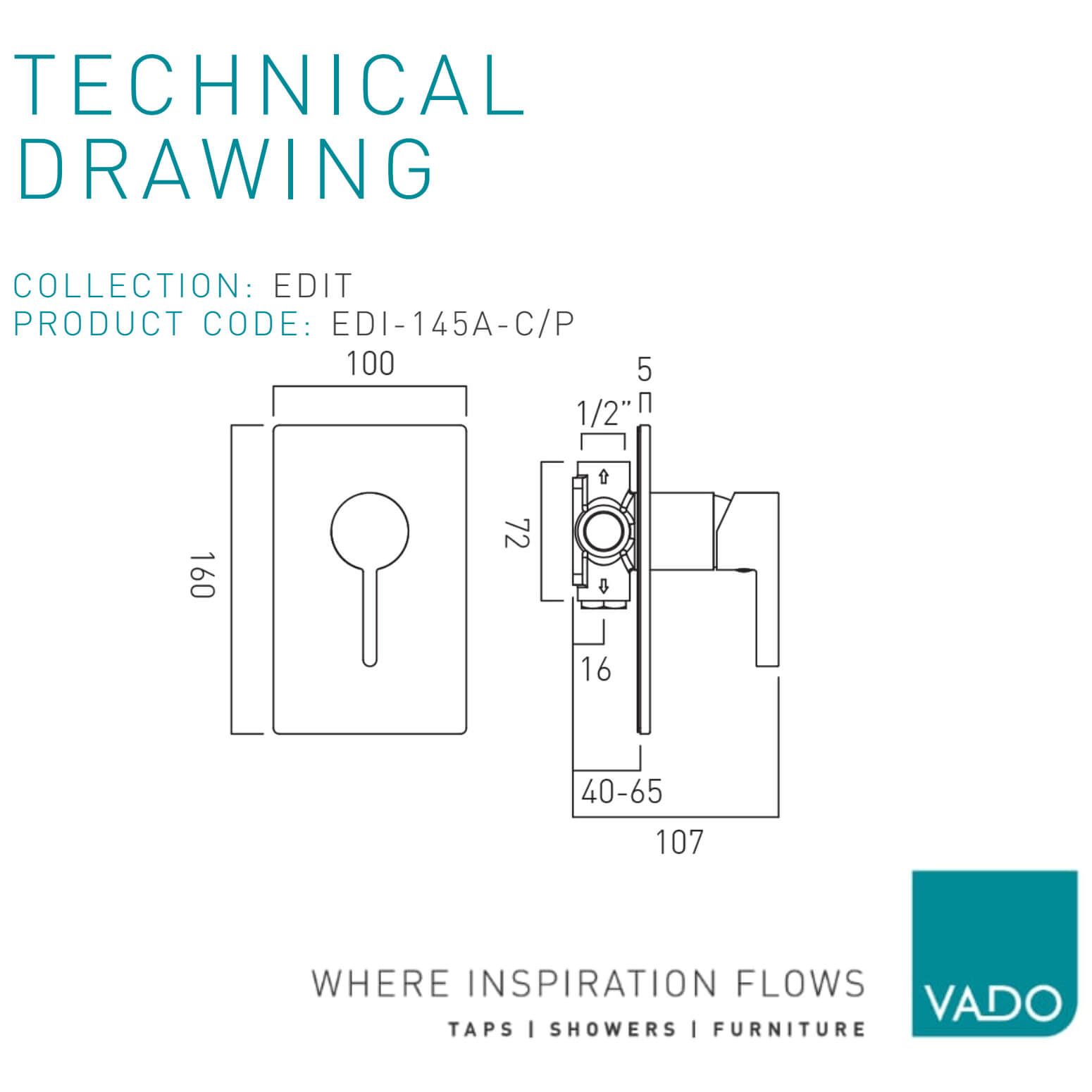

Technical Images

Vado Edit Contemporary Concealed Manual Shower Valve - Rectangular Trim - 1 Control

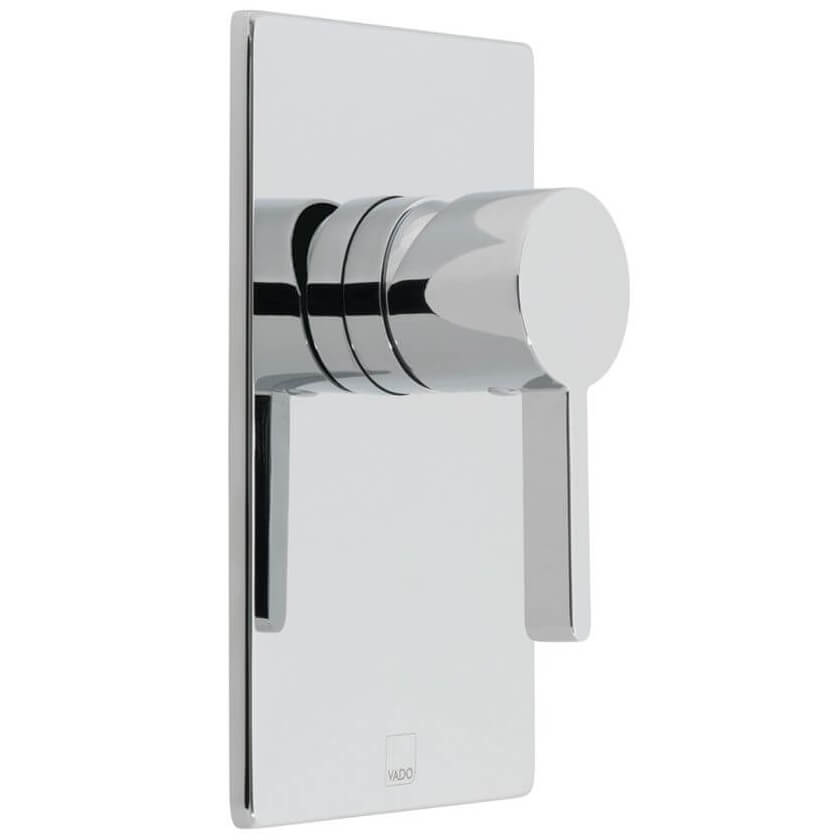

Without Diverter

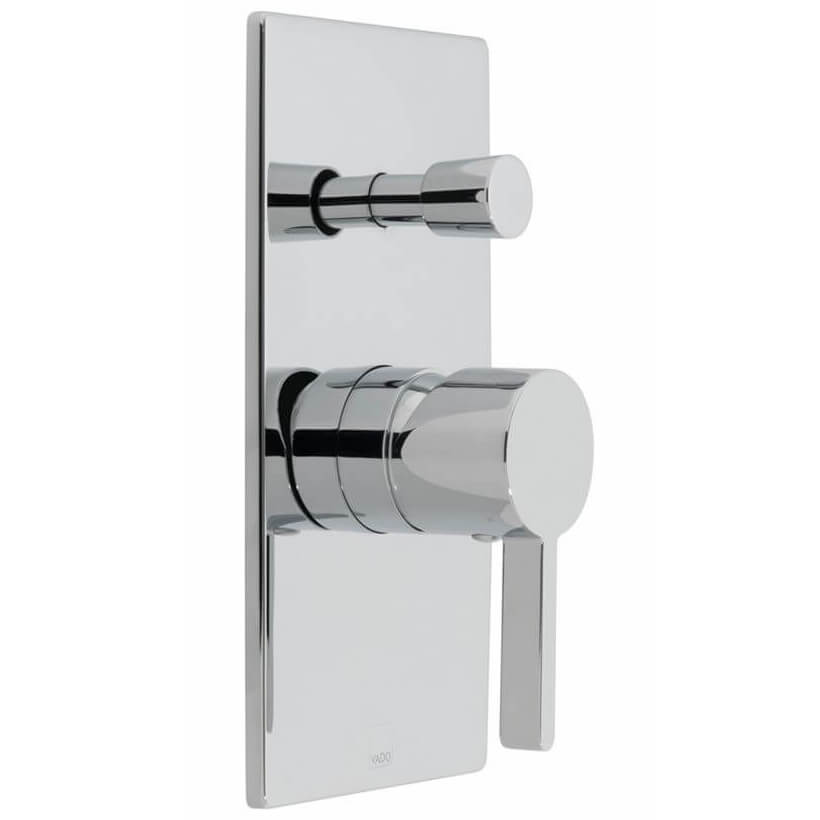

With Diverter

£115.79

RRP: ~~£220.00~~

Stock Availablity: 3-4 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

Optional: Diverter In Showers

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
