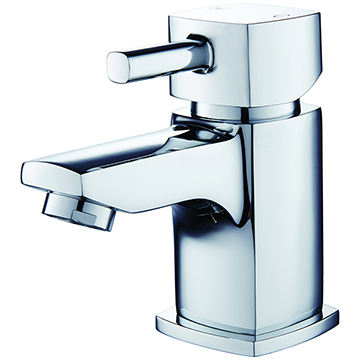

Niagara Conway Deck Mounted Mono Basin Mixer Tap Chrome With Waste

Niagara Conway 9112 Details

The Niagara Conway Deck Mounted Mono Basin Mixer Tap with Waste is a WRAS approved unit that includes a body crafted from brass as well as zinc crafted handle as well. Coated in a shining chrome finish and ideal for deck-mounted installation within any modern or traditional bathroom layout, this product also comes supplied with a 35mm brass-crafted click-clack waste along with it as well. Suitable for use with a low-pressure water system, this unit requires between 0.2 bar and 6 bar of water pressure to function properly.

Available in 2 Variations - Standard or WRAS approved [Optional
It comes in a chrome finish
Suitable for deck-mounted installation
Height: 98mm (9.8cm)
Flexible inlets
Inlet Connections: 1/2" BSP
The Centre of the inlet to the Centre of the outlet is 95mm (9.5cm)
Weight: 1.47 kg
The pressure required: Min. 0.2 bar and max. 6 bar
Refer to the technical drawing for more size details
Please note: Standard tap is not WRAS approved

Info / Size (mm)

Tap
Pipe Centre: 95 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Conway
⤷ Water Activation
: By Lifting/Tilting
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upward
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Handle Material
: Zinc

⤷ Base To Spout
: 39
⤷ Spout Reach
: 95
⤷ Overall Height
: 98
⤷ Inlet Connections
: 1/2 Inch BSP
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Waste Type
: Click-Clack
⤷ Flow Rates (l/min)
: 0.5 bar - 1.2 | 1 bar - 2.5 | 3 bar - 4.8
⤷ Handle Style
: Lever
⤷ Waste Included
: Yes
⤷ Barcode
: 5057199929211
⤷ Product Type
: Basin Mixer Tap

Niagara Conway Deck Mounted Mono Basin Mixer Tap Chrome With Waste

£31.98

RRP: ~~£57.00~~

IN-STOCK

Delivery in 2 Working Days Approx.

QS Supplies

5 Features Included In This Product Explained

Optional: WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Click-Clack Waste

Also called the Push button or Sprung waste, this waste needs a push down on the stopper to close and a click to open it back again. It is the most commonly used waste due to the ease of its operation.

Monobloc Tap

A Monobloc/Mono tap has a single control lever that adjusts the mix of hot and cold water supplies and the flow rate. A mixer tap has two separate controls for hot and cold water. Both work equally well, and your choice will come down to aesthetics and how many tap holes your sink has. Monobloc taps are a neater solution and more modern in appearance.

Zinc

Zinc is a versatile lustrous, relatively brittle metal which finds many applications, as it is corrosion resistant and alloys easily with other metals to enhance their properties. Its important applications are galvanisation, and battery production. It is a good electrical conductor and also malleable so it can take on different shapes.
