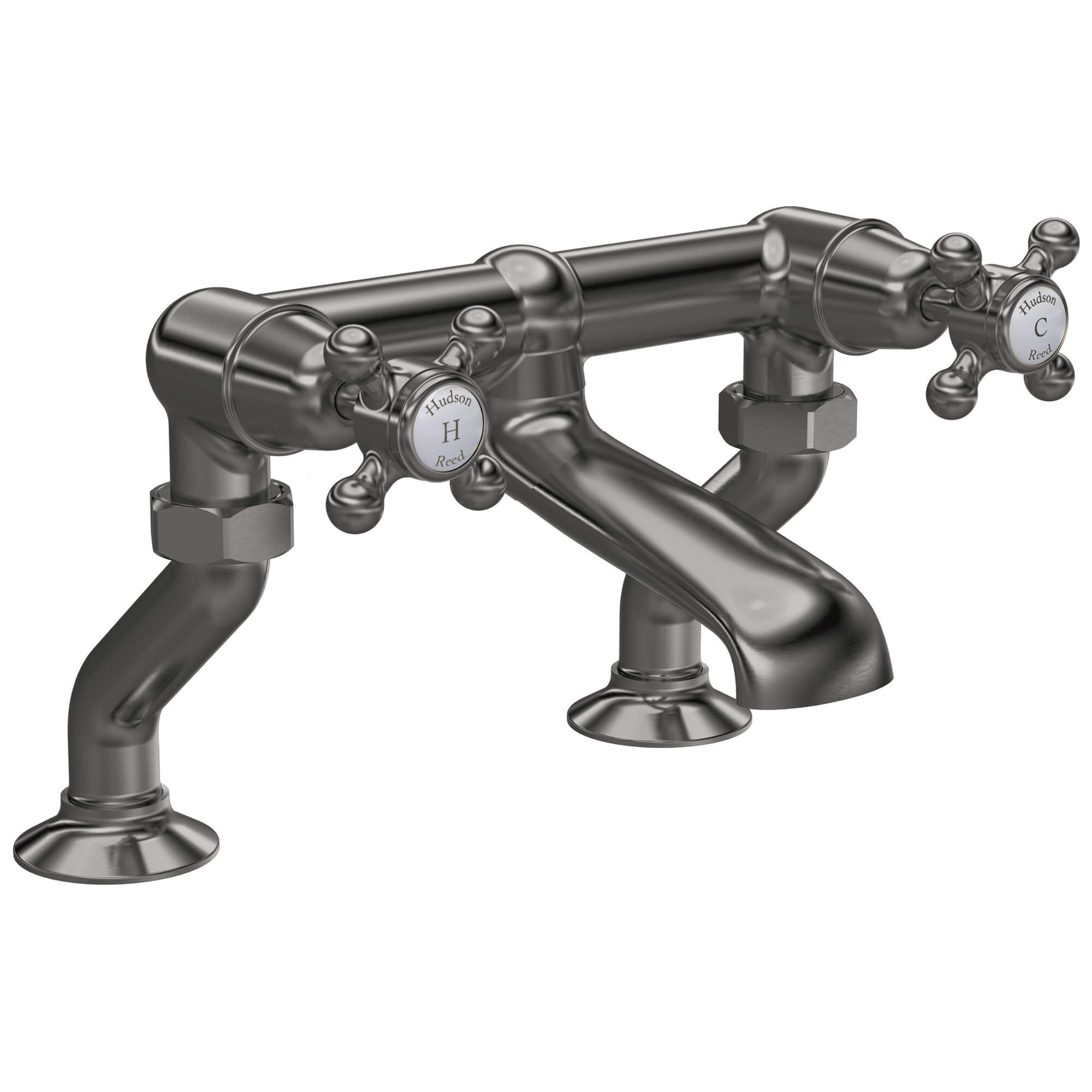

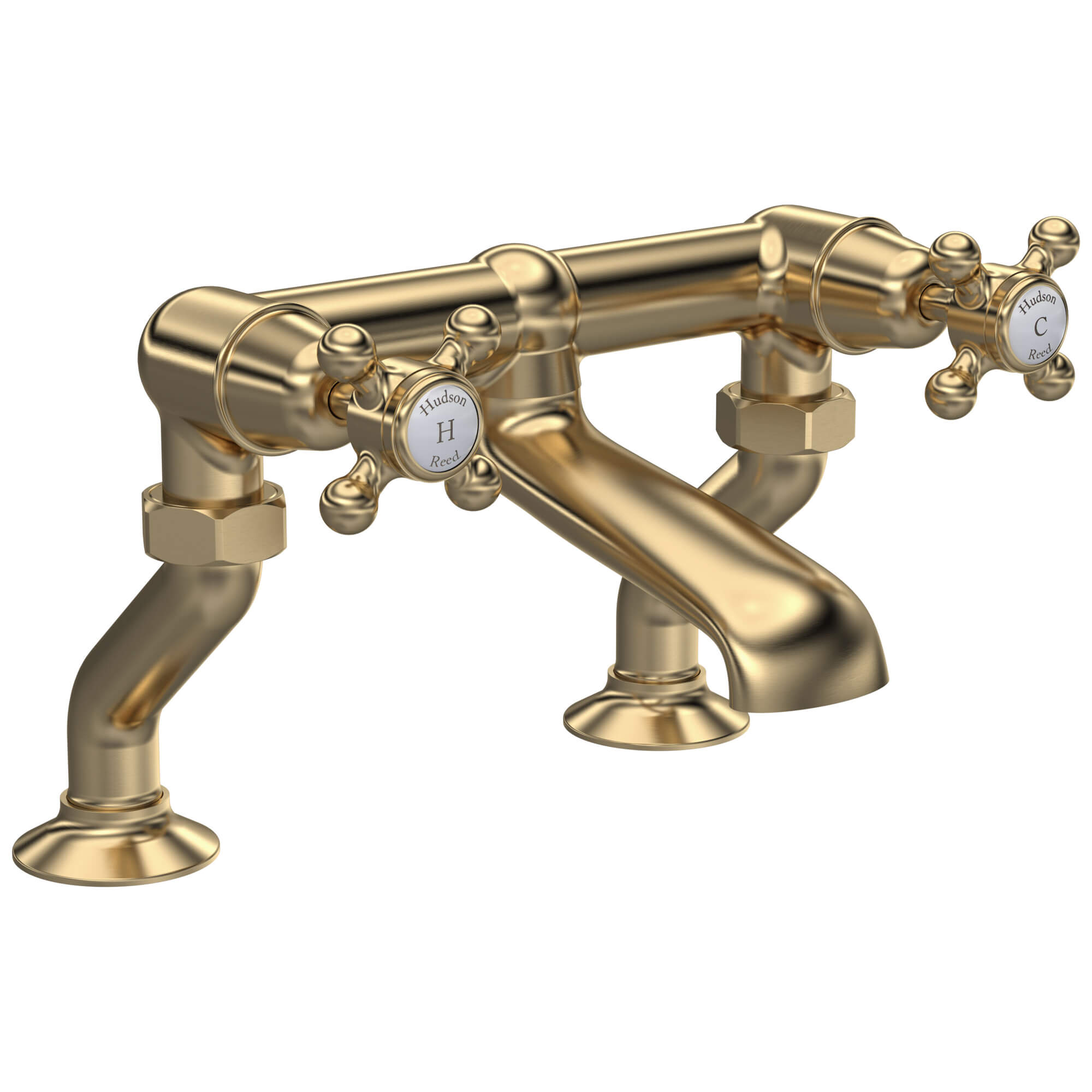

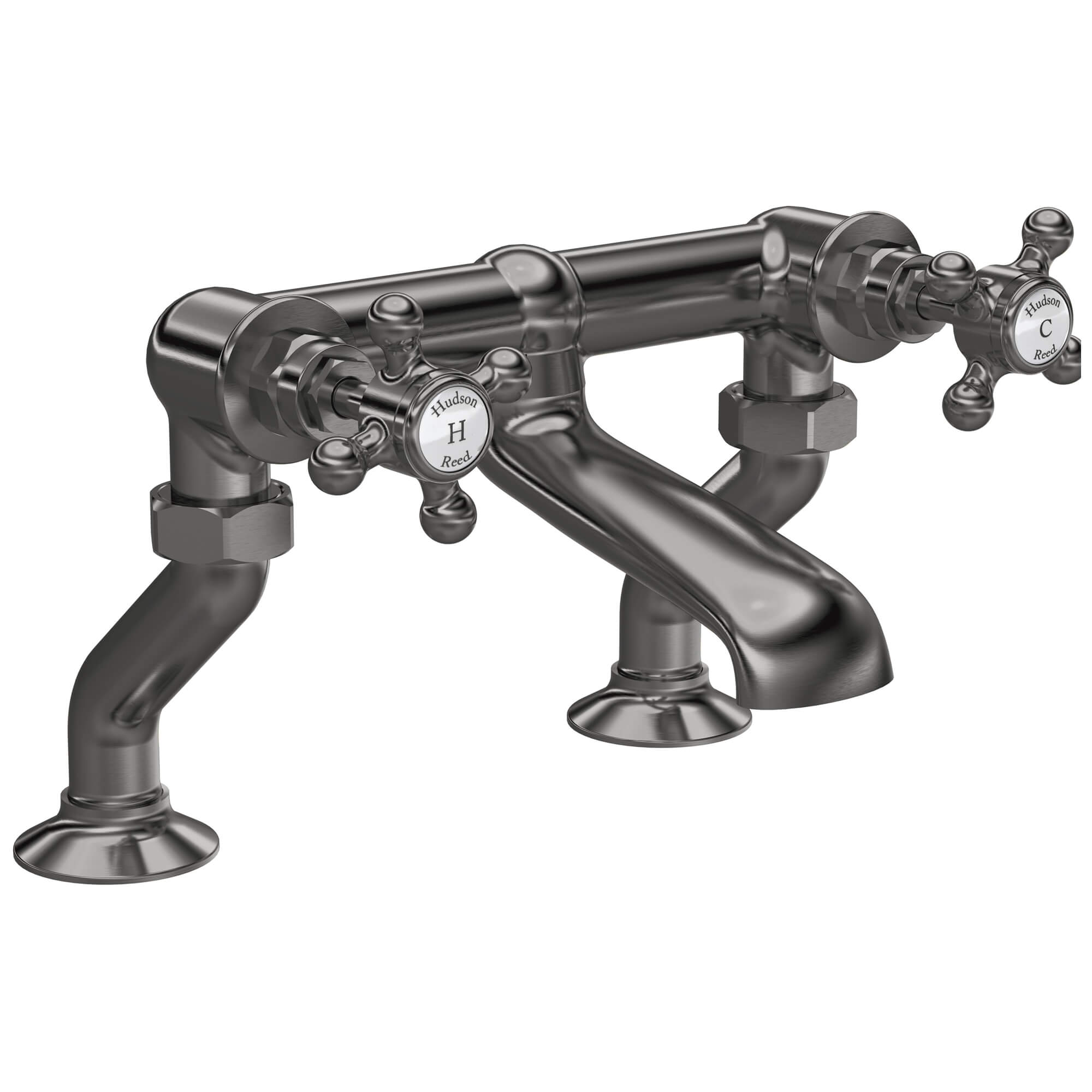

Hudson Reed Topaz Deck Mounted Bath Filler Tap Chrome

£129.47

RRP: £394.00

STOCK AVAILABLITY:

In-Stock In Stock

Not Yet Rated No Rating

Shipping: £7.95

Delivery in 2 Working Days Approx.
Select Handle
You've Selected: OP-156600 - White Crosshead Handle - Hexagonal Collar
Key Features
  • Choice of white or black finish available [Optional]
  • Cartridge type: 1/4 turn
  • Features ceramic disc technology for long life and ease of use
  • High-quality brass internals with a luxury chrome finish
  • Twenty-year guarantee from Hudson Reed against any manufacturing defects
SKU Code: QS-V90908

MFC Code: BC303HX

Hudson Reed BC303HX Details

Hudson Reed Topaz Bath Filler Tap comes in a choice of crosshead or lever handles for you to choose from. The collar can also be Hexagonal or Dome while the rest of the bath filler body comes in a timeless design. It features ceramic disc technology for smooth functionality, and its high quality brass internals comes with a luxury chrome finish. The bath filler is suitable for low water pressure system and requires a minimum of 0.2 bar of water pressure for efficient working. It measures 262mm in width, 217mm in depth and 187mm in height.

  • Deck-mounted bath filler tap
  • Available in crosshead or lever handle [Optional]
  • Taps come in Hexagonal or Dome collars [Optional]
  • Stunning traditional bath filler offering a timeless design
  • Number of tap holes required: 2
  • Weight: 2kg
  • Suitable for low water pressure system
  • Required minimum 0.2 bar of water pressure for smooth flow
  • The centre of the inlet to the centre of the outlet is 176mm (17.6cm)
  • Technical details for crosshead handle tap
  • Size [mm]: 262mm x 217mm x 187mm [Width x Depth x Height]
  • Size [cm]: 26.2cm x 21.7cm x 18.7cm [Width x Depth x Height]
  • Technical details for lever handle tap
  • Size [mm]: 338mm x 217mm x 175mm [Width x Depth x Height]
  • Size [cm]: 33.8cm x 21.7cm x 17.5cm [Width x Depth x Height]
  • During installation, extra care must be taken to avoid damaging the fittings
  • For complete size details, please refer to technical drawing

Info / Size (mm)

  • Tap
  • Pipe Centre: 176 mm

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Water Activation
  • : By Rotating
  • ⤷ Handle Position
  • : Left And Right
  • ⤷ Tap Body Shape
  • : Round
  • ⤷ Range
  • : Topaz
  • ⤷ Colour
  • : Chrome
  • ⤷ Warranty/Guarantee
  • : 20 Years
  • ⤷ Material
  • : Brass
  • ⤷ Theme
  • : Traditional
  • ⤷ Installation Type
  • : Deck Mounted
  • ⤷ No. of Holes Required
  • : 2
  • ⤷ Spout type
  • : Fixed
  • ⤷ Valve Included
  • : Yes
  • ⤷ Valve/Cartridge Type
  • : Ceramic Disc Cartridge
  • ⤷ Base To Spout
  • : 63
  • ⤷ Spout Reach
  • : 176
  • ⤷ Overall Height
  • : 187
  • ⤷ Width
  • : 262
  • ⤷ Depth
  • : 217
  • ⤷ Inlet Connections
  • : G3/4 Inch
  • ⤷ Minimum Operating Pressure (Bar)
  • : 0.2
  • ⤷ Hose Included
  • : No
  • ⤷ Flow Rates (l/min)
  • : 0.1 bar - 10 | 0.5 bar - 36.2 | 1 bar - 53 | 2 bar - 75.7 | 3 bar - 92
  • ⤷ Handle Style
  • : Crosshead
  • ⤷ Barcode
  • : 5.05621E+12
  • ⤷ Product Type
  • : Bath Filler Tap
£129.47
RRP: £394.00
IN-STOCK In Stock Delivery in 2 Working Days Approx.
QS Supplies
Other Sizes / Finishes
Sizes Available
Other Sizes / Finishes / Variations Available.
QS Code Finish Size / Difference MFC Code
QS-V90910 - Wall Mounted BC303HXWM

2 Features Included In This Product Explained

Ceramic Disc Cartridge

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Low Water Pressure

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...
