Duravit Architec 635mm Corner Washbasin

Duravit Architec 0448450000 Details

A bold and uber-chic statement basin has a square format with circular curves within, giving it a sleek look. Designed to be placed anywhere to make the right impact, it can be used Solo or mix and match with other bathroom ware and topped with a compact basin mixer tap as the ideal accompaniment. This Space-saving Corner Washbasin is the ideal solution for compact bathrooms in modern houses. Brought to you by Duravit Architec, this washbasin with a tap platform is easy to fit. 635mm wide, made of the finest material and finished in White Alpin, it carries a 5-year warranty and comes with options such as a chrome-finish continuous flow waste and a tap-hole punched on the left side.

It comes with 1 tap hole punched (left) and 1 pre-punched tap hole for the soap dispenser (right).
Size [mm]: 635mm x 540mm x 150mm [Width x Depth x Height].
Size [cm]: 63.5cm x 54cm x 15cm [Width x Depth x Height].
Underneath glazed.
Tap and waste shown in the image are not included.

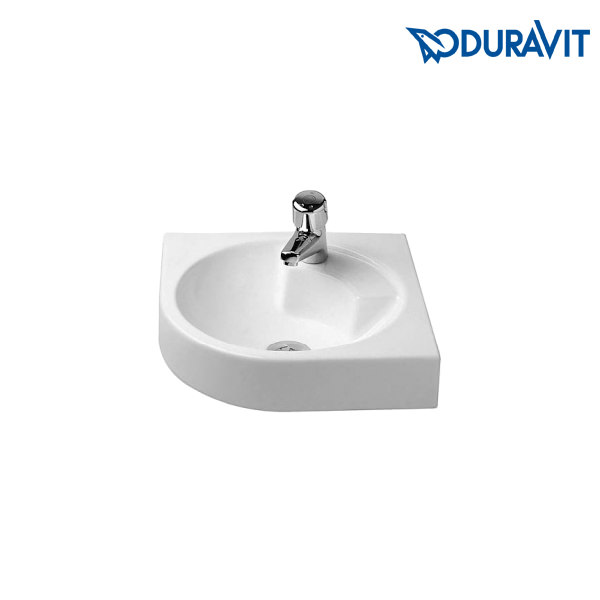

The image shown is for illustration purposes only.
Weight: 12 kg.
Without overflow.
Continuous flow waste [Optional].

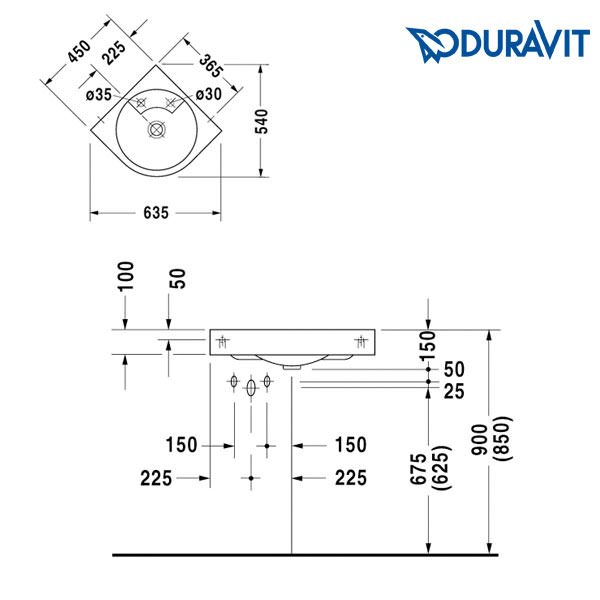

The technical drawing is provided for more specifications.

Note: Pop-up waste cannot be used.

Info / Size (mm)

Basin
Width: 635 mm
Depth: 540 mm
Height: 150 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Architec
⤷ Basin Underside
: Glazed
⤷ Coating
: Without Coating
⤷ Colour
: White
⤷ Weight in kg
: 12
⤷ Country of Origin
: Germany
⤷ Warranty/Guarantee
: 5 Years
⤷ Theme
: Modern
⤷ Waste Included
: Sold Separately
⤷ Projection (Depth)
: 540
⤷ Width
: 635

⤷ Height
: 150
⤷ Number of bowls
: 1
⤷ No. of Tap Holes
: 1
⤷ Tap Hole Position
: Left
⤷ Overflow Included
: No
⤷ Tap Hole Size
: 35
⤷ Barcode
: 4021534084812
⤷ Distance finished floor level to top edge
: 900
⤷ Distance hot/cold water inlet
: 150
⤷ Product Type
: Corner Basin

Total: £266.15 7 Working Days Approx QS Supplies

1 Features Included In This Product Explained

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called “without overflow” and will need a compatible drain.
