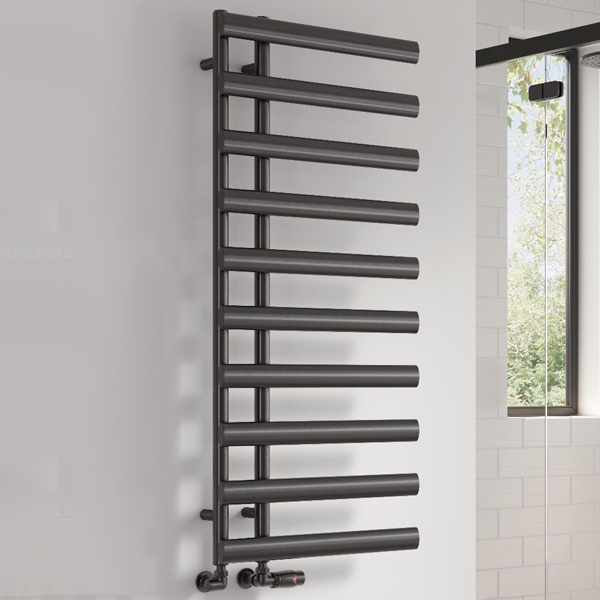

Reina Grace 500mm Wide Steel Designer Radiator

£117.18

RRP: £189.00

STOCK AVAILABLITY.

In-Stock In Stock

Not Yet Rated No Rating

Shipping: FREE* Check Postcodes

Delivery in 4 Working Days Approx.
Product Variants
Select Finish Step 1
Select Height Step 2
Select Radiator Type Step 3
Select Heating Element Step 4
Select Essential Accessories Step 5
SKU Code: QS-V95299

MFC Code: RND-GRC078W

Reina Grace RND-GRC078W Details

The Reina Grace 500mm Wide Steel Designer Radiator is a chic and fashionable addition to any bathroom or similarly sized area of your home or office. A sleek and remarkably functional unit that boasts stunning finish from top to bottom, this product is beautifully constructed from gorgeous stainless-steel material that is made to last and keep looking great for a very long time to come. Supplied with an air vent and an end plug, this product also includes the brackets required for installation and is suitable for use with central, electric and dual fuel systems.

Key Features
  • Choice of different finishes: White, Anthracite and Chrome - [Optional]
  • Manufactured using steel material
  • Supplied with Air vent and End plug
  • Five years of guarantee from Reina against manufacturing defects
  • Available in different height: 780mm and 1140mm - [Optional].
  • Variants available: Central heating, Dual Fuel and Electric - [Optional].
  • Heating element type: Standard, On/Off Touch, LST Mini Round Thermostatic, Mini Round, Touch Thermostatic, LST Weekly Thermostatic and Weekly Thermostatic - [Optional].
  • Width: 500mm (50cm).
  • Pipe centre: 100mm (10cm).
  • Wall to pipe centres: 61mm-76mm (6.1cm-7.6cm).
  • Distance from wall: 102mm-117mm (10.2cm-11.7cm).
  • EN 442 compliant product.
  • Suitable for central, electric and dual fuel heating systems.
  • Brackets for radiator included.
  • Valves, Sleeving kit and chrome pipe kit [Optional].
  • For the Dual Fuel and Electric model, Heating Elements are highly recommended in combination with T-Piece.
  • For Electric models, Optional Liquid Filling is required with the heating element.
  • For BTU and Watts, Please refer to the Product Variations Info and MFC Code section.
  • The valves shown in the image are not included.
  • Download the Installation Guide PDF File from the Additional Info Section.
  • Refer to the technical diagram for the complete technical dimensions.

Please Note: The appropriate wattage of the element if selected will be decided by the manufacturer, once the order is placed.


Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : Grace
  • ⤷ Colour
  • : White
  • ⤷ Shape
  • : Straight
  • ⤷ Country of Origin
  • : Turkey
  • ⤷ Warranty/Guarantee
  • : 5 Year
  • ⤷ Material
  • : Stainless Steel
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Wall Mounted
  • ⤷ Width
  • : 500
  • ⤷ Height
  • : 780
  • ⤷ Orientation
  • : Vertical
  • ⤷ Barcode
  • : 5057199904331
  • ⤷ BTU Output
  • : 1210
  • ⤷ Watts
  • : 355
  • ⤷ Tapping / Pipe Centres
  • : 100
  • ⤷ Valves Included
  • : Sold Separately
  • ⤷ Fuel Type
  • : Central Heating | Electric | Dual Fuel
  • ⤷ Wall to Centre of Inlet
  • : 61-76
  • ⤷ Heating Element Included
  • : Sold Separately
  • ⤷ Element Type
  • : Standard | Thermostatic
  • ⤷ Brackets Included
  • : Yes

Additional Info & Downloads

Download PDF Download the Heating Element Manual Instructions Pdf File Download PDF Download the Details Of Heating Elements Pdf File Download PDF Download the Installation Guide Pdf File


Technical Images


Customise Your Product

Optional Accessories
Optional Accessories

Reina provides optional accessories that you may require for the installation. The manufacturer highly recommends these Accessories. Please Note: The image shown is for illustration purpose only.

Total: £117.18 5 Working Days Approx QS Supplies

Product Variations Info & MFC Code
Details Of White Steel Designer Radiator
Sizes 500 x 780mm 500 x 1140mm
Pipe Centres 100mm 100mm
Wall To Pipe Centre 61-76mm 61-76mm
Wall Distance 102-117mm 102-117mm
Tube Quantity 7 10
Total Gap 6 9
Watts - Delta-70 515 727
BTU - Delta-70 1755 2480
BTU - Delta-60 1439 2033
BTU - Delta-50 1132 1600
BTU - Delta-45 986 1393
BTU - Delta-40 852 1204
BTU - Delta-35 713 1008
BTU - Delta-30 579 818
BTU - Delta-25 226 319
White MFC RND-GRC078W RND-GRC114W
Details Of Anthracite Steel Designer Radiator
Sizes 500 x 780mm 500 x 1140mm
Pipe Centres 100mm 100mm
Wall To Pipe Centre 61-76mm 61-76mm
Wall Distance 102-117mm 102-117mm
Tube Quantity 7 10
Total Gap 6 9
Watts - Delta-70 515 727
BTU - Delta-70 1755 2480
BTU - Delta-60 1439 2033
BTU - Delta-50 1132 1600
BTU - Delta-45 986 1393
BTU - Delta-40 852 1204
BTU - Delta-35 713 1008
BTU - Delta-30 579 818
BTU - Delta-25 226 319
Anthracite MFC RND-GRC078A RND-GRC114A
Details Of Chrome Steel Designer Radiator
Sizes 500 x 780mm 500 x 1140mm
Pipe Centres 100mm 100mm
Wall To Pipe Centre 61-76mm 61-76mm
Wall Distance 102-117mm 102-117mm
Tube Quantity 7 10
Total Gap 6 9
Watts - Delta-70 355 501
BTU - Delta-70 1210 1710
BTU - Delta-60 992 1402
BTU - Delta-50 781 1103
BTU - Delta-45 680 961
BTU - Delta-40 587 830
BTU - Delta-35 492 695
BTU - Delta-30 399 564
BTU - Delta-25 156 220
Chrome MFC RND-GRC078C RND-GRC114C

7 Features Included In This Product Explained

Central Heating

Central Heating

'Standard' radiators and towel warmers are connected to your central heating system, so hot water flows through them to heat them.
Read more...

Optional: Dual Fuel

Optional: Dual Fuel

These radiators or towel warmers can run on a conventional gas-powered central heating system or via your mains electrical supply. You can choose whether or not you want your radiator or towel warmer to come on independently of your central heating system, which is especially useful in summer. These radiators are compatible with heating and hot water, whether the system is open (direct) or closed (indirect).

BTU Output

BTU Output

It is the short form of a British thermal unit (BTU or Btu) and is defined as the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit. It is a standard unit against which radiator efficiency is measured.
Read more...

Watts Output

Watts Output

Unit of power to measure electric current.

Air Vent

Air Vent

An air vent or a radiator air valve or bleed valve, is a small part of the radiator. Its role is to release trapped air or gases from inside the radiator, keeping the appliance heating efficiently and evenly. An Air vent can be an automatic air vent or manually opened to release air and are made of metal or plastic.

Optional Sleeving Kit

Optional Sleeving Kit

A sleeving kit in a radiator heating system are components or materials used to sleeve or insulate the pipes or tubes that circulate hot water or steam from the central heating source to the radiators or heating units. The sleeving kit provides thermal insulation and prevents heat loss, adding to the heating systems efficiency.

Optional: Radiator Valve

Optional: Radiator Valve

Radiator valves help control how much hot water enters and leave it, and the flow of water controls how much heat the radiator generates. These are usually found at the radiator's bottom left, and right corners, where the water pipes enter and exit, or can also be present at the bottom near the centre.
Read more...
