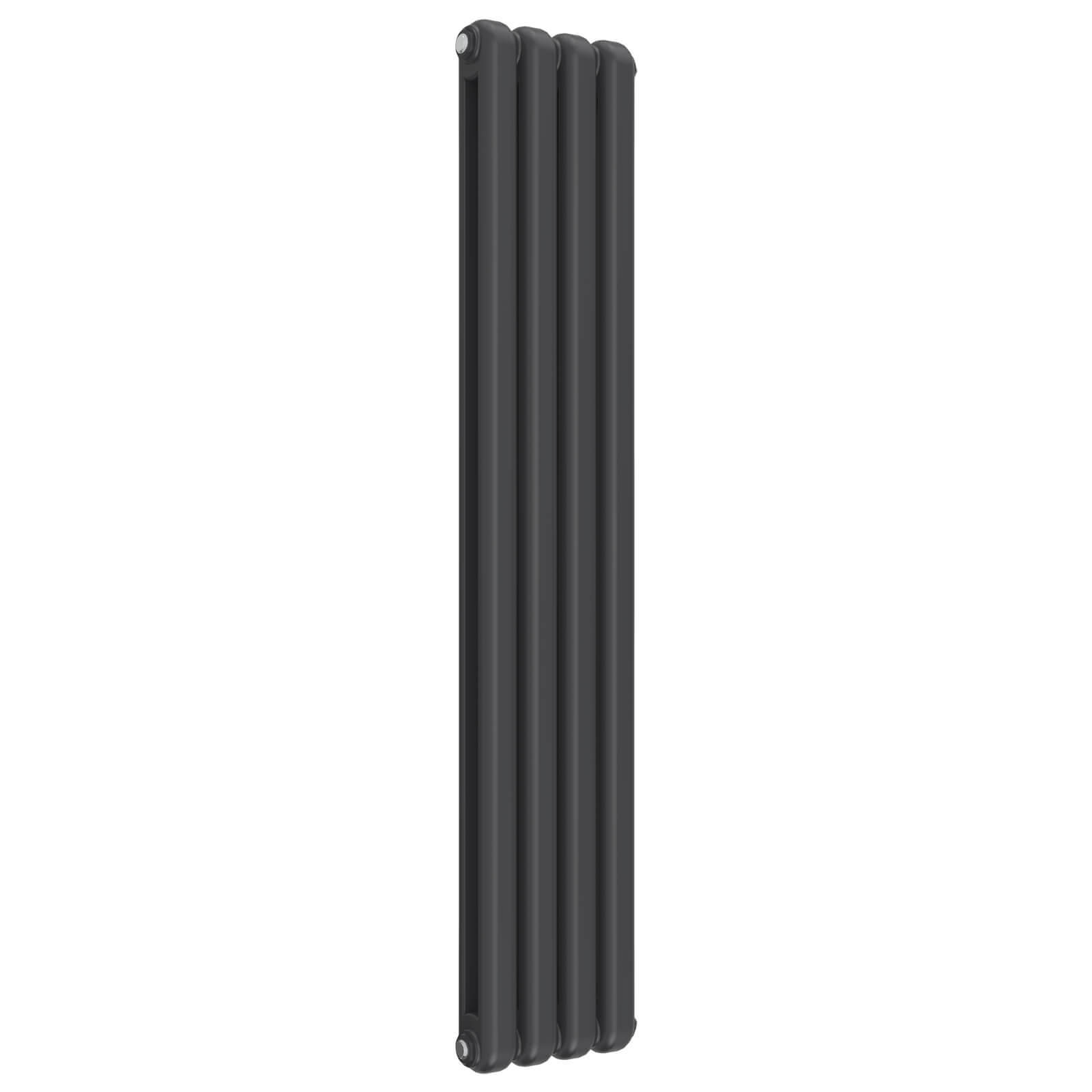

Reina Coneva 1500mm High Vertical Steel Designer Radiator

Reina Coneva RND-CNV15030A Details

Reina Coneva 1500mm High Vertical Steel Designer Radiator White Or Anthracite - Width Available 440mm And 510mm.

Key Features

✔Choice of different finishes: White and Anthracite
✔Manufactured using steel material
✔Supplied with Air vent and End plug
✔Five-year guarantee from Reina against manufacturing defects

Available in different widths: 440mm and 510mm - [Optional].
Height: 1500mm (150cm).
Wall to pipe centres: 68mm (6.8cm).
Distance from wall: 113mm (11.3cm).
The valves and chrome pipes shown in the image are not included.
Vertical designer radiator.

Brackets for radiator included.
Suitable for use with a central heating system.
For BTU and Watts, Please Refer to the Product Variations Info and MFC Code section.
EN 442 Compliant Product.
Valves, Sleeving kit and chrome pipe kit [Optional].
Refer to the technical diagram for complete technical dimensions.

Radiator Calculator

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Coneva
⤷ Colour
: Anthracite
⤷ Shape
: Curved
⤷ Country of Origin
: Turkey
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Steel
⤷ Width
: 300
⤷ Height
: 1500
⤷ Orientation
: Vertical

⤷ Barcode
: 8800161125305
⤷ BTU Output
: 5031
⤷ Watts
: 1475
⤷ Tapping / Pipe Centres
: 300
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating
⤷ Heating Element Included
: Sold Separately
⤷ Brackets Included
: Yes

Technical Images

Reina Coneva 1500mm High Vertical Steel Designer Radiator

Customise Your Product

Optional Accessories

Reina provides optional accessories that you may require for the installation. The manufacturer highly recommends these Accessories. Please Note: The image shown is for illustration purpose only.

No Option Selected
OP-113634 - 200mm Chrome Pipe Kit + £14.14

Total: £165.30 5 Working Days Approx QS Supplies

Product Variations Info & MFC Code

Height	300mm	370mm	440mm	510mm
Tube Quantity	4	5	6	7
Pipe Centres	300mm	370mm	440mm	510mm
Wall To Pipe Centres	68mm	68mm	68mm	68mm
Wall Distance	113mm	113mm	113mm	113mm
Watts - Delta-70	1475	1844	2213	2582
BTU - Delta-70	5031	6289	7548	8803
BTU - Delta-60	4124	5155	6187	7216
BTU - Delta-50	3246	4057	4870	5679
BTU - Delta-45	2826	3533	4240	4946
BTU - Delta-40	2442	3053	3664	4273
BTU - Delta-35	2045	2557	3068	3578
BTU - Delta-30	1660	2076	2491	2905
BTU - Delta-25	647	808	970	1131
White MFC	RND-CNV15030W	RND-CNV15037W	RND-CNV15044W	RND-CNV15051W
Anthracite MFC	RND-CNV15030A	RND-CNV15037A	RND-CNV15044A	RND-CNV15051A

2 Features Included In This Product Explained

Central Heating

'Standard' radiators and towel warmers are connected to your central heating system, so hot water flows through them to heat them.
Read more...

Optional Sleeving Kit

A sleeving kit in a radiator heating system are components or materials used to sleeve or insulate the pipes or tubes that circulate hot water or steam from the central heating source to the radiators or heating units. The sleeving kit provides thermal insulation and prevents heat loss, adding to the heating systems efficiency.
