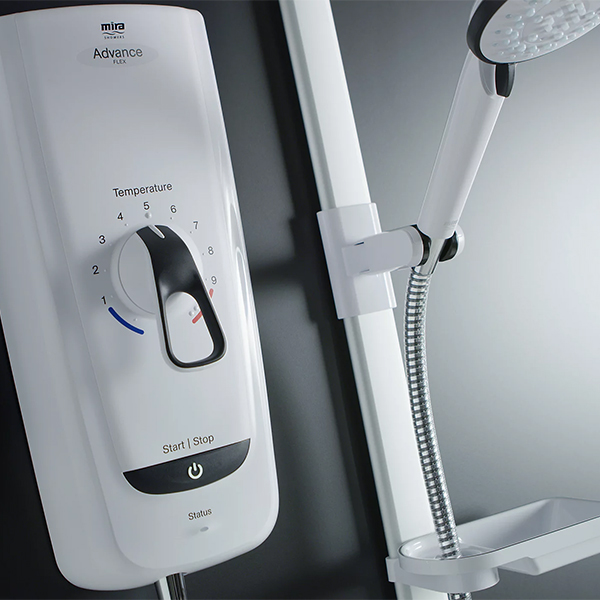

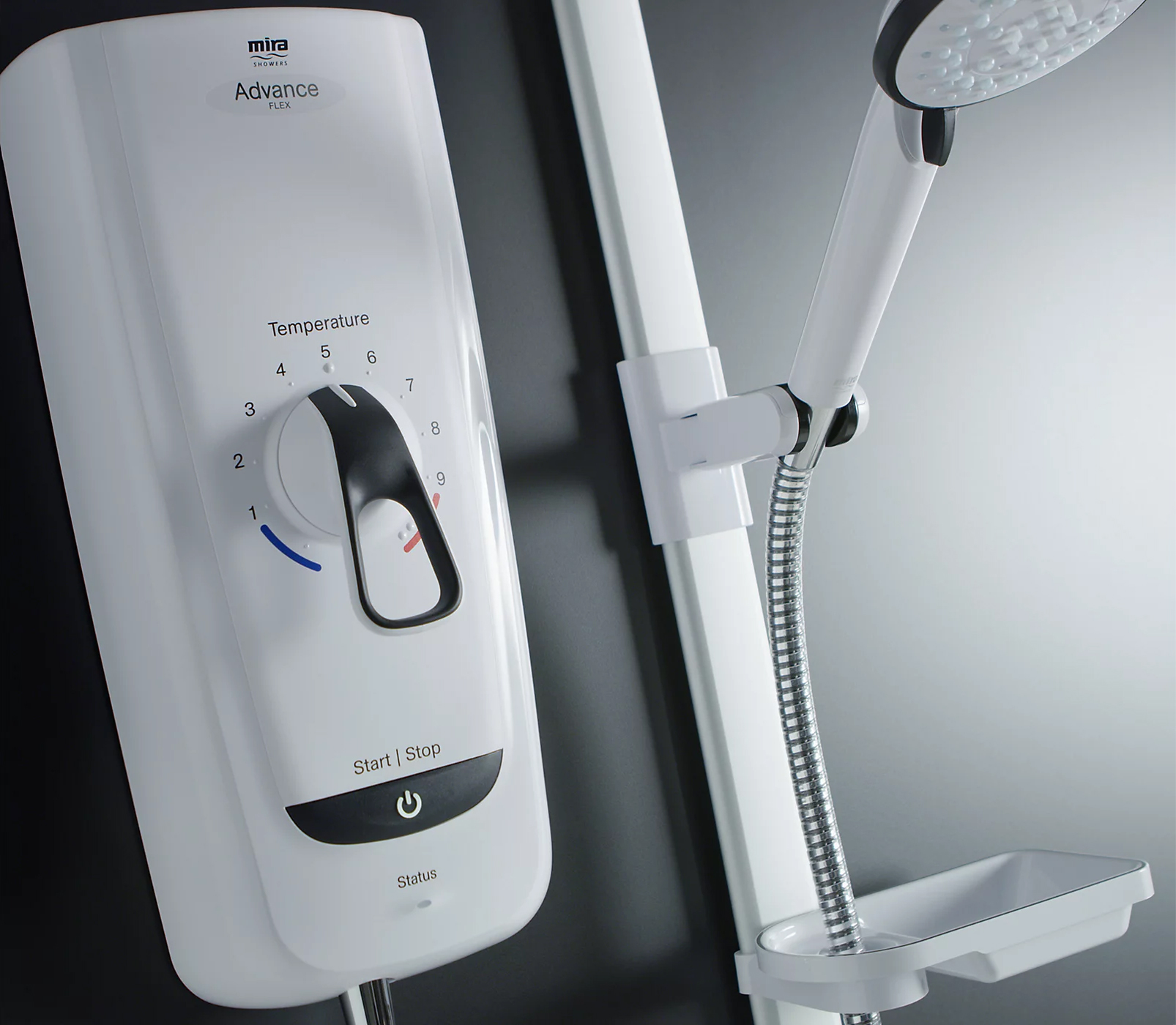

Mira Advance Flex 9.8kW Thermostatic Electric Shower White And Chrome

£466.28

STOCK AVAILABILITY

2-3 Working Days Approx

Not Yet Rated No Rating

Shipping: FREE* Check Postcodes

Key Features
  • Built-in fault diagnostics
  • Large easy press power button
  • Light touch controls

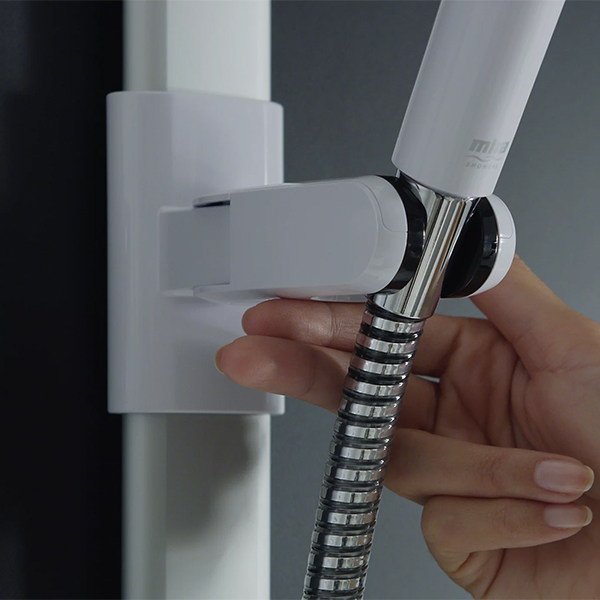

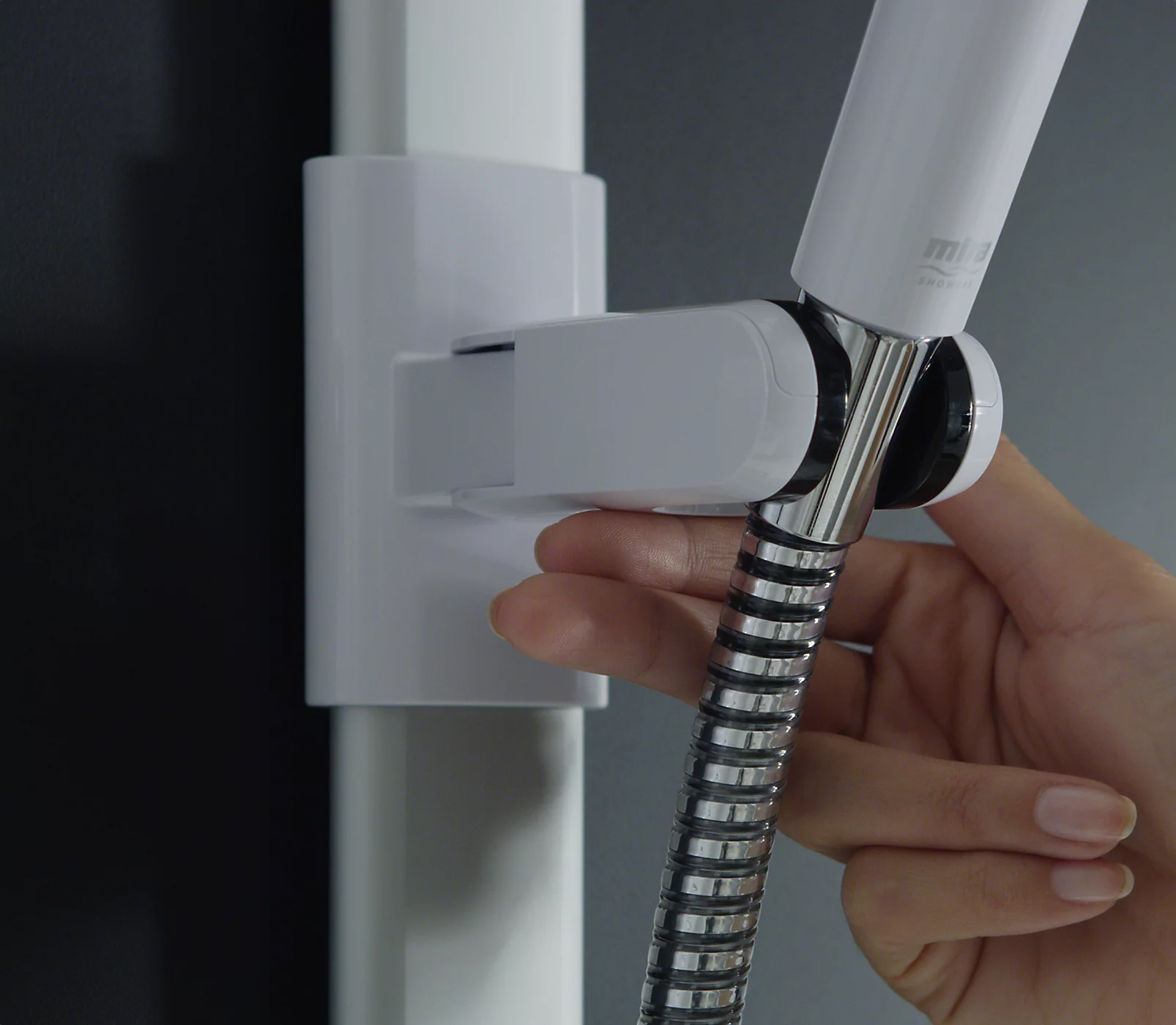

  • Patented friction grip hand shower holder
  • Audible and tactile features for the visually impaired user
SKU Code: QS-V95289

MFC Code: 1.1785.004

Mira Advance 1.1785.004 Details

Take control over your showering experience with the precise control over water flow and water temperature with the Mira Advance Flex 9.8kW Thermostatic Electric Shower. This unit comes with Mira Opti-Flo Pro technology that allows for even and efficient performance, no matter how you have it set. The control box measures 187 millimetres in width by 110 millimetres in depth by 408 millimetres in height. The shower features a 110-millimetre shower head that offers three modes of water spray to choose from as well as a 1058-millimetre-long slide bar to allow you to adjust its height.

  • Manufacturing code of this product: 1.1785.004.
  • It comes in a white and chrome finish.
  • Wattage 9.8kW rating.
  • Control Type: Thermostatic.
  • Adjustable maximum temperature for on-site conditions.
  • Reduces risk of scalding and ensures user safety.
  • A simple setup means a fast and hassle-free installation.
  • Easy filter access.
  • Easily accessible controls free from clutter with high contrast on critical touch points.
  • Four different maximum temperature settings.
  • Mira Opti-flo Pro technology for consistent performance.
  • Mira Clearscale Pro technology reduces limescale build-up.
  • Anti-glare, matte finish panel.

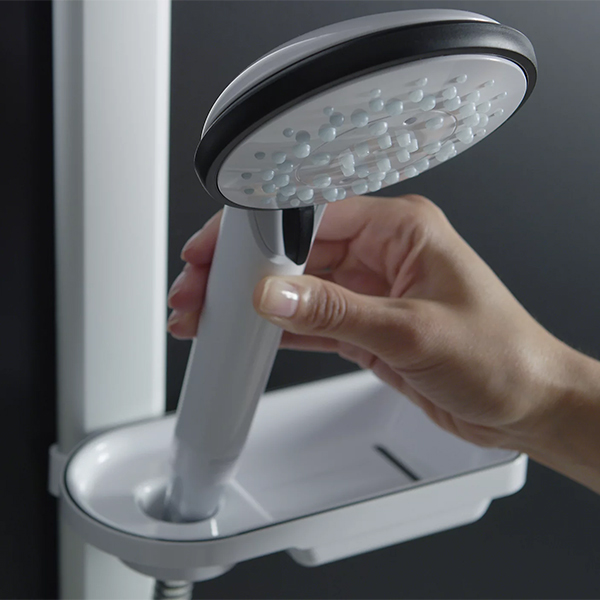

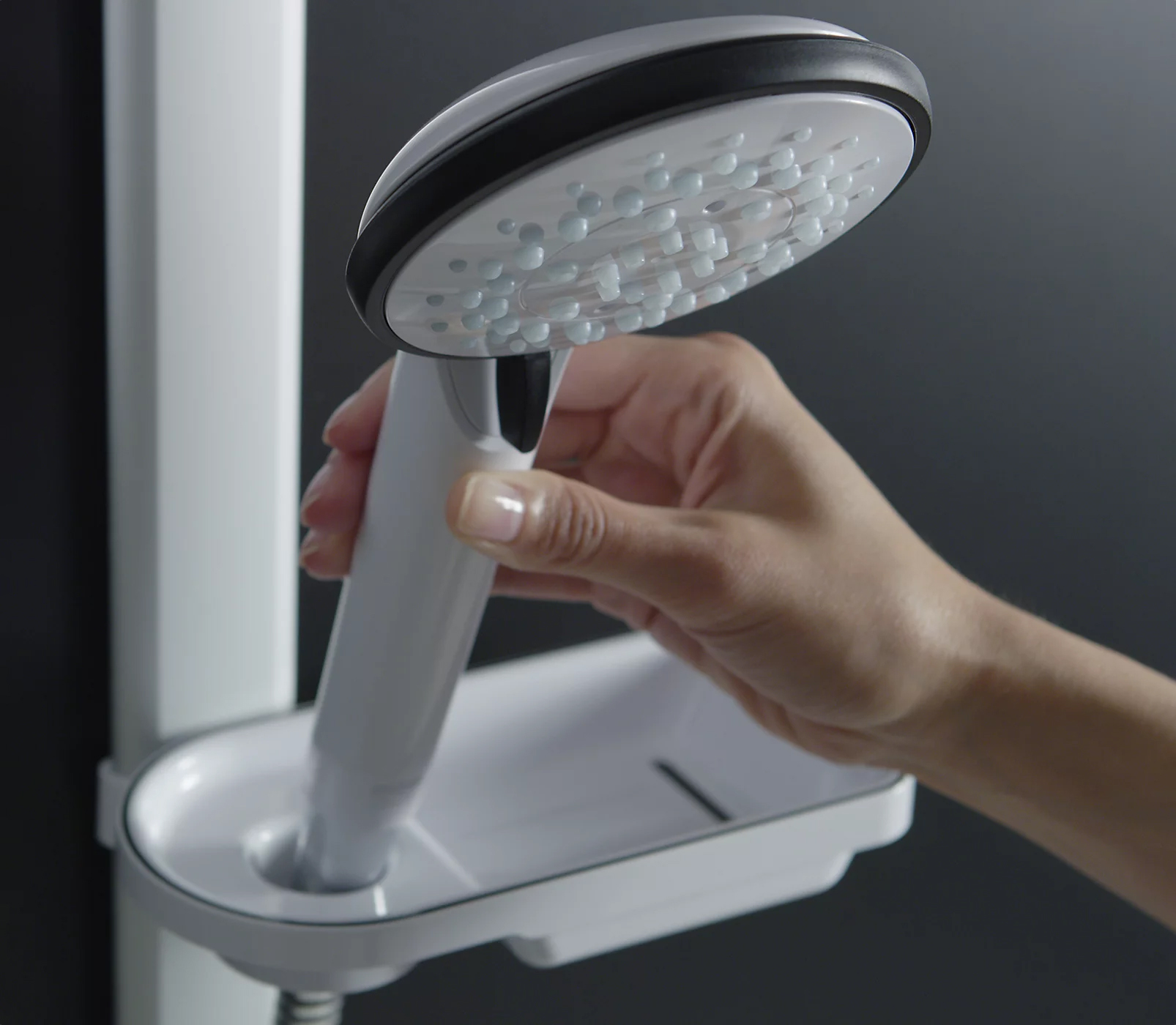

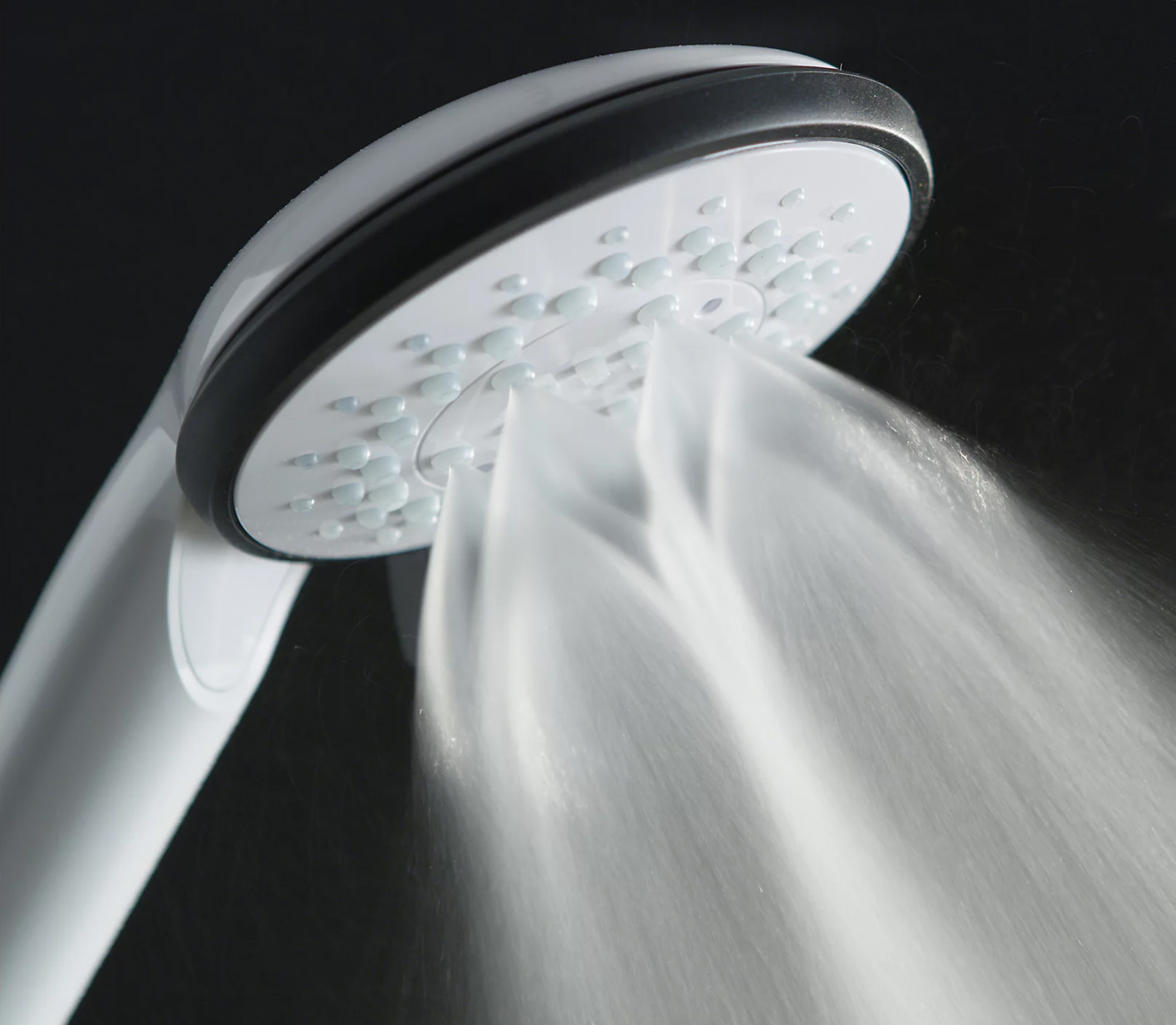

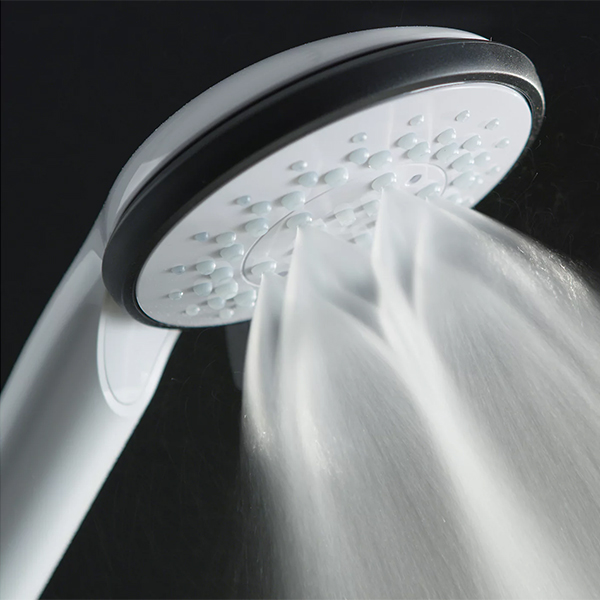

  • 110mm 3 spray modes hand shower with easy clean removable spray plate.
  • Easy clean removable spray plate.
  • Power options: 240V AC.
  • Supply voltage: 230v ± 10%.
  • Supply rating: 45 amp.
  • Terminal Block connections: Maximum 16mm².
  • Water entry points: Right (rising, falling and rear).
  • Cable entry points: Right (rising, falling and rear).
  • Inlet connections: 1/2inch 0BSP male or 15mm compression.
  • Outlet connections: 1/2inch BSP Male.
  • Minimum maintained pressure: 0.5 bar (5-metre head), (1.0 bar BEAB Care).
  • Maximum maintained pressure: 5.0 bar (50-metre head).
  • Maximum static pressure: 10.0 bar (100-metre head).
  • Temperature stability: ± 1°C.
  • Phased shutdown: Yes.
  • Factory set to safe max temp: Adjustable to 4 different max temp settings (41° C - 48° C).
  • Energy Efficiency: Class A.
  • Refer to the technical drawing for more size details.
  • Download the Installation and User Guide PDF File from the Additional Info Section.
  • Two year warranty from Mira against manufacturing defects.
  • Product Approvals:.
  • BEAB CARE.
  • BEAB.
  • RNIB Gold awarded.
  • KIWA.
  • WRAS.

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Colour
  • : White And Chrome
  • ⤷ Country of Origin
  • : UK
  • ⤷ Warranty/Guarantee
  • : 2 Years
  • ⤷ Inlet Connections
  • : 1/2" BSP male or 15mm Compression
  • ⤷ Spray Pattern
  • : 3
  • ⤷ Outlet Connection
  • : 1/2inch BSP Male
  • ⤷ Compliance/Approvals/Standard
  • : WRAS | BEAB | BEAB CARE | KIWI UK | RNIB Approved
  • ⤷ Product Type
  • : Electric Shower
  • ⤷ Temperature Control
  • : Thermostatic
  • ⤷ Plumbing System Compatibility
  • : Cold Mains
  • ⤷ KW Rating
  • : 9.8
  • ⤷ Voltage
  • : 230v ± 10%
  • ⤷ Soap Dish Included
  • : Yes
  • ⤷ Touch Control
  • : Yes
  • ⤷ Phase shutdown
  • : Yes
  • ⤷ Adjustable timed shutdown
  • : Yes
  • ⤷ Audible control option
  • : Yes
  • ⤷ Adjustable maximum temperature stop
  • : 41°C - 48°C
  • ⤷ Water Entry Points
  • : Right (rising, falling & rear)
  • ⤷ Cable Entry Points
  • : Right (rising, falling & rear)
  • ⤷ Maximum Static Pressure
  • : 10.0 bar
  • ⤷ Unit Width
  • : 187
  • ⤷ Unit Height
  • : 408
  • ⤷ Unit Depth
  • : 110
