Geberit Sigma20 Square Pneumatic Urinal Flush Plate - 130 x 130mm

The Geberit Sigma20 Urinal Flush Control Pneumatic Actuation is designed to require a low actuation force for operation; the flush actuation occurs as the button is released and a flush volume of 0.5-litres of water is released with every single push of this unit. Created for use with Geberit frames for urinals that include the front actuation feature, this product provides a calculated flow rate of 0.3-litres per second. Made of sturdy plastic material, this unit is available coated in several possible finish options to best match the overall decor of the bathroom its due to be installed within.

• Size: Width 130mm (13cm) x Height 130mm (13cm)
• Thickness: 9mm (0.9cm)
• Suitable to use with Geberit Frames for Urinal with Front Actuation
• Compatible for Manual Flush Actuation of Urinals
• Installation in Installation Sets for Geberit Urinal Flush Controls
• Flush Time Setting with Air Nozzles (Pneumatic)
• Low Flush Actuation Force
• Short Stroke Movement
• Flush Actuation when the Actuator Button is Released
• Flush Volume can be Reduced to 0.5 Litres Per Flush with Regulating Screw of an Installation Set
• Flow Pressure: 1-8 Bar
• Maximum Test Pressure of Water: 16 Bar
• Maximum Test Pressure of Air / Inert Gas: 3 Bar
• Maximum Operating Water Temperature: 30° Celsius
• Maximum Actuation Force: 12 N
• Flow Rate at 1 Bar without Flow Limiter: 0.3 l/s
• Flow Rate at 1 Bar with Flow Limiter: 0.18 l/s
• Minimum Flow Pressure: 1 Bar
• Relative Humidity: ≤ 100%
• Calculated Flow Rate: 0.22 l/s
• Flush Time Adjustment Range 4s / 8s / 12s
• Choice of Finishes:

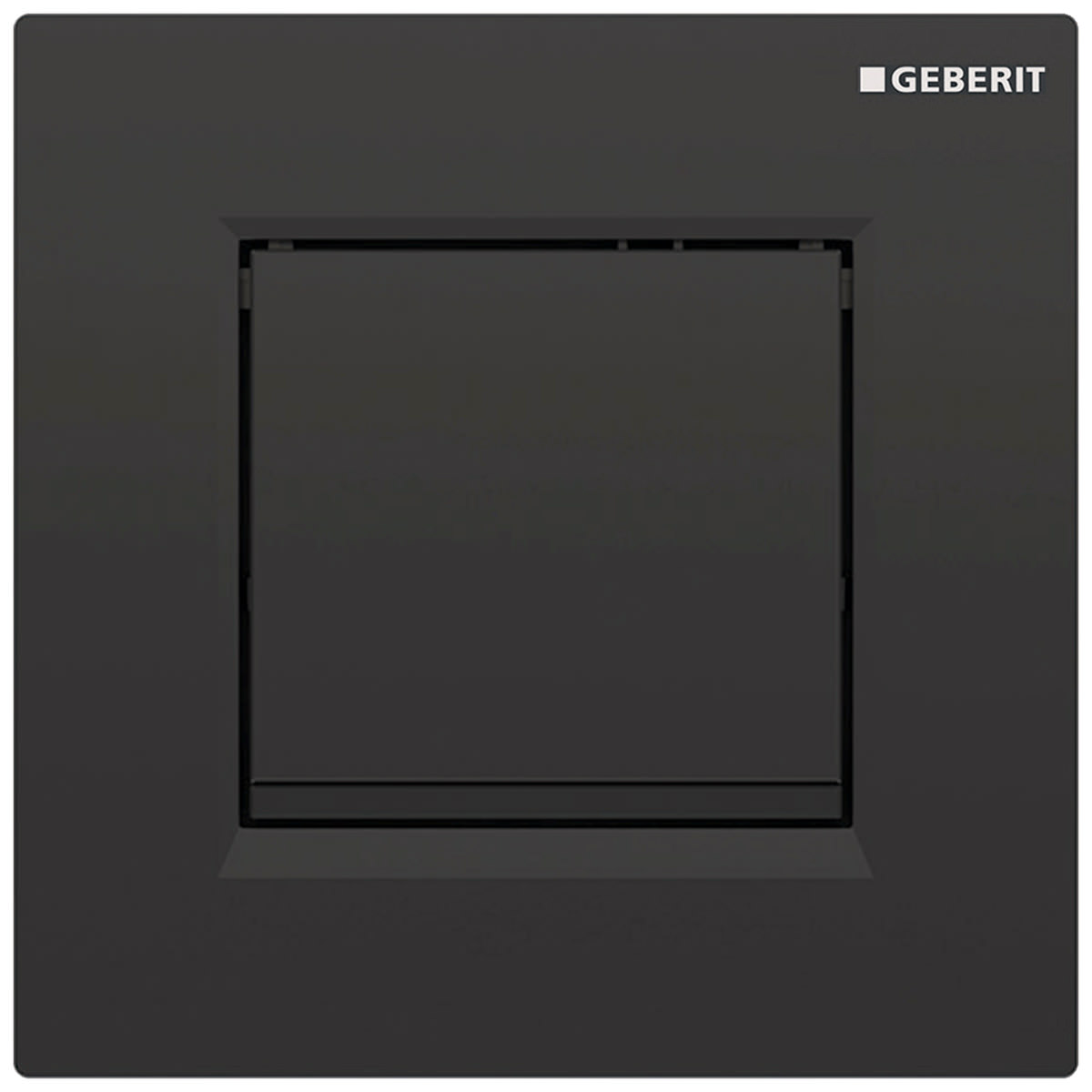

• Plate and Button: Matt Black & Easy-to-Clean Coated | Strip: Black

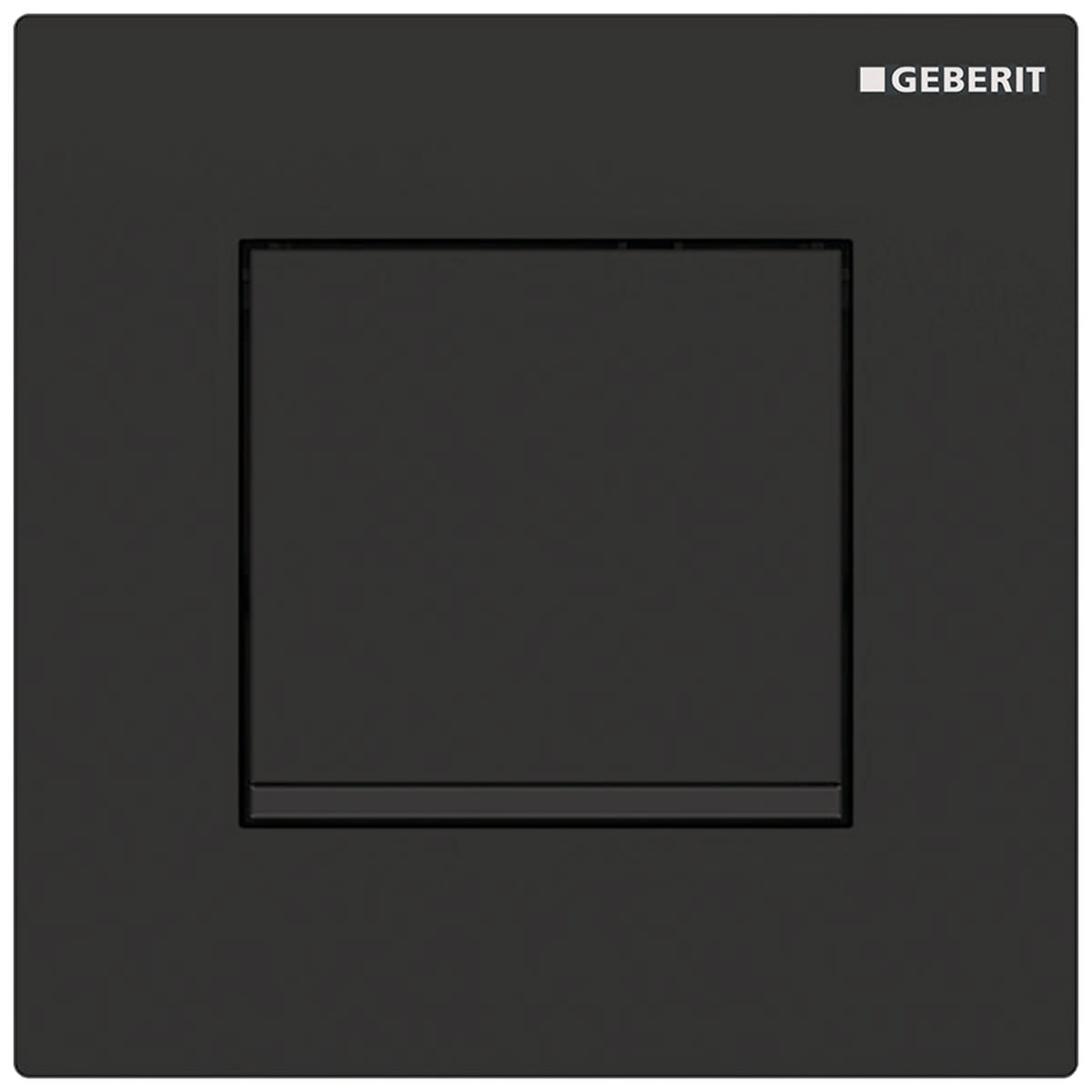

• Plate and Button: Black | Strip: Matt Black
• Plate and Button: Gloss Chrome | Strip: Matt Chrome

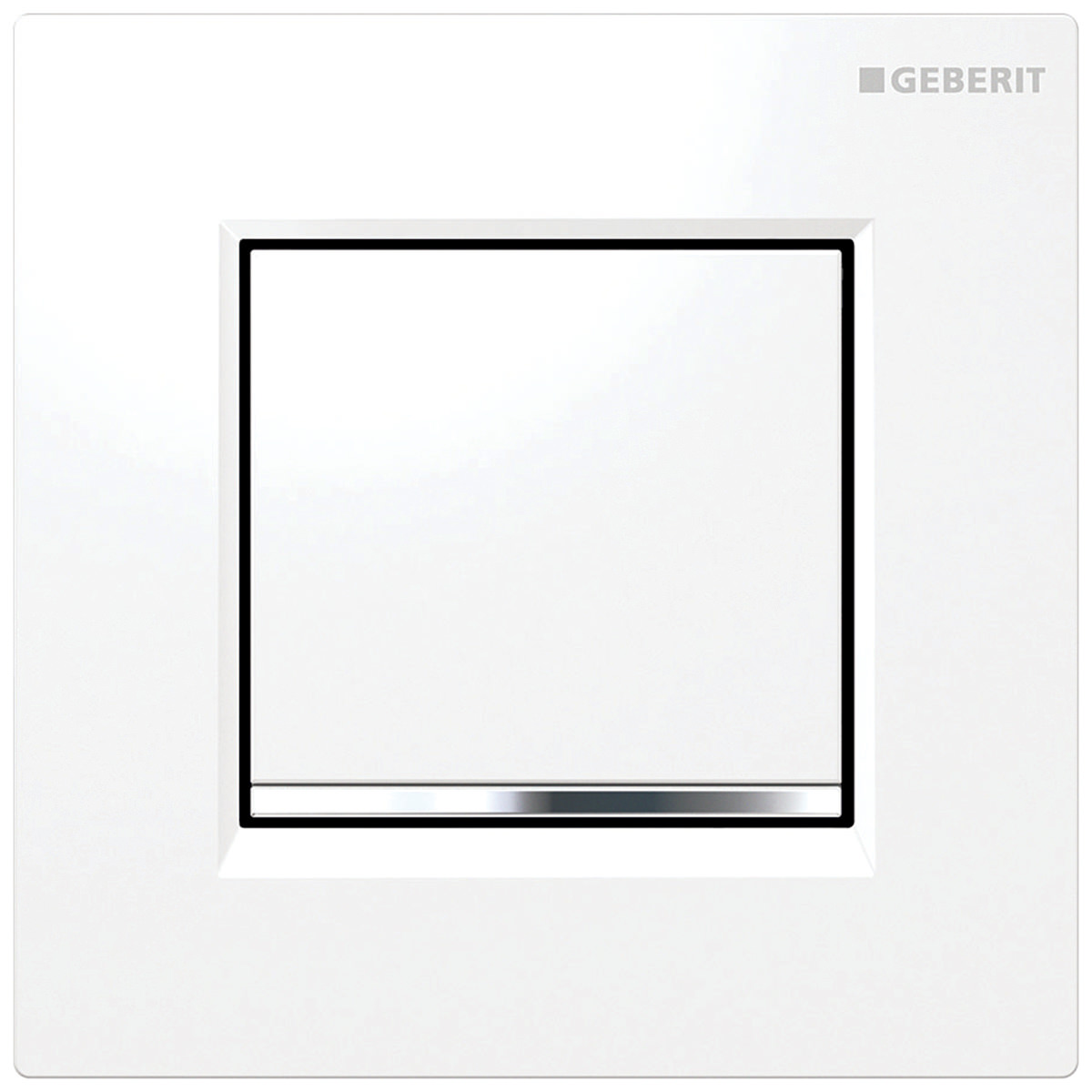

• Plate and Button: White | Strip: Gloss Chrome

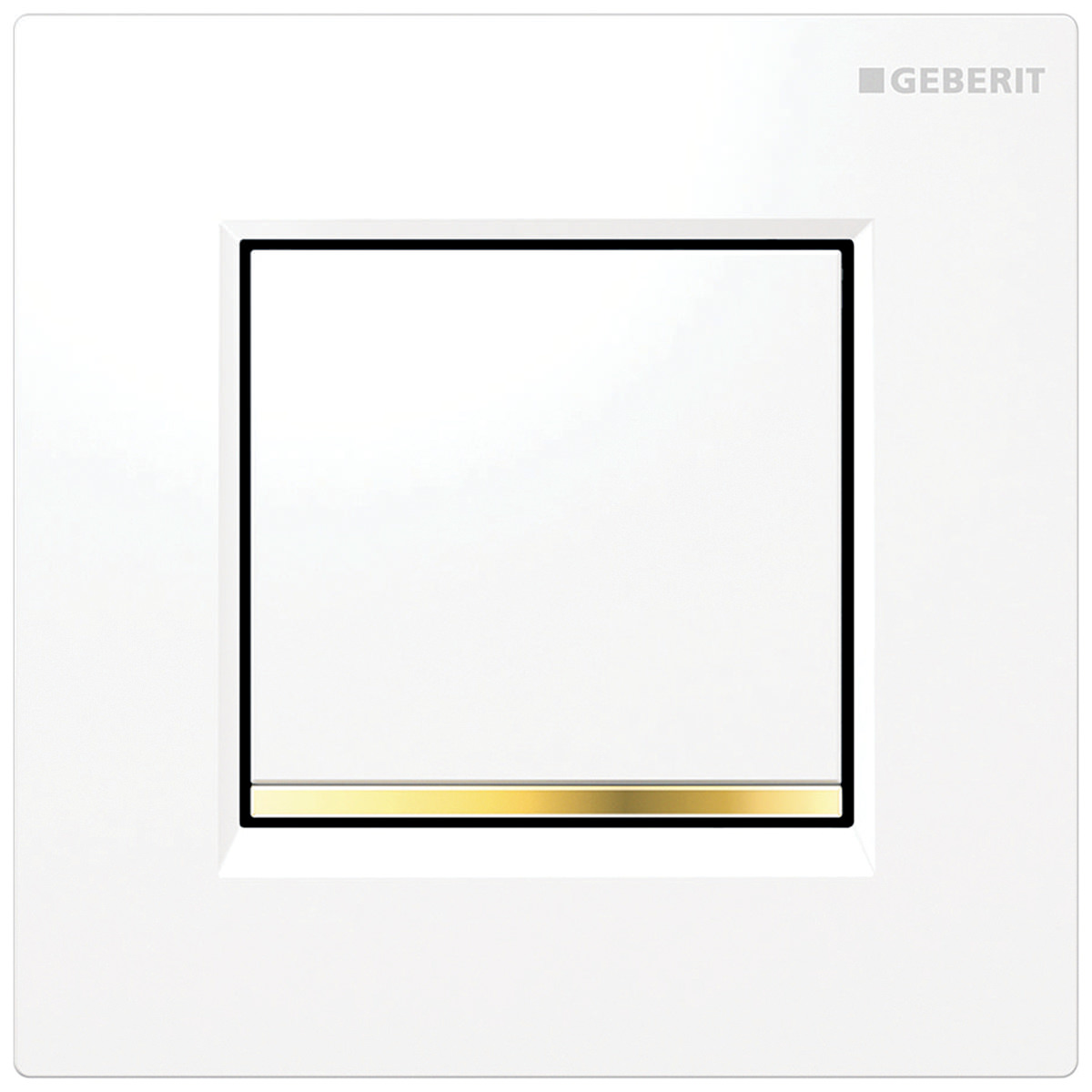

• Plate and Button: White | Strip: Gold
• Plate and Button: High-Gloss Black | Strip: Gloss Chrome

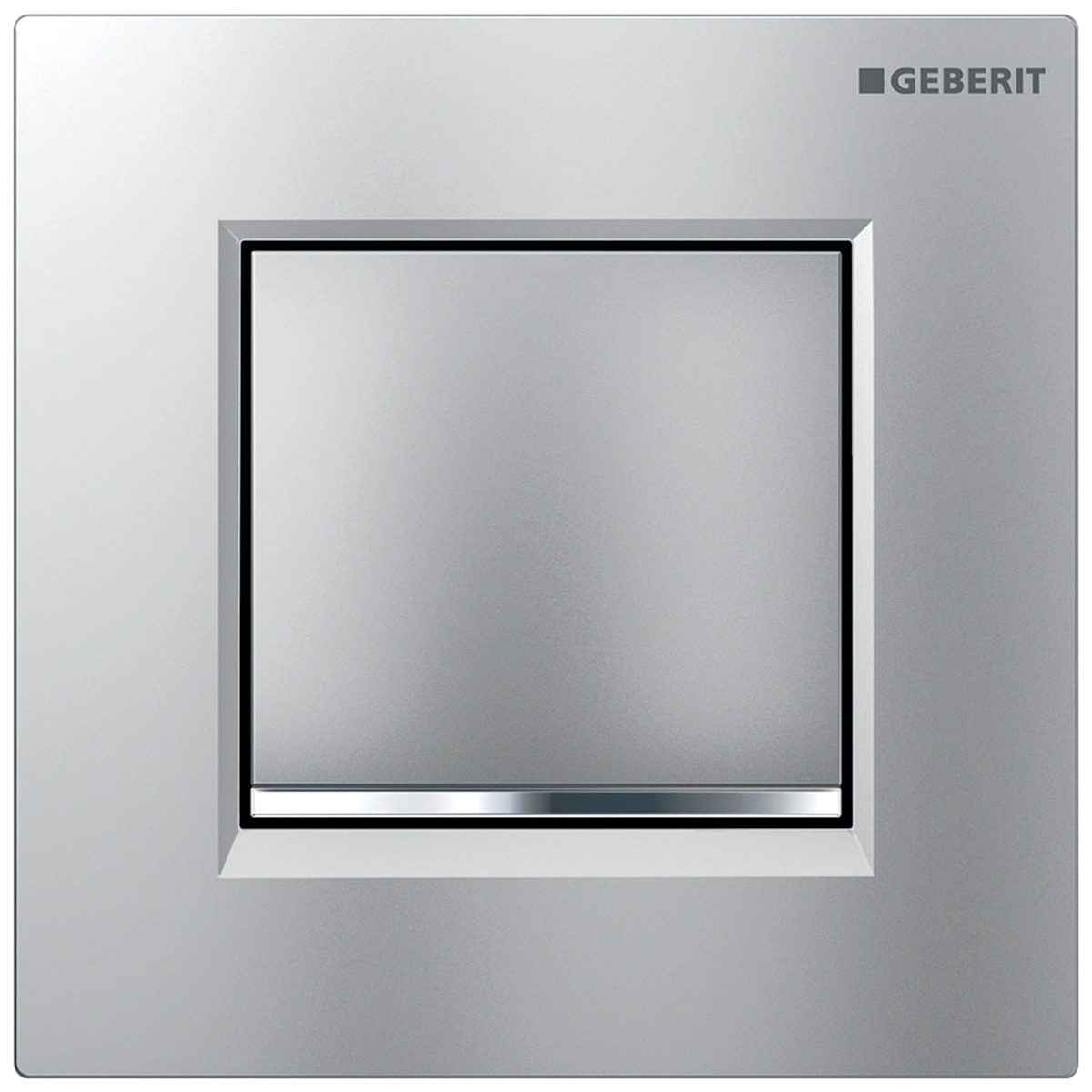

• Plate and Button: Matt Chrome & Easy-To-Clean Coated | Strip: Gloss Chrome
• Scope of Delivery
• Type 20 Actuator Plate, Square
• Pneumatic Flush Actuation, Premounted on Mounting Frame
• Pneumatic Valve
• Fastening Material

Please Note: Can be operated with used water rainwater provided it is passed through a filter system first.
