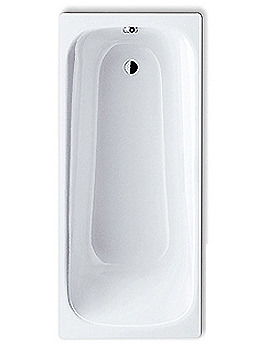

Kaldewei Dyna Set 624 Single Ended 1500 x 750mm Steel Bath

More Variation Available


MFC CODE: 226600010001


RRP: £1207.72


5 Working Days Approx

4.0 out of 5 4.0 out of 5

9 out of 9 customers rated 80%

Review this Product

Shipping: £29.95

Other Variation Available Step 1
OP-153244 - No Tap Hole
Available Variants Step 2
  • Bath
  • Length: 1500 mm
  • Width: 750 mm
Please Note all the measurements are in 'mm'
External Length 1500
External Width 750
Tub Depth External - 430
Feets Included No
Height Including Feet or Panel 561-586
Colour White
Grips Included No
Internal Bottom Length 1050
Internal Bottom Width 500, 520
Internal Top Length 1340
Internal Top Width 640
Height of Rim 32
Distance Tub edge to centre of drain hole 310
Distance Top edge to centre of overflow hole 70
Diameter of overflow hole 52
Diameter of Drain hole 52
Distance foot end of tub edge to center of foot 410
Distance between the feet 590
Rim Width 100
Distance Between Centre Holes 206
Weight in kg 45
Slip Resistant No
Shape Rectangular
Capacity in litres 133
Country of Origin Germany
Warranty/Guarantee 30 Years
Material Steel
No. of Bathers 1
Waste Included Sold Separately
Tap Holes Un-drilled

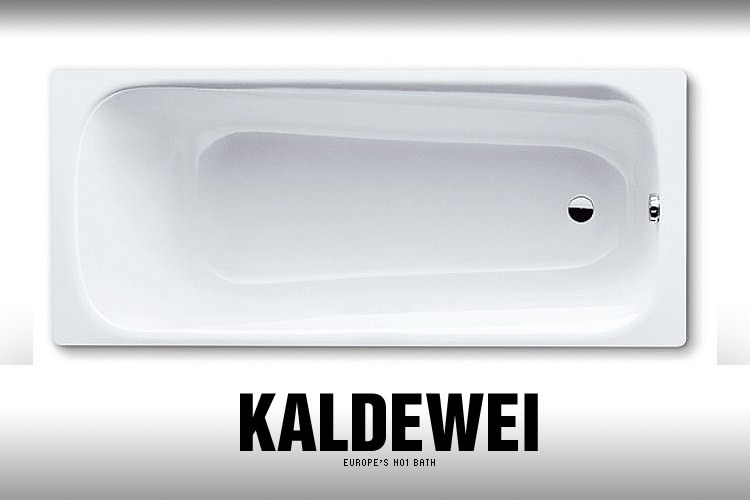

Kaldewei Dyna 226600010001 DETAILS

Kaldewei's Dyna Steel Bath measures 1500mm x 750mm and is suited to both compact and large bathrooms. This single-ended tub finished in smart white displays gentle lines that will bring a sense of calm to your bathroom and everyday bathing experience. Kaldewei offers a 30-year guarantee on this quality bath so you can rest assured the greatest care has been taken in the construction of this bath.

  • Bath with EasyClean, Anti-Slip and full Anti-Slip Also Available [Optional]
  • Bath without Tap hole or 2 Tap hole available [Optional]
  • Features combined bathtub suitable for bathing and showering.
  • Eternal Depth is 430mm
  • Dimensions : 1500 x 750mm [Length x Width]
  • Weight: 45kg
  • Height with Feet: 561 - 586mm
  • Water Capacity 122 Liters - 70 Litres displacement on average
  • Economic water consumption thanks to its tapering interior contours
  • Bath waste shown in image is not included
  • Surface Impact, Scratch and Abrasion Resistant, Colourfast, Lightfast and Acid Resistant according to DIN ISO 2722, Class 1, TÜV GS Certificated (Tested Safety)
  • Rim Slopes 3 Degrees to the Inside of the Bath, Earthing Strap for Equipotential Bonding, 100 % Recyclable
  • Bath waste [Optional]
  • Bath Legset [Optional]
  • 30 years of guarantee from the manufacturer against any manufacturing defects.

Please Note: Bath variants may be special order and delivery lead time may vary.

Leg Set

Leg Set

Installing a bathtub is particularly quick and straightforward with the all-round bathtub base frame model 5030 by Kaldewei. The bath feet positions on the external points of the base of the bathtub guarantee optimum stability.



High flow dedicated waste to flush out the wastewater. Please note the image shown is for illustration purpose only.

Sizes Available
Other Sizes / Finishes / Variations Available.
QS Code Finish Size / Difference MFC Code
QS-V19351 - 1700mm 226100010001
QS-V19350 - 1600mm 226800010001

  • Available Variation Along With Manufacturing Code
  • No Tap Hole - Bath -  226600010001
  • 2 Tap Hole - Bath -  226620000001
  • No Tap Hole - Bath With EasyClean -  226600013001
  • 2 Tap Hole - Bath With EasyClean -  226620003001
  • No Tap Hole - Bath With AntiSlip -  226630000001
  • 2 Tap Hole - Bath With AntiSlip -  226625000001
  • No Tap Hole - Bath With AntiSlip And With EasyClean - 226630003001
  • 2 Tap Hole - Bath With AntiSlip And With EasyClean - 226625003001
  • No Tap Hole - Bath with Full Antislip -  226634010001
  • 2 Tap Hole - Bath with Full Antislip -  226626090001
  • No Tap Hole - Bath with Full Antislip And With EasyClean - 226634013001.
