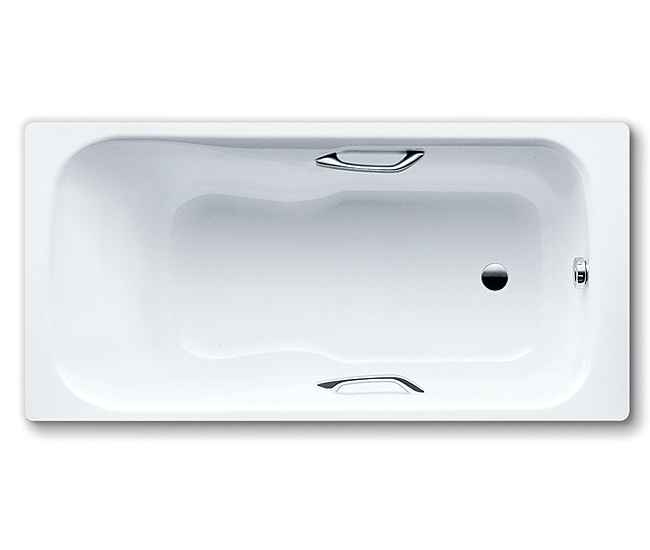

Kaldewei Dyna Set Star 623 Single Ended 1800 x 800mm Bath With Grip Holes

More Variation Available


MFC CODE: 226500010001


RRP: £1389.48


5 Working Days Approx

3.8 out of 5 3.8 out of 5

4 out of 4 customers rated 75%

Review this Product

Shipping: £29.95

Other Variation Available Step 1
OP-153362 - No Tap Hole
Available Variants Step 2
  • Bath
  • Length: 1800 mm
  • Width: 800 mm
Please Note all the measurements are in 'mm'
External Length 1800
External Width 800
Tub Depth External - 430
Feets Included No
Height Including Feet or Panel 561-586
Colour White
Grips Included Yes
Internal Bottom Length 1230
Internal Bottom Width 500, 520
Internal Top Length 1565
Internal Top Width 620, 640
Height of Rim 32
Distance Tub edge to centre of drain hole 335
Distance Top edge to centre of overflow hole 70
Diameter of overflow hole 52
Diameter of Drain hole 52
Distance foot end of tub edge to center of foot 415
Distance between the feet 805
Distance tub edge(foot end) to where handle starts 575
Distance tub edge(foot end) to where handle ends 850
Rim Width 125
Distance Between Centre Holes 206
Weight in kg 68
Slip Resistant No
Shape Rectangular
Capacity in litres 169
Country of Origin Germany
Warranty/Guarantee 30 Years
Material Steel
No. of Bathers 1
Waste Included Sold Separately
Tap Holes Un-drilled
Kaldewei Dyna 226500010001 DETAILS

Distinctly contemporary, this Steel Bath from Kaldeweis Dyna range will lend a classy touch to your washroom. Made of safety certified, damage-proof steel enamel, the model looks immensely attractive in Alpine White finish. The one-seater tub, which is supplied without tap-holes, can hold 169 litres of water. Easy to clean and install, it is backed by three decades guarantee from the manufacturer. You don't need any more reasons to buy it!

  • Bath with EasyClean, Anti-Slip and full Anti-Slip Also Available [Optional]
  • No Tap hole, 1 Tap hole and 2 Tap hole bath available [Optional]
  • Comes in fabulous alpine white finish
  • Supplied with Grip hole
  • Weight : 68kg
  • Height : 561-586mm
  • Size : 1800 x 800mm [Length x Width]
  • Water capacity: 169 litres - 70 Litres displacement on average
  • Bath waste and hand grip shown in image are not included
  • Made of steel enamel 3.5mm gauge
  • One-seater bathtub with waste hole at foot end
  • Bath waste [Optional]
  • Hand Grips [Optional]
  • Bath Legset 5037 [Optional]
  • Surface Impact, Scratch and Abrasion Resistant, Colourfast, Lightfast and Acid Resistant according to DIN ISO 2722, Class 1, TÜV GS Certificated (Tested Safety)
  • Rim Slopes 3 Degrees to the Inside of the Bath, Earthing Strap for Equipotential Bonding, 100 % Recyclable
  • For Technical Detail Click on Technical Tab and download PDF30 Years guarantee from Kaldewei against any manufacturing defects

Please Note: Bath variants may be special order and delivery lead time may vary.

Bath Leg Set 5037

Bath Leg Set 5037

Installing a bathtub is particularly quick and straightforward with the all-round bathtub base frame model 5037 by Kaldewei. The bath feet positions on the external points of the base of the bathtub guarantee optimum stability.

Kaldewei Hand Grips Chrome

Kaldewei Hand Grips Chrome

Durable and robust chrome finish twin grips from Kaldewei to support the bather from the slippery surface. Please Note the Image is for illustration purpose only.



High flow dedicated waste to flush out the wastewater. Please note the image shown is for illustration purpose only.

Sizes Available
Other Sizes / Finishes / Variations Available.
QS Code Finish Size / Difference MFC Code
QS-V35990 - 1500mm 226700010001
QS-V21630 - 1600mm 226900010001

  • Available Variation Along With Manufacturing Code
  • No Tap Hole - Bath -  226500010001
  • No Tap Hole - Bath With EasyClean -  226500013001
  • No Tap Hole - Bath With AntiSlip -  226530000001
  • No Tap Hole - Bath With AntiSlip And With EasyClean - 226530003001
  • No Tap Hole - Bath with Full AntiSlip -  226534010001
  • No Tap Hole - Bath with Full AntiSlip And AntiSlip -  226534013001
  • 2 Tap Hole - Bath -  226520000001
  • 2 Tap Hole - Bath With EasyClean -  226520003001
  • 2 Tap Hole - Bath With AntiSlip -  226525000001
  • 2 Tap Hole - Bath With AntiSlip And With EasyClean - 226525003001
  • 2 Tap Hole - Bath with Full AntiSlip And With EasyClean -226526093001

Total: £715.58 5 Working Days Approx QS Supplies

You've Selected which adds to a total of

You May Also Require



Rate this Item.:

Questions & Answers

Submit Your Questions 1 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

Elaine Asked :
When ordering the Kaldewei Dyna Set 623 Star Steel Bath without Dyna Set grips, does the bath still come with grip holes? I am looking for a bath without grips. Many thanks

Answered By QS Team :
Hi Elaine, Please check the following product code for a bath without grips QS-V28630.
