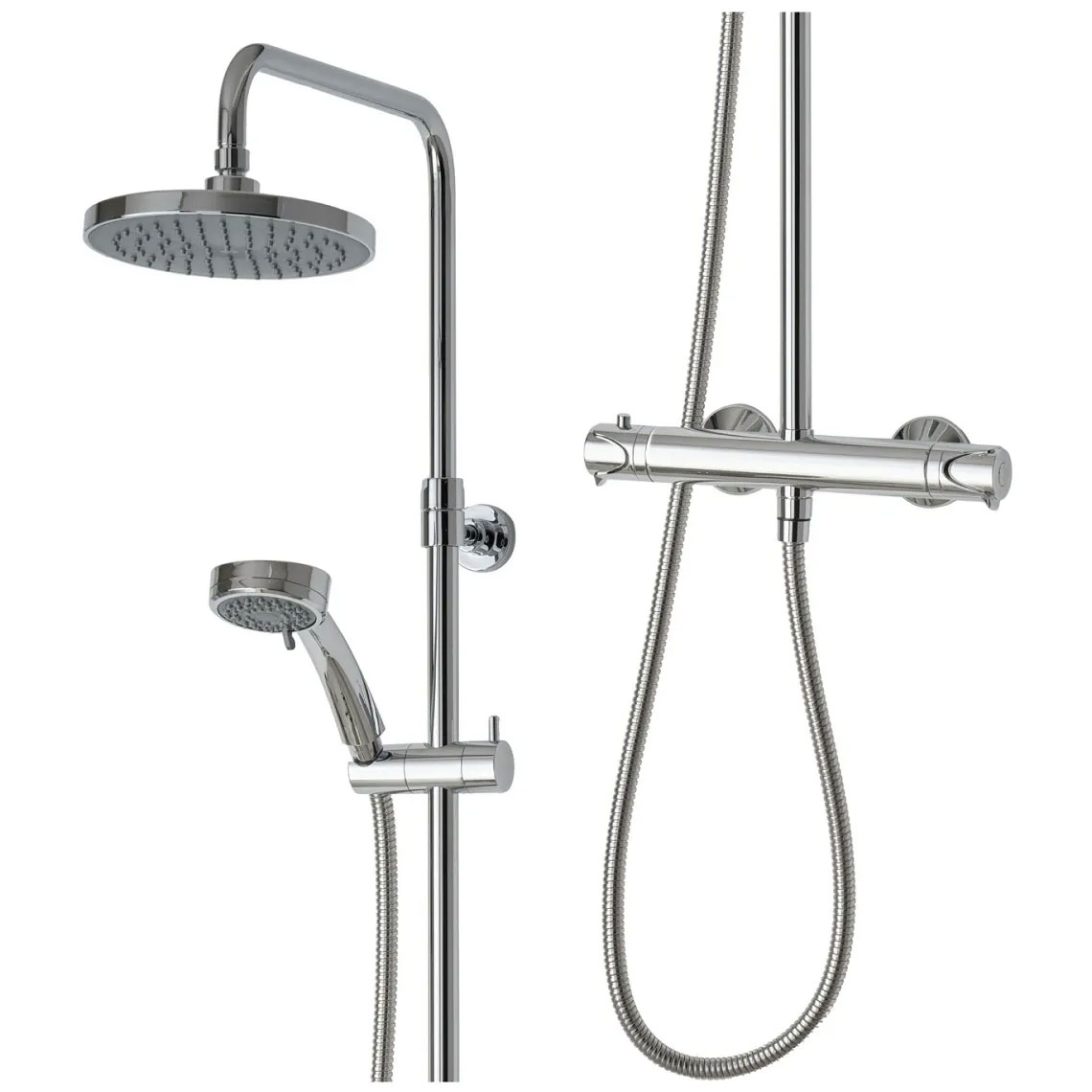

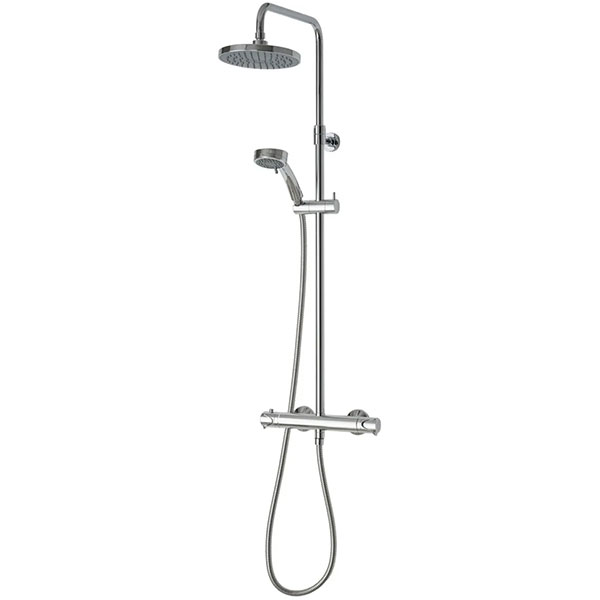

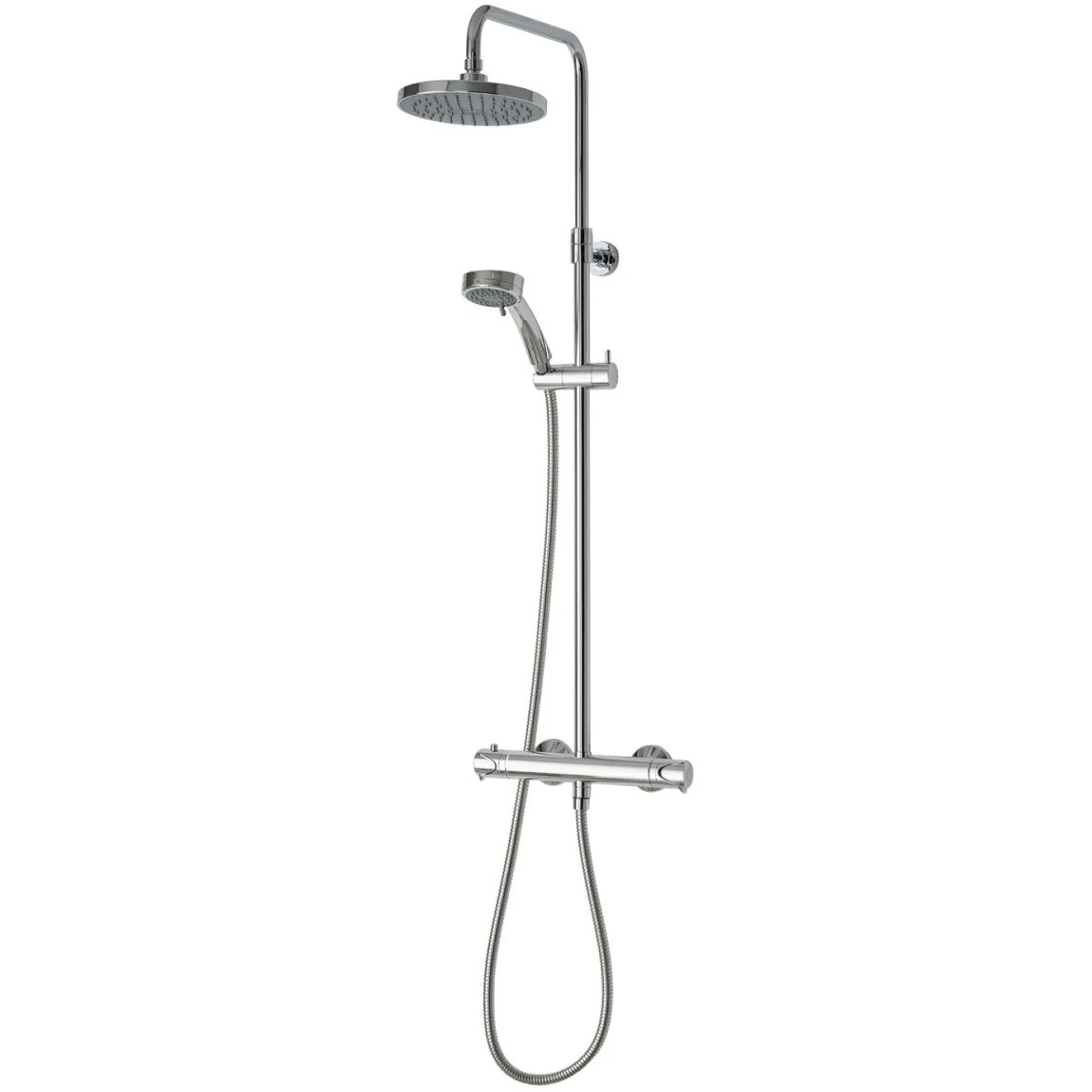

Triton Dene Chrome Contemporary Bar Diverter Mixer Shower Set

Meticulously crafted from top quality brass material for rendering impeccable long-term performance, this elegantly majestic Triton Dene Bar Diverter Mixer Shower Set is truly a piece of aqua art. Your showering experience will not be the same when you use this aqua adornment. Backed by a whopping five-year manufacturer guarantee against any manufacturing defects, this set comes with a ceramic disc flow control for ensuring smooth operation and requires minimum 0.5 Bar @ 8 l/min water pressure. The glistening chrome finish of this ensemble will impart an appealing look to your bathroom.

• Manufacturing code of this product: UNDETHBMDIV.
• It comes in a fabulous chrome finish.
• Fixed shower head diameter: Ø200mm.
• Shower handset diameter: Ø84mm.
• Shower handset height: 230mm.
• Rail diameter: Ø19mm.
• Rail length: 530mm.
• Hose length: 1250mm.
• Diverts water between a large diameter fixed shower head and a three-spray handset.
• Height adjustable handset - ideal for families.
• Featuring thermostatic control.
• Open outlet flow rate: 5.5 l/min @ 0.5 Bar.
• Features automatic shutdown.
• The spray pattern of (handheld showerhead) : 3.

• The spray pattern of (fixed showerhead): 1.
• Rub clean nozzle.
• Hose material: double interlocked stainless steel.
• WRAS approved valve.
• Plumbing system: high-pressure systems, low pressure with the pump.
• Water entry points: back.
• Inlet connections: 15mm push-fit (fixings to pipe), 3/4inch flat face union (valve to fixings).
• Pipe inlet centres: 150mm.
• Outlet connection: 1/2 inch BSP bottom.
• Minimum running pressure/flow: 0.5 Bar @ 8 l/min.
• Maximum running pressure: 5 Bar.
• Maximum static pressure: 10 Bar.
• Refer to the technical diagram for the complete technical dimensions.
• Download the Installation Instruction PDF File From The Additional Info Section.
