Hudson Reed Topaz Triple Concealed Thermostatic Shower Valve-TSVT003

Hudson Reed Topaz TSVT003 Details

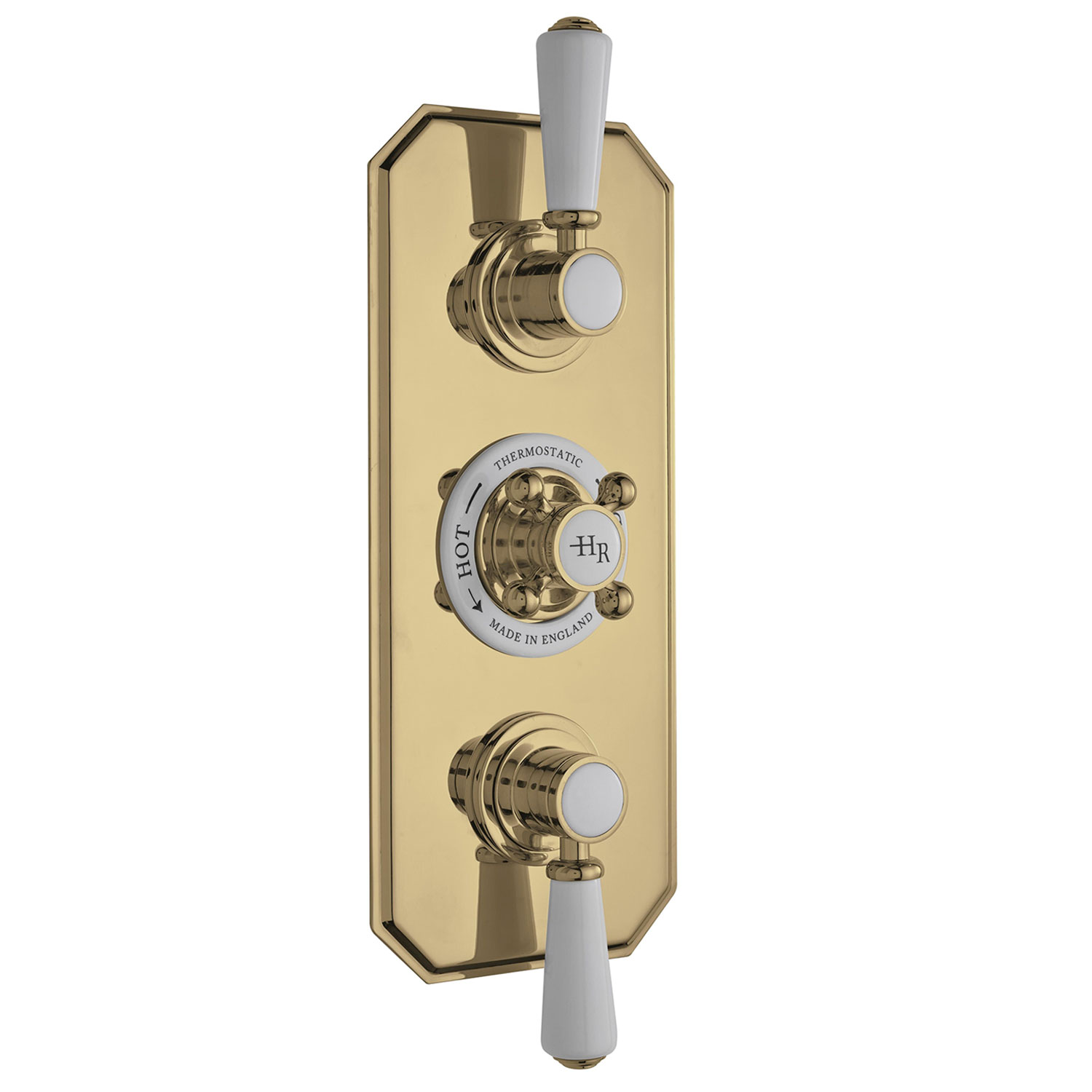

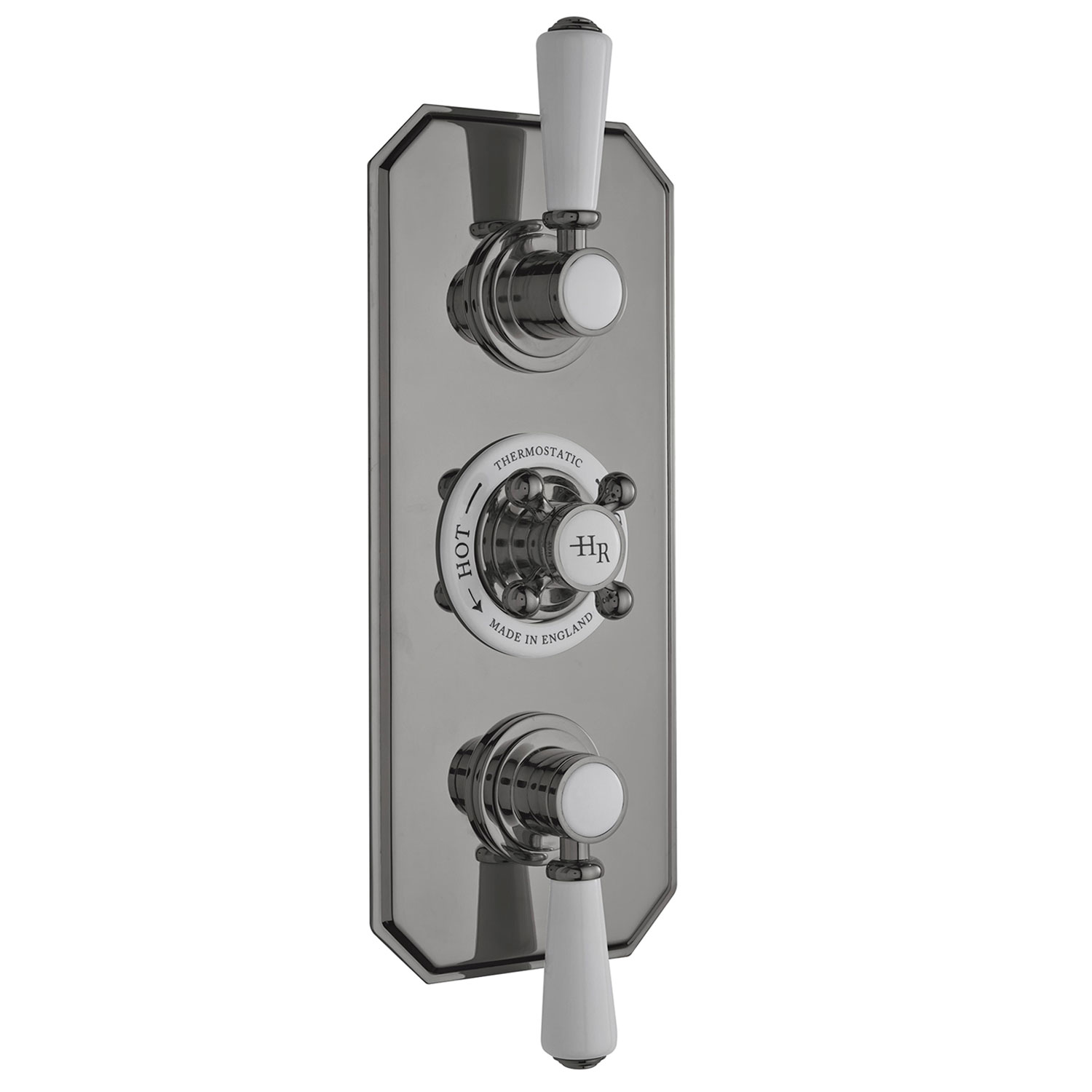

The Topaz Triple Concealed Thermostatic Shower Valve emphasises form through function. Designed with three controls, this valve enables you to experience an exhilarating showering experience. The thermostatic element ensures the valve is safe and reliable and shuts off automatically in the event of the loss of cold water. Available with a rectangular back plate, this set is created from solid brass and covered in chrome and white finish, which give it robust and sleek looks.

Concealed wall-mounted installation.
Size [mm]: 120mm x 135mm x 320mm [Width x Depth x Height].
Size [cm]: 12cm x 13.5cm x 32cm [Width x Depth x Height].
The shower kit shown in the image is not included.
The minimum water pressure recommended for smooth working is 0.1 bar [LP-Low Pressure].
The minimum flow rate is 5.5 litres per minute at 0.1 bar water pressure.
Features and Specification:.
Accurate flow control and excellent flow rates - even at low pressure.

Thermostatic control to +/- 1 °C even if the water pressure fluctuates.
Anti-Scald - Full thermal protection to prevent scalding in the event of hot or cold water shut off.
The patented cartridge is highly resistant to calcium build-up - even in hard water areas.
Suitable for use with all systems, gravity-fed pumped unvented high pressure or fully modulated combi-boilers.
The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn't need re-plumbing - remove the cartridge, turn 180° and replace.
Refer to the technical drawing for complete size details.
Download Customer Datasheet And Installation Instruction PDF File from the Additional Info Section.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Shape
: Rectangular
⤷ Warranty/Guarantee
: 20 Years
⤷ Material
: Brass
⤷ Theme
: Traditional
⤷ Installation Type
: Wall Mounted
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Flow Rates (l/min)
: 0.5 bar - 13, 1 bar - 17, 2 bar - 24, 3 bar - 27
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Depth
: 135

⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 120
⤷ Backplate Height
: 320
⤷ Anti-Scald
: Yes
⤷ TMV2 Approved
: Yes
⤷ TMV3 Approved
: Yes
⤷ Number of Handles
: 3
⤷ Orientation
: Portrait
⤷ Plumbing Option
: Concealed
⤷ Cartridge Included
: Yes
⤷ Cartridge Type
: 1/4 Turn Ceramic Disc

Additional Info & Downloads

Download the Customer Datasheet Pdf File Download the Installation Instruction Pdf File

Total: £203.56 2 Working Days Approx QS Supplies

8 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Combi-Boiler System

The showerhead or shower system is suitable for use with a Combi-Boiler System. This system heats cold water on demand, relying solely on mains pressure to move water around your home. These are suitable for mixer showers, as they provide hot water instantaneously and at the highest pressure.

Unvented System

The unvented water systems usually have a separate hot water cylinder, which is pre-heated via a combi boiler or other heating sources to store a quantity of hot water at mains pressure.

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

TMV3 Approved Product

TMV3 approval means a thermostatic valve is certified and approved for use in healthcare and commercial situations.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
