Dq Heating Cove Single - Double Vertical Radiator

£141.65

STOCK AVAILABILITY

2 Working Days Approx

Not Yet Rated No Rating

Shipping: FREE* Check Postcodes

Product Variants
Select Version Step 1
Select Finish Step 2
Select Height Step 3
Select Width Step 4
SKU Code: QS-V48559

MFC Code: COVE150/5-W

DQ Cove COVE150/5-W Details

Your search for a perfect vertical radiator with a well-calibrated heat output ends here with the DQ Heating Cove Vertical Radiator. This fixture is tall and slim and perfectly compatible with modern interiors. It is compact and thus will have no difficulty fitting into tighter spaces. It is performance-oriented and has immense heat-generating capacity.

Lightweight and easy to operate, this user-friendly radiator is made from mild Steel and available in a selection of attractive finishes for you to customise as per your preference. Never discount this winter, buddy; that can add some fantastic feeling of warmth! Convenient to install and maintain, it comes with a five-year guarantee from the manufacturer.

Key Features

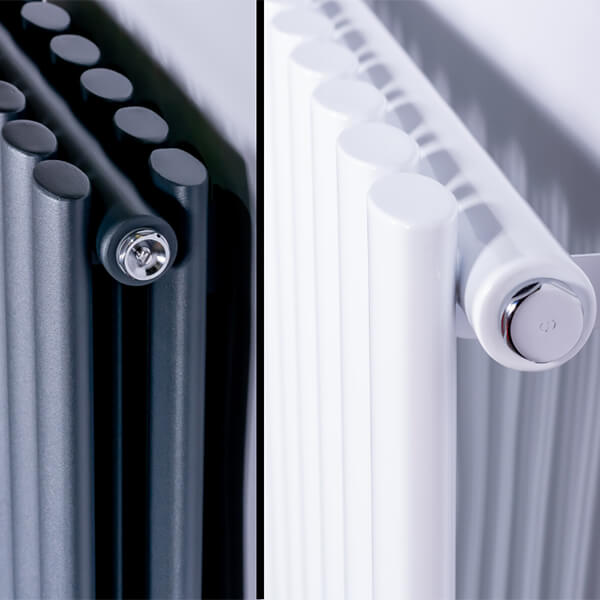

  • Different finishes: White, Anthracite Texture
  • Manufactured from mild steel
  • Five years of guarantee from the manufacturer
  • Available Variations: Single, Double.
  • Available Height: 1500mm, 1800mm.
  • Available Width: 295mm, 413mm, 531mm.
  • 1/2" flow and return connection.
  • Test pressure: 8 Bar.
  • Maximum operation pressure: 6 Bar.
  • Maximum working temperature: 95c.
  • The valves shown in the image are not included.
  • The image shown is for illustration purposes only.
  • Download the Installation Instruction PDF File from the Additional Info Section.
  • Brackets are available to hang horizontally [See option below].
  • Towel hanging rail available [See option below].
  • Grip peg to hang extra towels [See option below].
  • VIP hook available [See option below].

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Colour
  • : Anthracite
  • ⤷ Shape
  • : Straight
  • ⤷ Warranty/Guarantee
  • : 5 Years
  • ⤷ Material
  • : Steel
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Wall Mounted
  • ⤷ Width
  • : 295
  • ⤷ Height
  • : 1500
  • ⤷ Orientation
  • : Vertical
  • ⤷ BTU Output
  • : 1808
  • ⤷ Watts
  • : 530
  • ⤷ Valves Included
  • : Sold Separately
  • ⤷ Panel Configuration
  • : Single

Additional Info & Downloads

Download PDF Download the Installation Instruction Pdf File


Technical Images


Customise Your Product

Towel Hanging Rail
Towel Hanging Rail

Strong and durable rail. Please Note: The image is for illustration purposes only.

Optional Finish
Optional Finish

Choose the desired hook finishes from the option given below.

Grip Peg
Grip Peg

Handy for the Kitchen or Bathroom where that extra towel or tea towel hangs on the bar and not the radiator. Choice of either Chrome or White finish. The image shown is for illustration purposes only.

Total: £141.65 2 Working Days Approx QS Supplies

Product Variations Info & MFC Code
Details Of Cove Single Vertical Radiator
Product Code Finish Height Width Watts BTU Weight Wall To Face Wall To Pipe
COVE150/5-W White 1500 295 530 1808 14 61 50
COVE150/7-W White 1500 413 750 2559 19 61 50
COVE180/5-W White 1800 295 640 2184 15 61 50
COVE180/7-W White 1800 413 895 3054 20 61 50
COVE180/9-W White 1800 531 1155 3941 26 61 50
COVE150/5-A Anthracite 1500 295 530 1808 14 61 50
COVE150/7-A Anthracite 1500 413 750 2559 19 61 50
COVE180/5-A Anthracite 1800 295 640 2184 15 61 50
COVE180/7-A Anthracite 1800 413 895 3054 20 61 50
COVE180/9-A Anthracite 1800 531 1155 3941 26 61 50
Details Of Cove Stainless Steel Double Vertical Radiator
Product Code Finish Height Width Watts BTU Weight Wall To Face Wall To Pipe
COVE150/5D-W White 1500 295 800 2730 25 105 50
COVE150/7D-W White 1500 413 1130 3856 35 105 50
COVE180/5D-W White 1800 295 970 3310 28 105 50
COVE180/7D-W White 1800 413 1350 4606 36 105 50
COVE180/9D-W White 1800 531 1740 5937 50 105 50
COVE150/5D-A Anthracite 1500 295 800 2730 25 105 50
COVE150/7D-A Anthracite 1500 413 1130 3856 35 105 50
COVE180/5D-A Anthracite 1800 295 970 3310 28 105 50
COVE180/7D-A Anthracite 1800 413 1350 4606 36 105 50
COVE180/9D-A Anthracite 1800 531 1740 5937 50 105 50

3 Features Included In This Product Explained

Watts Output

Watts Output

Unit of power to measure electric current.

BTU Output

BTU Output

It is the short form of a British thermal unit (BTU or Btu) and is defined as the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit. It is a standard unit against which radiator efficiency is measured.
Read more...

Mild Steel

Mild Steel

Mild Steel is the most common radiator material. It is inexpensive, available in a variety of designs and finishes, lightweight and durable.

You've Selected which adds to a total of

Reviews & Ratings

Rate this Item.:

Questions & Answers

Submit Your Questions 2 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Ben Asked :

Dq Heating Cove Single - Double Vertical Radiator QS-V48559 MFC Code: COVE150/5-W. Can you tell me the BTU for this radiator at 1800mm x 413mm size? The technical specification on the website is for a smaller size.

Answered By QS Team Answered by the QS Technical Team

BTU for the radiators is available in the "Product Variations Info & MFC Code" section of the product.

Was this answer helpful?
Lisa Asked :

Where do the 4 brackets go on the single-sided cove vertical?

Answered By QS Team Answered by the QS Technical Team

We can advise that the brackets hook under the collector tubes.
