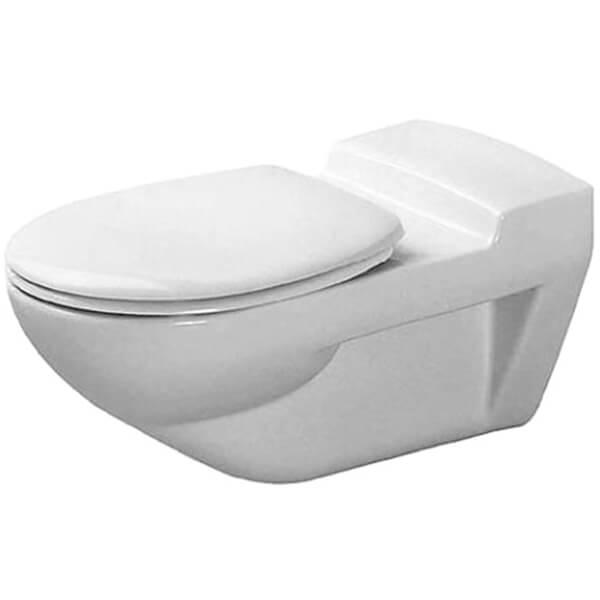

Duravit Architec Wall Mounted 350 x 700mm Toilet - 0190090000



7 Working Days Approx

4.0 out of 5 4.0 out of 5

Based on 1 Ratings.

Shipping: £20.00

Select Variations
You've Selected: OP-204477 - Without HygieneGlaze
Key Features
  • Available with or without HygieneGlaze finish
  • Washdown model
  • White alpine; finish
  • Designed by Prof. Frank Huster
  • Suitable for barrier-free applications
  • Five years warranty against manufacturing defects
SKU Code: QS-V49381

MFC Code: 0190090000

Duravit Architec 0190090000 Details

This wash-down model presents endless styling opportunities. Showcasing an elegant mix of precision cut design, plated in white finish, the piece can be used for barrier-free applications and is available with or without HygieneGlaze finish. You can rely on Duravit to continue to release contemporary designs such as this Architec Wall Mounted Toilet with Seat and Cover, yet another of their fixtures that display innovative styling that stands out for all the right reasons. This wall-mounted toilet makes a bold modern statement that is visually pleasing.

Upon flushing, you will notice that this wash-down toilet uses the weight of the water within the tank to flush out waste from the toilet bowl. Such action also ensures the toilet does not clog very often. The five-year manufacturers warranty is evidence of the quality materials and artistry that have gone into this premium fixture. The Toilet seat can be purchased separately.

  • The manufacturing part number is 0190090000.
  • Dimension: 350 x 450-500mm [Width x Height].
  • Projection from the wall: 700mm.
  • UWL class 2.
  • 6-litre flush.
  • The toilet seat shown in the image is not included.
  • Weight: 27.8 kg.
  • Toilet ring, Toilet seat and cover [Optional].
  • Noise reduction gasket [Optional].
  • Fixing kit [Optional].
  • Refer to the technical image for detailed technical dimensions.

Info / Size (mm)

  • Toilet
  • Width: 350 mm
  • Projection: 700 mm
  • Height: 440 mm

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : Architec
  • ⤷ Coating
  • : Hygiene-Glaze available as optional
  • ⤷ Colour
  • : White
  • ⤷ Weight in kg
  • : 24.8
  • ⤷ Country of Origin
  • : Germany
  • ⤷ Warranty/Guarantee
  • : 5 Years
  • ⤷ Material
  • : Ceramic
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Wall Mounted
  • ⤷ Projection (Depth)
  • : 700
  • ⤷ Cistern Included
  • : Sold Separately
  • ⤷ Width
  • : 350
  • ⤷ Outlet
  • : Horizontal
  • ⤷ Configuration
  • : WC Pan Only
  • ⤷ Height
  • : 450-500
  • ⤷ Seat Included
  • : Sold Separately
  • ⤷ Fixing Holes Centre
  • : 180
  • ⤷ Barcode
  • : 4021534064753
  • ⤷ Distance from floor to centre of fixing hole
  • : 330
  • ⤷ Bowl Shape
  • : Elongated
  • ⤷ Product Type
  • : Wall Hung Toilet
  • ⤷ Outlet Diameter
  • : 102
  • ⤷ Base to centre of outlet
  • : 230

Customise Your Product

Toilet Seat And Cover
Toilet Seat And Cover

Duravit offers a toilet seat and cover. Please Note: The image shown is for illustration purpose only.

Noise Reduction Gasket
Noise Reduction Gasket

Noise Reduction Gasket from Duravit for all Duravit Wall Mounted Toilets.

Fixing Kit
Fixing Kit

Fixing kit suitable for wall mounted toilet and wall-mounted bidet. It is recommended to use if the pre-wall carrier is not used. Please Note: The image shown is for illustration purposes only.

Total: £566.77 7 Working Days Approx QS Supplies

2 Features Included In This Product Explained

Optional: HygieneGlaze

Optional: HygieneGlaze

DURAVIT's toilet, basin and urinal ceramic HygieneGlaze removes 99.9% of germs and pathogens without any chemicals - setting a new standard in toilet hygiene.

Washdown Model

Washdown Model

A washdown toilet uses the weight of the water and gravity to push out the toilet waste from the toilet bowl. The washdown toilet is designed with a short and wide trapway, so that waste can quickly enter the trapway using just the force of water from the tank. A washdown model includes a push-button flush and has a skirted design with a smaller water surface area and a short trapway and can easily handle heavy loads without getting clogged.
