Trojan Orlando 1500 x 1020mm Offset Corner Bath White

£279.61

STOCK AVAILABILITY

2-3 Working Days Approx

4.0 out of 5 4.0 out of 5

Based on 11 Ratings.

Shipping: FREE* Check Postcodes

Product Variants
Select Hand Type Step 1
Select Bath Panel Step 2
Select Bath Waste Step 3
SKU Code: QS-V0018

MFC Code: B001492

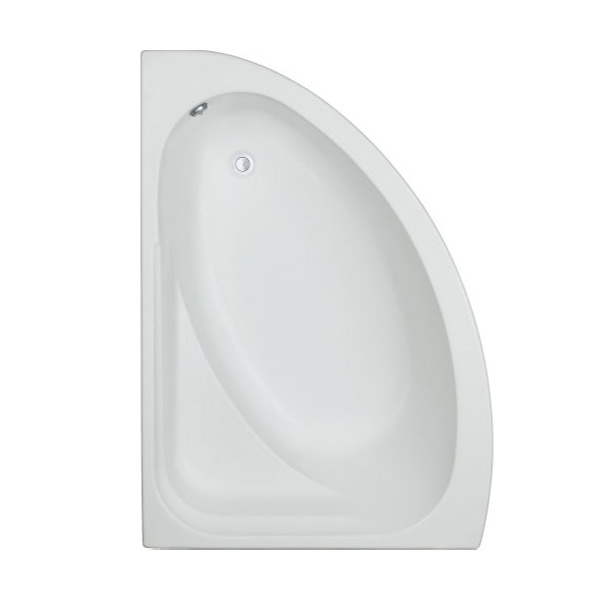

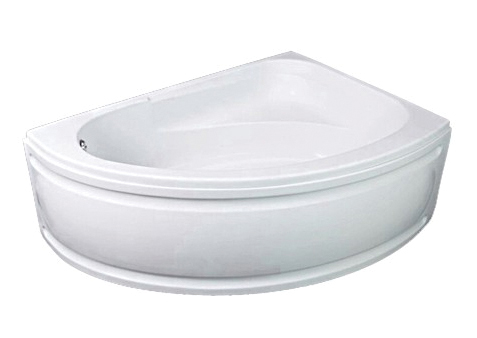

Trojan Orlando B001492 Details

Trojan Orlando Offset Corner Bath is one of the best sellers. Ideal for Compact Bathrooms, the Orlando is spacious and features a sleek shape and modern design. Suitable for both left or right-hand installation, the delicately rounded triangular profile makes it a beautiful addition to your bathroom and a practical one. The dazzling white finish gives a clean, modern and pristine appeal. Manufactured with 5mm Thick Acrylic, it is supplied fully encapsulated as standard and can team well with different types of bath taps available at our online store. This offset corner bath can be used with Bath waste and overflow, available separately.

Key Features
  • Manufacture using a 5mm Lucite acrylic sheet
  • Pair of tubular cradles supplied to provide support to the bath
  • Timber blocks to offer rim support and fixing points for installation kits
  • Twenty-five-year guarantee from Trojan against manufacturing defects
  • Encapsulated baseboard routed and shaped to cover the entire base of the bath, including around the plug hole

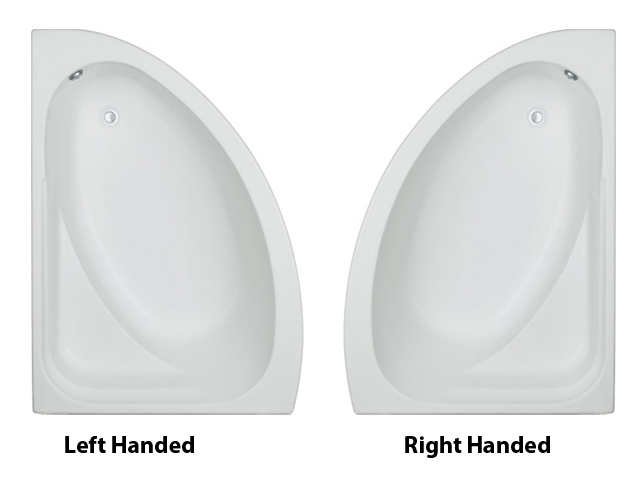

  • Available in different variations: Left Hand and Right Hand - [Optional].
  • Dimension: 1500mm x 1020mm x 420mm [Length x Width x Depth].
  • It comes without tap hole.
  • Bath capacity: 160 litres.
  • Overall Height: 560mm.
  • It comes in a white finish.
  • Encapsulated baseboard routed and shaped to cover the full base of the bath, including around the plug hole.
  • Material and product standards: EN263, EN198 , CE EN 14516:2015 CL.1 PH, FSC TT-COC-003576.
  • Supplied with corner bath fittings as standard.
  • Bath waste and overflow shown in the image are omitted.
  • Download the Fitting Instruction PDF File from the Additional Info Section.
  • Refer to the technical drawing for more technical specifications.
  • Optional Accessory:.
  • Bath Panel.
  • Bath Waste.

Please Note: For this bath, installation is not possible with the EPS tiling board.


Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Bath Type
  • : Corner
  • ⤷ Range
  • : Orlando
  • ⤷ Interior Shape
  • : Oval
  • ⤷ Position of Drain
  • : Waste at Foot-End
  • ⤷ Coating
  • : Without Coating
  • ⤷ External Length
  • : 1500
  • ⤷ External Width
  • : 1020
  • ⤷ Tub Depth
  • : Min- 390 | Max - 420
  • ⤷ Feets Included
  • : Yes
  • ⤷ Height Including Feet or Panel
  • : 520
  • ⤷ Front Panel Included
  • : Sold Separately
  • ⤷ Colour
  • : White
  • ⤷ Grips Included
  • : No
  • ⤷ Internal Bottom Length
  • : 1140
  • ⤷ Internal Bottom Width
  • : 590
  • ⤷ Internal Top Length
  • : 1400
  • ⤷ Internal Top Width
  • : 720
  • ⤷ Height of Rim
  • : 40
  • ⤷ Slip Resistant
  • : No
  • ⤷ Capacity in litres
  • : 160
  • ⤷ Handed Type
  • : Left hand
  • ⤷ Country of Origin
  • : UK
  • ⤷ Warranty/Guarantee
  • : 25 Years
  • ⤷ Material
  • : Acrylic
  • ⤷ No. of Bathers
  • : 1
  • ⤷ Theme
  • : Modern
  • ⤷ Armrest Depth
  • : 195
  • ⤷ Side Length
  • : 1500
  • ⤷ Side Width
  • : 1060
  • ⤷ Waste Included
  • : Sold Separately
  • ⤷ Barcode
  • : 5057199999153

Additional Info & Downloads

Download PDF Download the Fitting Instruction Pdf File

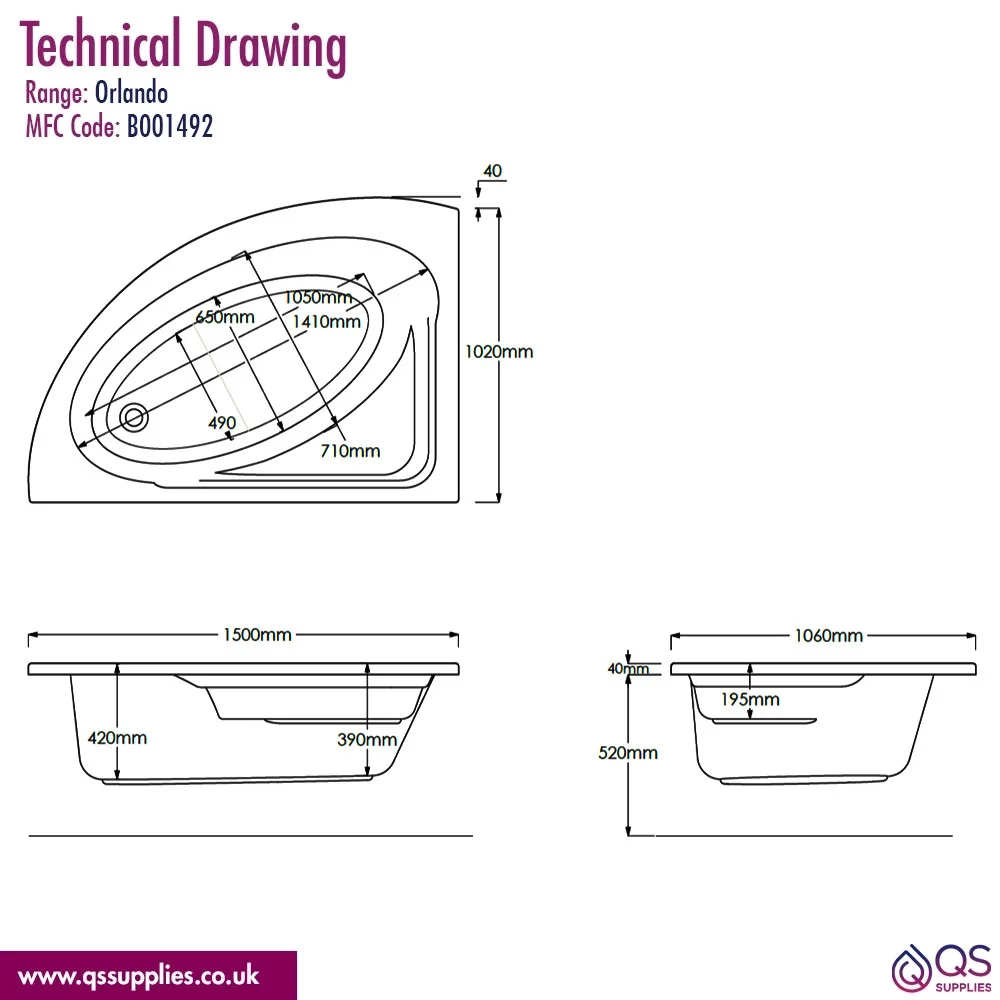

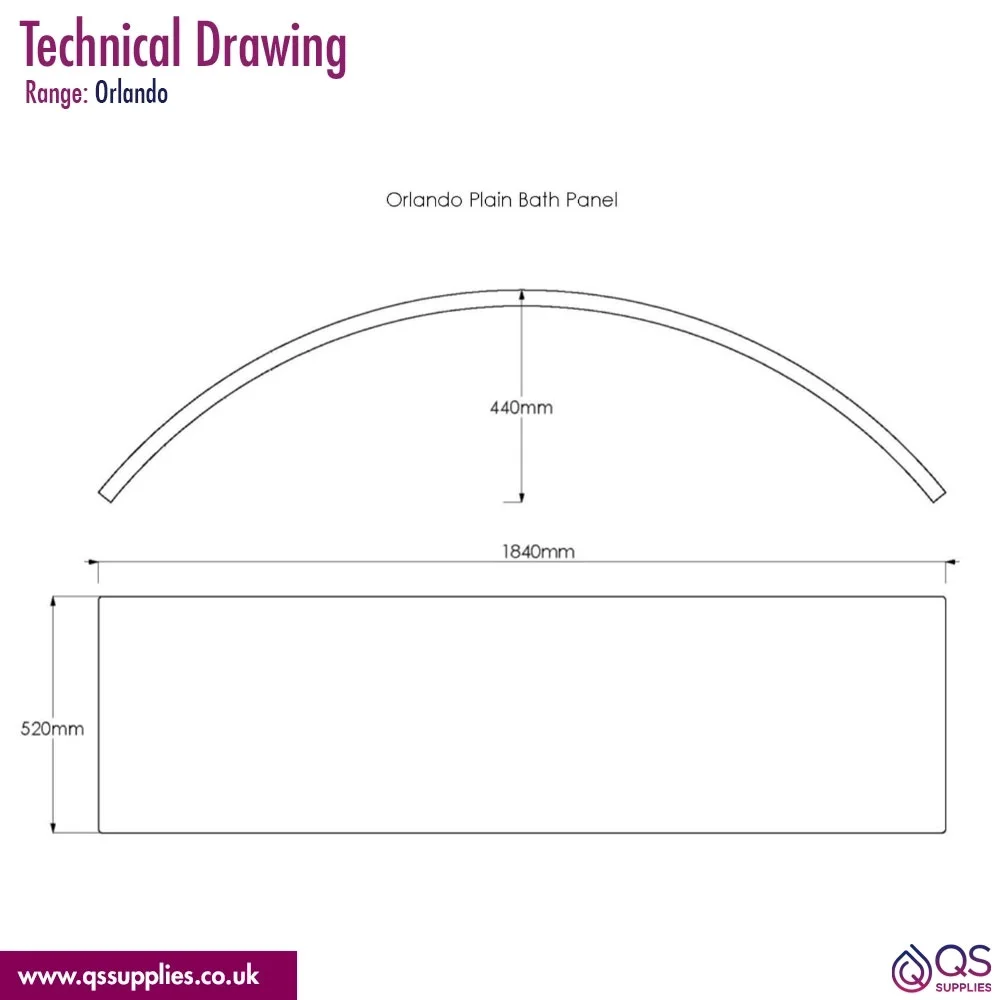

Technical Images


Total: £279.61 2-3 Working Days Approx QS Supplies

4 Features Included In This Product Explained

Offset Corner Bath

Offset Corner Bath

If you have a small or exceptionally large bathroom, this might work best for you. Offset Corner Bath replaces a traditional bathtub parallel to the wall and can instead fit into a corner area. Where a standard corner bath sits at a 45-degree angle to the wall and has two sides equal in length, this type of bath has one side longer than the other, which allows for a more comfortable and extended bathing space.

Lucite Acrylic

Lucite Acrylic

It is a high-quality acrylic resin developed by DuPont in 1937 and is one of the top-quality materials available in today's market. It replaced glass as it is less breakable, offers high strength and resistance to UV rays, moisture and wind, and is easy to clean. It is also incredibly flexible and can create the best products.

FSC Certified

FSC Certified

Any product with this logo is made of wood from well-managed, sustainable forests. Its full form is certified by the Forest Stewardship Council. By buying such products, you are supporting responsible forestry.

Encapsulated Base Board

Encapsulated Base Board

The encapsulated base board has been coated with Glass Reinforced Plastic (GRP) to strengthen it and add a sealing quality to the construction while protecting it from water damage. It goes around the tub and the drain hole, supports the tub, and assists in sealing the underside from moisture.

You've Selected which adds to a total of

Reviews & Ratings

Rate this Item.:

Hide All Reviews
From : brinscall Overall Rating: Date: July 28, 2015 Excellent service
The bath was delivered as promised and was very, very well packed. It arrived on a pallet, and every effort had been made to ensure it came to no harm. Now in the bathroom and is everything and more than we wanted, it is a case of who can get in the bath first! Excellent all round service, and I would not hesitate to recommend it to anyone. Thank you for such good service.
Helpful? Thumbs Up Thumbs Down
Quality:
Style
Value for Money
From : WALSALL Overall Rating: Date: August 30, 2015 Nothing special!
Ok, for price. No attachments to secure the side panel on. I had to make my own. Using it for a year now and with two kids, one who is nearly two now, few dents and scratches in the bath, made with only plastic items being dropped! Looks good, though and saves space. After a long, hard day's work, the seat section is a good idea.
Helpful? Thumbs Up Thumbs Down 1 of 1 People have found this Review useful
Quality:
Style
Value for Money
From : Ilkeston Overall Rating: Date: September 19, 2015 Value for money
Having ordered this I thought it would be a mammoth task to install and plumb in, but i found it very easy, the quality of this bath is outstanding, supported base and quality feet and legs go hand in hand the bath panel was perfect and fitted a dream. Top mark QS
Helpful? Thumbs Up Thumbs Down
Quality:
Style
Value for Money
From : Whitstable Overall Rating: Date: July 27, 2015 Good bath
I fitted it but never used it. The user was quite happy with it. The only problem I found was fitting the waste; I had to raise the bath about 3/4 inch and when I came to fitting the curved side I had to raise that as well.
Helpful? Thumbs Up Thumbs Down
Quality:
Style
Value for Money
From : Nr Chepstow Overall Rating: Date: August 28, 2015 Feedback
Original bath was damaged also packaging damaged not happy to accept, company contacted immediately and it took a long time to sort out a replacement with the company which we had to pay P&P for!!! Not impressed!!!
Helpful? Thumbs Up Thumbs Down
Quality:
Style
Value for Money
From : NEWCASTLE UPON TYNE Overall Rating: Date: June 16, 2015 Nuts.
Well packaged. Good quality corner bath. The only fault was the fixings i.e. a plastic bracket I could not find a use for and two 12mm nuts missing. Nothing I could not get over. Otherwise very good.
Helpful? Thumbs Up Thumbs Down
Quality:
Style
Value for Money
From : Tilney St Lawrence, Kings Lynn Overall Rating: Date: October 23, 2017 Orlando corner bath
Good value for money fitted easily, however the side panel took a bit of fine adjustment but it was not beyond the skills of a practical person. I would use again and recommend.
Helpful? Thumbs Up Thumbs Down
Quality:
Style
Value for Money
From : Overall Rating: Date: August 5, 2011
Purchased the bath a couple of weeks ago and am just having fitted. Also purchased the bath waste as it was recommended - Superb
Helpful? Thumbs Up Thumbs Down 7 of 12 People have found this Review useful
Quality:
Style
Value for Money
From : Greater Manchester Overall Rating: Date: July 27, 2015 Fast Delivery
Fantastic service from this company. Fast delivery and a beautiful product have recommended them to everyone I know!
Helpful? Thumbs Up Thumbs Down 2 of 2 People have found this Review useful
Quality:
Style
Value for Money
From : Mansfield Overall Rating: Date: July 27, 2015 Bath
Bath arrived quickly well packaged and was of good quality. Would recommend the company to family and friends.
Helpful? Thumbs Up Thumbs Down 1 of 1 People have found this Review useful
Quality:
Style
Value for Money

Questions & Answers

Submit Your Questions 3 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Steve Asked :

What does it mean when it says, "For this bath, installation is not possible with the EPS tiling board"? My walls in the bathroom are 10mm, no-more-ply backer boards.

Answered By QS Team Answered by the QS Technical Team

It means that this bath cannot be used with EPS System (Inset Bath). This bath is suitable to use with its dedicated bath panel only.

Was this answer helpful?
Accepted Answer 3 Thumbs Down 1
Simon Asked :

Please, can you confirm this Trojan Orlando bath's dimensions as on this page there are 3 different widths?

Answered By QS Team Answered by the QS Technical Team

The Width is 1060mm.

Was this answer helpful?
Accepted Answer 5 Thumbs Down 1
Luke Asked :

Does the bath come with the side panel, if not, can you give me a link to a page with a suitable side panel on it, please? Thanks

Answered By QS Team Answered by the QS Technical Team

This Bath comes with a optional panel.

Was this answer helpful?
Accepted Answer 7 Thumbs Down 2
