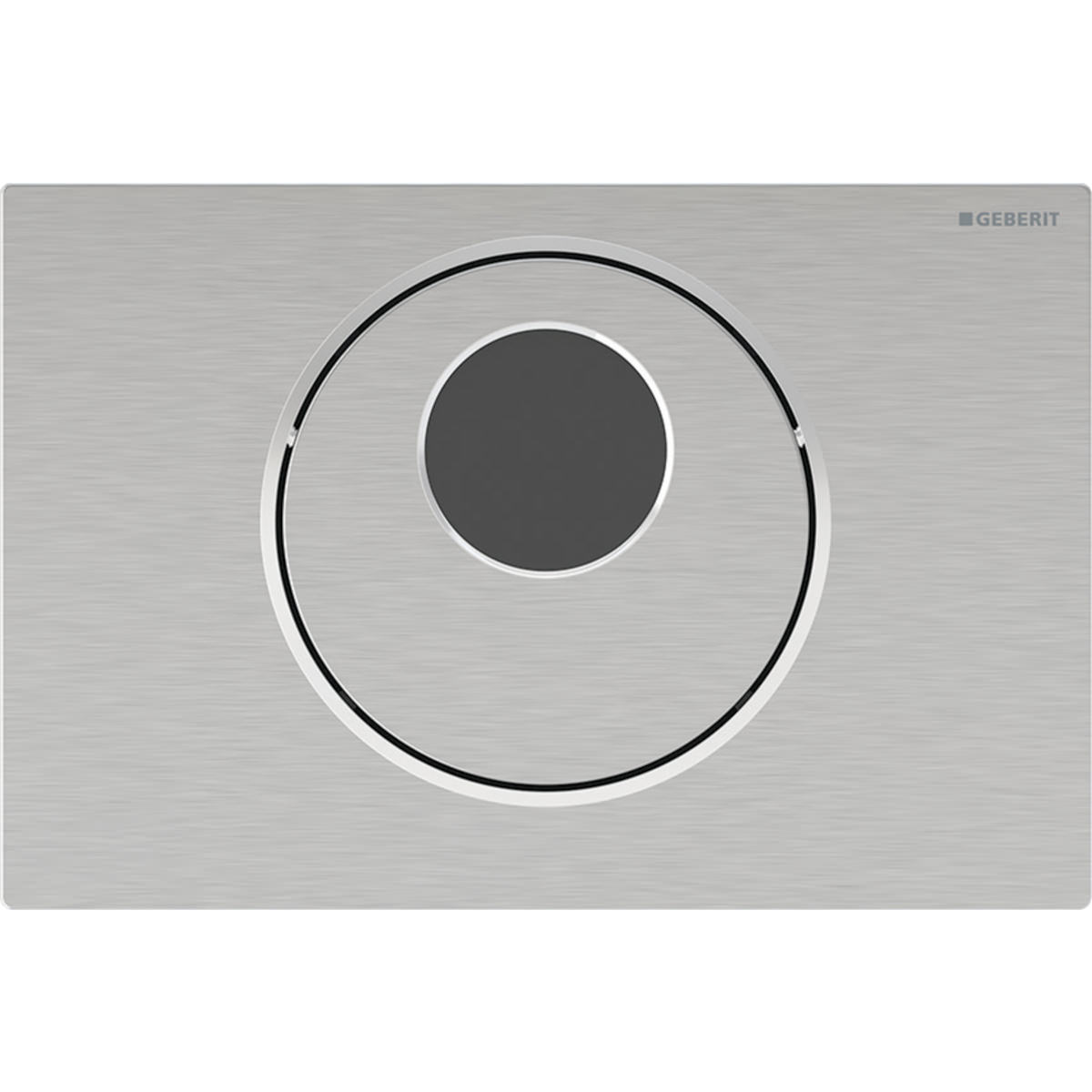

Geberit Sigma10 Stainless Steel Touchless Dual Flush Plate, Battery Operated

Geberit Sigma10 Details

MFC: 115.891.SN.6

Geberit Sigma10 Stainless Steel Touchless Dual Flush Plate 246 x 164mm - Battery Operated.

Manufacturing Code of this Product is 115.891.SN.6
Plate: Brushed - Easy-to-Clean Coated, and Design Ring: Polished
Size [mm]: 246mm x 164mm [Width x Height]
Size [cm]: 24.6cm x 16.4cm [Width x Height]
Thickness: 15mm (1.5cm)
Material: Stainless Steel
Battery-Operated
Suitable for Public and Semipublic Areas
Releasing a Dual Flush
Can be Installed in Solid and Drywall Construction
Suitable for Less-Abled Installation
Not Suitable for Use with Geberit Inserts for In-Cistern Block

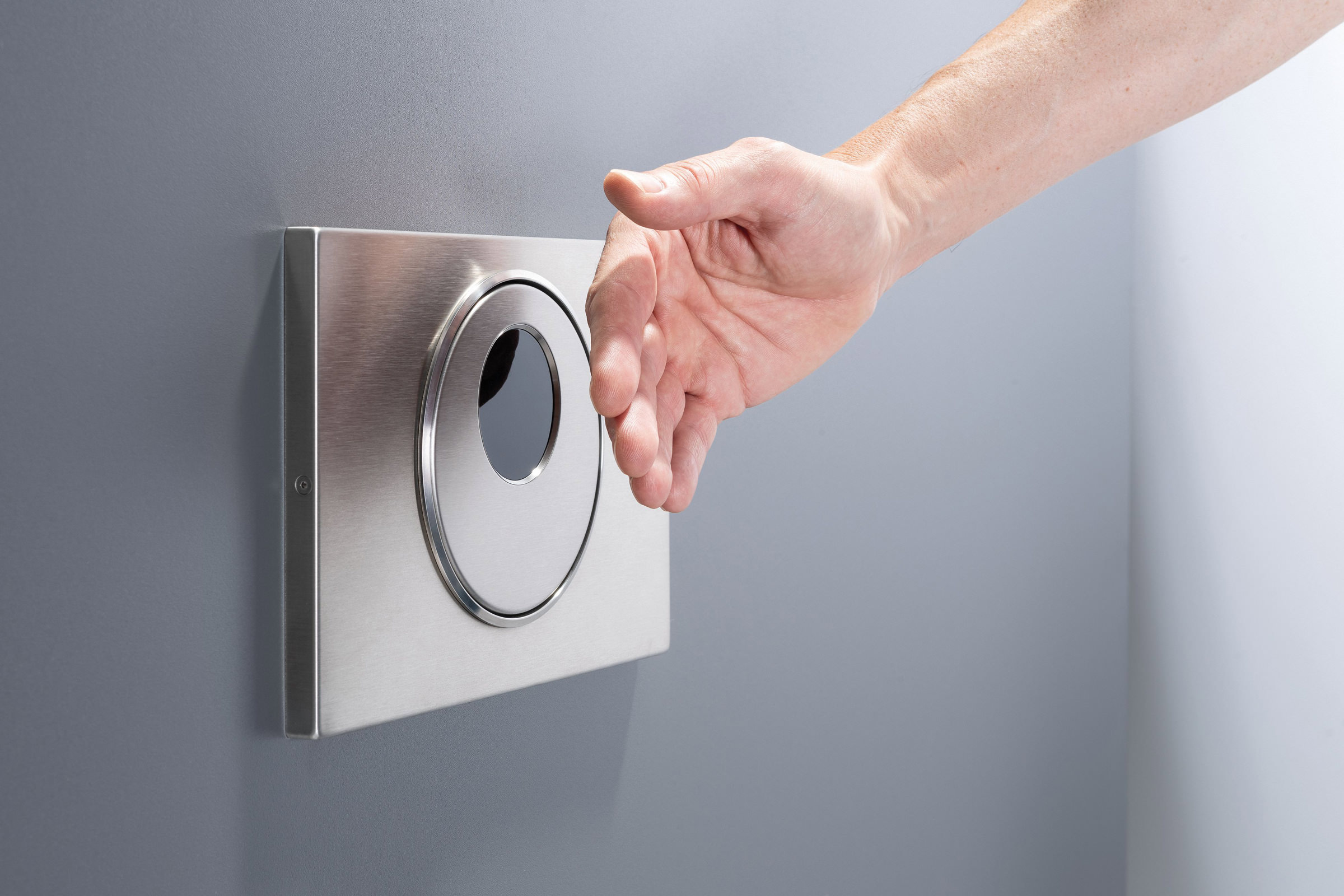

Touchless Manual Flush Actuation
Automatic Flush Actuation
Manual Flush Actuation via Flush Plate
Batteries in the Closed battery Compartment in the Flushing Cistern
Complete with Push-Fit Connection with Cross-Polarity Protection
Infrared User Detection with Background Fade-Out
Self-Adjusting Infrared Sensor
Reliable Infrared Distance Detection
Interval Flush Preset
Adjustable Interval Flush
Preflush can be set
Minimum Detection Time can be set
Flush Actuation can be deactivated
Low-Noise Lifting Mechanism
Self-Calibrating Electrical Lifting Device
Easy Maintenance and Cleaning
Device Settings and Operation with a Mobile Device via the Integrated Bluetooth Interface
Compatible with Geberit Control App, Geberit Connect and Geberit Service Handy
Wirelessly Connectable with Geberit Gateway via Bluetooth
Battery Type: LR20
Protection Degree: IP45 Rated
Operating Voltage: 3V DC
Power Consumption: ≤ 4 W
Power Consumption Standby: 0.15 W
Interval Flush Adjustment Range: 1-168 h
Interval Flush Factory Setting: 24 h
Interval Flush Time Adjustment Range: 1-200s
Interval Flush Time Factory Setting: 1s
Detection Time Adjustment Range: 1-60s
Detection Time Factory Setting: 7s

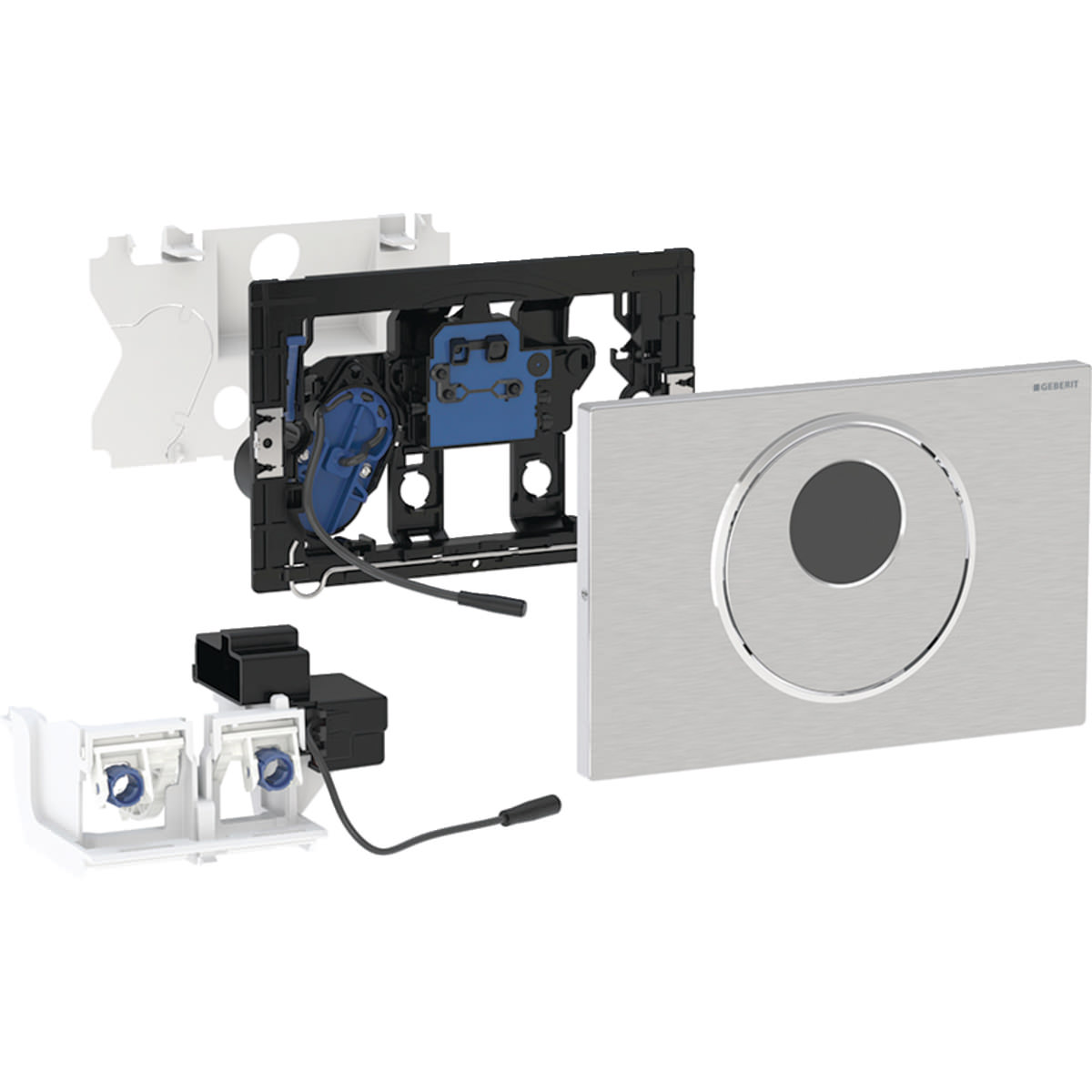

Scope of Delivery:
Sigma10 Flush Plate
Mounting Frame with Infrared Control and Battery Compartment Pre-Mounted
Protection Plate
Support Block with Servomotor and Lifting Device Pre-Mounted
2x Alkaline Manganese Batteries LR20, Each 1.5 V
Actuator Rod
Fastening Material

Info / Size (mm)

Plate
Width: 246 mm
Height: 164 mm
Thickness: 15 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Brushed Stainless Steel | Polished
⤷ Shape
: Rectangular
⤷ Country of Origin
: Germany
⤷ Warranty/Guarantee
: 2 Year
⤷ Material
: Stainless Steel
⤷ Installation Type
: Wall Mounted
⤷ Water Saving
: Yes
⤷ Flush Type
: Single | Dual

⤷ Width
: 246
⤷ Depth
: 15
⤷ Height
: 164
⤷ Fixings included
: Yes
⤷ Orientation
: Landscape
⤷ Operation Type
: Battery, Automatic, Touchless
⤷ Compatible With
: Sigma Cistern 12cm
