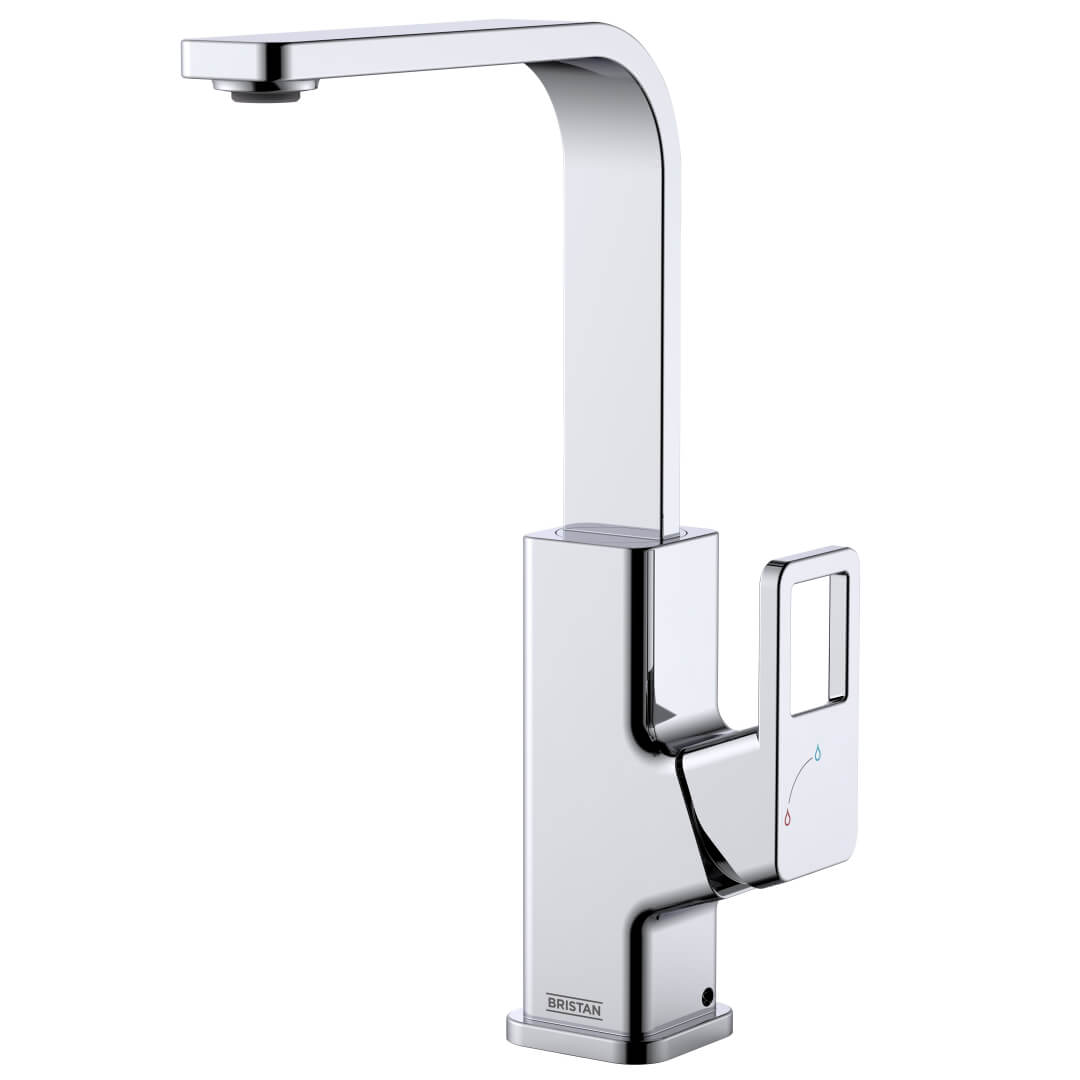

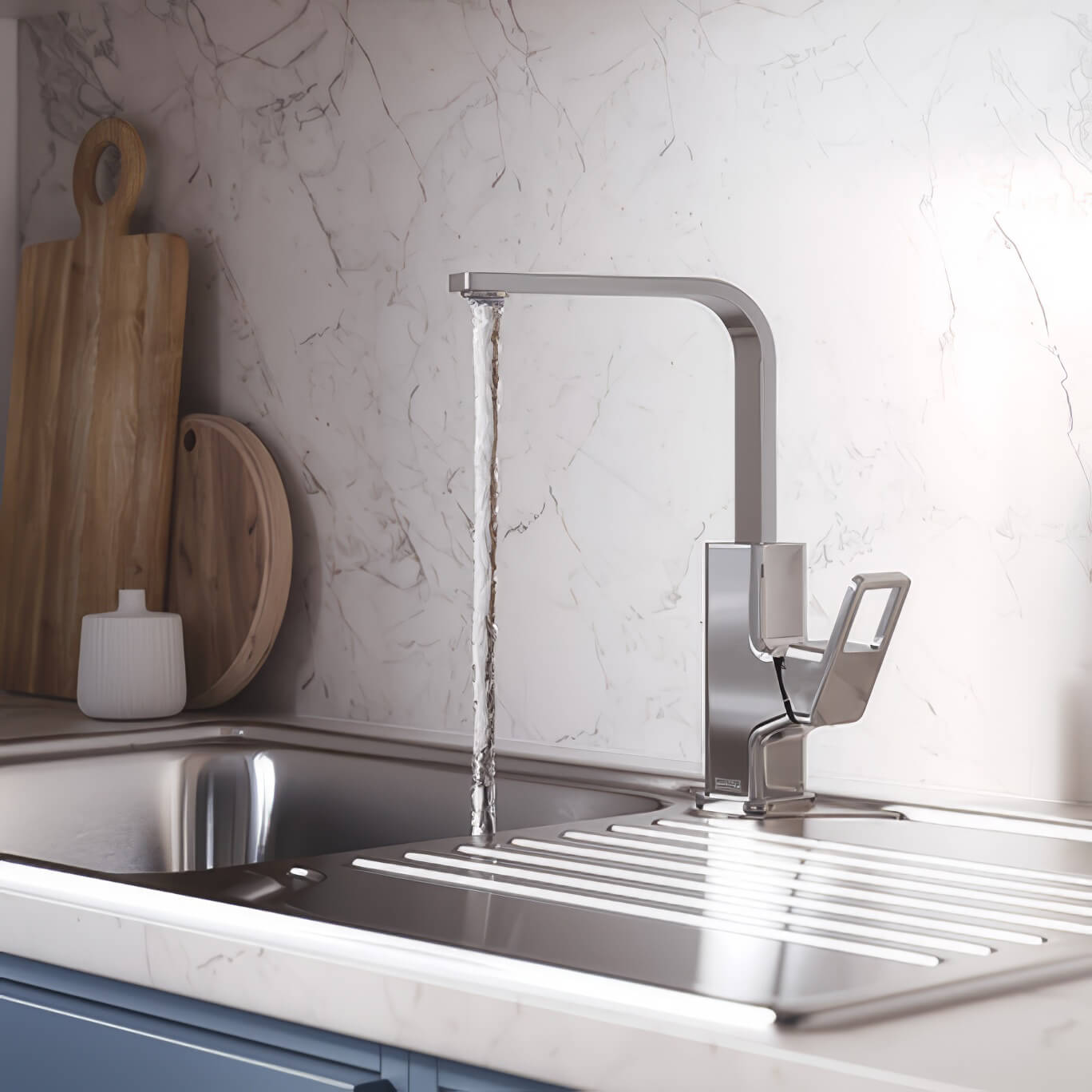

Bristan Spruce Side Action Easyfit Mono Kitchen Sink Mixer Tap

Bristan Spruce Details

MFC: SPR EFSNK C

Bristan Spruce Side Action Deck Mounted Easyfit Mono Kitchen Sink Mixer Tap - Loop Handle and Swivel Spout

Key Features

✔WRAS Approved
✔Swivel Spout for Easy Use
✔Manufactured Using Brass Material
✔10 Years On Parts and 1 Year On Labour Guarantee from Bristan

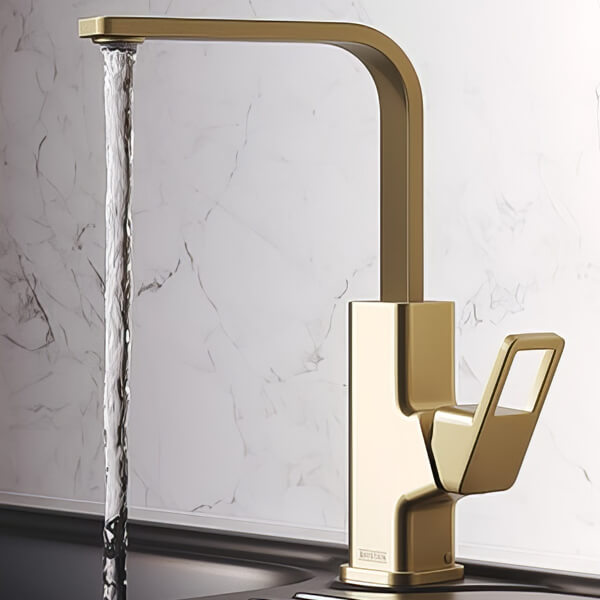

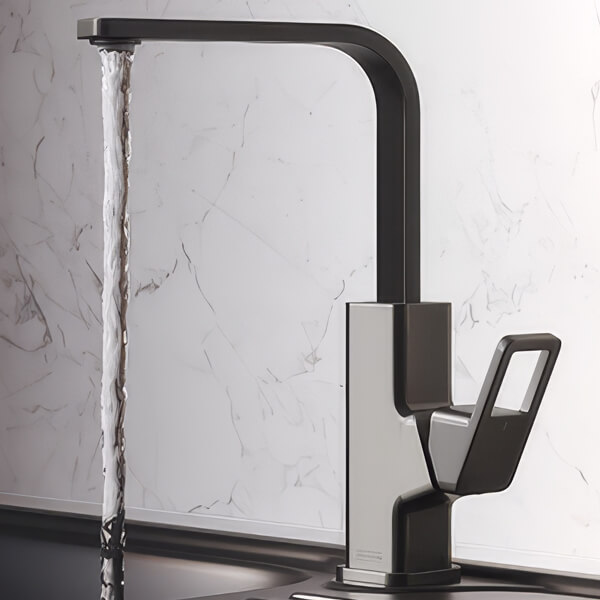

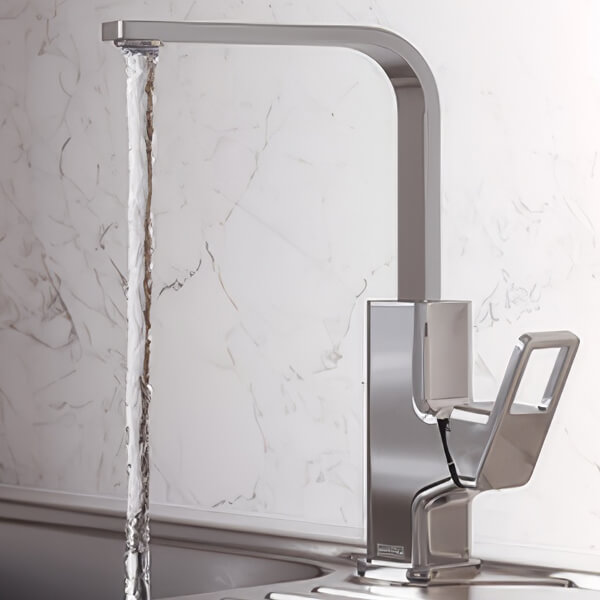

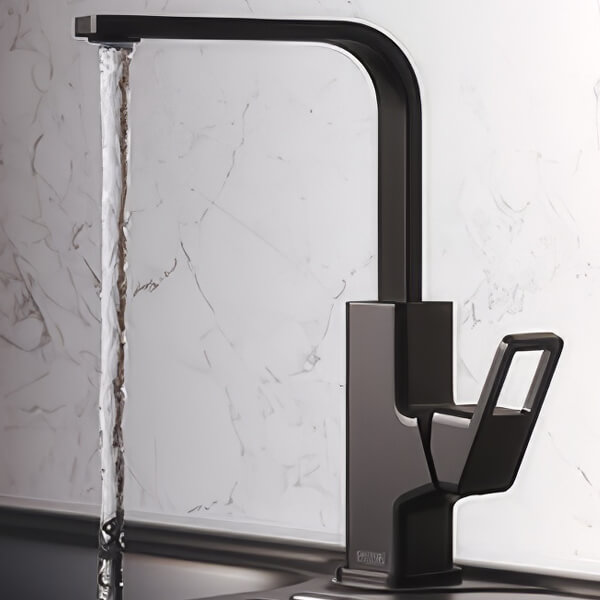

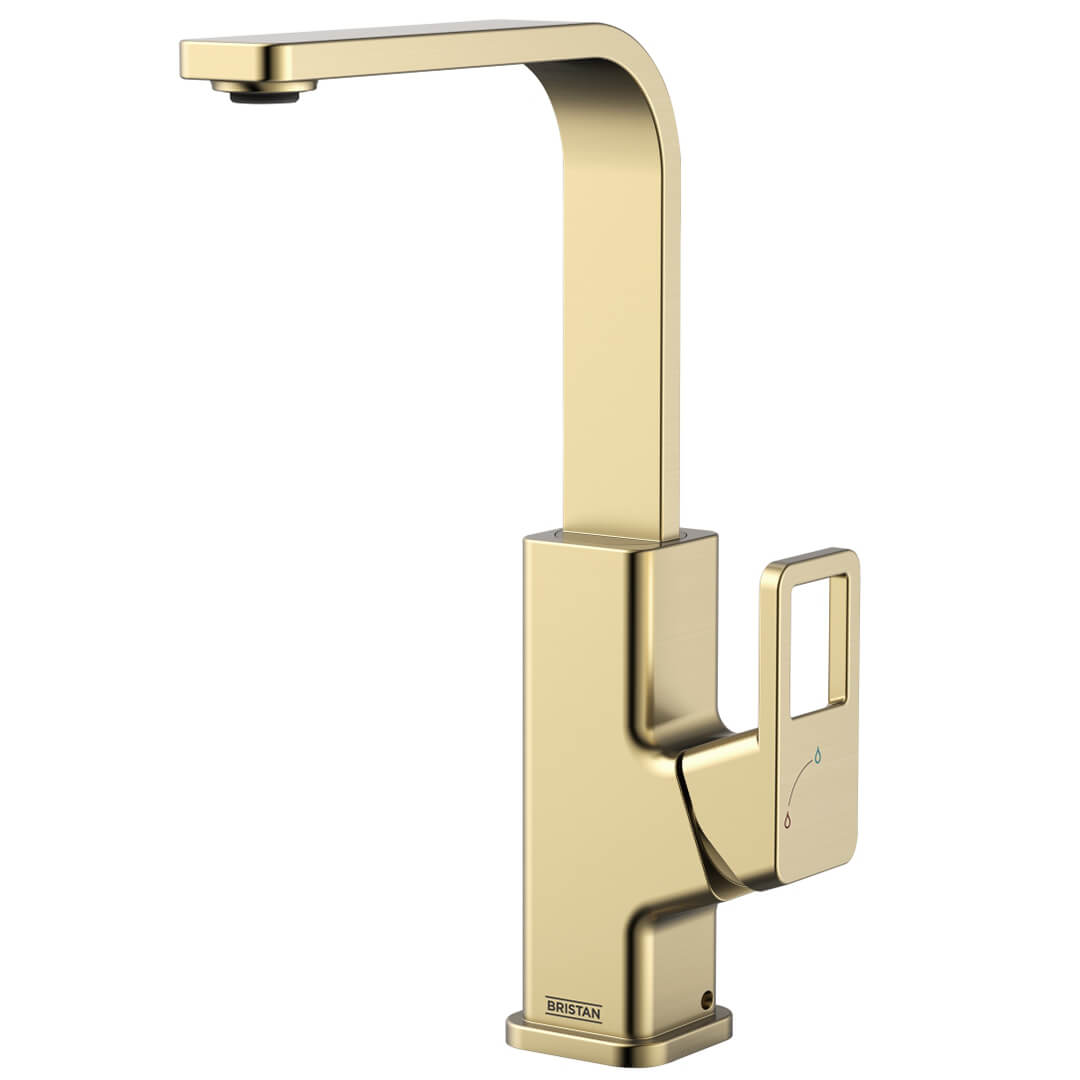

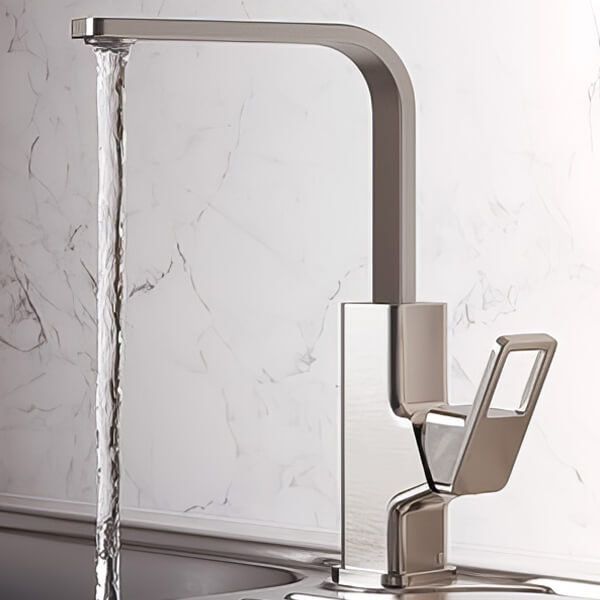

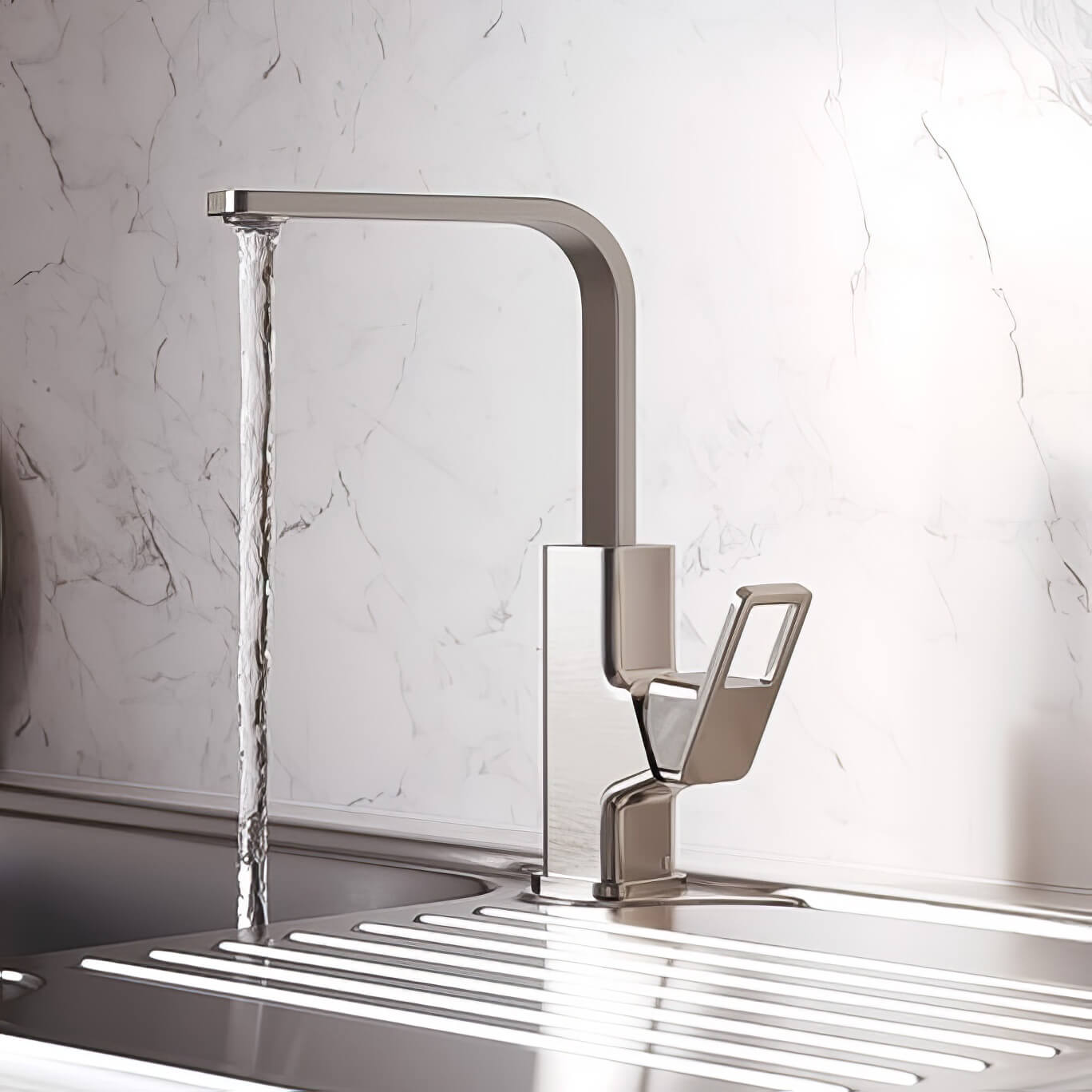

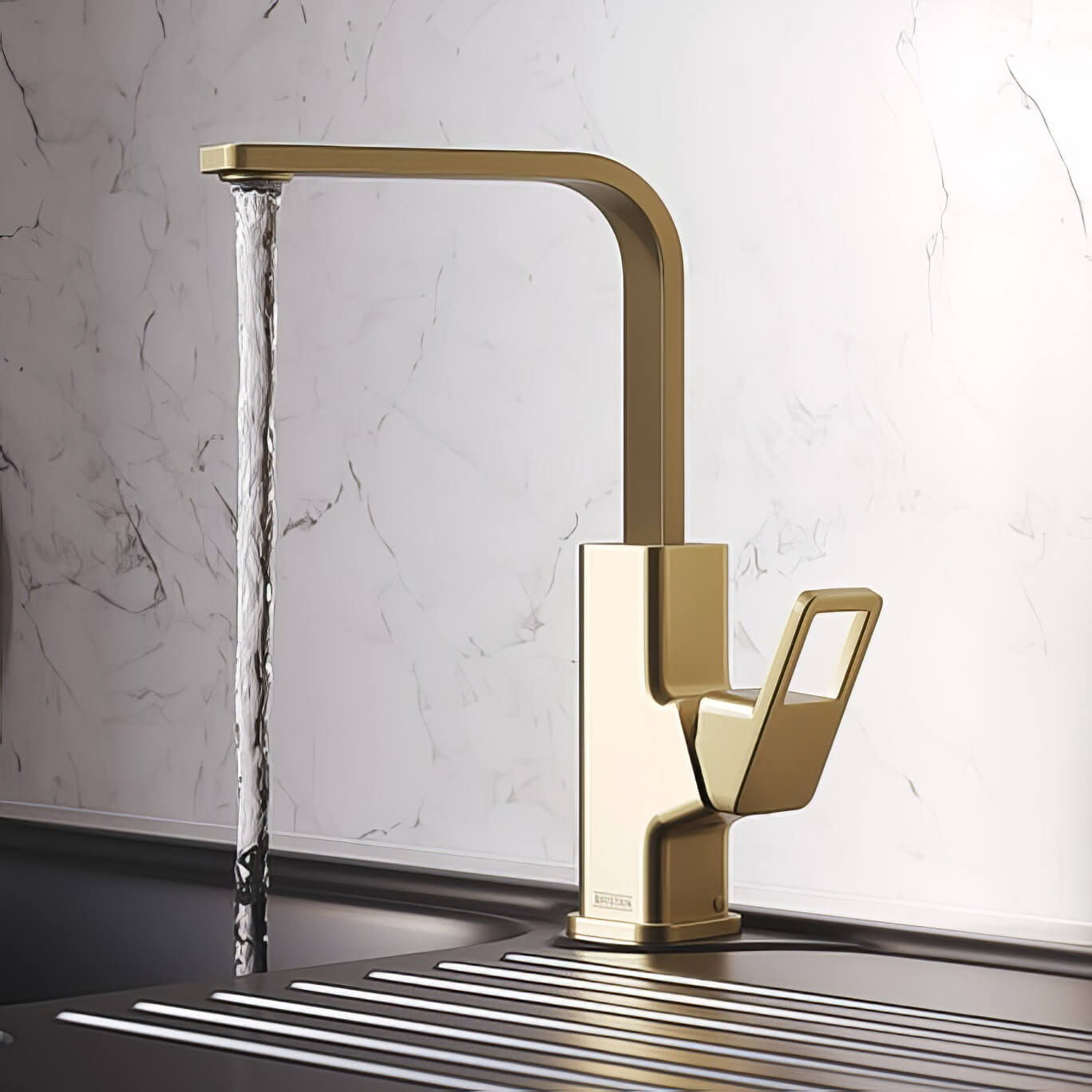

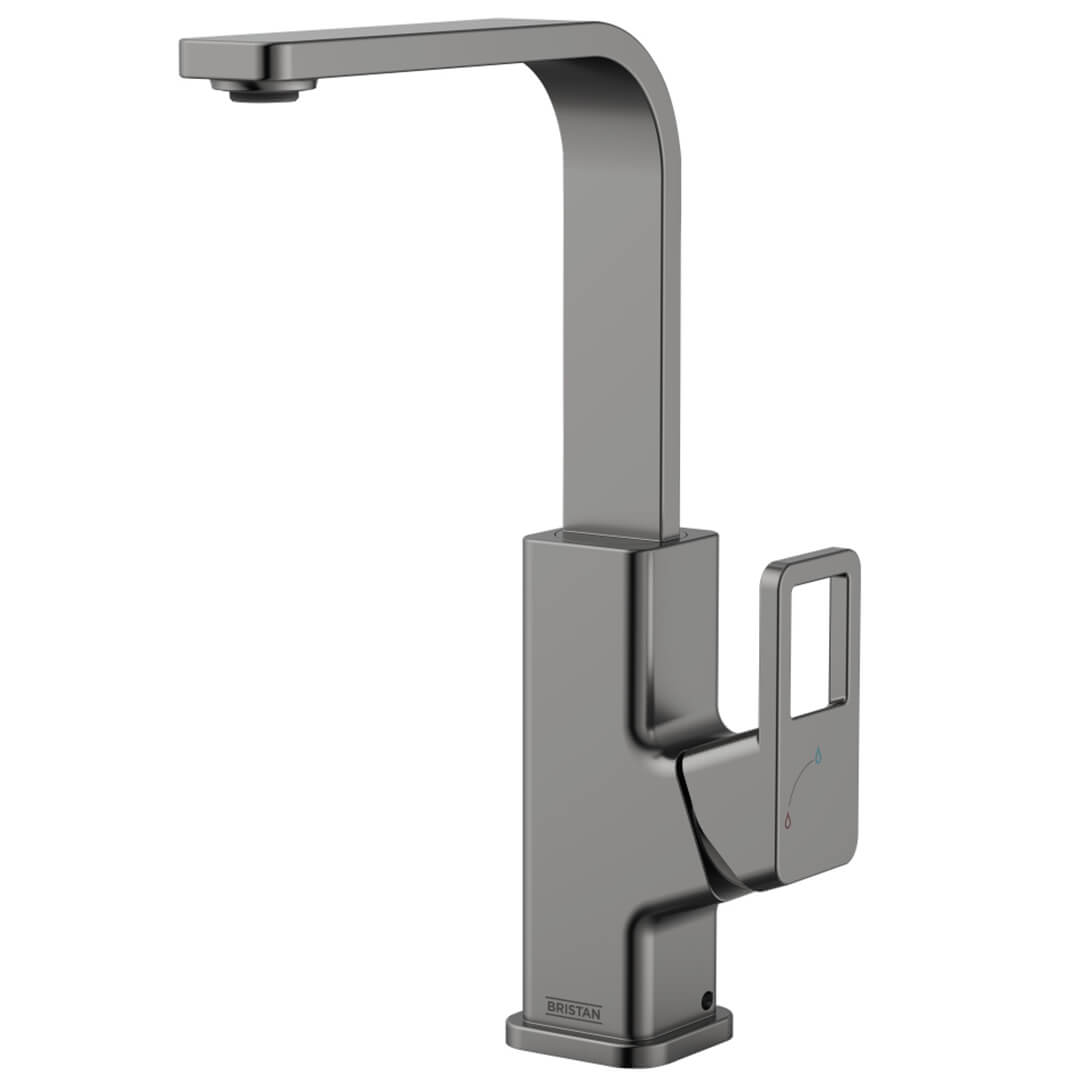

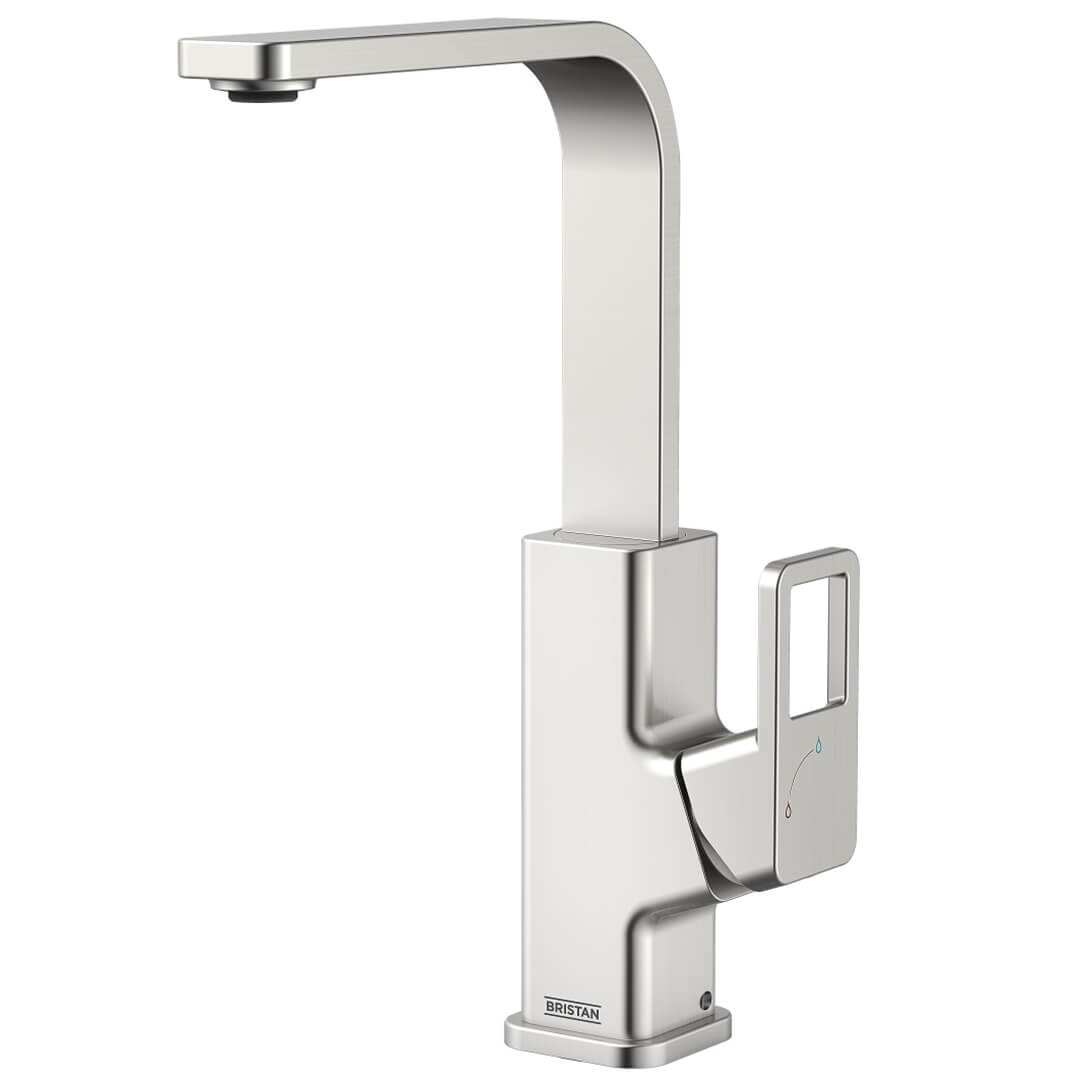

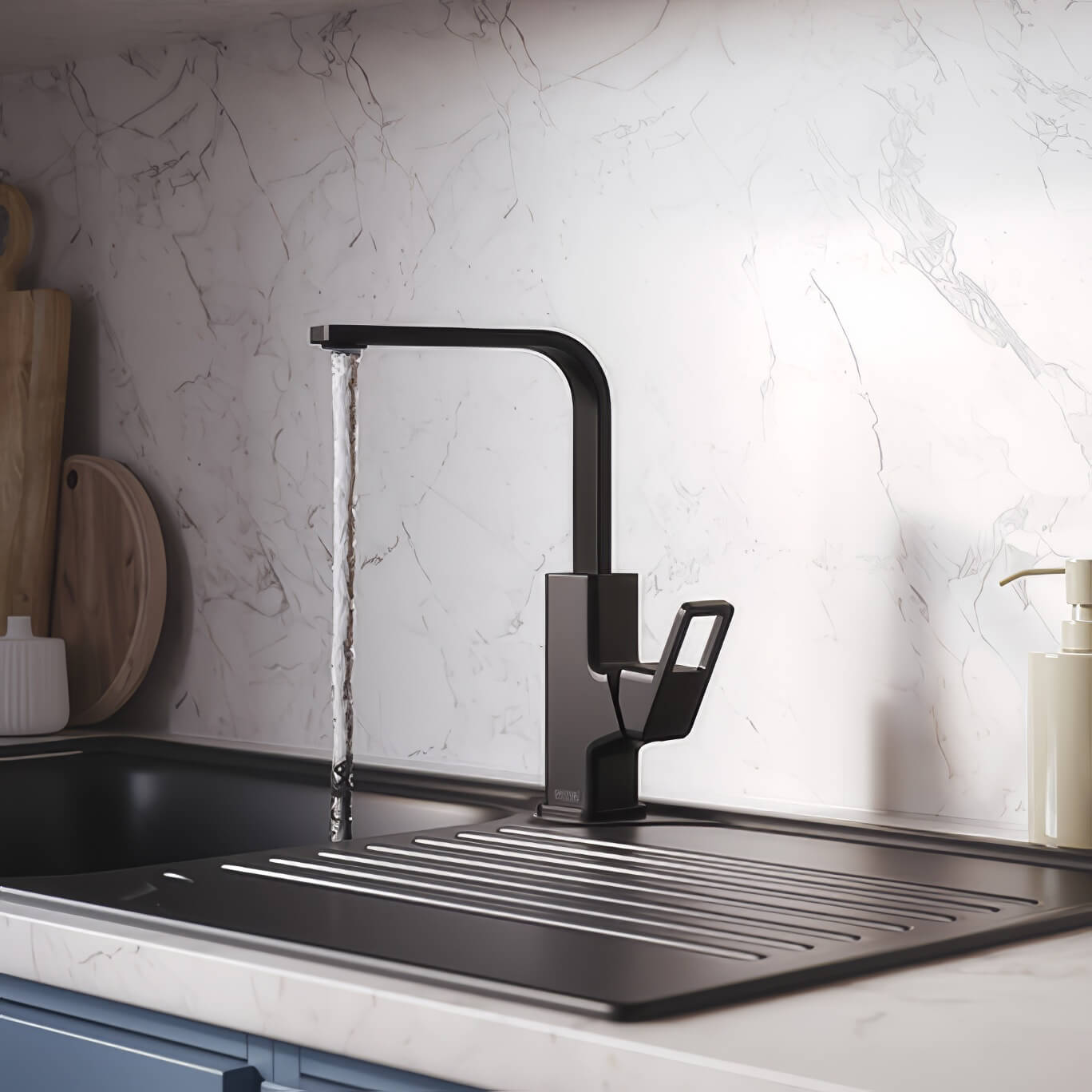

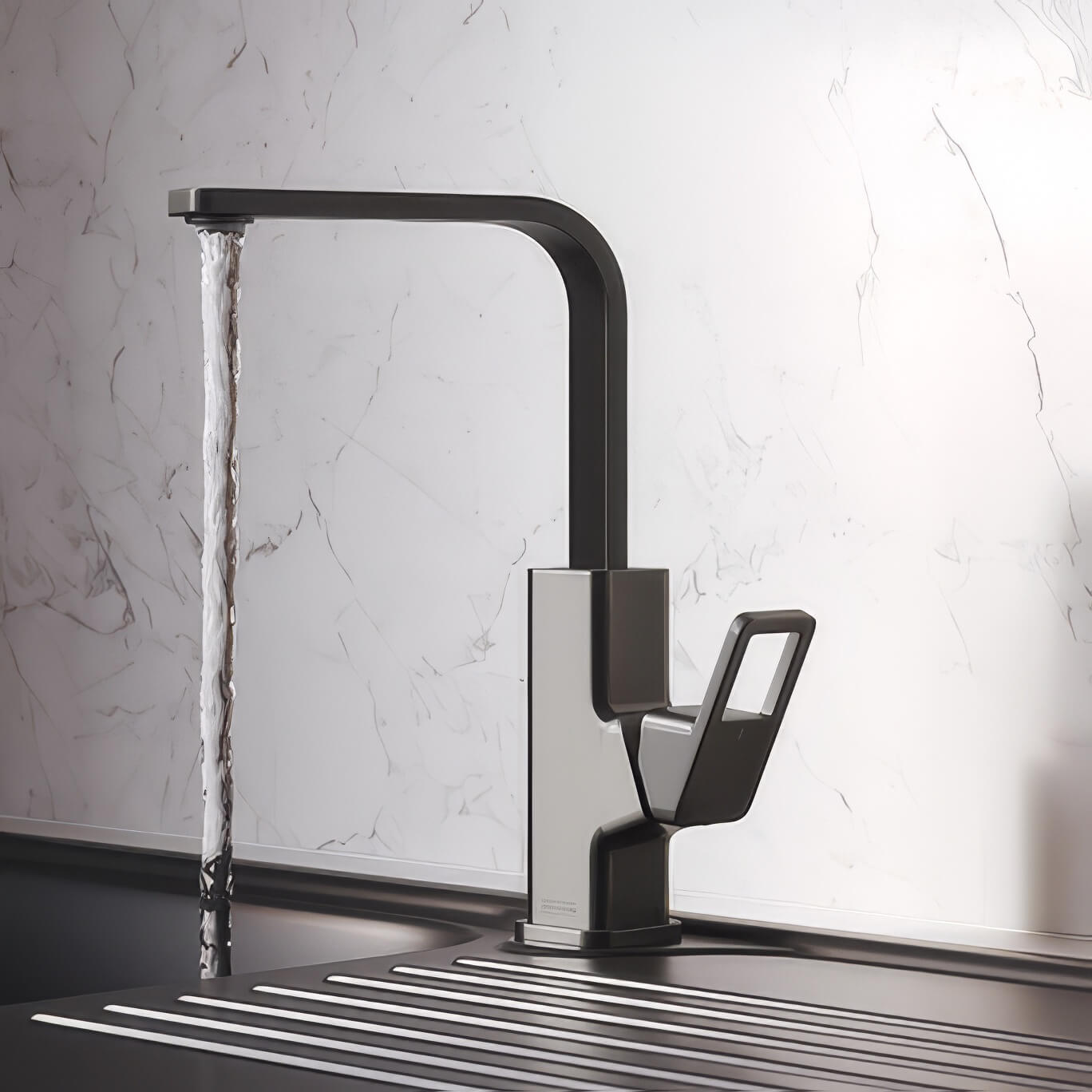

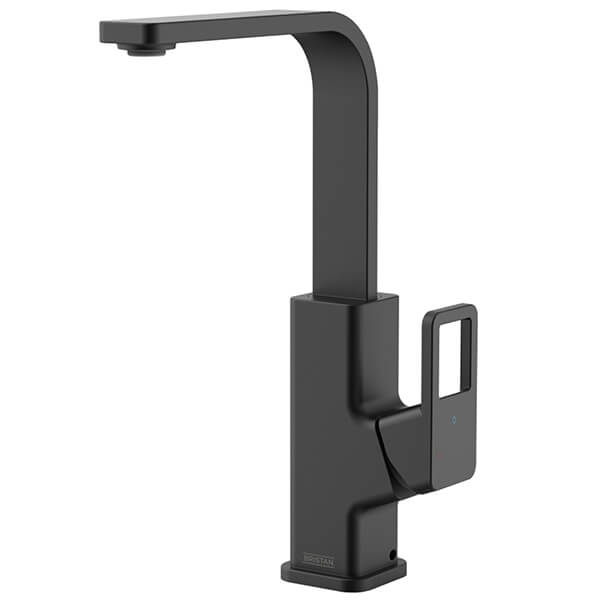

Available in 5 Finishes: Chrome, Black, Stainless Steel, Brushed Brass and Gun Metal
Size [mm]: 96 x 210 x 300mm [Width x Depth x Height]
Size [cm]: 9.6 x 21 x 30cm [Width x Depth x Height]
Base to Spout: 285mm [28.5cm]
Centre of Inlet to Centre of Outlet: 165mm [16.5cm]
Mount Type: Deck Mounted
Handle Type: Loop
Connection Inlet: 1/2 Inch BSP Flexible Tails
Connection Outlet: Housed M22 8L/M Aerator
Number of Tap Holes: 1
Valve/Cartridge Type: Thermaclick 35mm Eco Start Mirror Stepped Cartridge
Plumbing System Requirements: Suitable for All Plumbing Systems
Maximum Hot Water Temperature: 65°C
Maximum Static Pressure: 10 Bar
Flow Type: Single Flow
Isolation Included: Yes
High-Quality Metal Fixings for Security and Durability
Includes Long-Life Ceramic Cartridge for Added Durability and Ease of Use
Unique Patented Top Fix Design for Simple Installation from Above the Sink
Push the Tap onto the Base and Secure it Into Position with the Supplied Easyfit Tool and Screws
Simply Drop and Twist the Top Fix Base Into the Tap Hole from Above and Lock it Into Place with the Allen Key Provided
Supplied with Two Isolation Valves and Flexi Tails Means You Can Connect to the Water Supply at this Point and Isolate the Base
Everything You Need in the Box, Including an Allen Key, Isolation Valves, Top Fix Easyfit Base, Easyfit Tool and Flexi Tails

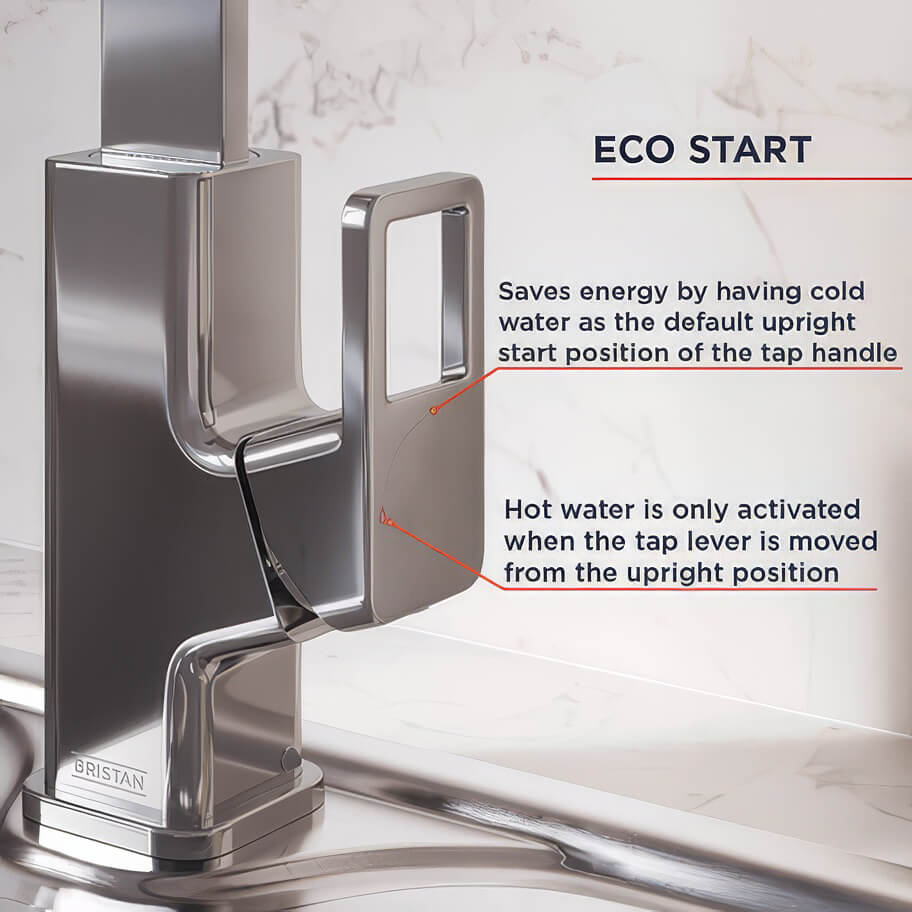

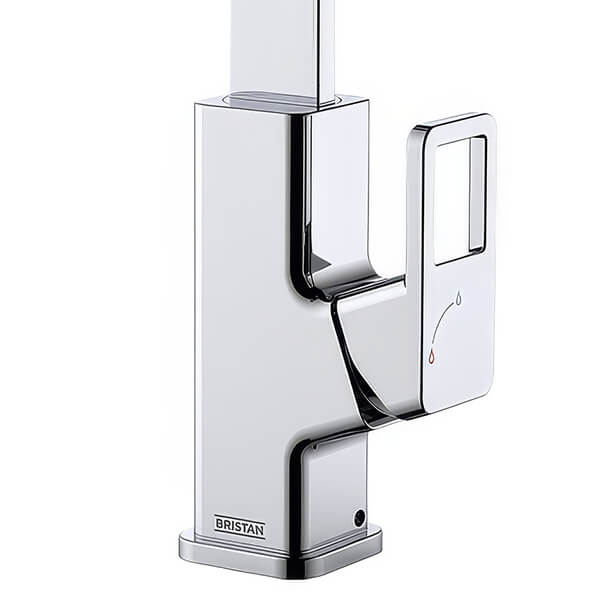

Eco Start Technology Saves Energy by Having Cold Water as the Default upright Start Position of the Tap Handle
Hot Water Activates Only When the Lever is Moved from the Upright Start Position, Preventing Unnecessary Boiler Use
Suitable for Low and High Water Pressure Systems
Required Minimum 0.3 Bar to Maximum 5.0 Bar Water Pressure
Refer to the Technical Image for the Technical Dimension
Download the Product datasheet and Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting / Tilting
⤷ Range
: Spruce
⤷ Tap Body Shape
: Square
⤷ Handle Position
: Right
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Valve/Cartridge Type
: Thermaclick 35mm Eco Start Mirror Stepped Cartridge
⤷ Spout Swivel
: Yes

⤷ Base To Spout
: 285
⤷ Spout Reach
: 165
⤷ Overall Height
: 300
⤷ Width
: 96
⤷ Inlet Connections
: 1/2 Inch BSP Flexible Tails
⤷ Minimum Operating Pressure (Bar)
: 0.3
⤷ Handle Style
: Loop Lever
⤷ WRAS Approved
: Yes
⤷ Spout Flow
: Single
⤷ Barcode
: 5014868083964
⤷ Product Type
: Kitchen Mixer Tap
⤷ Tails
: Flexible

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instructions Pdf File

Bristan Spruce Side Action Deck Mounted Easyfit Mono Kitchen Sink Mixer Tap - Loop Handle and Swivel Spout

£126.00

RRP: ~~£210.00~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

10 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Swivel-Spout

The respective apparatus is engineered to move sideways or at certain angles, which helps the spout cover a greater area than would be possible in a fixed position.

Flexible Tail Pipes

Flexible Tails, or "Flexi" Tails, are one of the easiest methods to connect the plumbing pipework to the tap fitting. Mixers generally have two tails, one for the hot water supply and the other for the cold. These tailpipes consist of rubber inside a braided metal and come in many sizes.

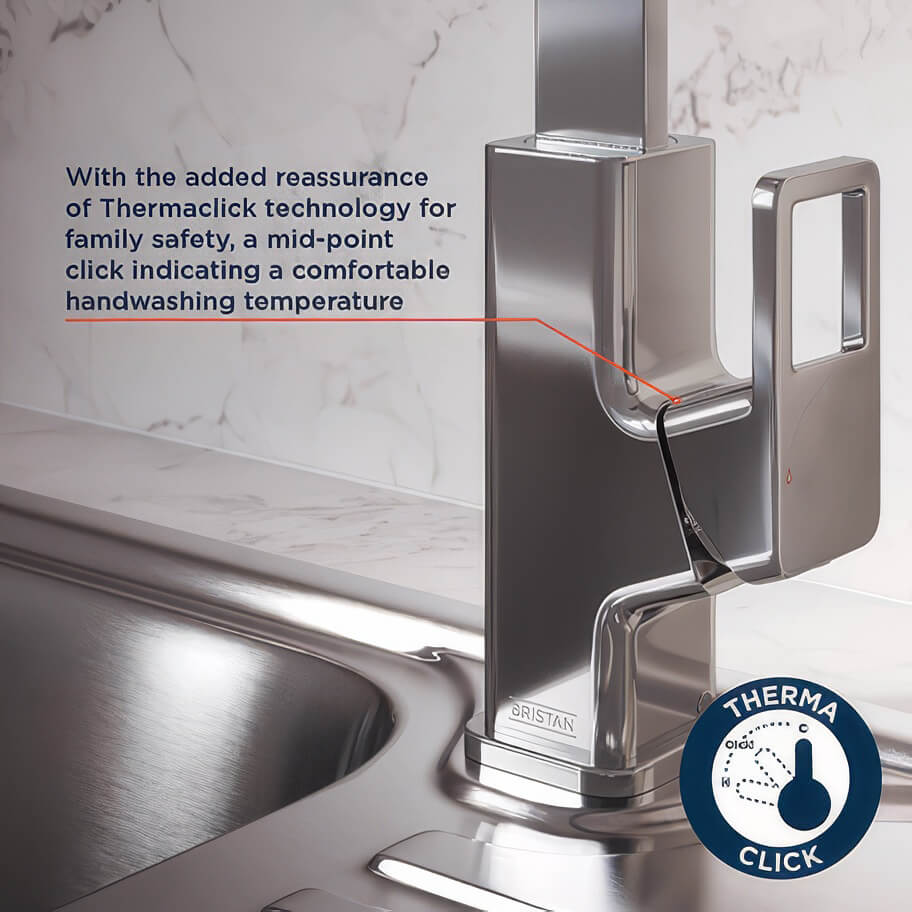

ThermaClick

ThermaClick a feature designed for safe use of the tap. This feature emits a tactile "click" when the water is at a safe hand-washing temperature, so users, especially children and elders, know when to go ahead and use the water.

Eco-Start

Eco-Start ensures your tap water is always cold when you start the tap. You can activate hot water when needed by moving the handle towards the hot indicator. This way you save money on your energy bills and reduce your carbon impact.

Precise Glide

It comes incorporated with ceramic cartridges for long life with precise control for smooth, leak-free use.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

Easyfit

Step1: Fitting the Base The first step is to slot the base of the tap into the sink. For this, detach the plain barrel from the EasyFit Base. Unscrew the fitting and push it through the hole in the sink or work surface. It must be in the central position, indicated by the word FRONT facing forward. Now tighten the fitting to the surface with a hex key, and replace the plain barrel. Step 2: Fitting the Tails Next, you need to connect the integral flexible tails to the hot and cold water sources after you have closed the built-in valves. Step 3: Fitting the Tap Body Push and secure the tap body to the base using grub screws, which are present on either side of the tap body. The grub screws must be tightened using the hex key.
