Ideal Standard Tesi Close Coupled Back-To-Wall WC Pan with Aquablade Technology

Ideal Standard Tesi Details

MFC: T355701

If youre looking for indulgence, utility, and class, right in the comfort of your bathroom, then you must consider installing the Ideal Standard WC Pan. Elegantly crafted from a Robin Levien inspiration, it features a water-efficient and stylish design. Its highlight is the new AquaBlade® flushing technology and completely hidden fixation system for a seamless finish. This pure white delight carries a geometric form, fabricated using high quality vitreous china to ensure durability. Frequently used in homes and offices, it is backed by an impressive lifetime guarantee from the manufacturer against manufacturing defects.

The Manufacturing Code of this Product: T355701
It Comes in a White Finish
Horizontal Outlet
Size [mm]: 365 x 400mm [Width x Height]
Size [cm]: 36.5 x 40cm [Width x Height]
Projection: 665mm [66.5cm]
Overall Height: 790mm [79cm]
WC Screwed to the Floor Using Supplied Concealed Bracket, and Optional Cistern Screwed to the Wall
Weight: 31kg
Suitable for Domestic and Commercial use
Watch or Download a Video from the Additional Info Section Showing how AquaBlade Technology Works
They are Frequently used in Hotels, Offices, Public Buildings, Pubs, Clubs, Residential, Retail, Social Housing, Sports, Leisure and Student Accommodation Applications
For Complete Size Details, Refer to the Technical Image

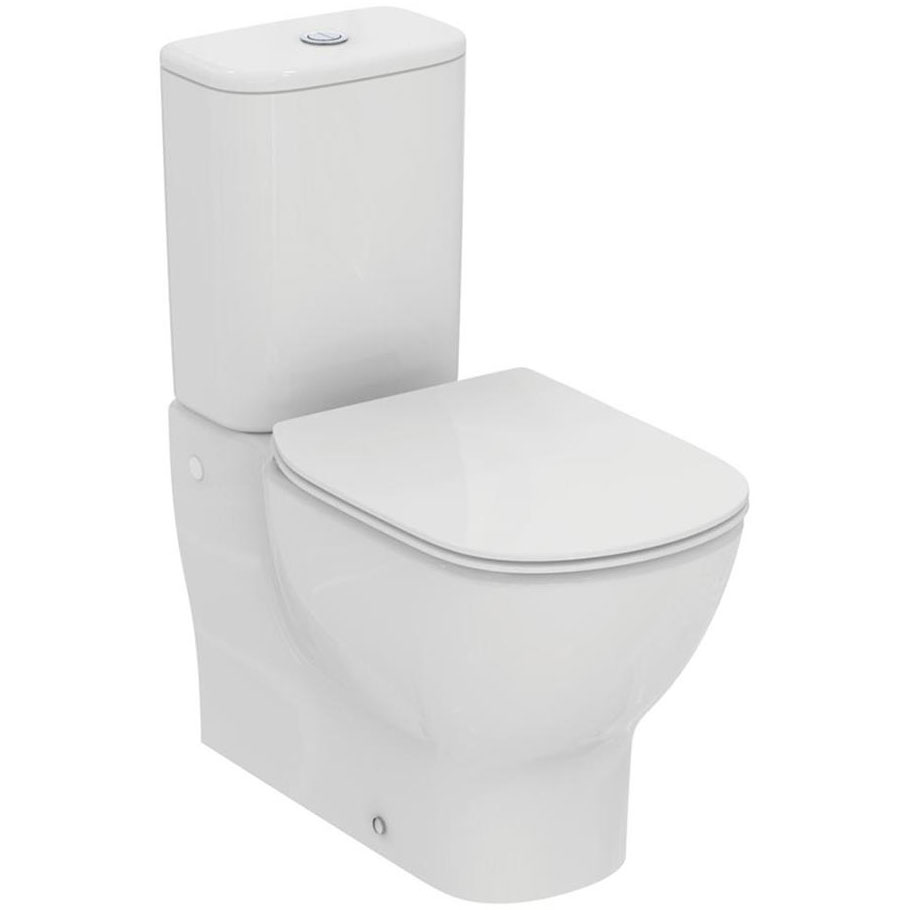

The Cistern and Seat Shown in the Image are not Included
Optional Products: Cisterns, Seats and Covers
AQUABLADE® Flush Technology Features:
With Simple, Clean Lines and Contemporary Styling, the Unpleasant, Overhanging Rim is not Visible -- Only Smooth Curves are Visible
80% of the Consumers Prefer this Technology Over the Standard Box Rim and Rimless Toilet
It offers Superior Flush Performance Every Time
Its Unique Design Helps Water Flow from the Top of the Bowl, Enabling 90% of the Area to be Rinsed Clean
The Internal Channel Generates a Pressurised Cascade of Water That Flows Around the Bowl
Two Strong Jets Merge, and as a Result, a Powerful Plume is Formed That Drives Solid Matter Easily
Overtakes All Existing WCs, When it Comes to Hygiene
A significant Area of the Traditional Bowls is Left Unwashed, Particularly the Back Bowl
Ensures 100% of the Surface Area Below the Channel is Rinsed Clean
Bacteria Can Harbour Around the Shelf Area in Rimless Toilets, and Water Can splash over the Edge of the Bowl, Releasing Bacteria Particles into the Air and Ensuring That the Bacteria are Completely Washed Away with No Splashing

Info / Size (mm)

Toilet
Width: 365mm mm
Projection: 665mm mm
Height: 400mm mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Toilet Design
: Back-To-Wall
⤷ Range
: Tesi
⤷ Colour
: White
⤷ Weight in kg
: 31
⤷ Country of Origin
: EU
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Installation Type
: Floor Standing
⤷ Water Saving
: Yes
⤷ Pan Width
: 365
⤷ Pan Height
: 400
⤷ Toilet Overall Height
: 785
⤷ Projection (Depth)
: 665
⤷ Cistern Included
: Sold Separately
⤷ Flush Type
: Dual Flush

⤷ Flush Mechanism
: Push Button
⤷ Cistern Lever Or Button Placement
: Top
⤷ Outlet
: Horizontal
⤷ Configuration
: WC Bowl Only
⤷ Seat Included
: Sold Separately
⤷ Compliance/Approvals/Standard
: WC bowl to BS EN 997 & BS EN 33
⤷ Barcode
: 8014140430568
⤷ Bowl Shape
: Square
⤷ Base width
: 245
⤷ Base Depth (projection)
: 545
⤷ Pan fixing centres
: 120
⤷ Cistern Fixing Centres
: 225
⤷ Outlet Diameter
: 102
⤷ Floor to centre of cistern fixing hole
: 735
⤷ Base to centre of outlet
: 190

Additional Info & Downloads

Download the AquaBlade Flush Technology Pdf File

Add-Ons

Close-Coupled-Cistern

Close Coupled Cisterns. . Please note image shown is for illustration purpose only.

No Option Selected
OP-83586 - 6-4 Litre Dual Flush Valve Bottom Supply And Internal Overflow - T357001 + £108.82
OP-83585 - 4-2.6 Litre Dual Flush Valve Bottom Supply And Internal Overflow - T356901 + £108.82

Optional Toilet Seats

To match perfectly with Ideal Standard WC. Bring in this Toilet seat with Standard and Soft close hinges. Please note the image shown is for illustration purposes only.

No Option Selected
OP-60309 - Slow Close Slim - T352701 + £89.10
OP-60310 - Normal Close Slim - T352801 + £49.51

Videos

Video of Ideal Standard AquaBlade Flushing Technology

Ideal Standard Tesi Close Coupled Back-To-Wall WC Pan with Aquablade Technology

£225.96

RRP: ~~£282.50~~

Stock Availablity: 4 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Rimless

A rimless toilet does not have a brim at its edge, from which the water usually flows when you flush. Instead of flowing from the top, such toilets shoot water towards its edge and around it, allowing no missing spots with filth remaining after a flush. These toilets also remove any spaces for germs to hide and breed, providing a hygienic alternative for your bathroom.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

AQUABLADE FLUSH TECHNOLOGY

AquaBlade is an award-winning, patented flush technology. It offers a superior flushing action, even with low water volume. The AquaBlade system is an intelligent innovation in flushing that gives a cleaner, quieter flush, thanks to a more innovative design, to offer unmatched hygiene. Upon flushing, the system creates a wall of water that cascades from the top of the toilet bowl, along with two powerful plumes of water, for energising flushing action. The toilet is designed so that it flush bacteria away with a powerful flushing system without splashing.

Reviews & Ratings

By: habib From : LONDON Overall Rating: Date: May 29, 2017 Aquablade toilet

Excellent service. The first time I used this place, I will use it again and recommend it for everyone to try it out; customer service is brilliant, and so is the UK call centre. The product was out of stock; I was told I would receive it in 5 days, but I got a call in 24 hours to say the item has arrived and was ready for pick up. The brilliant toilet, exactly how the product is in the demo video with aqua blade flush. Five stars for services and products. I will definitely recommend it and will be buying it again. Thanks, habbs London

Helpful?

1 of 1 People have found this Review useful

Quality:

Style

Value for Money

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

BRANDON Asked :

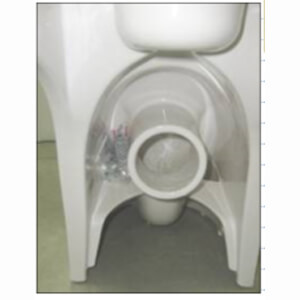

I'm after a back-to-wall Aquablade toilet. It could be either with a hidden cistern or a close-coupled toilet. I'm favouring the close coupled version as it saves on buying a WC furniture unit in what is already a compact bathroom. I have two questions: 1. Where does the soil outlet come to at the back - is it flush with the back of the toilet/wall, or is it recessed (if so, by how much)? 2. What is the width of the opening at the back? I need to see if it will cover my existing water supply, which comes up from the bathroom floor. (A photo of the back of the toilet would be really helpful, or installation instructions).

Answered By QS Team

We can confirm the soil pipe is recessed by 115mm. Please refer to the attached technical image for the information required.

Was this answer helpful?
