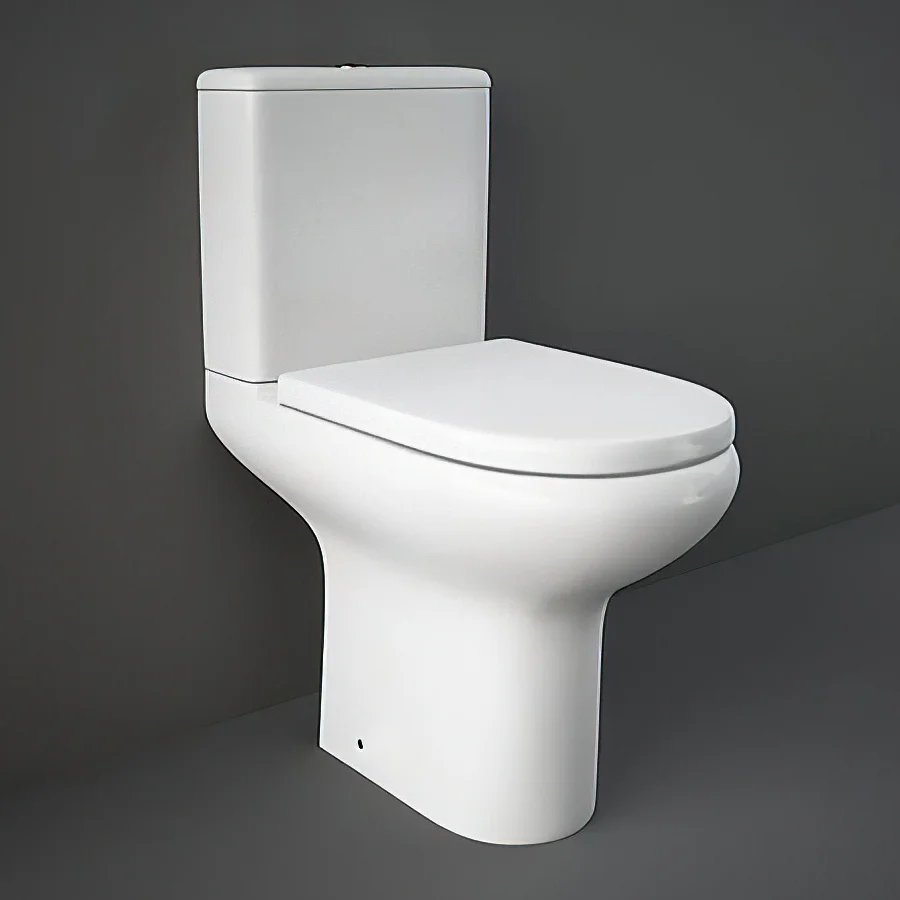

RAK Compact Deluxe 45cm High Rimless Close Coupled Full Access White WC Without Seat

QS-V10037 small Image 1
QS-V10037 small Image 2
QS-V10037 small Image 3
RAK Compact Deluxe 45cm High Rimless Close Coupled Full Access White WC Without Seat small Image 4


RRP: £514.00


In-Stock In Stock

3.9 out of 5 3.9 out of 5

Based on 28 Ratings.

Shipping: FREE* Check Postcodes

Delivery in 3 Working Days Approx.
Optional Toilet Seat
Key Features
  • Rimless Bowl
  • Made from superior quality vitreous china
  • Open back pan allows full access to plumbing
  • 25 years of guarantee from the manufacturer
SKU Code: QS-V10037


Rak Compact CO30AWHA Details

RAK's Compact Deluxe Rimless Close Coupled WC Pack comes with Full Access / Open Back and is most convenient to use; the open back allowing easy access to plumbing. Fabricated with the latest technology from superior vitreous china with a white finish, it is guaranteed 25 years against any manufacturing flaws.

  • Pack includes: Pan and Cistern.
  • Dual flush 4/2.5 litres cistern.
  • Size [mm]: 365mm x 625mm x 825mm [Width x Depth x Height].
  • Size [cm]: 36.5cm x 62.5cm x 82.5cm [Width x Depth x Height].
  • The height of the pan is 455mm - (45.5cm).
  • Toilet Seat sold separately [See Option].
  • Weight: 39 Kg.
  • Colour: Alpine White.
  • Trap type: P Trap.
  • Trapway type: Concealed.
  • Bowl shape: Round.
  • Installation Type: Floor Mounted.

Info / Size (mm)

  • Toilet
  • Width: 365 mm
  • Projection: 625 mm
  • Height: 815 mm

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : Compact
  • ⤷ Toilet Design
  • : Open Back Toilet
  • ⤷ Coating
  • : Without Coating
  • ⤷ Colour
  • : White
  • ⤷ Weight in kg
  • : 39
  • ⤷ Country of Origin
  • : Dubai
  • ⤷ Warranty/Guarantee
  • : 25 Years
  • ⤷ Material
  • : Vitreous China
  • ⤷ Theme
  • : Contemporary
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Floor Mounted
  • ⤷ Water Saving
  • : Yes
  • ⤷ Pan Width
  • : 365
  • ⤷ Pan Height
  • : 455
  • ⤷ Toilet Overall Height
  • : 825
  • ⤷ Projection (Depth)
  • : 625
  • ⤷ Rimless Bowl
  • : Yes
  • ⤷ Cistern Included
  • : Yes
  • ⤷ Cistern Height
  • : 345
  • ⤷ Flush Type
  • : Dual Flush
  • ⤷ Full Flush Volume in litres
  • : 4
  • ⤷ Half Flush Volume in litres
  • : 2.5
  • ⤷ Flush Mechanism
  • : Push Button
  • ⤷ Cistern Lever Or Button Placement
  • : Top
  • ⤷ Outlet
  • : Horizontal
  • ⤷ Comfort Height
  • : Yes
  • ⤷ Configuration
  • : Two Piece
  • ⤷ Configuration
  • : Pan and Cistern
  • ⤷ Rough In
  • : 140
  • ⤷ Seat Included
  • : Sold Separately
  • ⤷ Seat Type
  • : Soft Close
  • ⤷ Seat Finish
  • : White
  • ⤷ Barcode
  • : 5057199258908
  • ⤷ Bowl Shape
  • : Round
  • ⤷ Product Type
  • : Close Coupled Toilet
  • ⤷ Cistern Depth (projection)
  • : 130
  • ⤷ Seat Post Hole Centers
  • : 158
  • ⤷ Front Of Bowl To Centre Of Seat Holes
  • : 445
  • ⤷ Base Depth (projection)
  • : 360
  • ⤷ Outlet Diameter
  • : 102
  • ⤷ Base to centre of outlet
  • : 190

Total: £259.78 6 Working Days Approx QS Supplies

5 Features Included In This Product Explained



A rimless toilet does not have a brim at its edge, from which the water usually flows when you flush. Instead of flowing from the top, such toilets shoot water towards its edge and around it, allowing no missing spots with filth remaining after a flush. These toilets also remove any spaces for germs to hide and breed, providing a hygienic alternative for your bathroom.



A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

Horizontal Outlet

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Optional: Soft-Close Seat

Optional: Soft-Close Seat

Soft-closing seats are a new alternative to classic toilet seats. Their modern design allows them to close slowly, while their controlled manner of closing does not require you to assist them. It also shuts automatically, allowing it to come down at a pace that does not make much noise.

Comfort Height

Comfort Height

These toilets are usually a little higher than regular toilets. They measure from 17 to 19 inches off the ground.

Product Videos

Video of RAK Ceramics Rimless technology

You've Selected which adds to a total of

Reviews & Ratings

Rate this Item.:

Questions & Answers

Submit Your Questions 2 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

John Asked :

Hello, Could you please tell me if a space-saving Mcalpine connector 'WC - CONQ' can be fitted in the toilet's horizontal position?

Answered By QS Team Answered by the QS Technical Team

We are not sure it will fit the gap at the back. The gap at the back would be approximately 158mm.

Was this answer helpful?
Ernest Asked :

Can this toilet be used with the soil pipe to its side? I want to replace my bathroom suite, and I like the sound of this bathroom range. The existing toilet sits approximately 600mm to the vertical soil pipe side, connected by a 90-degree soil pipe connector. Will there be sufficient space between the RAK Compact Deluxe Rimless Full Access Open Back Close Coupled WC and the wall to install a 90-degree pipe connector connecting sideways?

Answered By QS Team Answered by the QS Technical Team

Yes, this can be used as a side outlet. We regret that we cannot comment on individual cases.
