Hudson Reed Piazza 500mm Wide Heated Towel Rail Chrome


RRP: £429.00


3-4 Working Days Approx.

3.9 out of 5 3.9 out of 5

Based on 11 Ratings.

Shipping: £20.00

Select Variations
You've Selected: OP-154040 - 950mm
Key Features
  • Supplied with fixing screws
  • Manufactured using steel material
  • Twenty years guarantee from Hudson Reed against manufacturing defects
SKU Code: QS-V21828

MFC Code: HL382

Hudson Reed Piazza HL382 Details

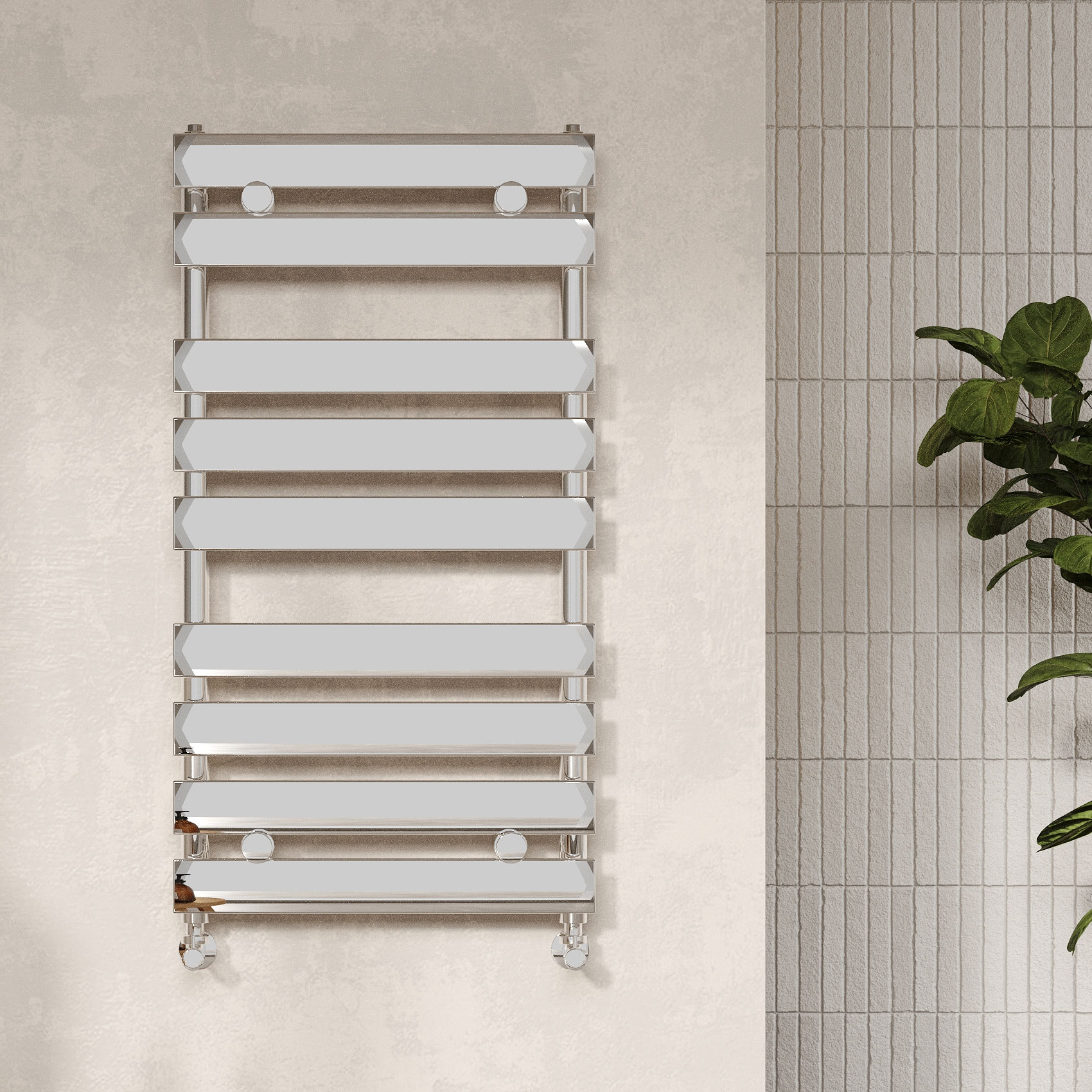

The convenience of grabbing a hot towel and instantly wrapping yourself in soothing warmth, will come to you, with stylishly imposing Piazza Towel Rail from Hudson Reed. This charming towel rail is finished in elegant chrome finish. The flattened panels are placed in a vertical fashion and enhance the efficiency of the appliance and the glamour quotient of your bathroom. Hudson Reed provides a 20-year guarantee on this towel rail. Robe hook, towel bar, can be added to your order at extra cost.

  • Available in different heights: 950mm and 1200mm - [Optional].
  • It comes in a chrome finish.
  • Width: 500mm (50cm).
  • Pipe centre: 450mm (45cm).
  • Floor to the centre of tapping: 78mm (7.8cm).
  • It comes with a 1/2-inch BSP.
  • Flat-panel towel rail.
  • Type of heat: Water.
  • Number of heat settings: 1.
  • The newly installed radiator is recommended to be refiled with a suitable inhibitor.
  • The valve shown in the image is not included.
  • Suitable valve available in Compatible Valves tab below - [Optional].
  • Robe hook and additional towel bar - [Optional].
  • Download the Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section.
  • Refer to the technical image for detailed technical dimensions.
  • Details For 950mm High:.
  • Size [mm]: 500mm x 950mm [Width x Height].
  • Size [cm]: 50cm x 95cm [Width x Height].
  • The maximum projection from the wall: 130mm (13cm).
  • Packaging volume: 47 Ltr.
  • Number of sections/panels: 9.
  • BTU output: 30°C - 471, 50°C - 915, 60°C - 1159.
  • Watts: 30°C - 138, 50°C - 268, 60°C - 339.
  • Details For 1200mm High:.
  • Size [mm]: 500mm x 1200mm [Width x Height].
  • Size [cm]: 50cm x 120cm [Width x Height].
  • The maximum projection from the wall: 130mm (13cm).
  • Packaging volume: 59 Ltr.
  • Number of sections/panels: 11.
  • BTU output: 30°C - 550, 50°C - 1058, 60°C - 1340.
  • Watts: 30°C - 161, 50°C - 310, 60°C - 391.

Info / Size (mm)

  • Radiator
  • Width: 500 mm
  • Height: 950 mm

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : Piazza
  • ⤷ Colour
  • : Chrome
  • ⤷ Shape
  • : Straight
  • ⤷ Warranty/Guarantee
  • : 20 Years
  • ⤷ Material
  • : Steel
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Wall Mounted
  • ⤷ Projection (Depth)
  • : 130
  • ⤷ Width
  • : 500
  • ⤷ Height
  • : 950
  • ⤷ Fixings included
  • : Yes
  • ⤷ Orientation
  • : Vertical
  • ⤷ Barcode
  • : 5055146168485
  • ⤷ BTU Output
  • : 30°C - 471 | 50°C - 915 | 60°C - 1159
  • ⤷ Watts
  • : 30°C - 138 | 50°C - 268 | 60°C - 339
  • ⤷ No. Of Bars
  • : 9
  • ⤷ Tapping / Pipe Centres
  • : 450
  • ⤷ Valves Included
  • : Sold Separately
  • ⤷ Fuel Type
  • : Central Heating
  • ⤷ Floor to Centre of Inlet
  • : 78
  • ⤷ Brackets Included
  • : Yes

Additional Info & Downloads

Customise Your Product

Radiator Accessories
Radiator Accessories

Hudson Reed provides strong and durable accessories for its radiator. Please Note Image shown is for illustration purpose only.

Total: £145.42 3-4 Working Days Approx QS Supplies
Add-on Selected: Total Price Now:

Reviews & Ratings

Rate this Item.:

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Lee Asked :

I've just been trying to find a direct replacement for two towel rails which are 500W x 950H and have screw centres of 450mm and 770mm. The line drawing on your website model QS-V21828 MFC Code: HL382 shows the screw centres at 437mm; however, on another website with the same model HL382 the line drawing shows the screw centres at 450mm and 770mm. Before we order them, please can I double-check the screw centres, as I think yours may be incorrect? https:valvekings.com/chrome-towel-rails/3427-2827-piazza-chrome-heated-towel-rail-500-x-950mm.html#/34-fuel_type-central_heating

Answered By QS Team Answered by the QS Technical Team

We can confirm the screw centres are 450mm. For more information on the product, please refer to the attached DataSheet.
