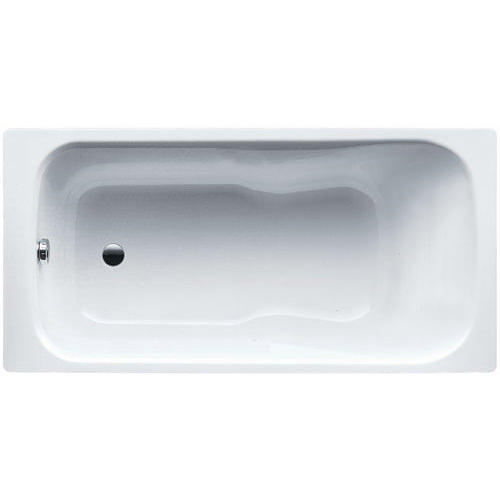

Kaldewei Dyna Set Star 627 Single Ended 1600 x 700mm Bath With Grip Holes

More Variation Available


MFC CODE: 226900010001


RRP: £1207.77


5 Working Days Approx

Not Yet Rated No Rating

Review this Product

Shipping: £29.95

Available Variants Step 1
Other Variation Available Step 2
OP-153327 - No Tap Hole
  • Bath
  • Length: 1600 mm
  • Width: 700 mm
Please Note all the measurements are in 'mm'
External Length 1600
External Width 700
Tub Depth External - 430
Height Including Feet or Panel 561-586
Colour White
Grips Included Yes
Internal Bottom Length 1155
Internal Bottom Width 450, 470
Internal Top Length 1440
Internal Top Width 590
Height of Rim 32
Distance Tub edge to centre of drain hole 310
Distance Top edge to centre of overflow hole 70
Diameter of overflow hole 52
Diameter of Drain hole 52
Distance foot end of tub edge to center of foot 410
Distance between the feet 690
Distance tub edge(foot end) to where handle starts 505
Distance tub edge(foot end) to where handle ends 780
Rim Width 100
Distance Between Centre Holes 206
Weight in kg 46
Slip Resistant No
Capacity in litres 122
Country of Origin Germany
Warranty/Guarantee 30 Years
Material Steel
No. of Bathers 1
Waste Included Sold Separately
Tap Holes Un-drilled
Kaldewei Dyna 226900010001 DETAILS

When it comes to quality baths, Kaldewei is a renowned brand who continue to deliver innovative designs that appeal to our senses. The Dyna Set Star Steel Bath is pre-drilled for grips for those who might require assistance entering and leaving a tub. Constructed of quality steel finished in bright white, this tub is a popular choice for those looking for a practical yet elegant tub.

  • Bath with EasyClean, Anti-Slip and full Anti-Slip Also Available [Optional]
  • No Tap hole, 1 Tap hole and 2 Tap hole bath available [Optional]
  • Size : 1600 x 700mm [Length x Width]
  • Made of Steel enamel 3.5mm
  • Height with feet : 561-586mm
  • Single Ended Steel bath with waste hole at foot end
  • Comes with grip holes
  • Combi-bathtub suitable for bathing and Showering
  • Weight : 46kg
  • Water capacity : 122 liters
  • Bath waste and hand grip shown in image are not included
  • Surface Impact, Scratch and Abrasion Resistant, Colourfast, Lightfast and Acid Resistant according to DIN ISO 2722, Class 1, TÜV GS Certificated (Tested Safety)
  • Rim Slopes 3 Degrees to the Inside of the Bath, Earthing Strap for Equipotential Bonding, 100 % Recyclable
  • Bath waste [Optional]
  • Hand Grips [Optional]
  • Leg Set Required, Please order adjustable feet set 5032 [Optional]
  • For Technical Detail Click on Technical Tab and download PDF
  • 30 Year guarantee from Kaldewei against any manufacturing faults.

Please Note: Bath variants may be special order and delivery lead time may vary.

Kaldewei Hand Grips Chrome

Kaldewei Hand Grips Chrome

Durable and robust chrome finish twin grips from Kaldewei to support the bather from the slippery surface. Please Note the Image is for illustration purpose only.

Leg Set

Leg Set

Installing a bathtub is particularly quick and straightforward with the all-round bathtub base frame model 5030 by Kaldewei. The bath feet positions on the external points of the base of the bathtub guarantee optimum stability.



High flow dedicated waste to flush out the wastewater. Please note the image shown is for illustration purpose only.

Sizes Available
Other Sizes / Finishes / Variations Available.
QS Code Finish Size / Difference MFC Code
QS-V35990 - 1500mm 226700010001
QS-V35935 - 1800mm 226500010001


  • Available Variation Along With Manufacturing Code
  • No Tap Hole - Bath -  226900010001
  • No Tap Hole - Bath With EasyClean -  226900013001
  • No Tap Hole - Bath With AntiSlip And With EasyClean - 226930003001
  • No Tap Hole - Bath with Full AntiSlip -  226934010001
  • No Tap Hole - Bath with Full AntiSlip And With EasyClean - 226934013001
  • 2 Tap Hole - Bath -  226920000001
  • 2 Tap Hole - Bath With AntiSlip -  226925000001
  • 2 Tap Hole - Bath With AntiSlip And With EasyClean - 226925003001
