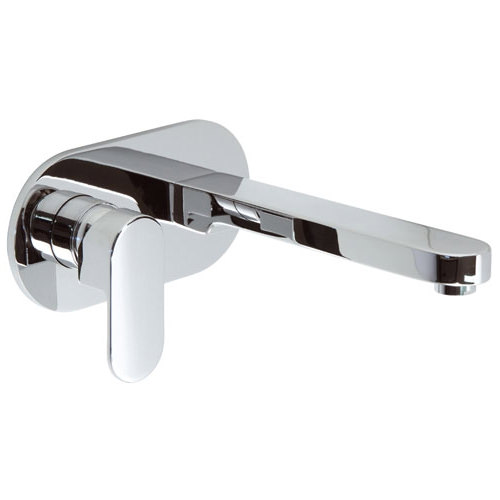

Vado Life Chrome Wall Mounted Single Lever Basin Mixer Tap

Vado Life LIF-109S/A-C/P Details

An elegant basin gives a boost to the bathroom decor, and a chic mixer tap will add to the basins beauty. Life Wall-mounted Basin Mixer Tap from Vado embellishes and enhances the basins and the bathrooms attractiveness. This wall-mounted unit has an extended straight spout and a side single lever, placed over an oval back-plate. The basin mixer tap is easy to fit and economically priced too! This Tap looks superb when installed with a countertop basin, semi-recessed basin or wall hung basins. Having a chrome polish, it comes with a 15-years guarantee against manufacturing defects.

The manufacturing code of this product is - LIF-109S-C/P.
Oval back-plate size: 200mm x 80mm [Width x Height].
Depth: 230mm.
Min-Max wall mount 53-73mm.
2 x 1/2 inch female connection inlets.
Easy to fit.

Wall-mounted installation.
A minimum of 0.2 bar water pressure is required for best performance [LP-Low Pressure].
Complete with water flow aerator.
Includes ceramic cartridge CAR-K40A.

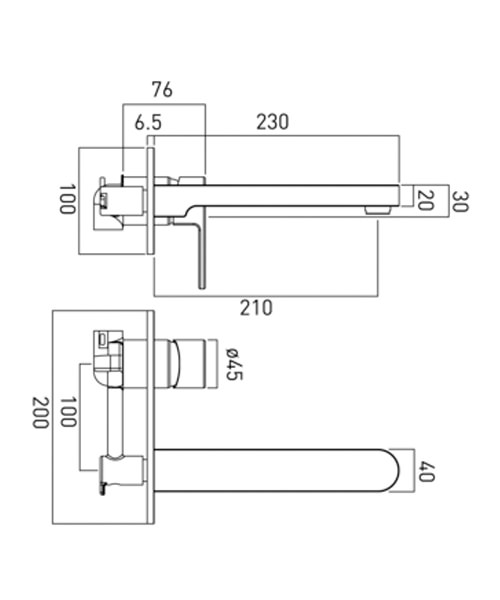

Refer to the technical diagram for more size details.

Info / Size (mm)

Tap
Pipe Centre: 100 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Life
⤷ Handle Position
: Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed
⤷ Valve/Cartridge Type
: Ceramic Disc

⤷ Inlet Centres
: 100
⤷ Overall Height
: 100
⤷ Width
: 200
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Flow Regulator Included
: Sold Separately
⤷ Compliance/Approvals/Standard
: WRAS
⤷ Barcode
: 5052120152904
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Installation / Maintenance Instructions Pdf File

Customise Your Product

Vado H2 Eco Flow Regulator

This flow regulator works by restricting water flow to a specific flow rate that helps save water without compromising performance. Please note: The image shown is for illustration purposes only.

No Option Selected
OP-30188 - H2 Eco Flow Regulator + £12.85

Total: £286.87 2 Working Days Approx QS Supplies

4 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.
