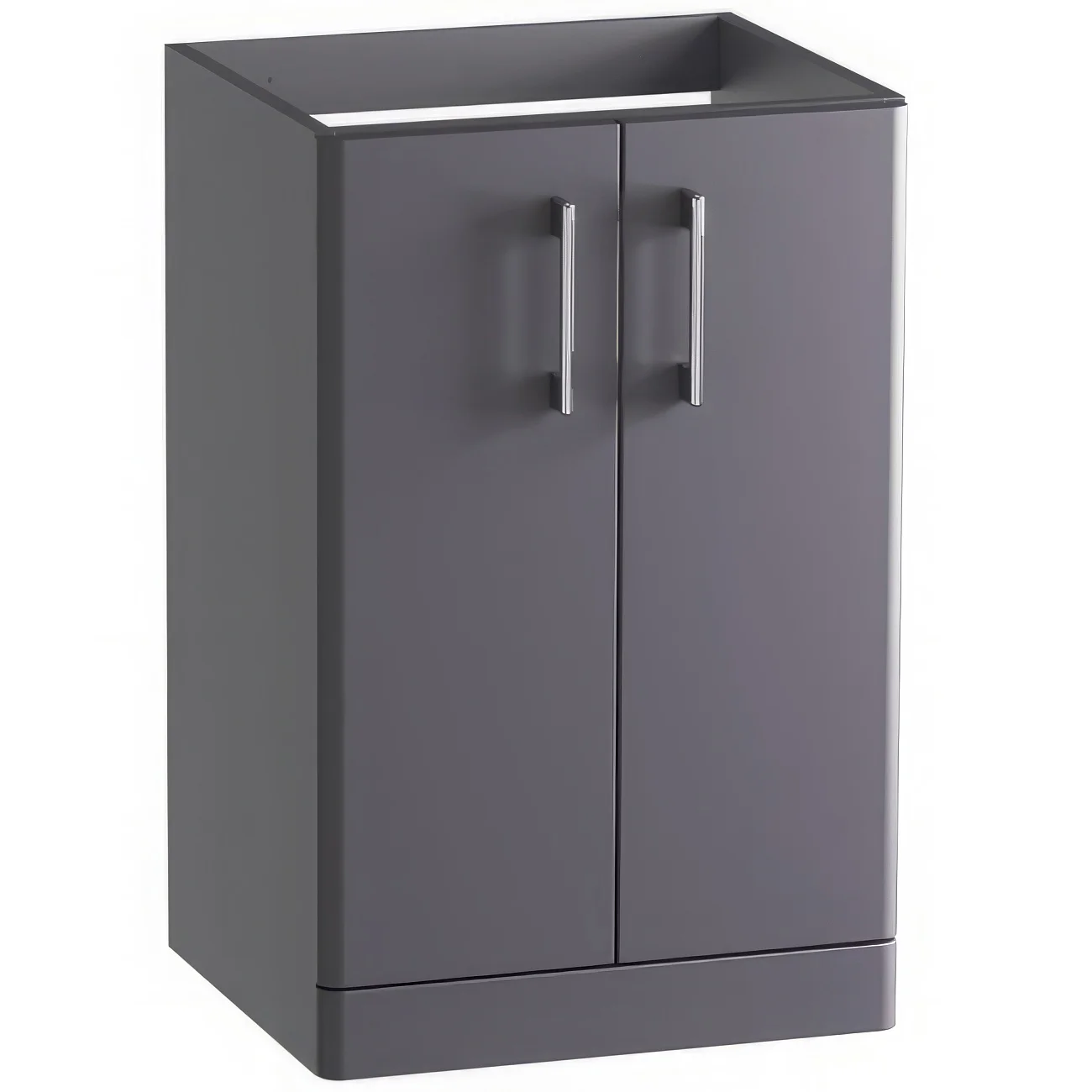

Roper Rhodes Pod Floorstanding Curved Vanity Unit with Handle, 2 Door, TRC5F.SG

Roper Rhodes Pod Details

MFC: TRC5F.SG

Roper Rhodes Pod Floorstanding Curved Vanity Unit with Handle - 2 Door

Key Features

✔Fascia Components: 20mm Painted MDF
✔Carcass: 16mm Painted & Melamine-Faced MFC
✔Chrome 128mm Centre Handle Included with Fixings
✔5-Year Guarantee from Roper Rhodes Against Manufacturing Defects

Choice of Finish: Matt Storm Grey, Gloss White and Matt Light Grey
Choice of Width: 500mm and 600mm
Suitable for Freestanding Installation
Overall Height: 860mm (86cm)
Compatible with Ceramic Basins - [Optional]
Different Finish Handle Available as an Option
Other Finishes of Overflow Trim Available - [See Options Below]
Download the Customer Data Sheet PDF File from the Additional Info Section

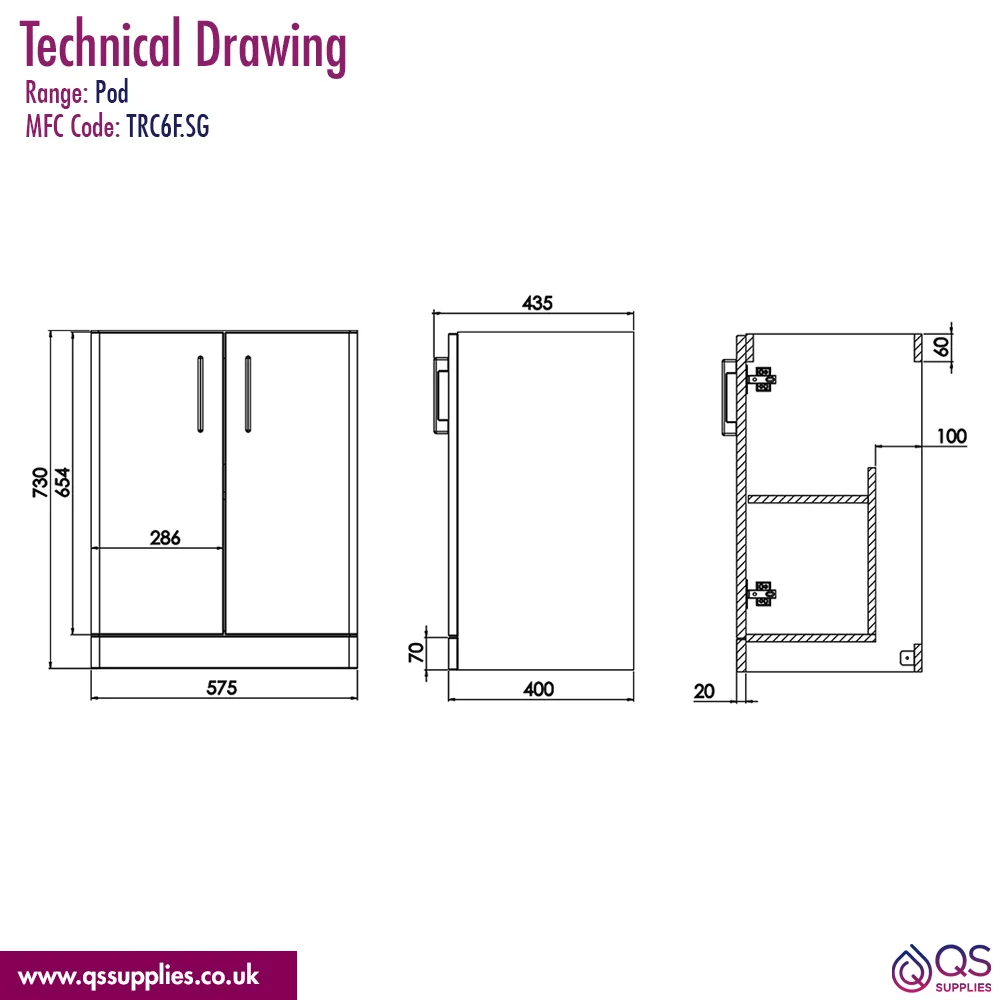

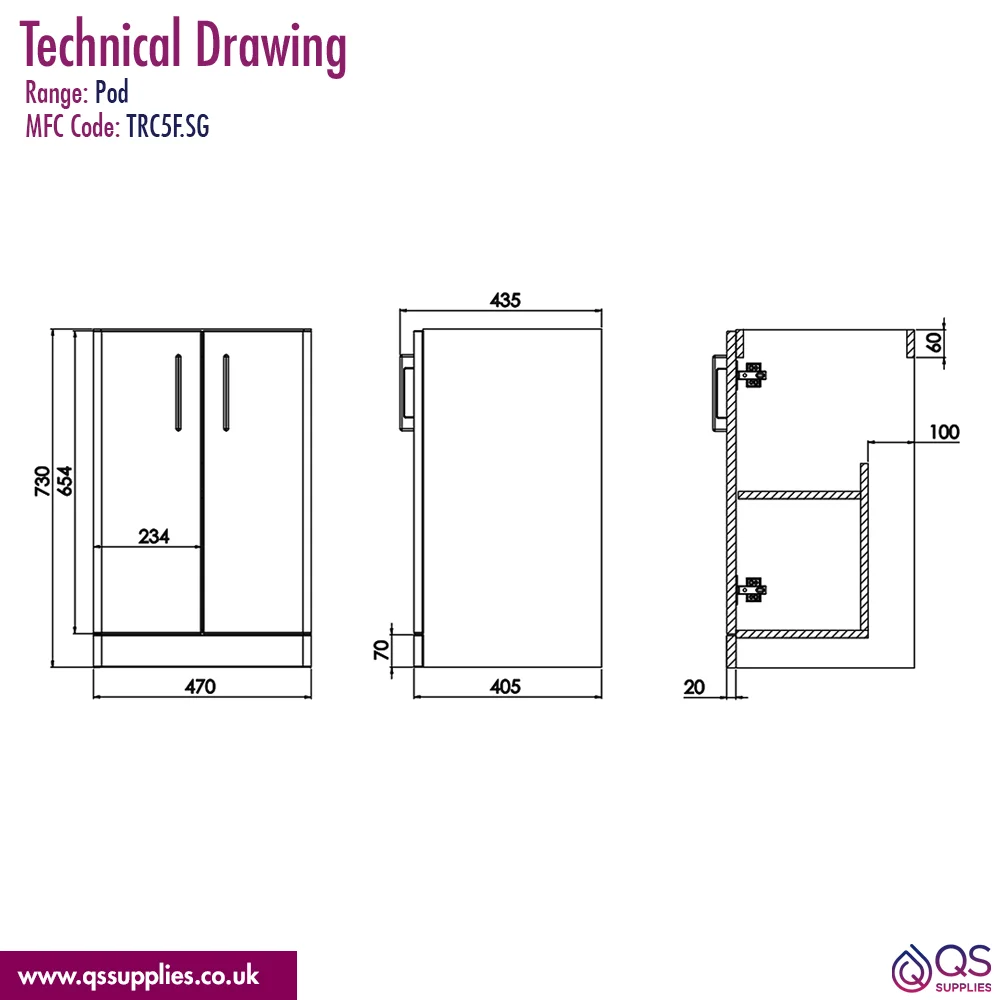

Refer to the Technical Diagram for Complete Technical Details
Detail of Vanity Unit:
Size [mm]: 470 x 405 x 730mm [Width x Depth x Height]
Size [mm]: 575 x 400 x 730mm [Width x Depth x Height]
Weight: 16.3 Kg
Curved Furniture Unit
Supplied ready Assembled
Easy to Install
Double-Door Unit with 1 Fixed Shelf
Shelf Depth: 265mm (26.5cm)
100mm Plumbing Void at the Back of the Furniture
Handles Require Fitting, the Unit Comes with Pilot Holes Drilled on Back Face
The Door has Equal Spaced Hinges for Door Reversibility
Approx. Depth with 90 Degree Hinge: 645 mm; Deep/Wide is the Unit with Doors Open
Internal Finish of the Unit: Dark Grey Internal Finish on All Unit Finishes
Detail of 500mm Basin:
It Comes with 1 Taphole
Size [mm]: 500 x 424 x 170mm [Width x Depth x Height]
Size [cm]: 500 x 424 x 170 [Width x Depth x Height]
Weight: 9.8 Kg
Maximum Water Depth: 78mm Up to the Overflow
Internal Depth: 118mm (11.8cm)
Tapledge: 130mm (13cm)
Distance from the Tap Hole Centre to Basin Waste is 125mm (12.5cm)
Overflow Rating: CL15
Detail of 600mm Basin:
It Comes with 1 Taphole
Size [mm]: 600 x 418 x 130mm [Width x Depth x Height]
Size [cm]: 60 x 41.8 x 13cm [Width x Depth x Height]
Maximum Water Depth: 78mm Up to the Overflow
Internal Depth: 118mm (11.8cm)
Tapledge: 130mm (13cm)
Distance from the Tap Hole Centre to Basin Waste is 125mm (12.5cm)
Weight: 9.95 Kg
Overflow Rating: CL20
The Basin Shown in the Image is not Included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Sink Height
: 130
⤷ Sink Projection
: 424
⤷ Sink Width
: 500
⤷ Handle Finish
: Chrome
⤷ Range
: POD
⤷ Colour
: Matt Storm Grey
⤷ Warranty/Guarantee
: 5-Year
⤷ Theme
: Modern
⤷ Installation Type
: Floor Standing
⤷ Waste Included
: Sold Separately
⤷ Width
: 500
⤷ Depth
: 405
⤷ Height
: 730
⤷ No. of Tap Holes
: 1
⤷ Overflow Included
: Yes

⤷ Barcode
: 5016519679564
⤷ Number Of Doors
: 2
⤷ Handle Included
: Yes
⤷ Product Type
: Vanity Unit
⤷ Furniture Material
: Painted | Melamine Faced MFC
⤷ Pre-assembled
: Yes
⤷ Sink Included
: Sold Separately
⤷ Sink Colour
: White
⤷ No. Of Internal Shelves
: 1
⤷ Soft-Close Door
: Yes
⤷ Door Opening
: Left | Right
⤷ Sink Material
: Ceramic
⤷ Number Of Sinks
: 1
⤷ Sink Type
: Inset

Additional Info & Downloads

Download the Customer Data Sheet For 500mm Vanity Unit Pdf File Download the Customer Data Sheet For 600mm Vanity Unit Pdf File Download the Customer Data Sheet For 500mm Basin Pdf File Download the Customer Data Sheet For 600mm Basin Pdf File

This item can also be found in:

Technical Images

Roper Rhodes Pod Floorstanding Curved Vanity Unit with Handle - 2 Door

500mm Vanity Unit

500mm Basin

600mm Vanity Unit

600mm Basin

Add-Ons

Furniture Handles

To provide an exclusive look and feel to your furniture, Roper Rhodes presents furniture handle as an optional. Please select the appropriate handle of your choice. Please Note: Image shown is for illustration purpose only.

No Option Selected
OP-257740 - Matt Black Pull Handle - 128mm Centres + £11.62
OP-257741 - Brushed Brass Pull Handle - 128mm Centres + £11.62
OP-257742 - Matt Black Pull Handle - 160mm Centres + £11.62
OP-257743 - Brushed Brass Pull Handle - 160mm Centres + £11.62

Optional Basin Overflow Cap

Universal Metal Basin Overflow Cap

No Option Selected
OP-258081 - Gunmetal + £12.53

£162.38

RRP: ~~£290.00~~

Stock Availablity: 5 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Soft-Close Opening

This product features advanced hinges or rollers that allow it to open and close slowly and gently.

Rigid Furniture - Pre-Assembled

Rigid or pre-assembled furniture is any bathroom unit that is ready to install. These arrive entirely constructed with pre-drilled holes and labelled parts making the furniture installation process quick and easy. It helps you save money on labour, and you get a higher-quality product. These are also an excellent choice for anyone looking for a new storage unit that fits their bathroom decor.

Melamine Faced Chipboard

Melamine Faced Chipboard or MFC is a type of engineered wood with a smooth surface. It is made using wood chips, then formed into particle board using heat and pressure and bonded to melamine resin impregnated paper. The Melamine layer makes it waterproof, and helps resist scratches, and increases the aesthetics. It is cheaper than MDF or Medium Density Fiberboard.
