Tavistock Arlo Wall Mounted Vanity Unit, Basin, Handle, 1 Drawer, AR5W1-GW|AR500C

Tavistock Arlo Details

MFC: AR5W1-GW|AR500C

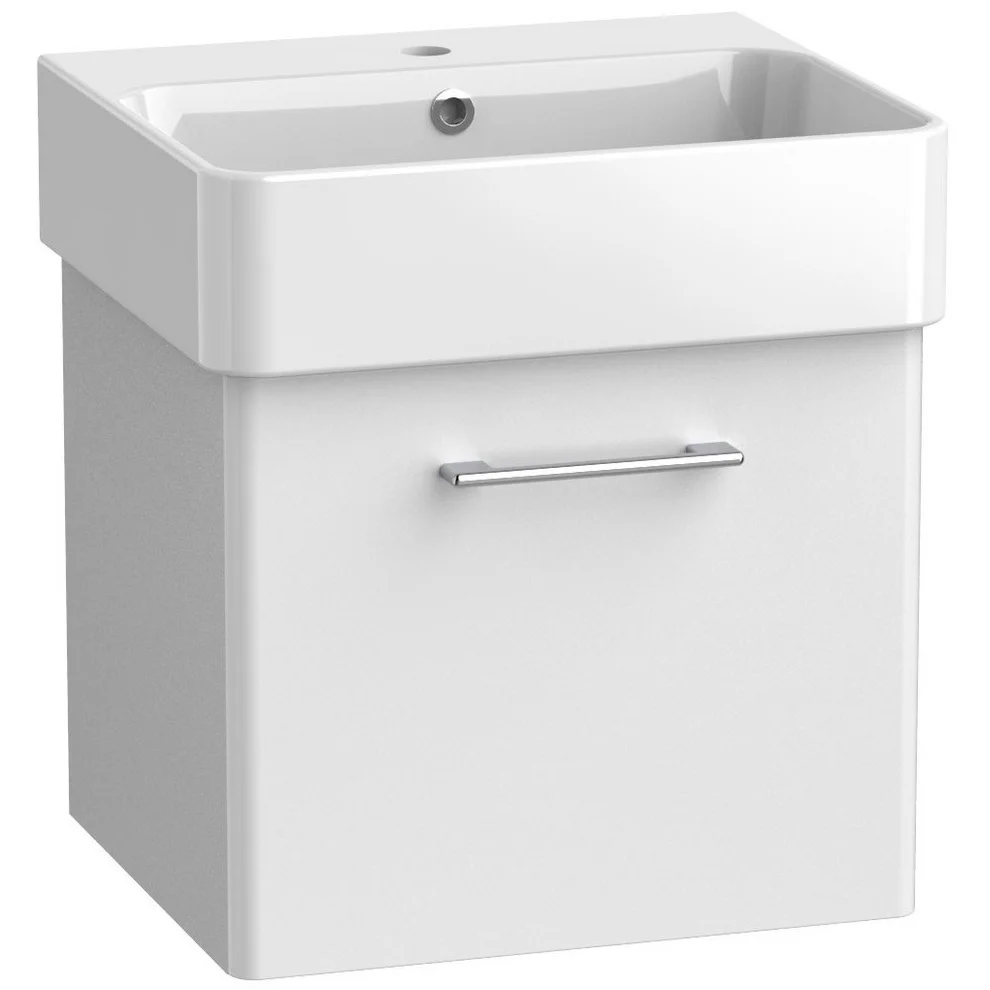

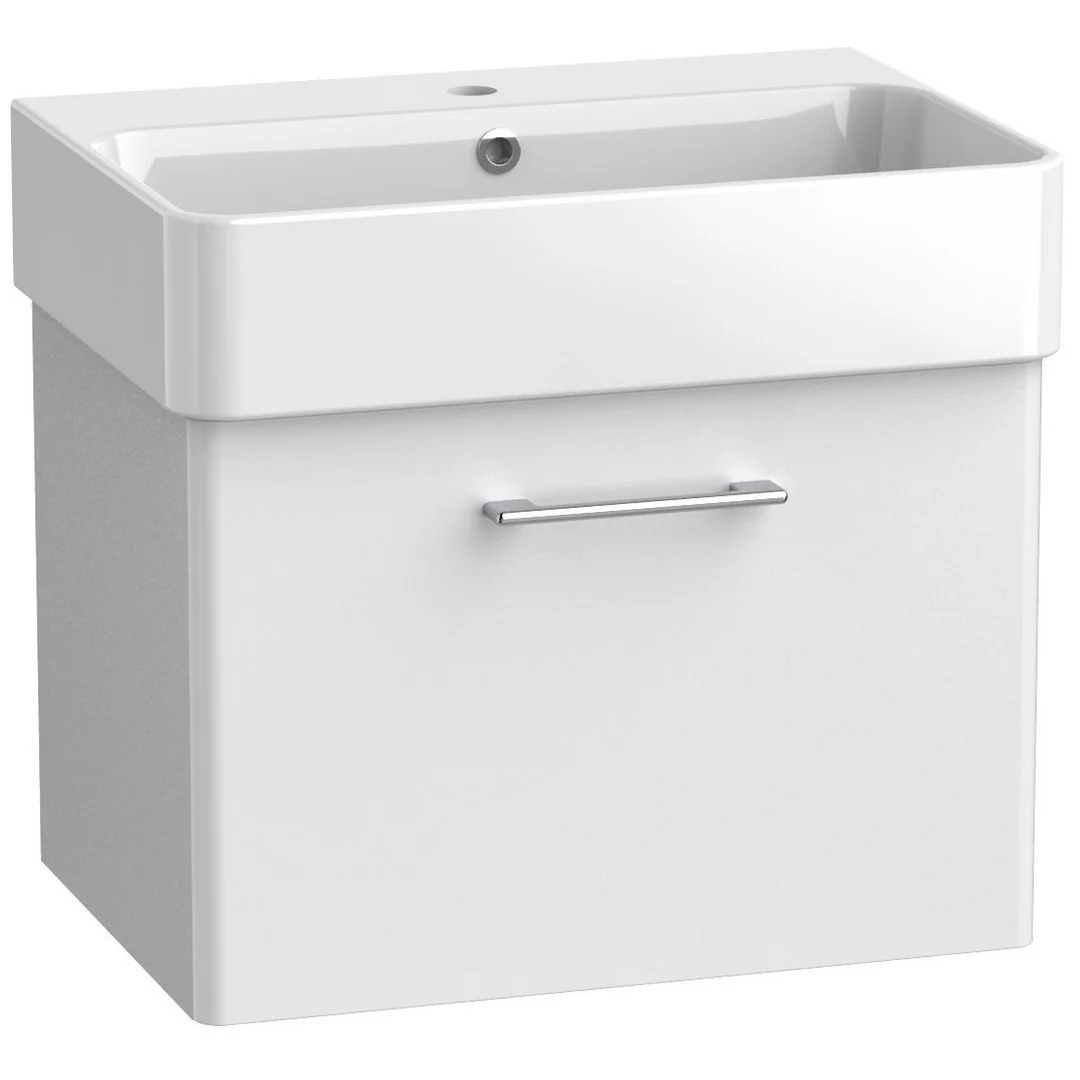

Tavistock Arlo Contemporary Wall Mounted Vanity Unit with Basin and Handle - 1 Drawer.

Key Features

✔1 Taphole Ceramic Basin Included
✔Chrome 160mm Centre Handle Included with Fixings
✔Guarantee: 10-Year for the Furniture and 20-Year for the Basin
✔Choice of Unit Finishes: Gloss White, Matt Light Grey, Matt Storm Grey and Matt Viridian Green

Choice of Width: 500mm and 600mm
Wall-Mounted Installation
Refer to the Technical Image for Size Details
Download the Technical Datasheet from the Additional Info Section
Features of Vanity Unit
Single Soft-Close Drawer
Height: 400mm
Carcass: 16mm Painted & Melamine Faced MFC
Fascia Components: 20mm Painted MDF
Drawer Fascia Thickness: 20mm with a 18mm Radius in Corners
Handles Require Fitting, the Unit comes with Pilot Holes Drilled on Back Face
Different Finish Handle Available as an Option
Approx Depth with 90-Degree Hinge: 650mm Deep/Wide is the Unit with Drawer Open
Drawer Depth: 280mm
Internal Finish of the Unit: Dark Grey Internal Finish on All Unit Finishes
60mm Braces Replace a Full Depth Base to Reduce Weight as Identified as Unnecessary Excess Material
Features of Basin
Material: Ceramic
Maximum Water Depth: 63mm Upto the Overflow
Internal Depth: 118mm
Tap Ledge: 130mm Deep
Distance from the Taphole Centre to Basin Waste: 125mm
Overflow Rating: CL10 for 500mm Wide Basin and CL20 for 600mm Wide Basin

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Arlo
⤷ Handle Finish
: Chrome
⤷ Colour
: Gloss White
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ No. of Tap Holes
: 1
⤷ Overflow Included
: Yes
⤷ Barcode
: 5016519740738
⤷ Handle Included
: Yes

⤷ Product Type
: Vanity Unit
⤷ Furniture Material
: MFC, MDF
⤷ Sink Included
: Yed
⤷ Sink Colour
: White
⤷ Number Of Drawers
: 1
⤷ Soft-Close Drawer
: Yes
⤷ Sink Material
: Ceramic
⤷ Number Of Sinks
: 1

Additional Info & Downloads

Download the Technical Datasheet For 500mm Wide Vanity Unit Pdf File Download the Technical Datasheet For 600mm Wide Vanity Unit Pdf File Download the Technical Datasheet For 500mm Wide Ceramic Basin Pdf File Download the Technical Datasheet For 600mm Wide Ceramic Basin Pdf File

This item can also be found in:

Technical Images

Tavistock Arlo Contemporary Wall Mounted Vanity Unit with Basin and Handle - 1 Drawer

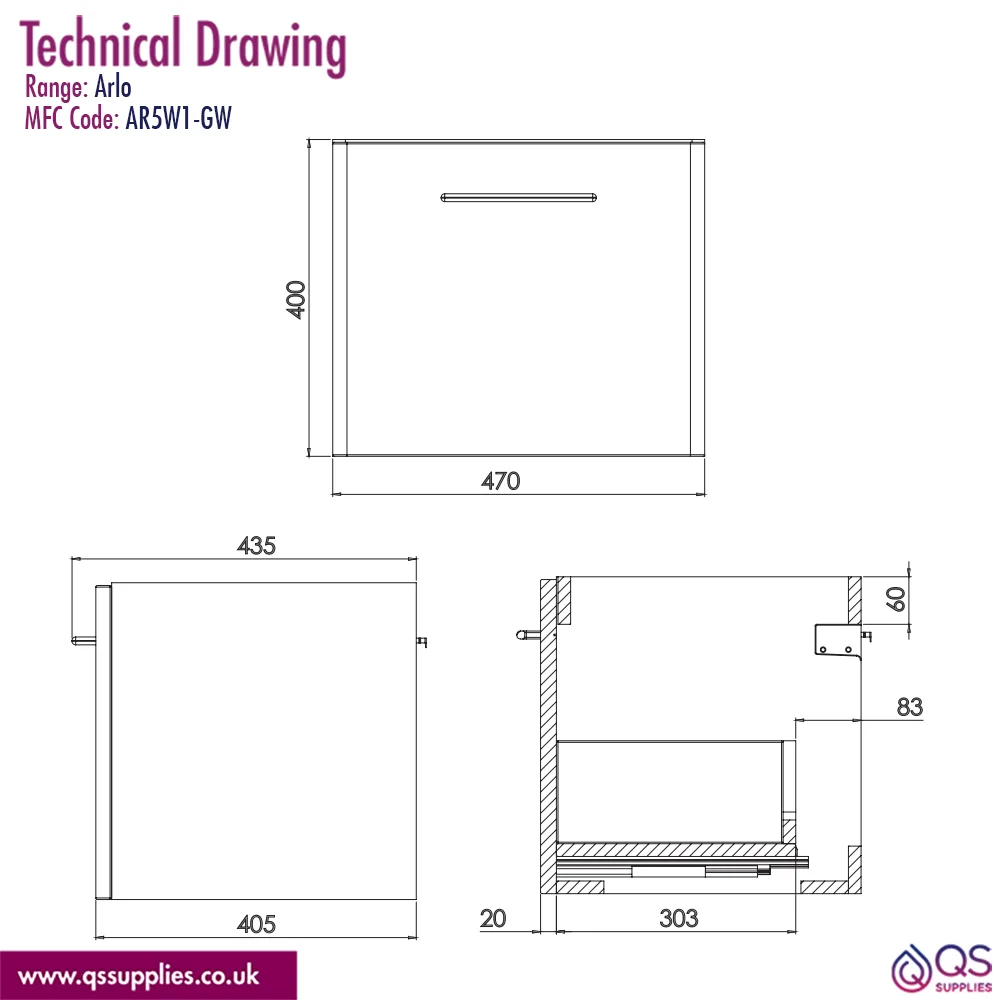

500mm Vanity

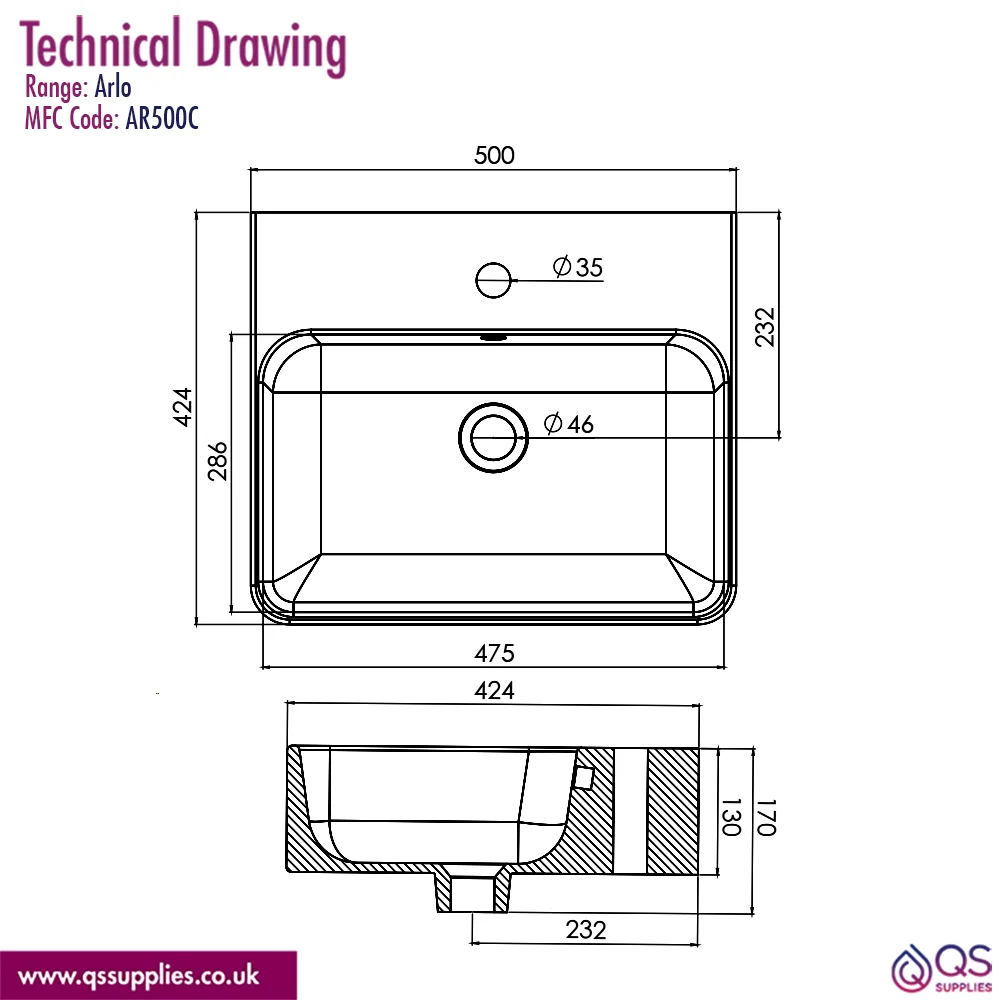

500mm Basin

600mm Vanity

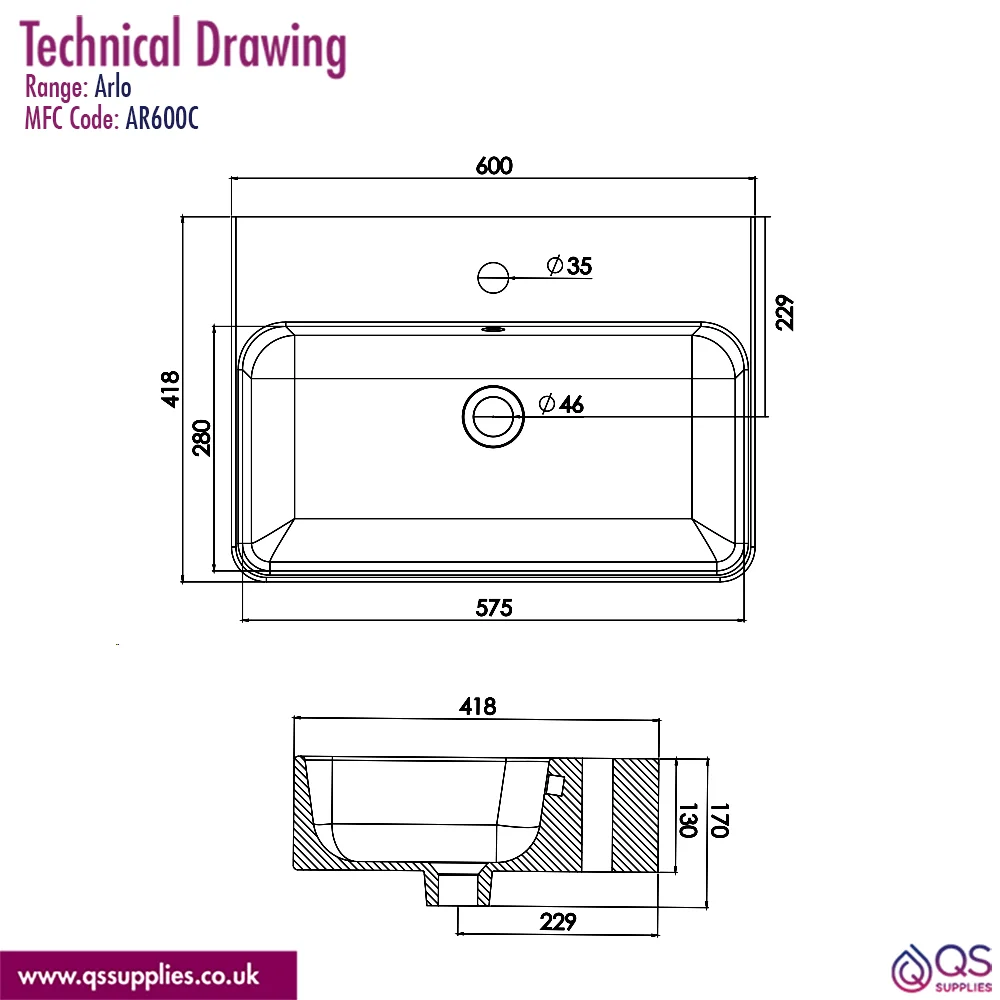

600mm Basin

Add-Ons

Optional Handles

Suitable Tavistock Handles available in different sizes and finishes. Please Note: the image shown are for illustration purposes only.

No Option Selected
OP-257947 - Matt Black Handle - 128mm Centres + £7.27
OP-257948 - Brushed Brass Handle - 128mm Centres + £7.27
OP-257949 - Matt Black Handle - 160mm Centres + £7.27
OP-257950 - Brushed Brass Handle - 160mm Centres + £7.27

£231.19

RRP: ~~£289.00~~

Stock Availablity: 5 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

Melamine Faced Chipboard

Melamine Faced Chipboard or MFC is a type of engineered wood with a smooth surface. It is made using wood chips, then formed into particle board using heat and pressure and bonded to melamine resin impregnated paper. The Melamine layer makes it waterproof, and helps resist scratches, and increases the aesthetics. It is cheaper than MDF or Medium Density Fiberboard.

Soft-Close Opening

This product features advanced hinges or rollers that allow it to open and close slowly and gently.

Tavistock Arlo Contemporary Wall Mounted Vanity Unit with Basin and Handle - 1 Drawer
