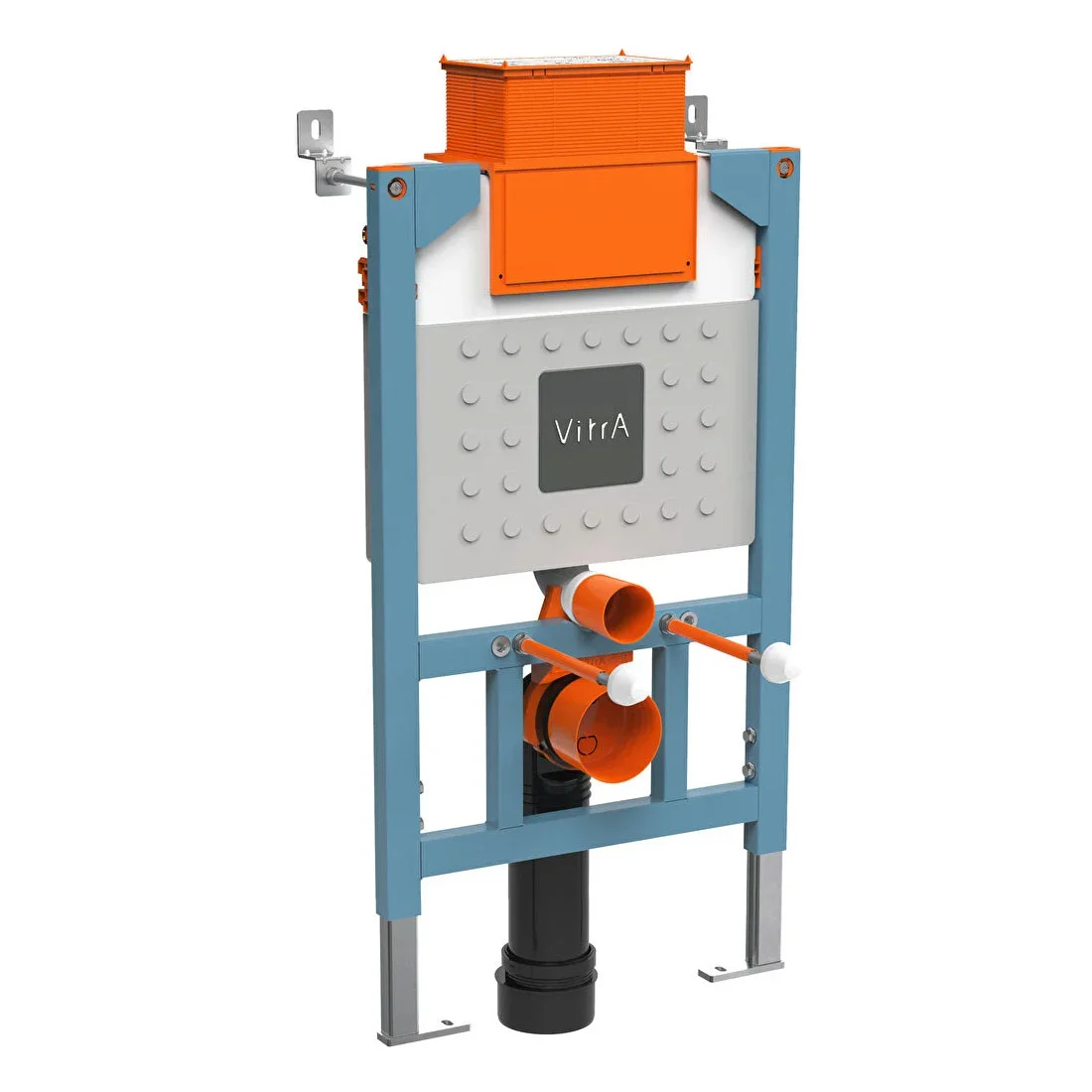

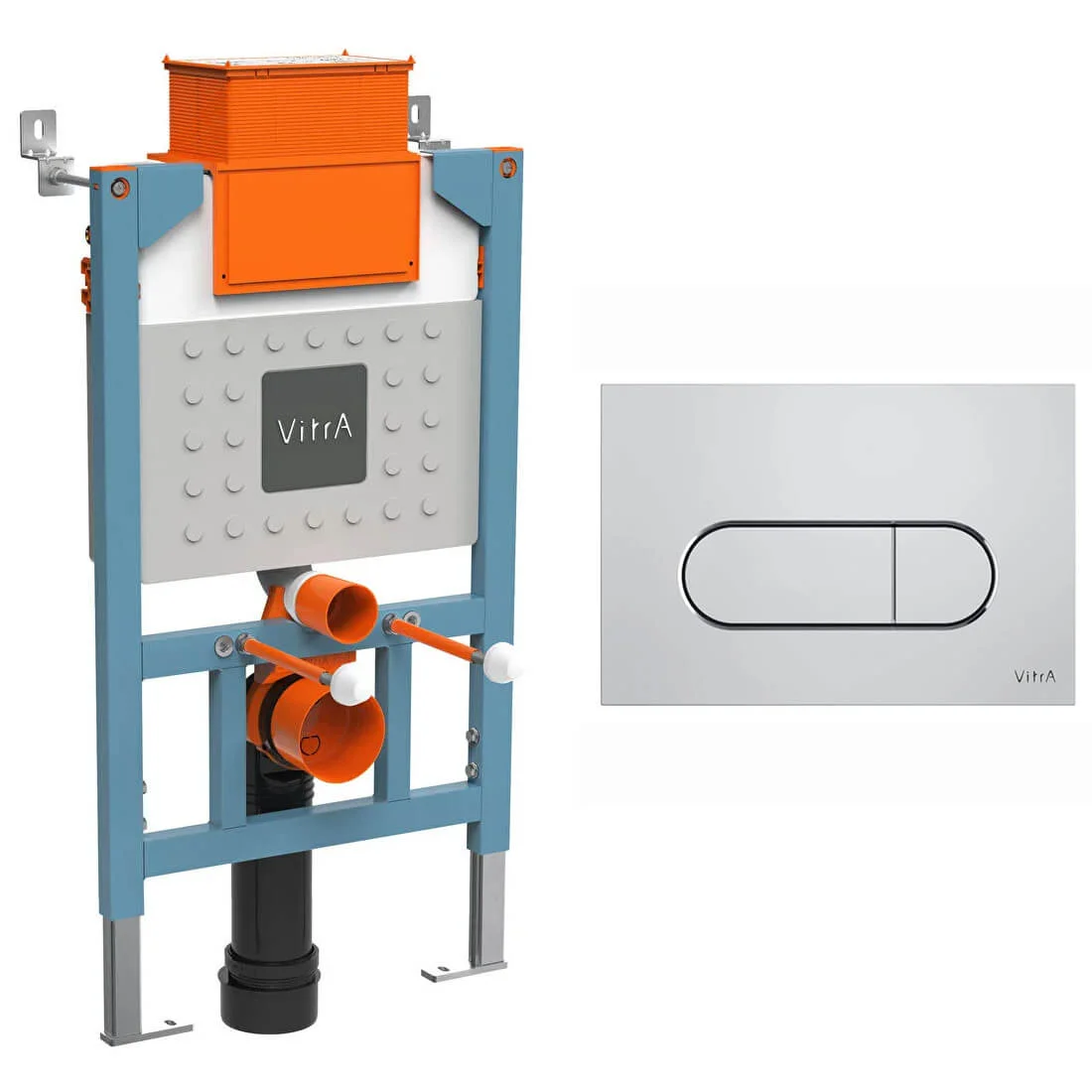

VitrA V-Fix Prime WC Frame with Cistern and Flush Plate for Wall Hung Toilet - Reduced Height

VitrA V-Fix Prime WC Frame with Cistern and Flush Plate for Wall Hung Toilet - Reduced Height.

• Features of WC Frame:
• CE-Certified
• WRAS-Approved
• Supplied with Concealed Cistern
• Size in [mm]: 500 x 820mm [Width x Height]
• Size in [cm]: 50 x 82cm [Width x Height]
• Depth: 160-190mm [16cm - 19cm]
• Volume of Water: Half-Flush 3 Litres and Full-Flush 6 Litres
• Installation Type: Rapid, Solid Wall
• Working Pressure Required for Smooth Flow is Min. 0.5 - Max. 10 Bar
• Comes with Side Water Inlet
• Weight: 14.5 kg
• It is Recommended that Reduced Height Frames are used with Standard, Non-Rim-ex, Wall-Hung WC Pans
• Features of Flush Plate:
• It Comes in a Chrome Finish
• Push Button Mechanism
• Made from Plastic Material
• Size [mm]: 244 x 9 x 165mm [Width x Depth x Height]
• Size [cm]: 24.4 x 0.9 x 16.5cm [Width x Depth x Height]
• Dual-Flush Technology
• Mechanical Operation
• Mounting Type: Pre-Wall
• Easy to Install

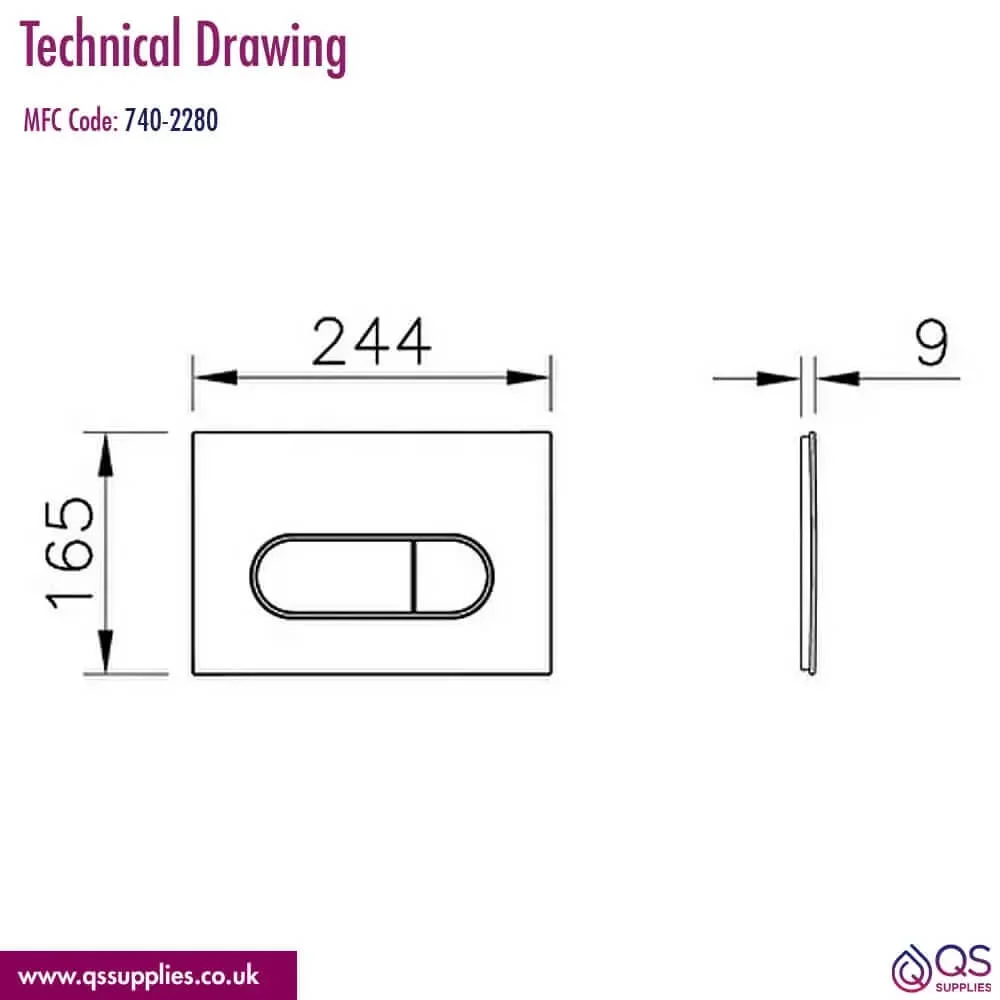

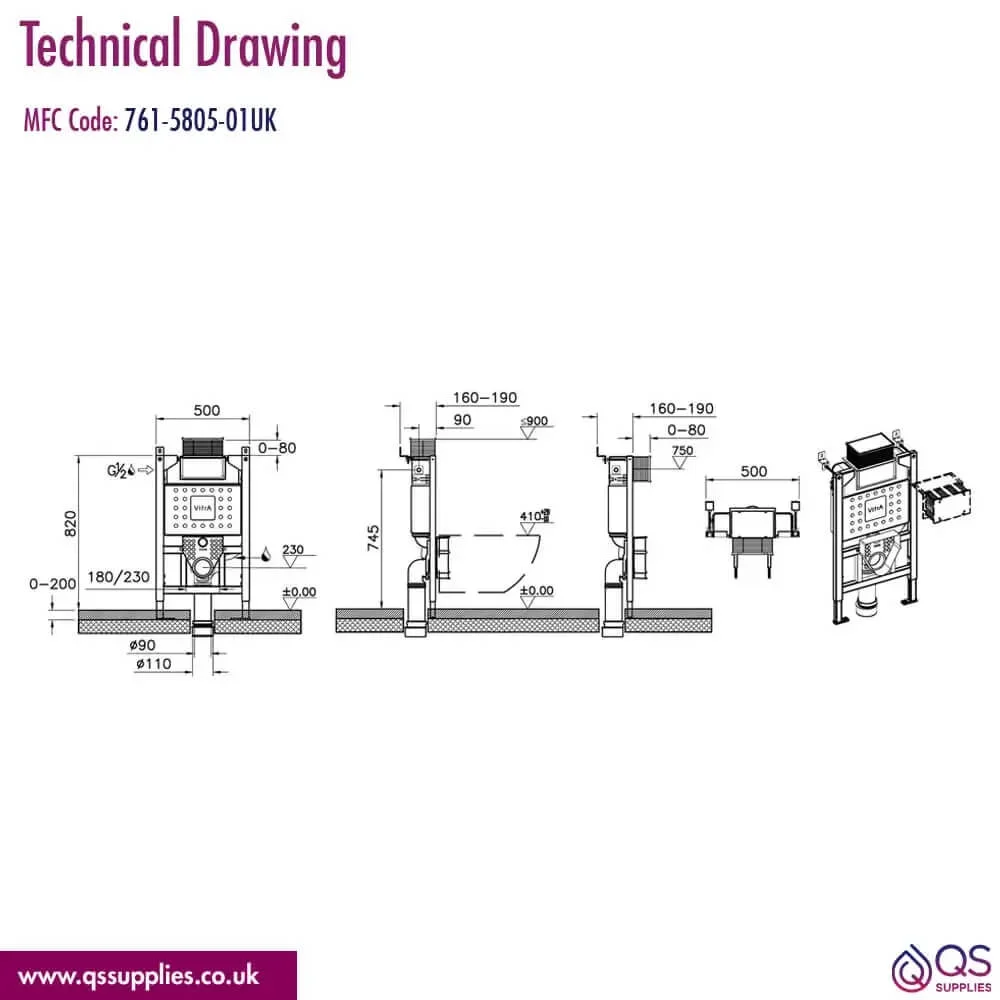

• Refer to the Technical Drawing for Size Details
