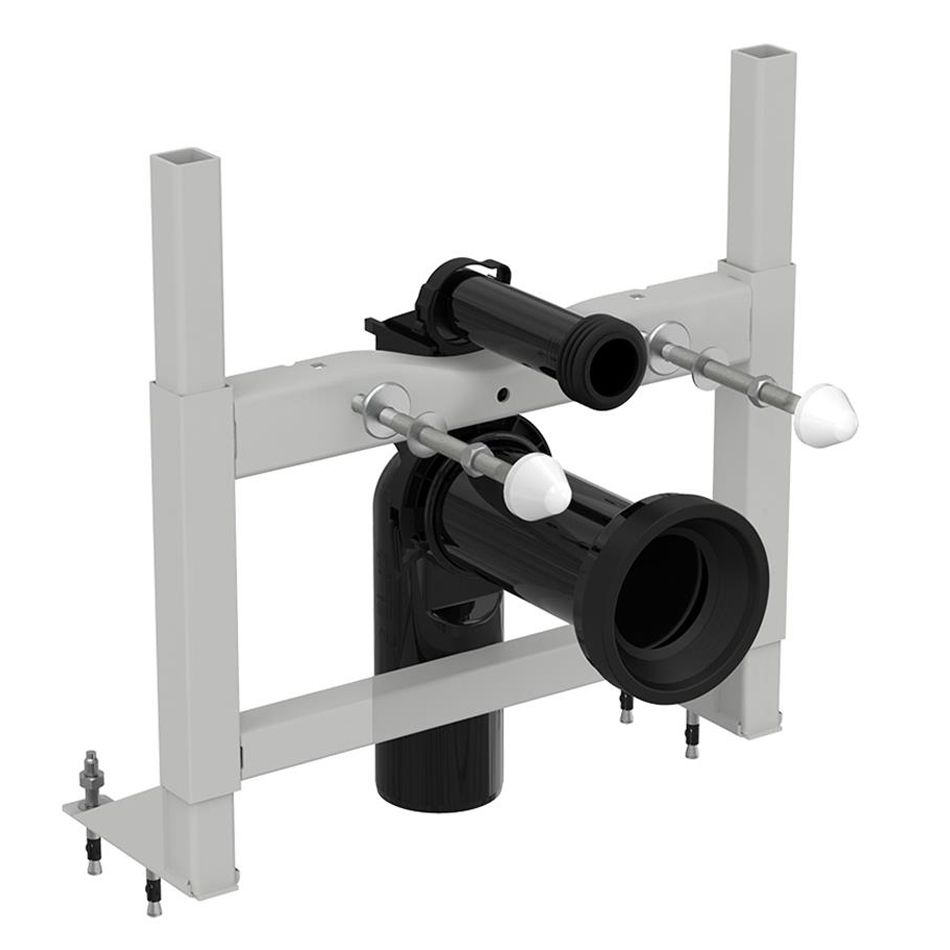

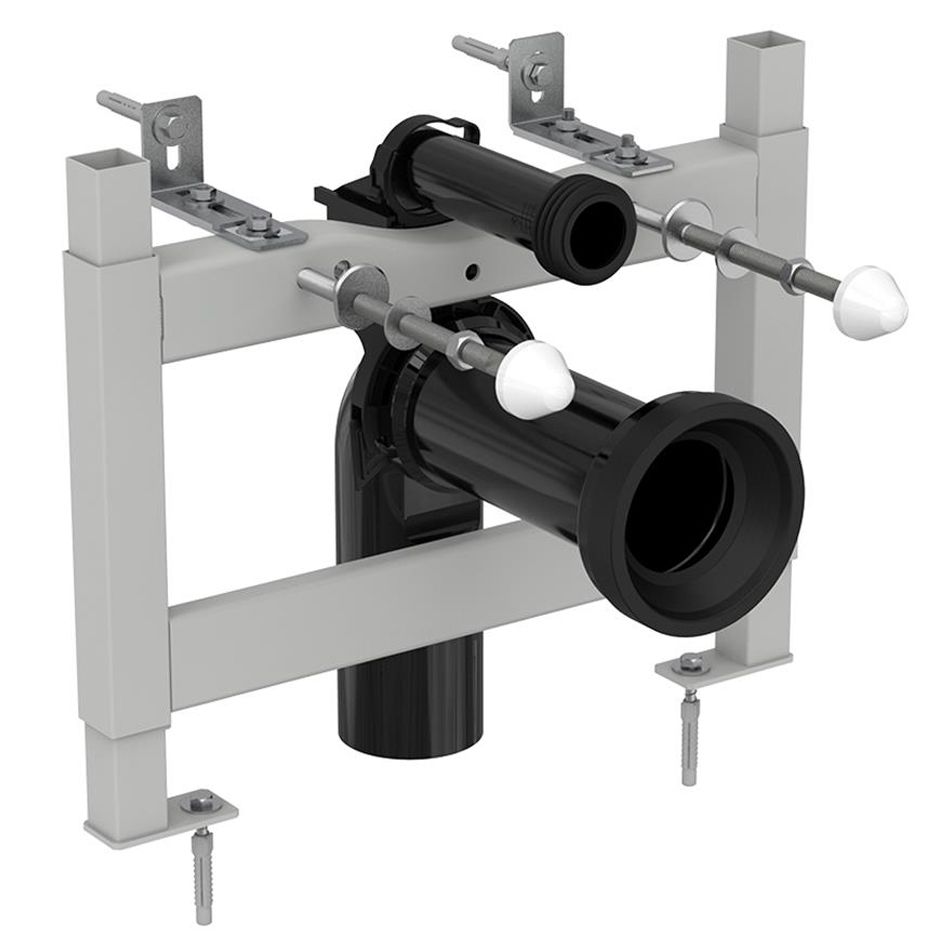

Ideal Standard ProSys Half Frame For Wall Hung WC Pan

Ideal Standard ProSys Half Frame For Wall Hung WC Pan

• Choice of Variants: Half Frame and Freestanding Half Frame
• Short WC Frame
• Secure Wall Hung WC Installation
• Directional Outlet Elbow, Adjustable in Depth
• Supplied with Bracket for High Wall Mounting
• Fixing Included
• Easy Maintenance
• Perfect for Changing from a BTW to Wall Hung WC Pan
• Cistern Not Included
• Refer Technical Drawing For Complete Size Details
• Download Installation Instruction PDF File from The Additional Info Section
• Accessories Included:
• Toilet Bowl Fixing Hardware
• Frame Fastening Materials
• Inlet and Outlet WC Bowl Connection
• Outlet Bend and Ø90/110mm adaptor
• Half Frame:
• For Installation in Front of Solid Wall or Between Two Light Plasterboard Walls According to Manual
• 120mm Minimum Thick
• Size: 500 x 120-190 x 405-605 [Width x Depth x Height]
• Freestanding half Frame:
• For Installation with Light Plasterboard Walls According to Manual 2 Floor Fixing points Per Leg
• 180mm Minimum Thick
• Size: 500 x 180 x 465-615 [Width x Depth x Height]
