Ideal Standard Tempo Special Shaped Cube Shower Bath, 1690 x 845mm, E260101

Ideal Standard Tempo Details

MFC: E260101

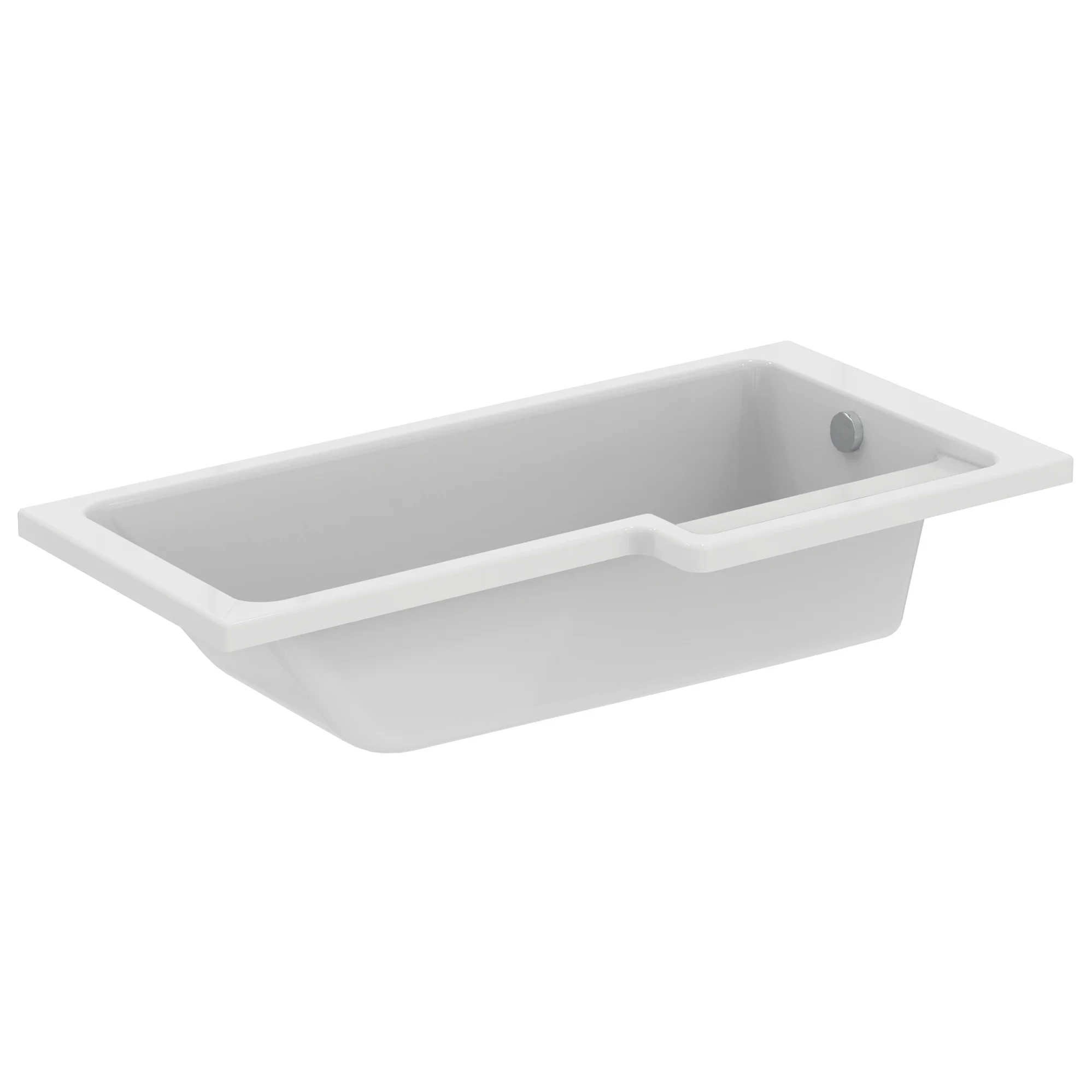

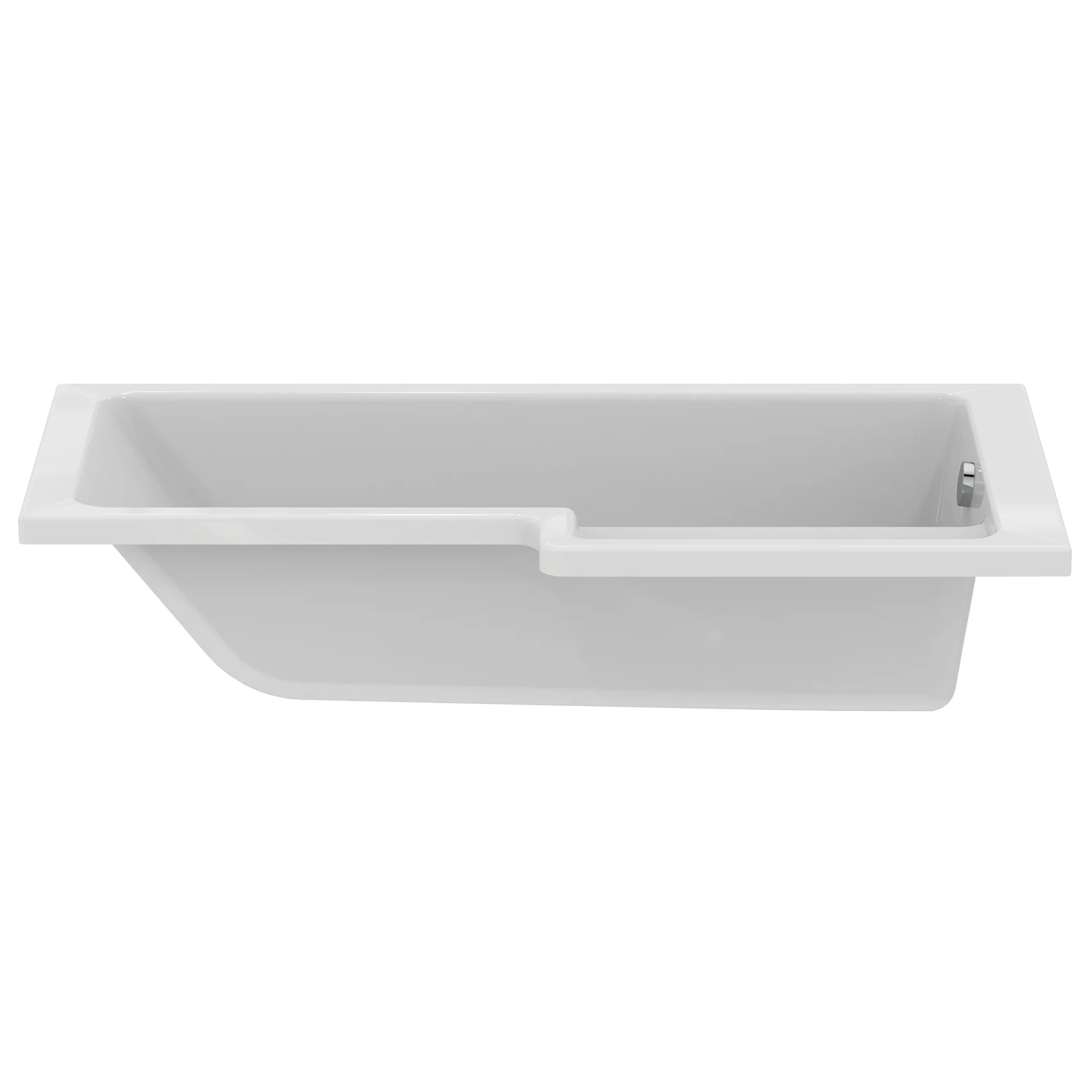

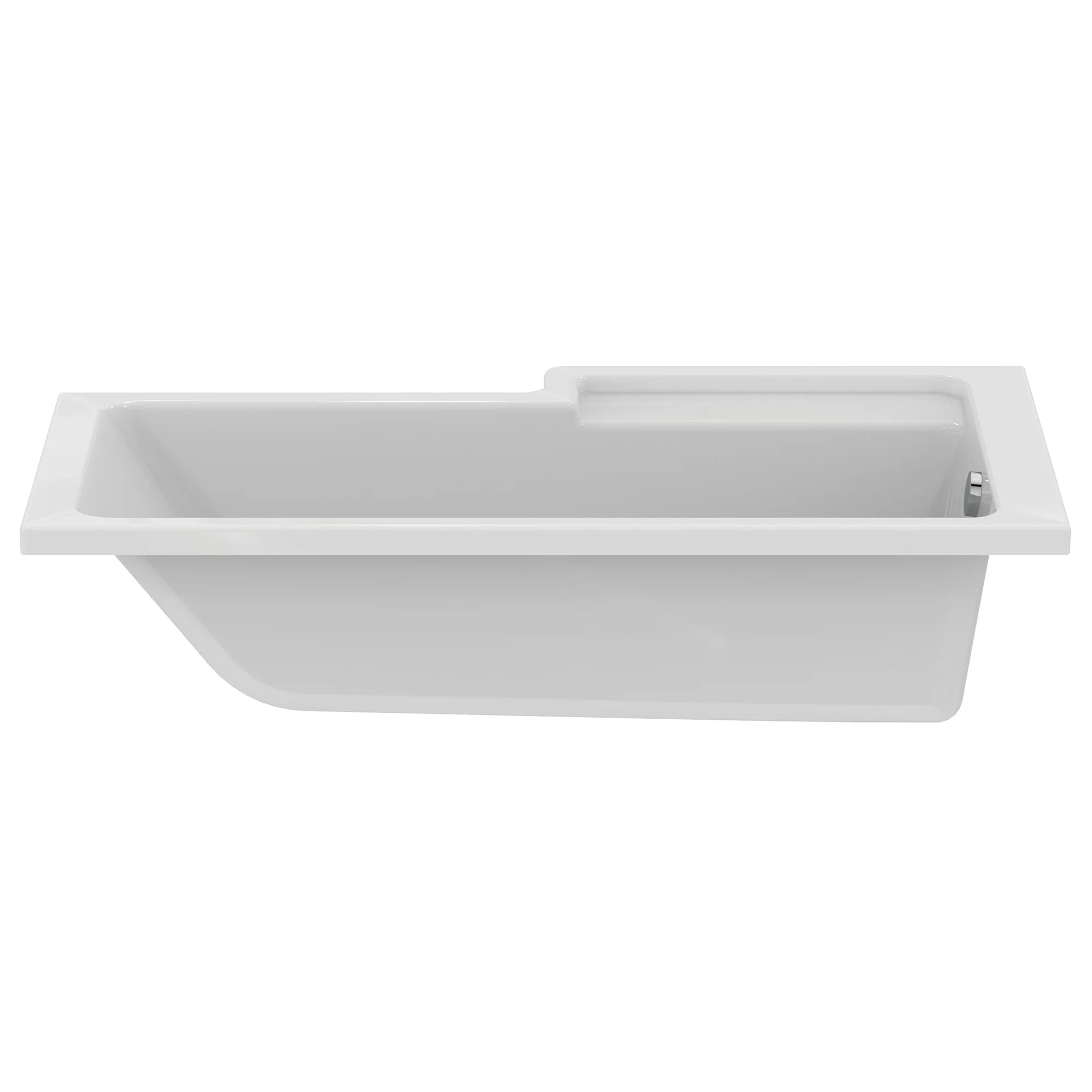

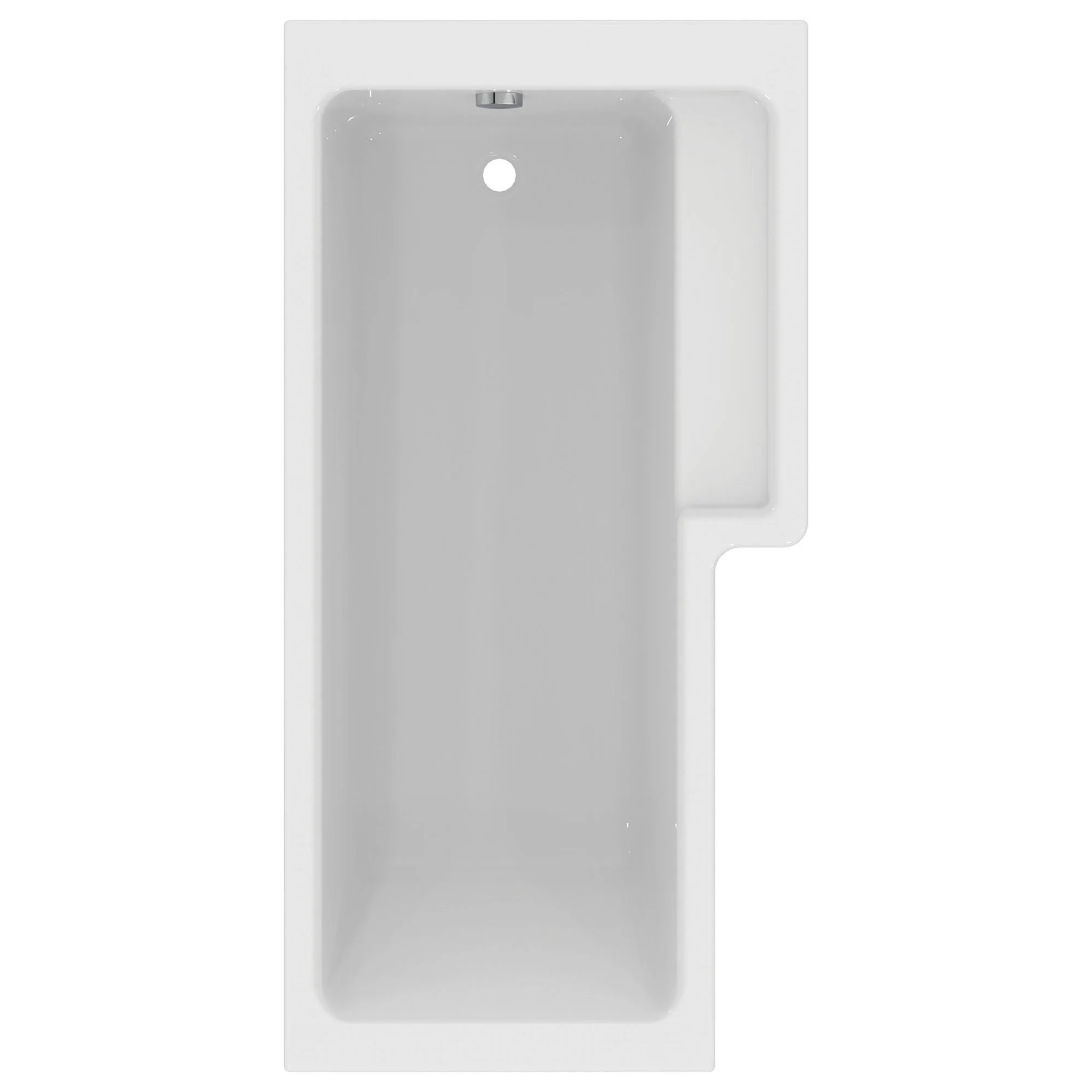

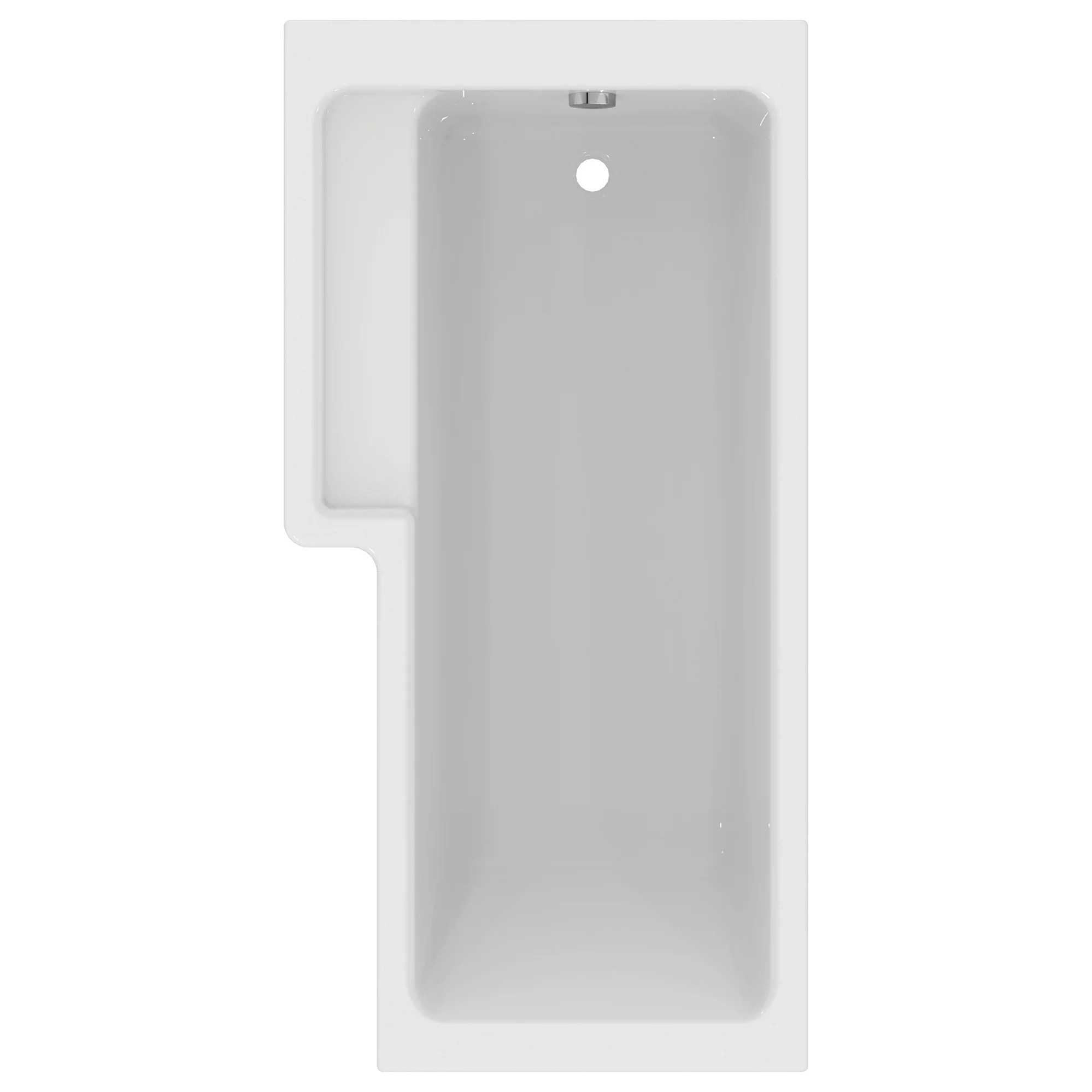

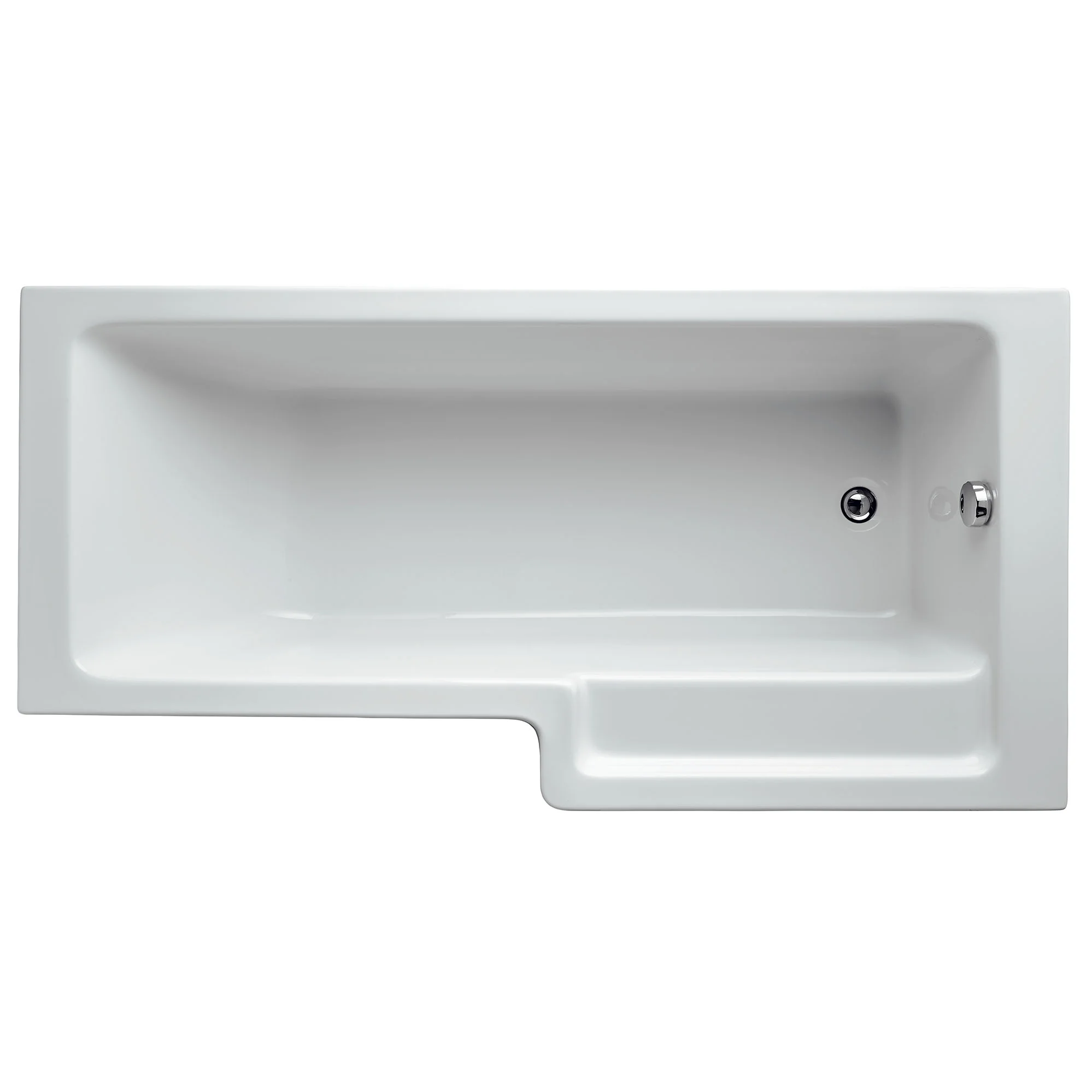

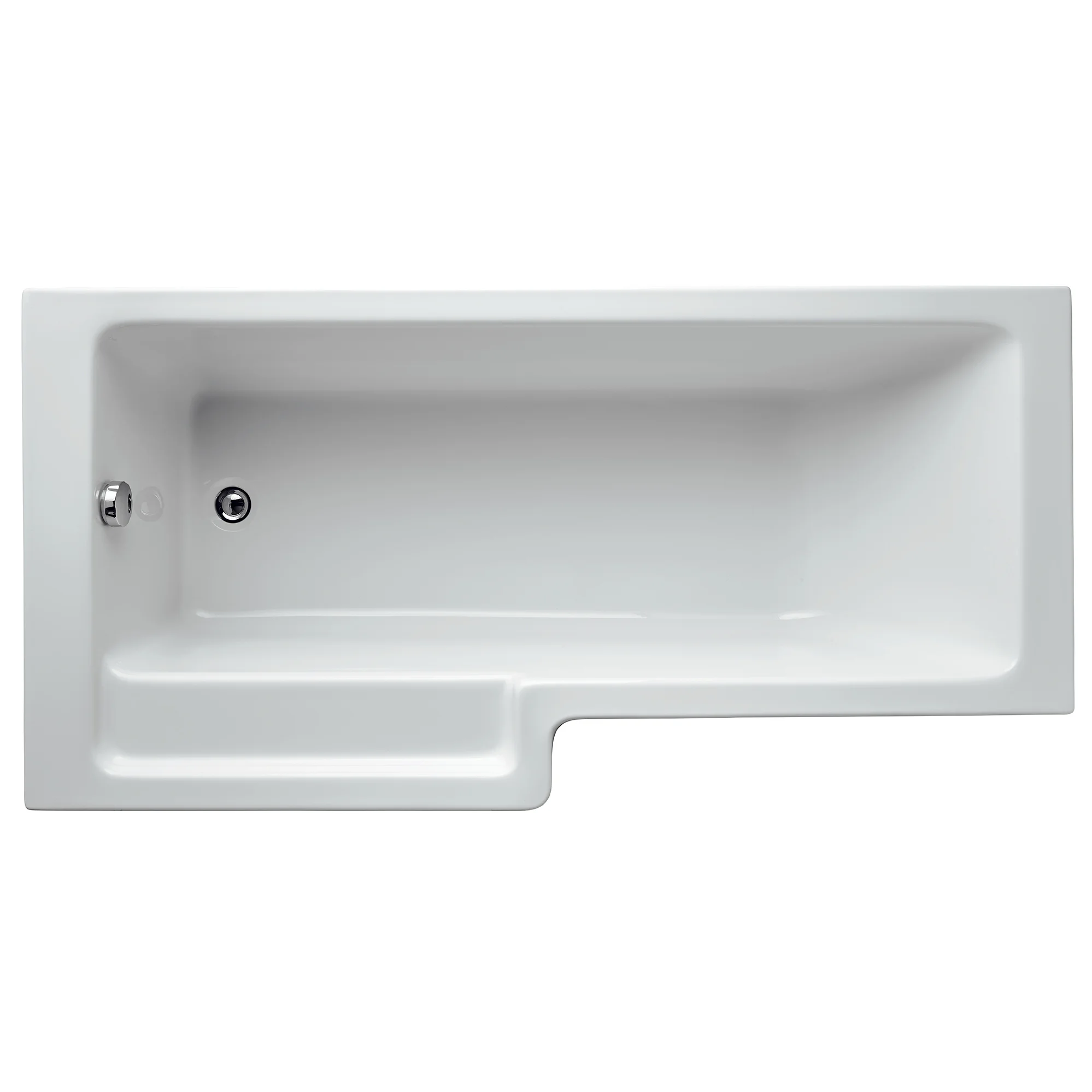

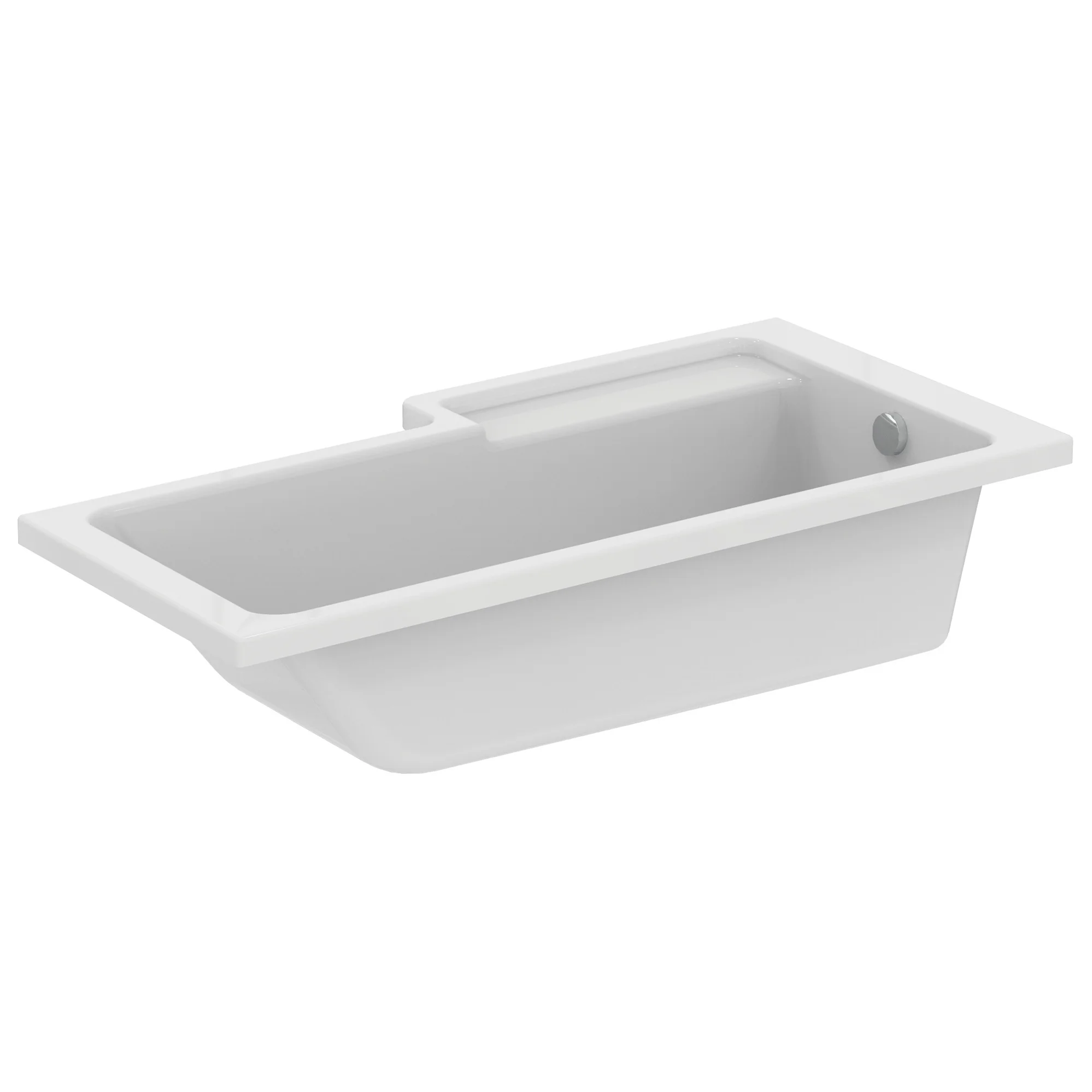

Ideal Standard Tempo Special Shaped Cube Shower Bath with Overflow - 1690 x 845mm

Key Features

✔L Shape Bath
✔Feature Integrated Shelf
✔Incorporates with an Overflow
✔Made from 5mm Idealform Plus+ Acrylic Material
✔25-Year Guarantee from the Manufacturer Against Manufacturing Defects

Choice of Variations: Left Hand, Right Hand
Comes in a gloss white finish
Capacity: 190 litres
Supplied without a tap hole
Size [mm]: 1690 x 845 x 560mm [Length x Width x Height]
Size [cm]: 169 x 84.5 x 56cm [Length x Width x Height]
Depth: 400mm [40cm]
Weight: 40.66kg
Capacity: 9 Litres
Shape: Asymmetrical
Mounting: Floor/Built-in
Suitable for Residential and hotel use
Gently sloped ergonomic interior design by Robin Levien, RDI, offering a generous bath area
Shower Screen [See Option]
Front and End Panels [See Option]
Refer to the technical diagram for complete technical dimensions
Download the Installation Instruction and Product Data Sheet PDF File from the Additional Info Section
Waste shown in the image is not included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Position of Drain
: Foot End
⤷ Bath Type
: Single Ended
⤷ Range
: Tempo
⤷ Feets Included
: Yes
⤷ Colour
: Gloss White
⤷ Internal Bottom Length
: 1050
⤷ Internal Bottom Width
: 375
⤷ Internal Top Length
: 1245
⤷ Internal Top Width
: 495
⤷ Distance Tub edge to centre of drain hole
: 350
⤷ Distance Top edge to centre of overflow hole
: 70

⤷ Diameter of overflow hole
: Ø44
⤷ Diameter of Drain hole
: Ø53
⤷ Weight in kg
: 40.66
⤷ Shape
: L-Shaped
⤷ Capacity in litres
: 190
⤷ Handed Type
: Left or Right
⤷ Warranty/Guarantee
: 400
⤷ Material
: Idealform Plus+ Acrylic
⤷ No. of Bathers
: 1
⤷ Theme
: Modern
⤷ Barcode
: 5017830471790

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instruction Pdf File

Technical Images

Ideal Standard Tempo Special Shaped Cube Shower Bath with Overflow - 1690 x 845mm

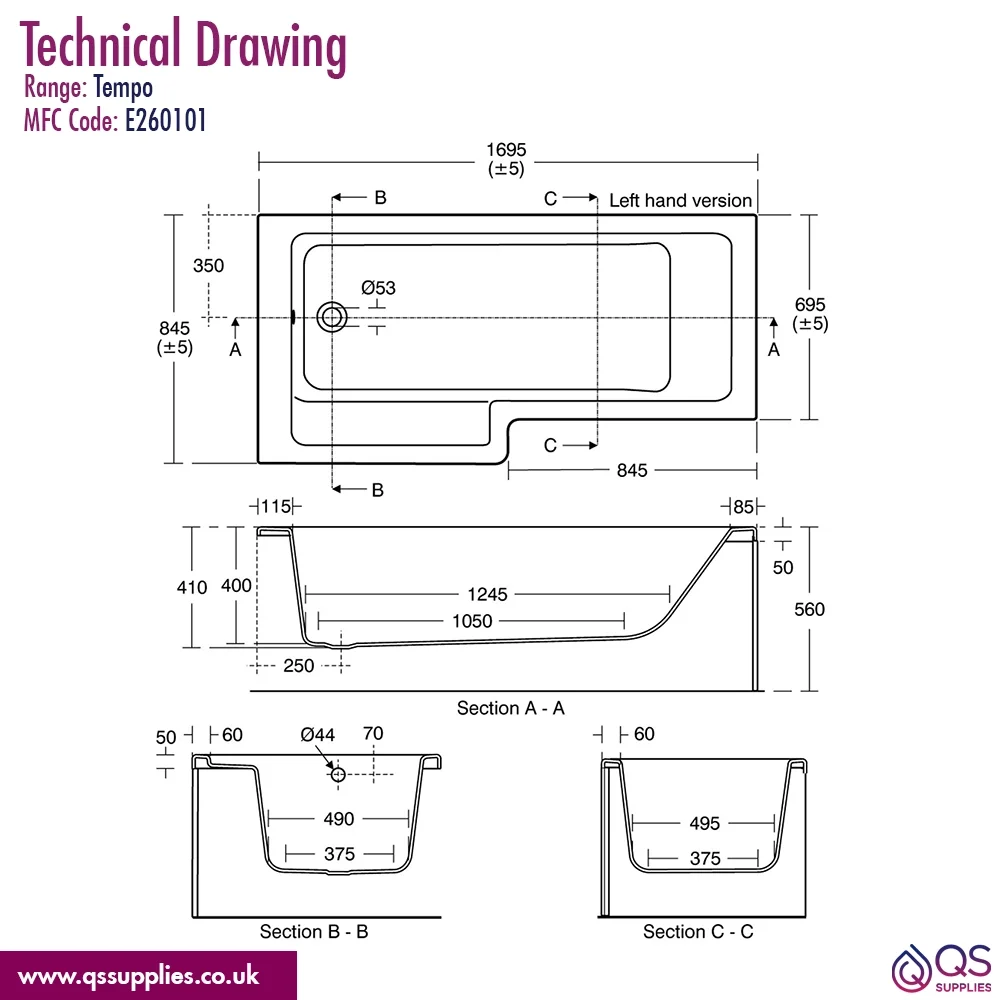

Left Hand Version

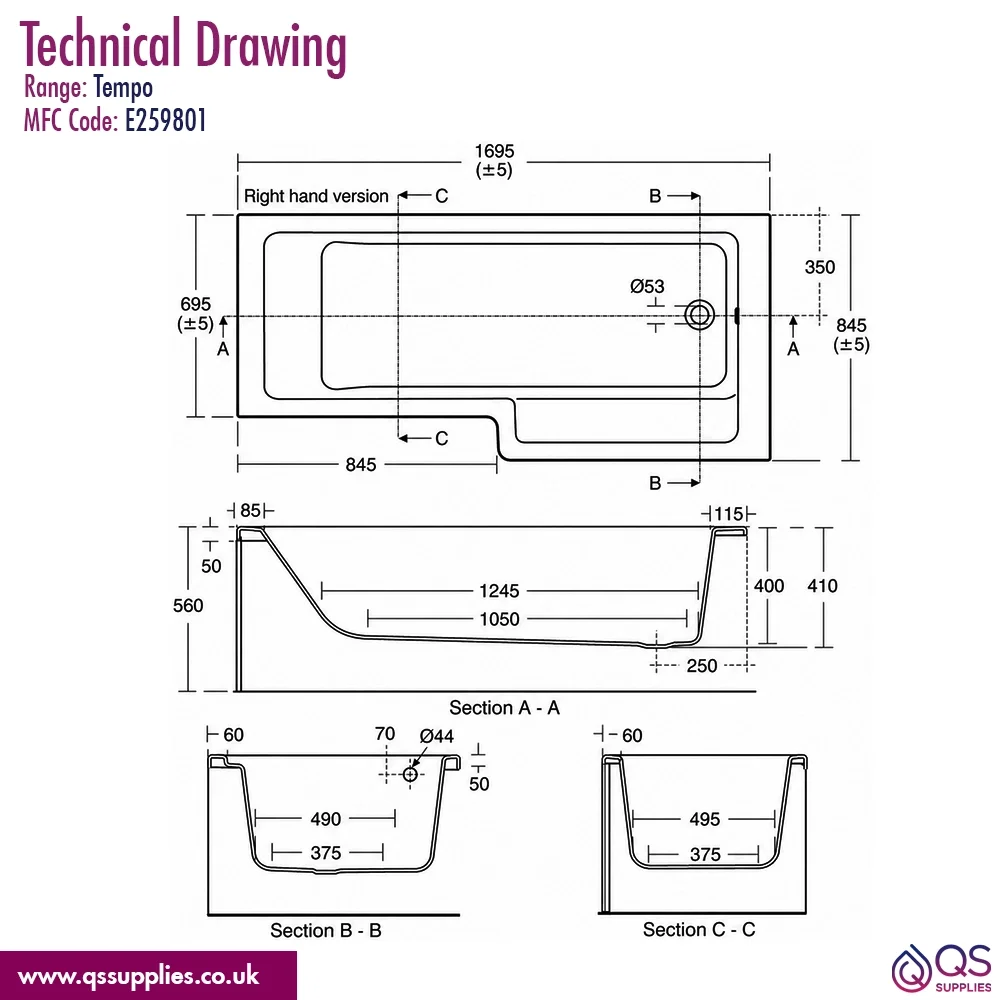

Right Hand Version

Add-Ons

Bath Panel

White Finish Bath Panel. Please Note: The image shown is for illustration purposes only.

OP-57562 - Unilux Plus 700mm End Panel - E483101 + £64.07
OP-57532 - Tempo Cube 1700mm Shower Front Panel - E259601 + £141.35

Shower Screen

To provide a revitalised showering experience, Ideal Standard brings in these clear glass bath shower screens. The image shown is for illustration purposes only.

No Option Selected
OP-42085 - 830 x 1405mm Clear Glass Screen With Rail And Silver Finish Profile - E2597EO + £357.88

£561.60

RRP: ~~£701.00~~

STOCK AVAILABLITY: 10-14 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called 'without-overflow' and will need a compatible drain.

Idealform Plus+

Idealform Plus+ provides all the benefits of Idealform, plus with extra reinforcement for peace of mind. Four different layers combine to give these baths exceptional strength and rigidity. The outer shell is vacuumed-formed acrylic which is smooth to the touch and luxuriously glossy, easy to clean and resistant to wear and tear. It is then reinforced with Glass Reinforced Polymer and supported by an 18mm encapsulated baseboard to increase its strength. Finally, the whole bath is coated in an outer colour layer of a Glass Reinforced Polymer resin mix, which creates a more robust bonded product with a smoother surface and added insulating properties to keep the water warmer for longer.
