Ideal Standard Connect Air Idealform Double Ended Bath

Connect Air Details

MFC: E152401

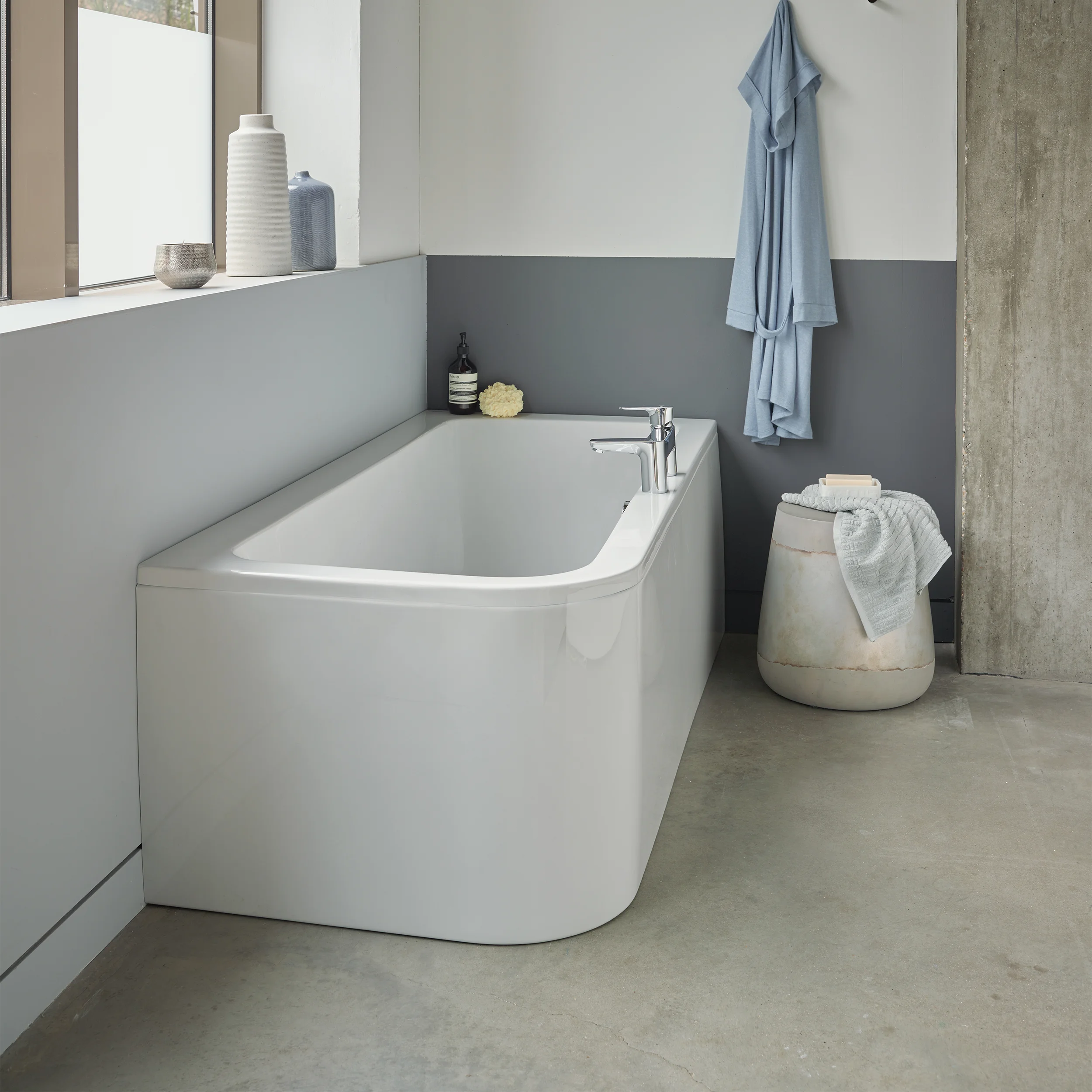

Ideal Standard Connect Air Idealform Double Ended Bath - Asymmetric Corner - 1700 x 750mm.

Key Features

✔Manufactured Using Idealform Acrylic Material
✔Suitable for Domestic and Hotel Use
✔Standards: Constructed to EN 198:2008. EN 14513
✔Incorporate with an Overflow
✔25-Year Guarantee from the Manufacturer Against any Manufacturing Defects

Choice of Variations: Left Hand, Right Hand
It Comes in a White Finish
Supplied with No Taphole for Maximum Flexibility
Size [mm]: 1695 x 745 x 410mm [Length x Width x Height]
Size [cm]: 169.5 x 74.5 x 41cm [Length x Width x Height]
Height: Floor to the Rim: 540mm [54cm]
Weight: 26.50kg
Water Capacity: 187 Litres
Part of an Extensive Range
Frequently used in Hotels and Residential Applications
Idealform - [See Features Explained Section]
Front Panel - [Optional]
Tap and Waste Shown in the Image are not Included
Refer to the Technical Drawing For Size Details
Download the Product Data Sheet and Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Connect Air
⤷ Bath Type
: Double-Ended
⤷ Interior Shape
: Rounded Rectangular
⤷ External Length
: 1695
⤷ External Width
: 745
⤷ Feets Included
: 395
⤷ Height Including Feet or Panel
: 540
⤷ Front Panel Included
: Sold Separately
⤷ Colour
: White
⤷ Internal Bottom Length
: 1040
⤷ Internal Bottom Width
: 490
⤷ Height of Rim
: 30
⤷ Distance Tub edge to centre of drain hole
: 240

⤷ Distance Top edge to centre of overflow hole
: 80
⤷ Diameter of overflow hole
: 44
⤷ Rim Width
: 85, 95
⤷ Weight in kg
: 26.50
⤷ Handed Type
: Left Or Right Hand
⤷ Country of Origin
: EU
⤷ Warranty/Guarantee
: 25 Years
⤷ Material
: Idealform
⤷ No. of Bathers
: 2
⤷ Theme
: Modern
⤷ Waste Included
: Sold Separately
⤷ Barcode
: 5017830533429

Additional Info & Downloads

Download the Product Data Sheet Of Left Hand Pdf File Download the Product Data Sheet Of Right Hand Pdf File Download the Installation Instruction Pdf File

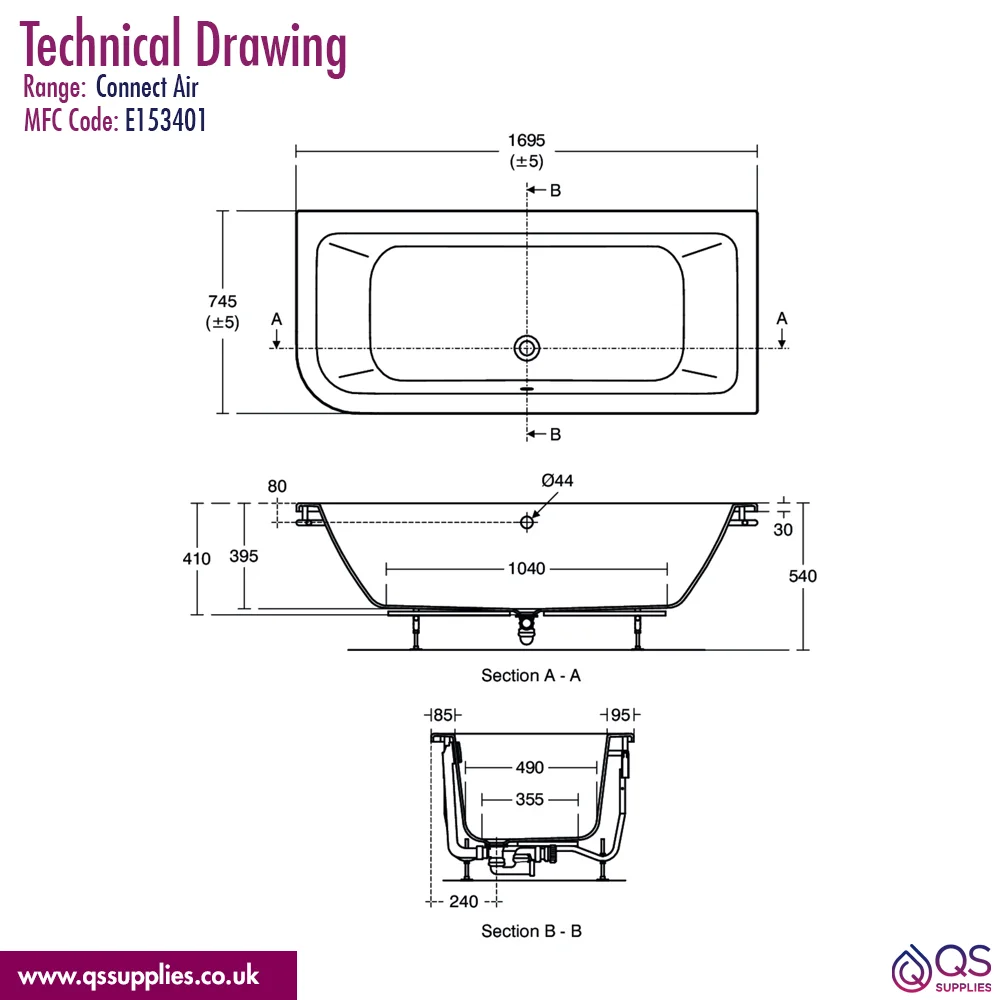

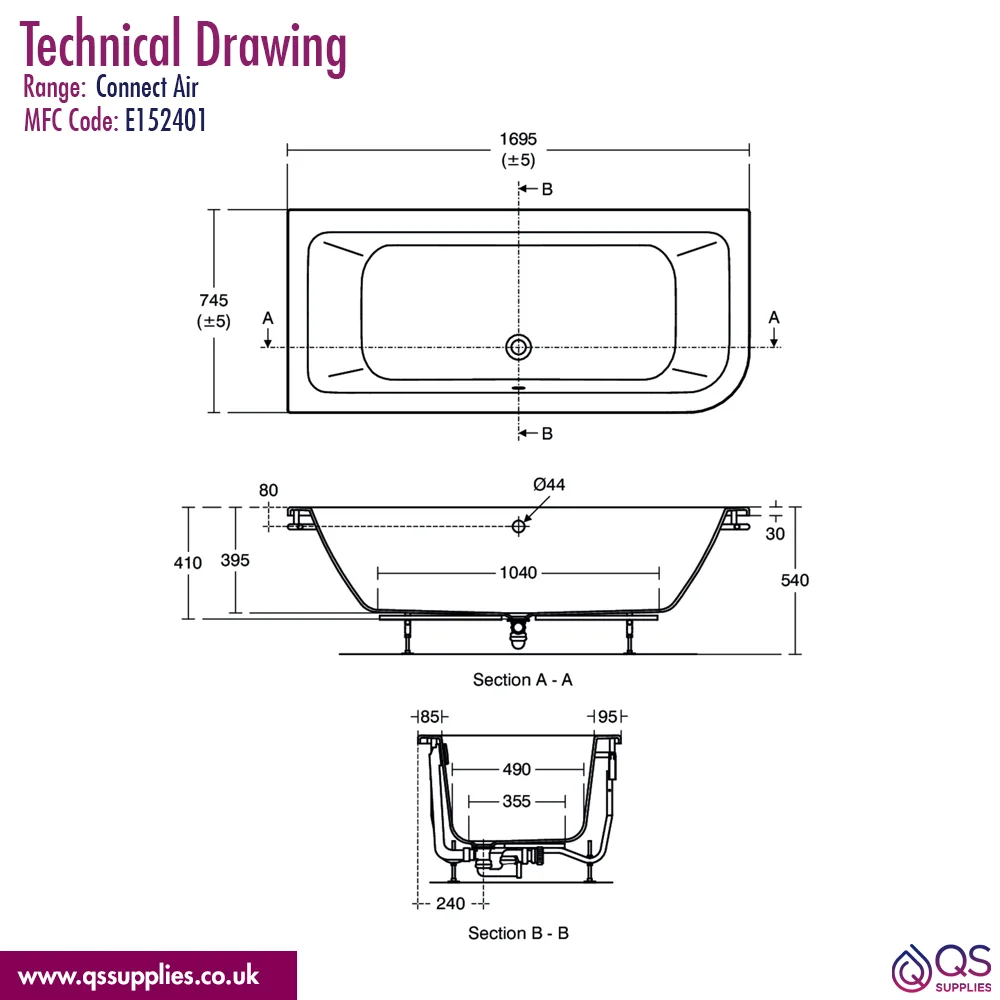

Technical Images

Ideal Standard Connect Air Idealform Double Ended Bath - Asymmetric Corner - 1700 x 750mm

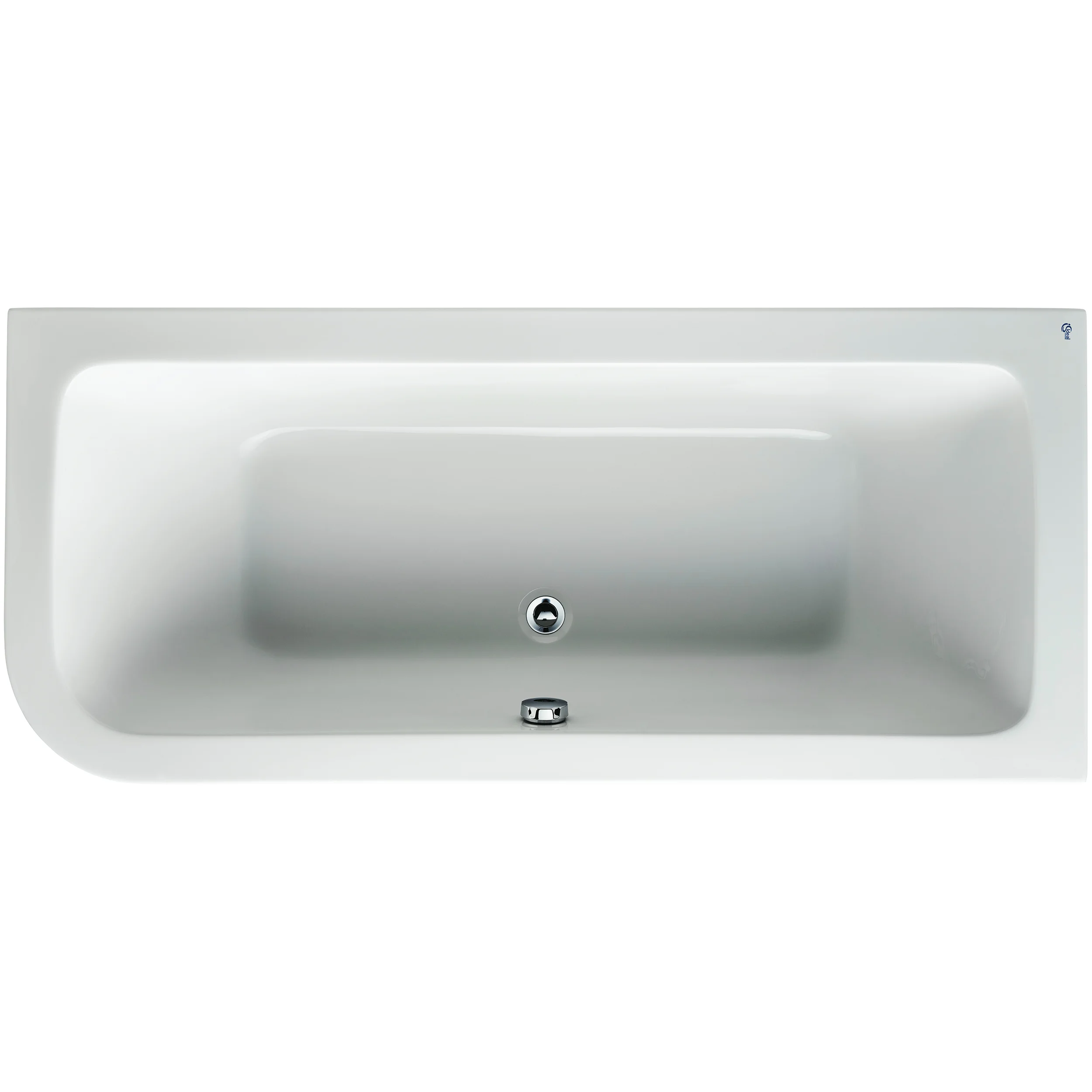

Left Hand

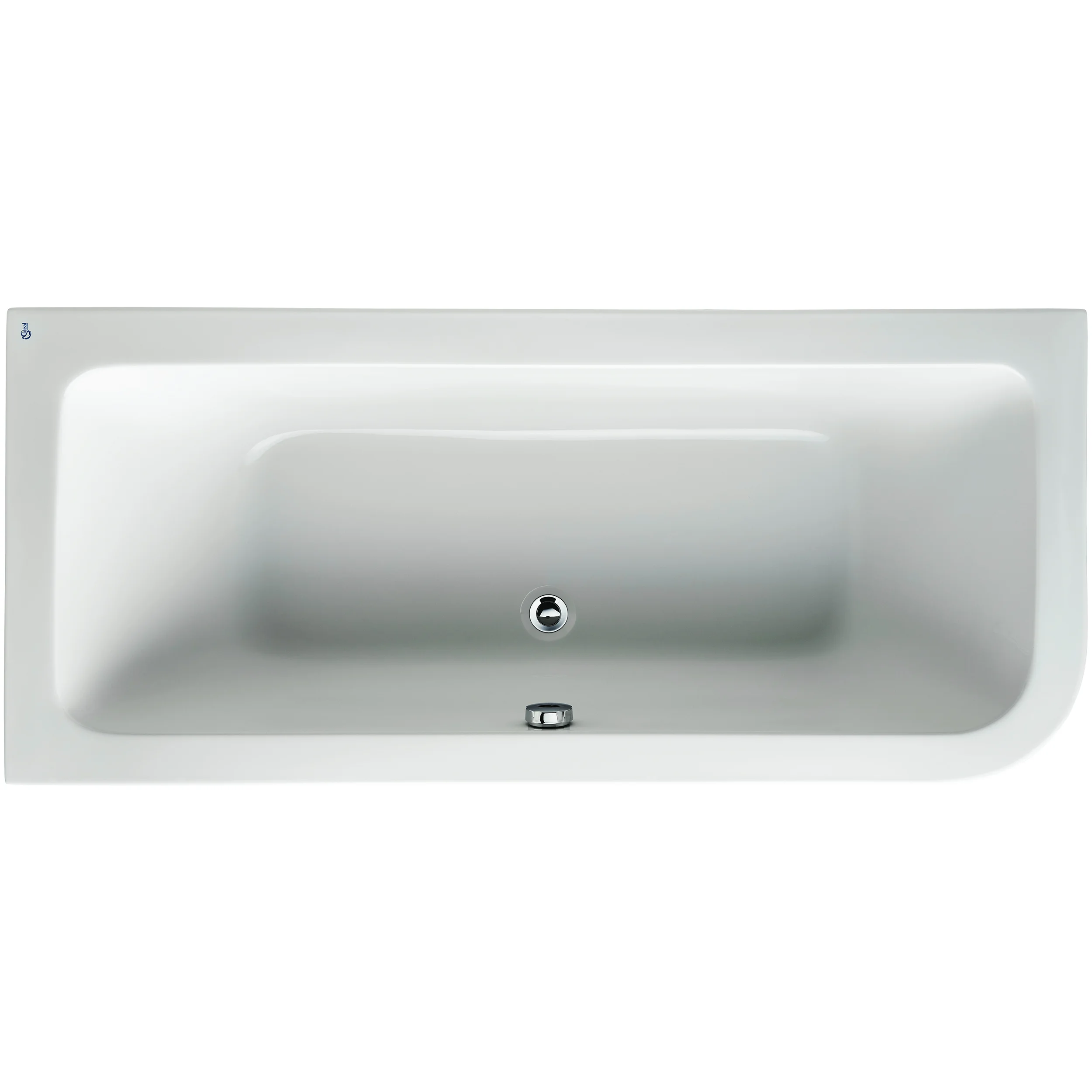

Right Hand

Add-Ons

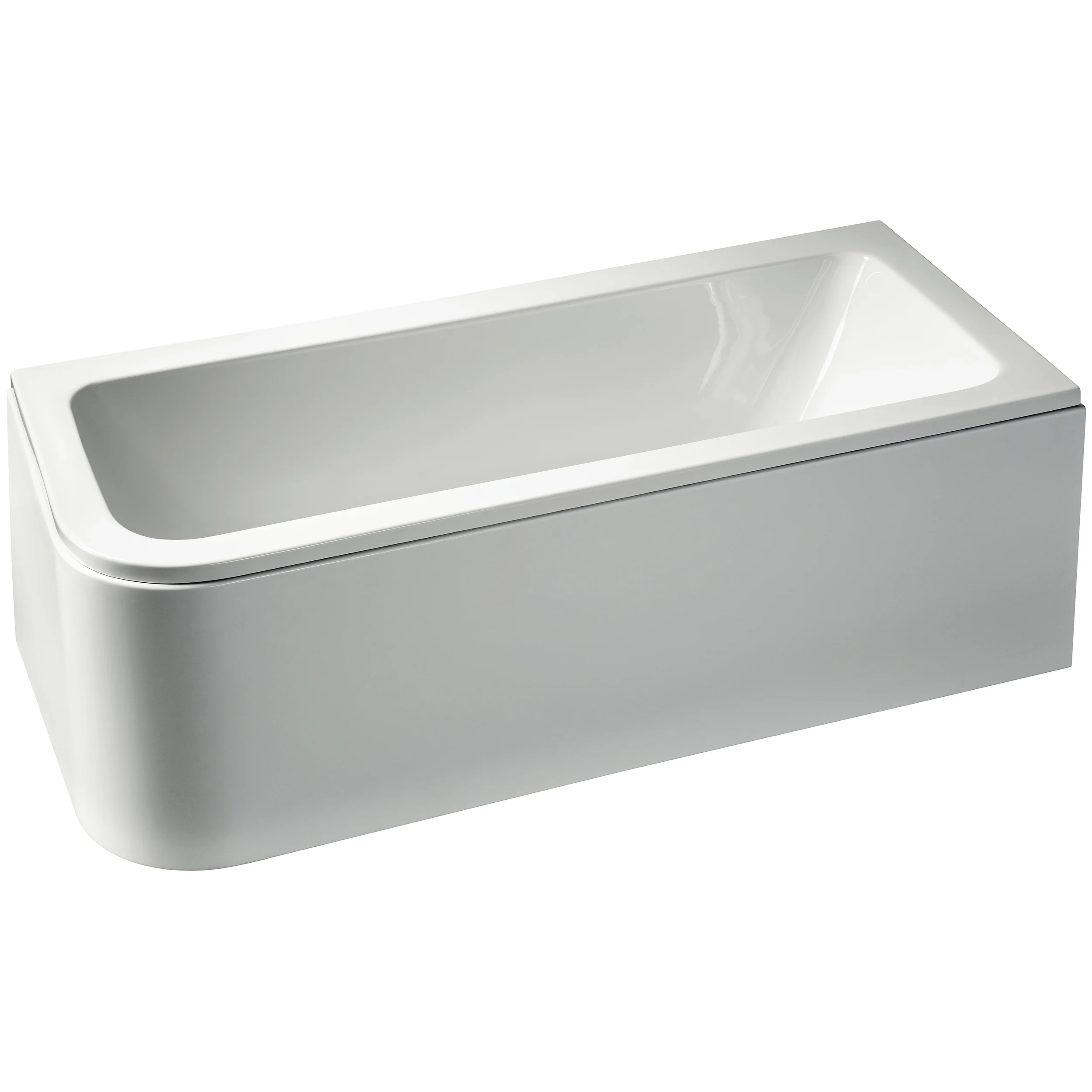

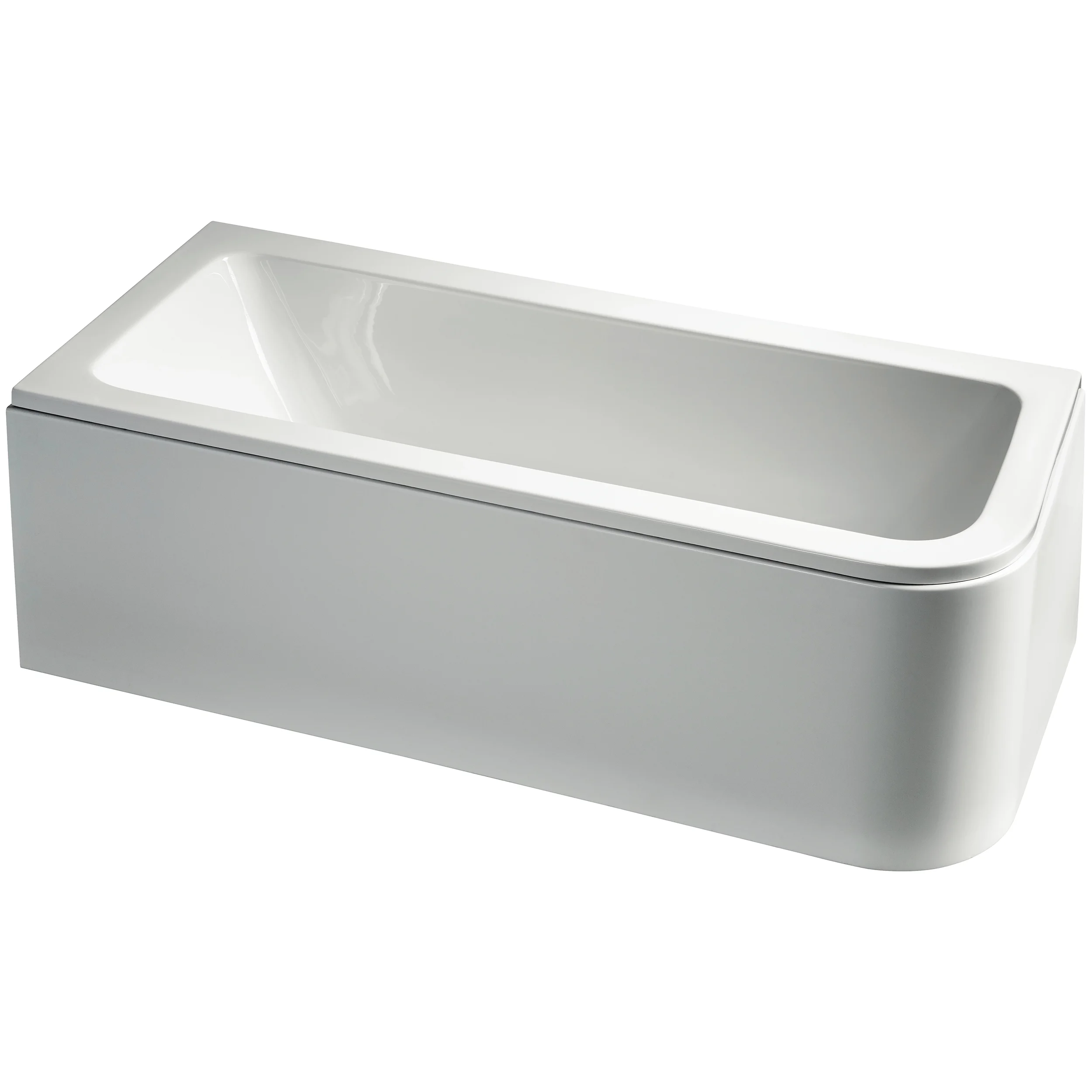

Front Panel

A suitable front panel to personalise your bath is available. Please select as per your choice from the options given below.

No Option Selected
OP-145952 - 1700mm Asymmetric Bath Front Panel - E154101 + £303.38

Optional Trap

Space saving trap and waste pipe assembly for use with furniture basin units. Please Note: Image shown is for illustration purpose only.

OP-204193 - Trap 1A½ Plastic P With 75mm Seal + £43.32

Compatible Bath Waste

Bath waste with overflow made using high quality material. Please note image is for illustration purpose only

No Option Selected
OP-171695 - Luxury Bath Pop-up Waste And Overflow - E1486AA + £104.00

£625.00

RRP: ~~£656.40~~

STOCK AVAILABLITY: 3-4 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Idealform

All Idealform baths are moulded from a high-quality reinforced cell-cast acrylic sheet that is warm to the touch and provides exceptional insulation. The sheet is heated and then vacuum formed into the desired bath shape. It is then fully reinforced with Glass Reinforced Polymer (GRP). A medium-density 15mm base board is positioned and encapsulated with extra Glass Reinforced Polymer (GRP). The bath is then cured, trimmed and drilled for tapholes or bath grips if required.

Lucite Acrylic

It is a high-quality acrylic resin developed by DuPont in 1937 and is one of the top-quality materials available in today's market. It replaced glass as it is less breakable, offers high strength and resistance to UV rays, moisture and wind, and is easy to clean. It is also incredibly flexible and can create the best products.

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called 'without-overflow' and will need a compatible drain.

Optional: Front Panel

A front bath panel is a decorative accessory that is used to cover the front-facing side of a bathtub for a neat and polished look. It also conceals plumbing and framework and comes in different sizes, textures and materials.
