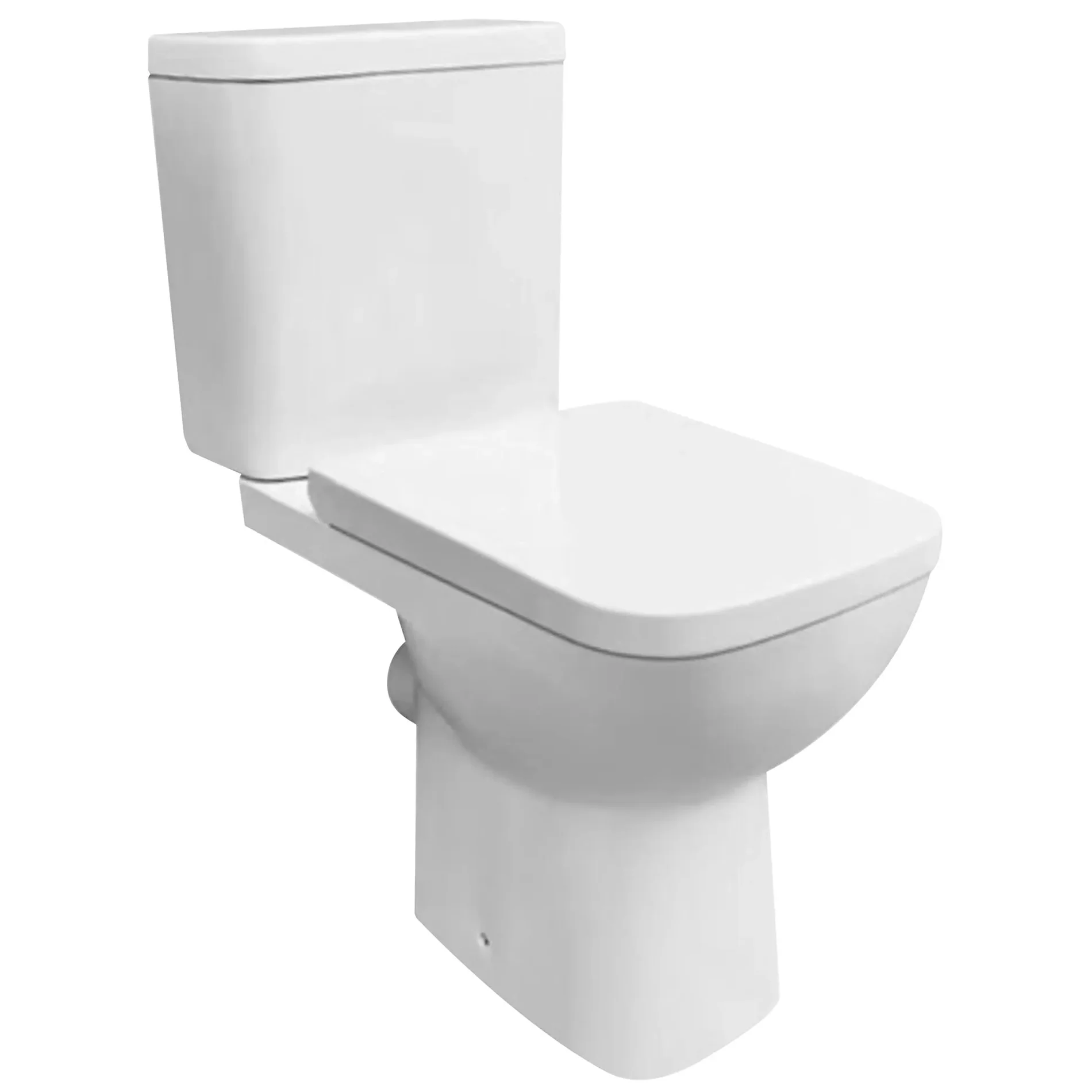

Nuie Ivo Square Short Projection Close Coupled Rimless WC Pan with Cistern and Seat - 375 x 640mm

Not Yet Rated No Rating

£124.80

RRP: £312.00
SKU: QS-V113339
Key Features
  • CE Certified
  • Constructed Using Vitreous China Material
  • Rimless Design for Improved Hygiene and Easier Cleaning
  • 5-Year Guarantee from Nuie Against Manufacturing Defects
  • Comes Complete with a Soft-Close Seat for Gentle, Noise-Free Use and a Cistern
Pay in 3-Interest Free Payments
Shipping

Shipping: £39.99

Stock Availability

Stock Availability:

3-4 Working Days Approx.

Nuie Ivo Details

MFC: NCS260

Nuie Ivo Square Short Projection Close Coupled Rimless WC Pan with Cistern and Seat - 375 x 640mm.

  • The Manufacturing Code of this Product NCS260
  • It Comes in a White Finish
  • Overall Height: 750mm (75cm)
  • Short-Projection Design Perfect for Saving Space in Smaller Bathrooms
  • Contemporary Style
  • Weight: 31.5 Kg
  • Ideal for Use in Family Bathrooms, En-Suites, and Cloakrooms
  • Download the Customer Data Sheet PDF Files from the Additional Info Section

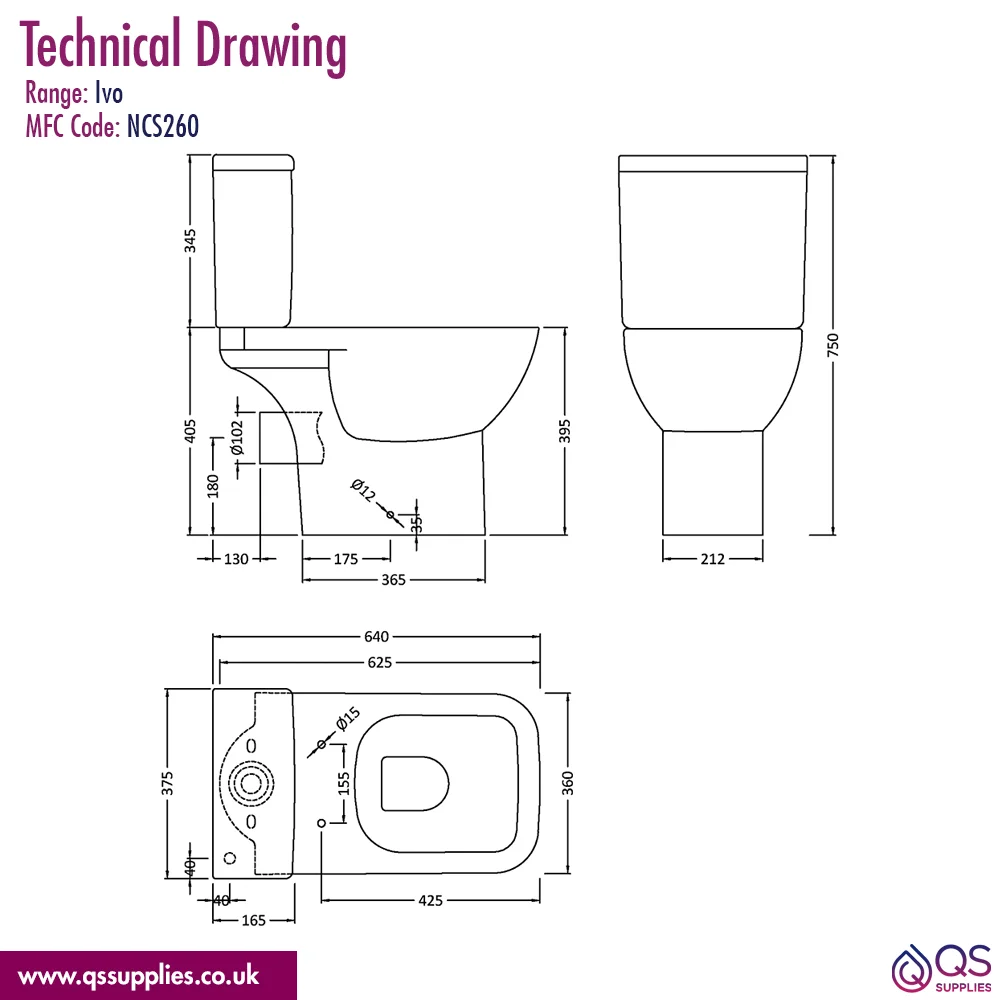

  • Refer to the Technical Drawing for More Details
  • Detail of Pan:
  • Size [mm]: 360 x 405mm [Width x Height]
  • Size [cm]: 36 x 40.5cm [Width x Height]
  • Projection from the Wall: 640mm (64cm)
  • Shape: Square
  • Detail of Cistern
  • Size [mm]: 375 x 165 x 345mm [Width x Depth x Height]
  • Size [cm]: 37.5 x 16.5 x 34.5cm [Width x Projection x Height]

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : Ivo
  • ⤷ Toilet Design
  • : Open Back
  • ⤷ Coating
  • : Without Coating
  • ⤷ Colour
  • : White
  • ⤷ Weight in kg
  • : 31.5
  • ⤷ Warranty/Guarantee
  • : 5 Years
  • ⤷ Material
  • : Vitreous China
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Floor Mounted
  • ⤷ Pan Width
  • : 360
  • ⤷ Pan Height
  • : 405
  • ⤷ Toilet Overall Height
  • : 750
  • ⤷ Projection (Depth)
  • : 640
  • ⤷ Rimless Bowl
  • : Yes
  • ⤷ Cistern Included
  • : Yes
  • ⤷ Cistern Width
  • : 375
  • ⤷ Cistern Height
  • : 345
  • ⤷ Flush Mechanism
  • : Push Button
  • ⤷ Cistern Lever Or Button Placement
  • : Top
  • ⤷ Outlet
  • : Horizontal
  • ⤷ Configuration
  • : Pan | Cistern | Seat
  • ⤷ Compact Design
  • : Yes
  • ⤷ Seat Included
  • : Yes
  • ⤷ Seat Type
  • : Soft Close
  • ⤷ Seat Finish
  • : White
  • ⤷ Compliance/Approvals/Standard
  • : CE
  • ⤷ Barcode
  • : 5056817731281
  • ⤷ Bowl Shape
  • : Square
  • ⤷ Product Type
  • : Closed Coupled
  • ⤷ Cistern Depth (projection)
  • : 165
  • ⤷ Seat Post Hole Centers
  • : 155
  • ⤷ Front Of Bowl To Centre Of Seat Holes
  • : 425
  • ⤷ Base width
  • : 212
  • ⤷ Base Depth (projection)
  • : 365
  • ⤷ Outlet Diameter
  • : 102
  • ⤷ Base to centre of outlet
  • : 180

Additional Info & Downloads

Download PDFDownload the Customer Data Sheet Pdf File

£124.80
RRP: £312.00
Stock Availablity: 3-4 Working Days Approx
QS Supplies

4 Features Included In This Product Explained

Vitreous-China Material

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Rimless

Rimless

A rimless toilet does not have a brim at its edge, from which the water usually flows when you flush. Instead of flowing from the top, such toilets shoot water towards their edge and around it, allowing no missing spots with filth remaining after a flush. These toilets also remove any spaces for germs to hide and breed, providing a hygienic alternative for your bathroom.

Open-Back Toilet

Open-Back Toilet

Open-back toilets are a type of close-coupled toilet with a cistern attached to the back of the toilet, creating one single unit. In the open-back model, there is a space at the back between the toilet bowl and the wall to access pipework at the back, while the closed back does not have a gap.

Horizontal Outlet

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.
