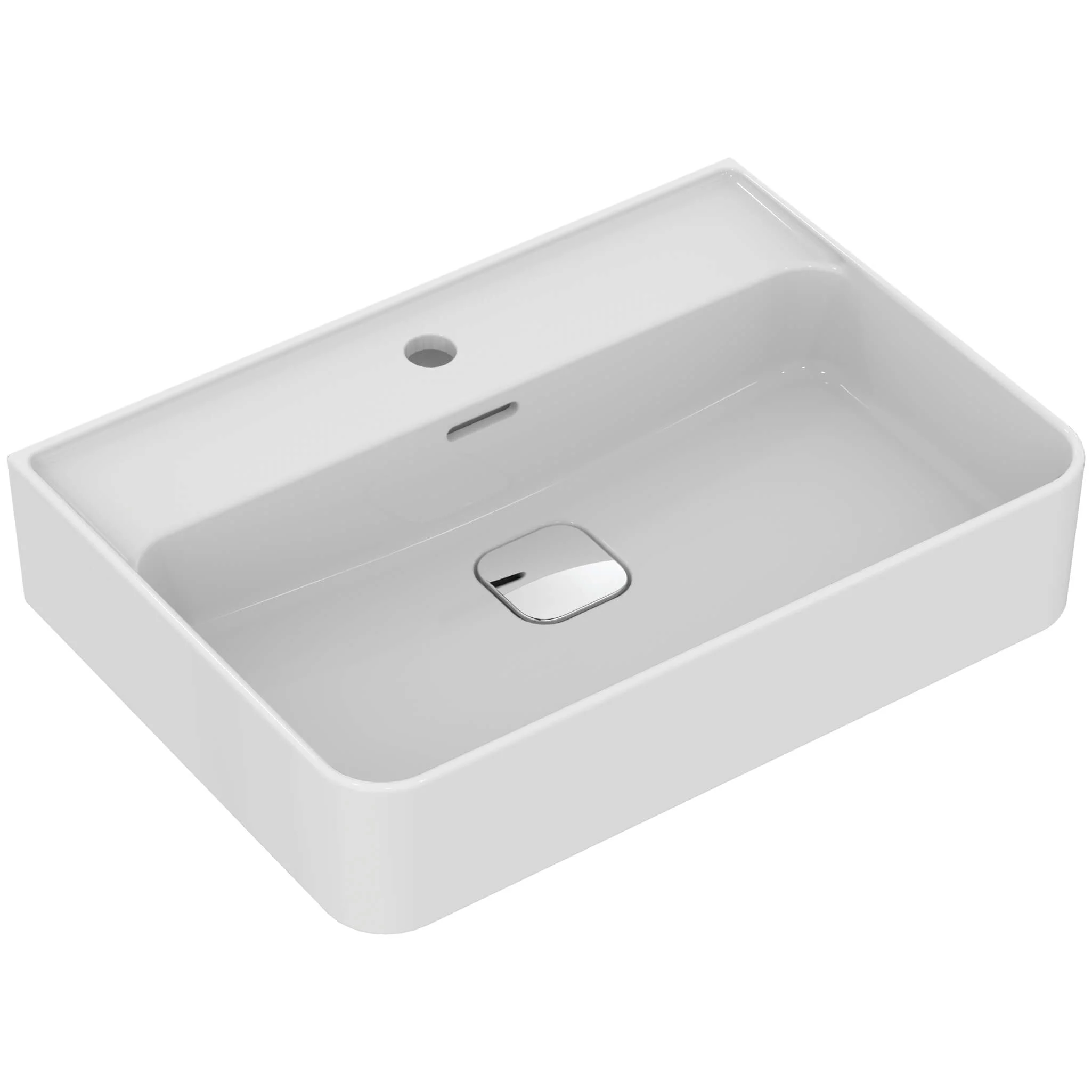

Ideal Standard Strada II Wall Mounted Basin with Waste and Overflow, E238701

Strada II Details

MFC: E238701

Ideal Standard Strada II Wall Mounted Basin with Waste and Overflow.

Key Features

✔It Comes in a White Finish
✔Manufactured Using Fine Fireclay Material
✔Supplied Complete with Chrome Waste and Overflow
✔Lifetime Guarantee from Ideal Standard Against Any Manufacturing Defects

Choices of Sizes: 600mm, 800mm and 1000mm
Choices of Variations: 1 Taphole and 0 Taphole
Ideal for Domestic and Commercial Use
Standards: Washbasin to BS EN 14688 and BS EN 31
Refer to the Technical Diagram for Complete Technical Dimensions
Specifications of 600mm Basin:
Weight: 15kg
Capacity: 9.8 Litres
Size in [mm]: 600 x 430 x 180mm [Width x Depth x Height]
Size in [cm]: 60 x 43 x 18cm [Width x Depth x Height]
Specifications of 800mm Basin:
Weight: 20kg
Capacity: 12.9 Litres
Size in [mm]: 800 x 430 x 170mm [Width x Depth x Height]
Size in [cm]: 80 x 43 x 17cm [Width x Depth x Height]
Specifications of 1000mm Basin:
Weight: 22kg
Capacity: 16.7 Litres
Size in [mm]: 1000 x 430 x 180mm [Width x Depth x Height]
Size in [cm]: 100 x 43 x 18cm [Width x Depth x Height]
Available Options [See Options Below]:
Strada II Semi Pedestal - T299601
Washbasin Wall Fixings Set - E015767
1.25 Inch Multi-Purpose Outlet Plastic Bottle Trap - S891067

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Strada II
⤷ Colour
: White
⤷ Weight in kg
: 15 [600mm], 20 [800mm], 22 [1000mm]
⤷ Shape
: Rectangular
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: Fireclay
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Waste Included
: Yes
⤷ Projection (Depth)
: 430
⤷ Width
: 600, 800, 1000
⤷ Height
: 180
⤷ Inner Bowl Width
: 580 [600mm], 780 [800mm], 980 [1000mm]

⤷ Inner Bowl Depth
: 305
⤷ Distance rear edge to centre of waste hole
: 205
⤷ Fixing Holes Centre
: 280
⤷ Distance top edge to centre of fixing hole
: 55
⤷ Distance rear edge to centre of tap hole
: 60
⤷ Number of bowls
: 1
⤷ No. of Tap Holes
: 1TH, 0 TH
⤷ Pedestal Included
: Sold Separately
⤷ Pedestal Type
: Semi Pedestal
⤷ Overflow Included
: Yes
⤷ Barcode
: 5017830554783
⤷ Product Type
: Basin Only

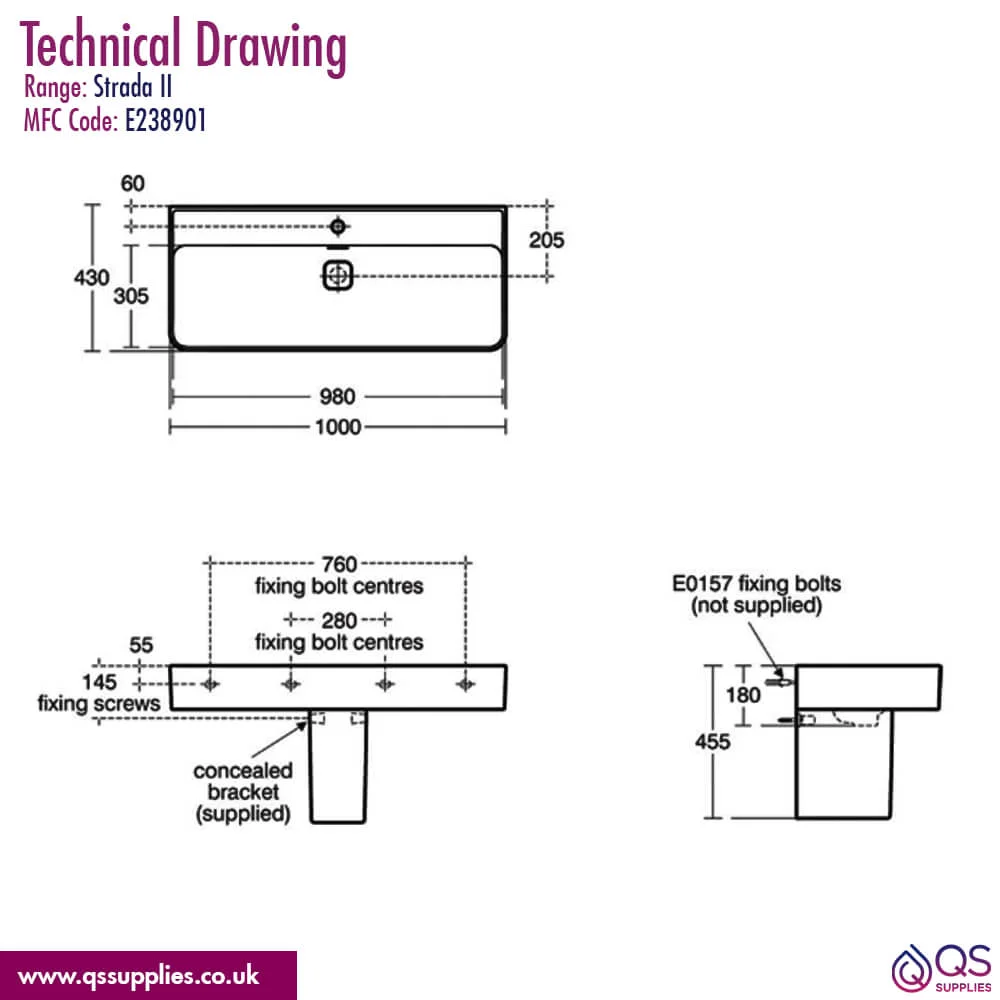

Technical Images

Ideal Standard Strada II Wall Mounted Basin with Waste and Overflow

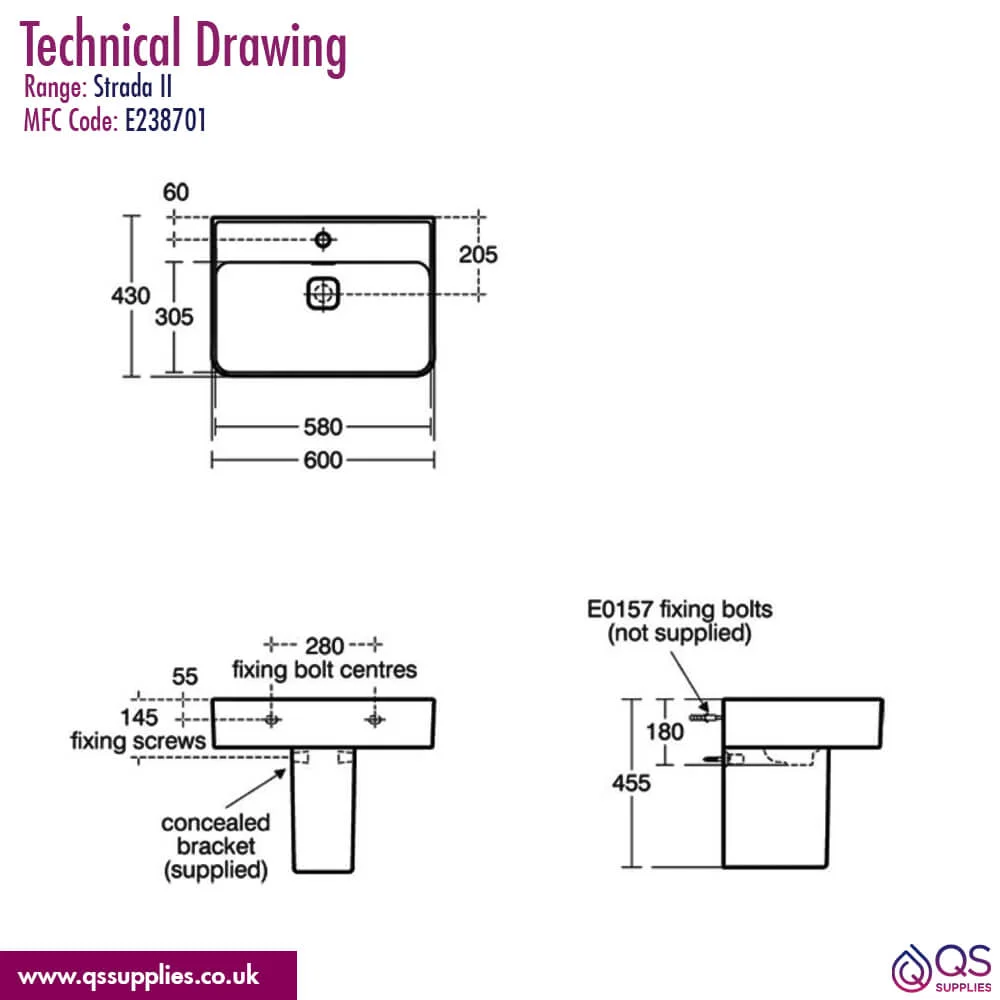

600mm - 1 TH

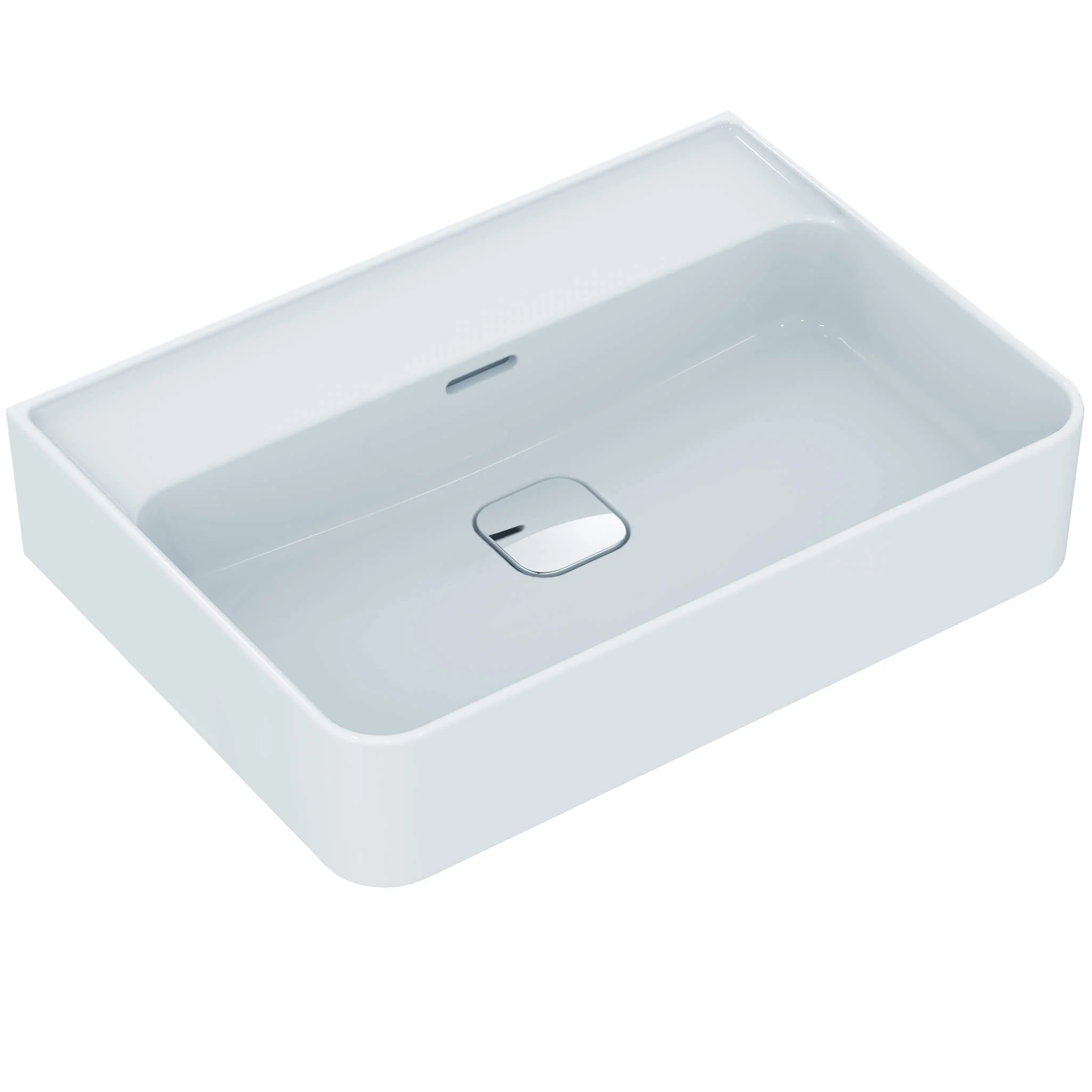

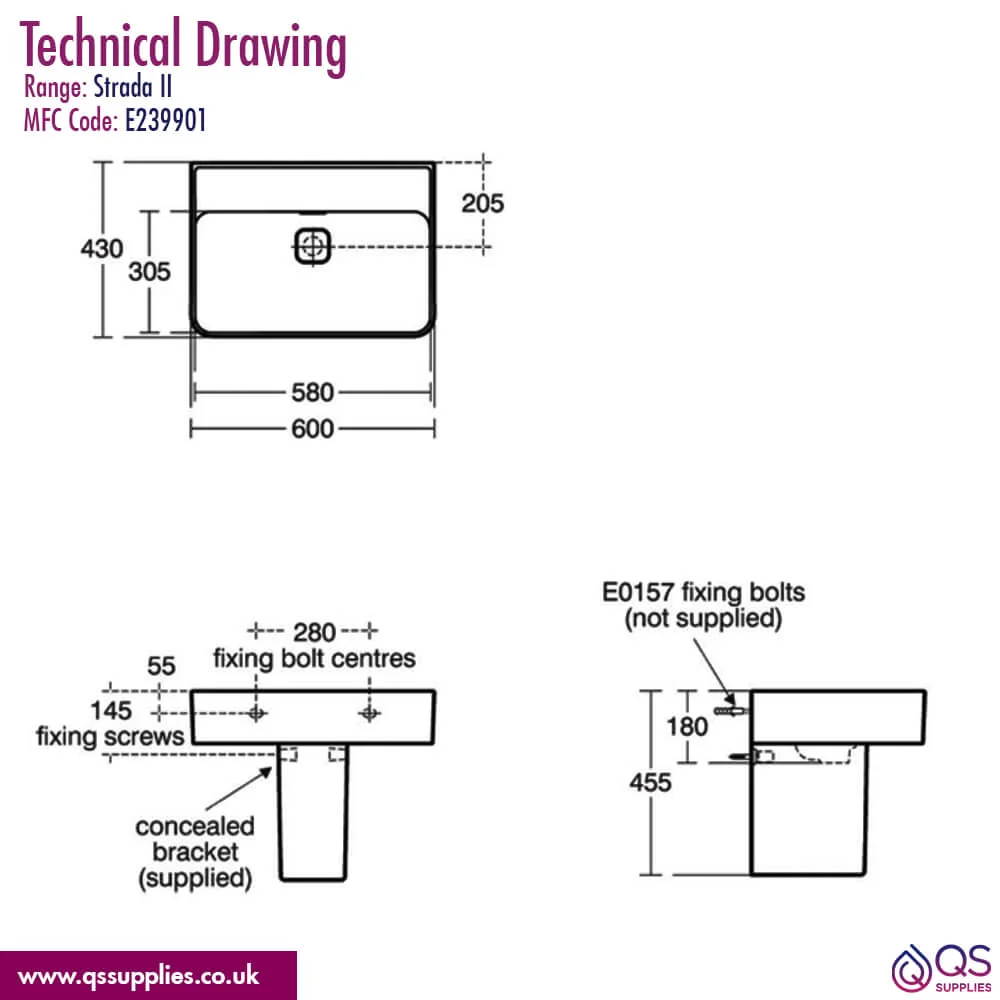

600mm - 0 TH

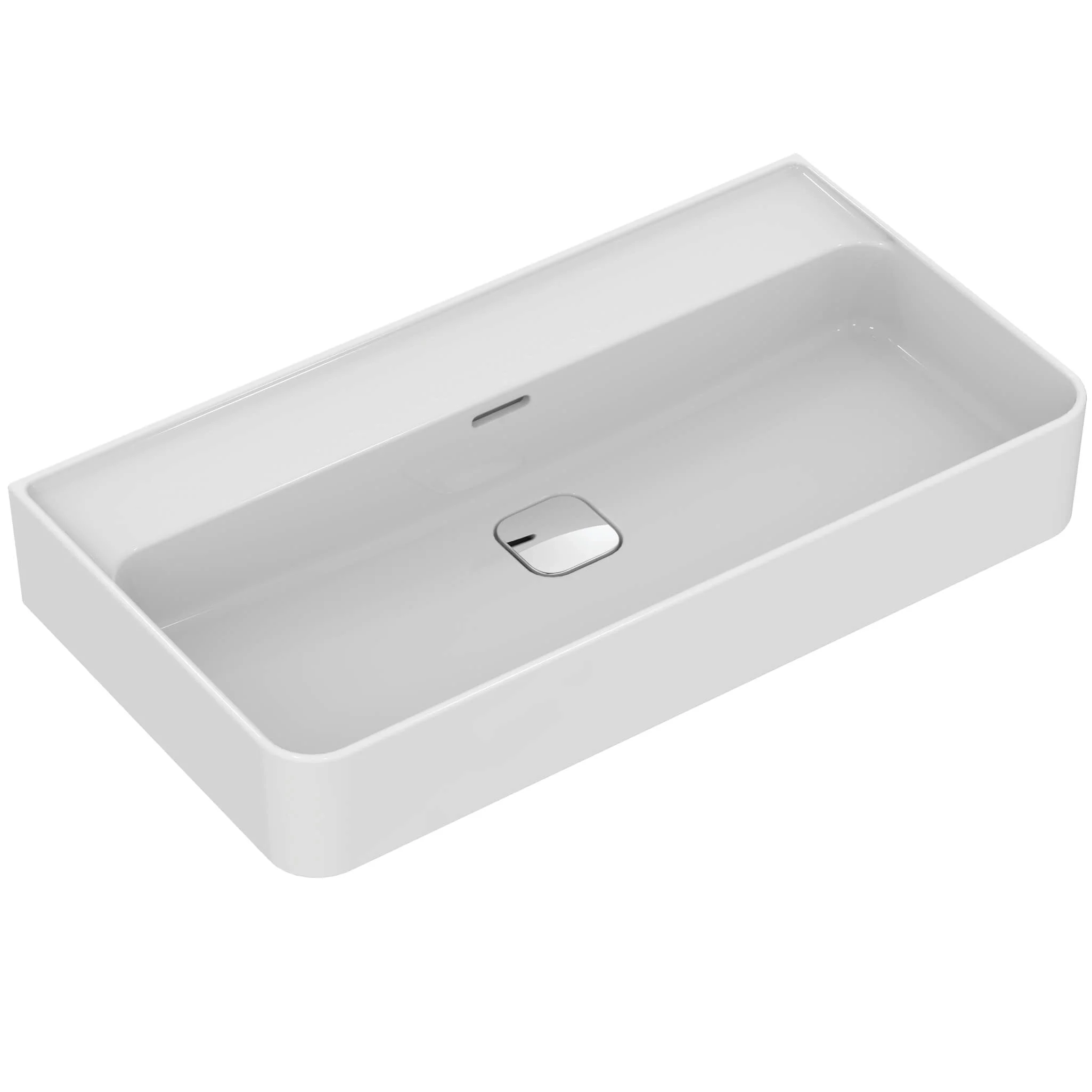

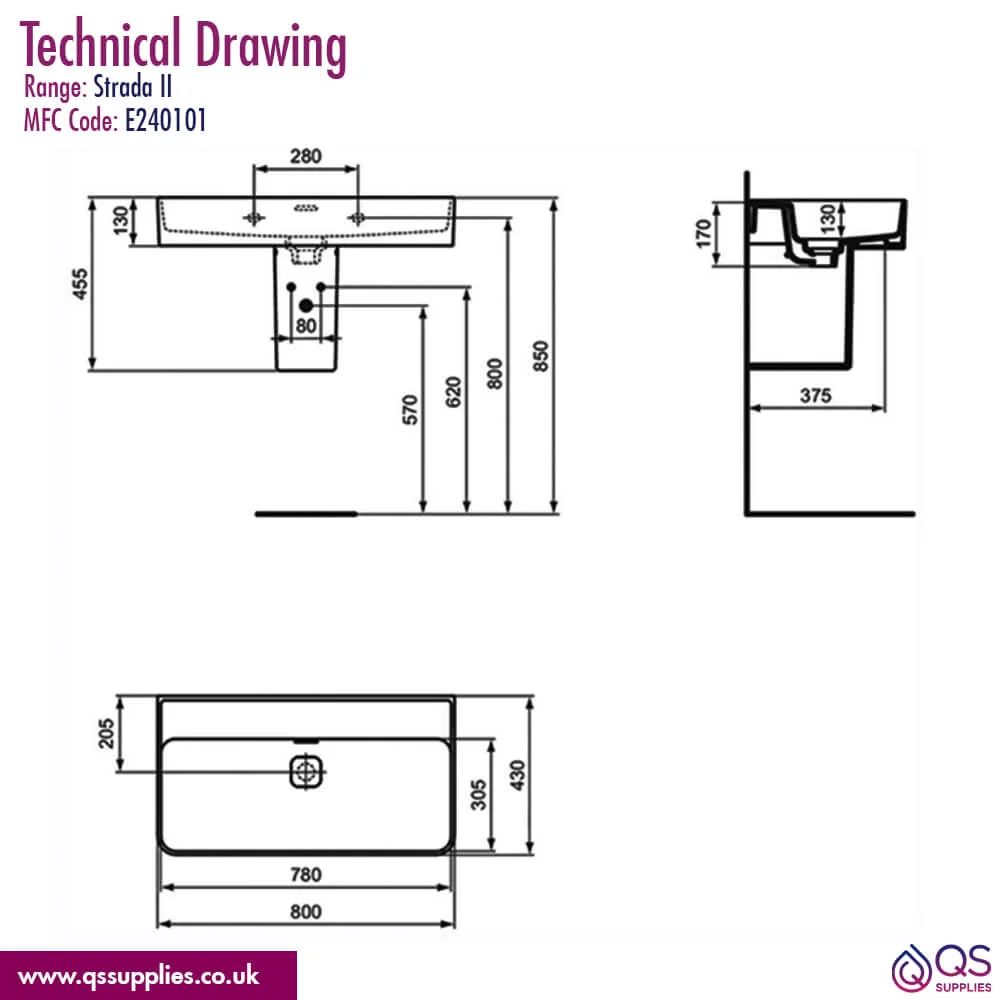

800mm - 0 TH

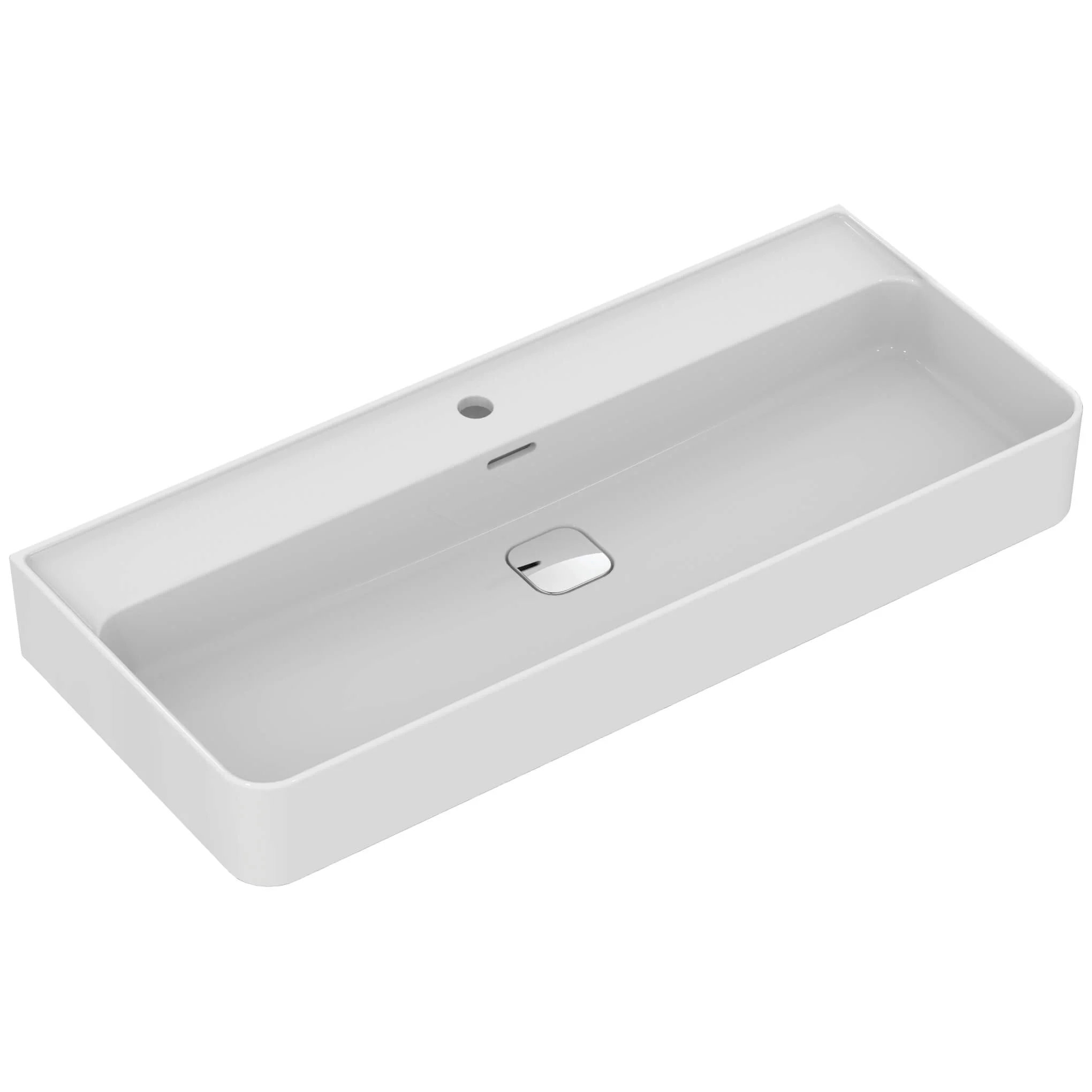

1000mm - 1 TH

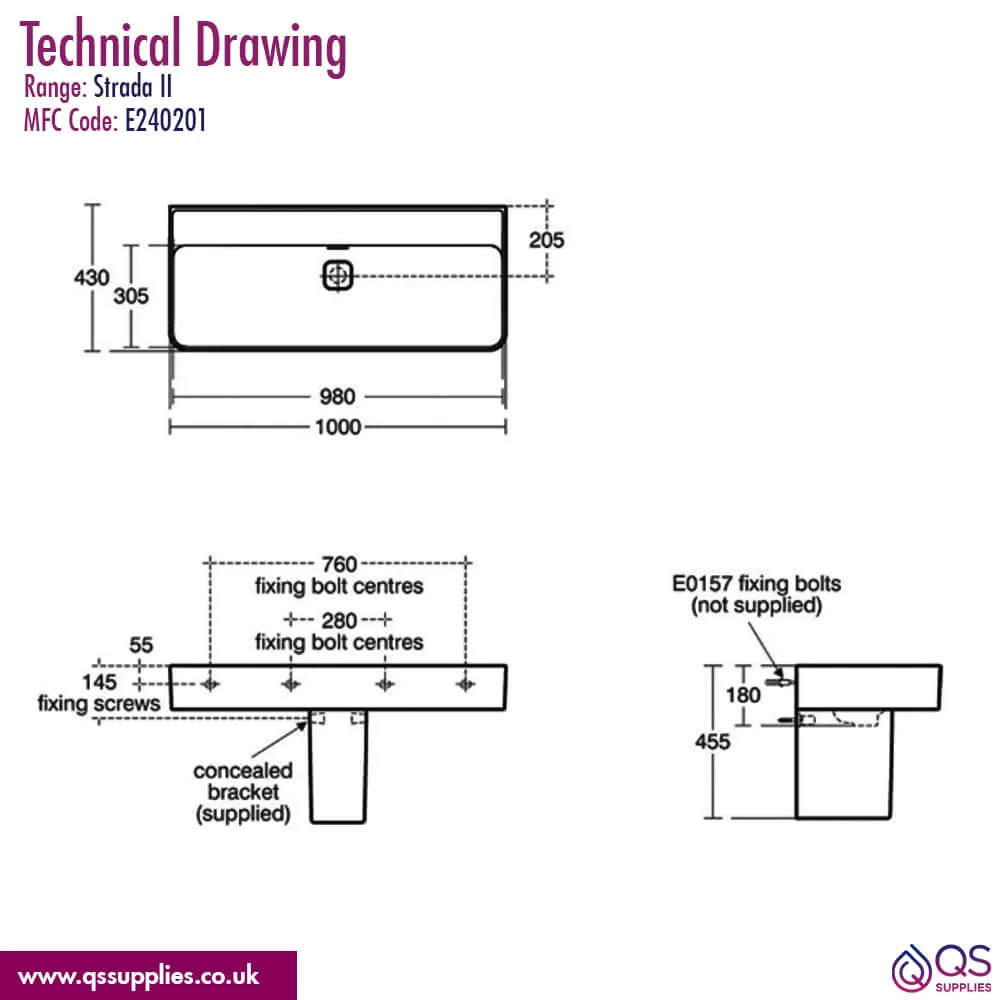

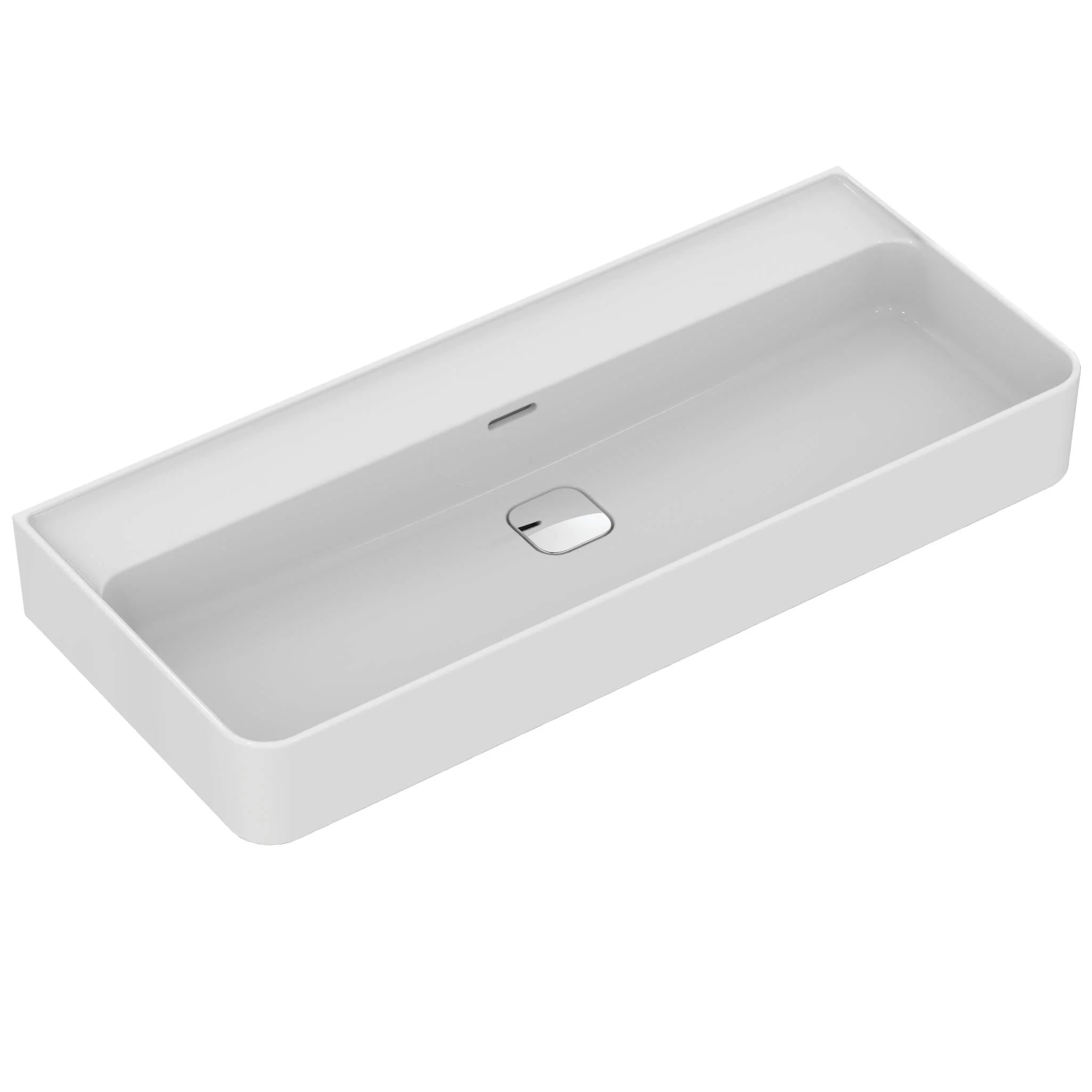

1000mm - 0 TH

£345.00

RRP: ~~£362.82~~

STOCK AVAILABLITY: 2-3 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called 'without-overflow' and will need a compatible drain.

Fireclay

It is incredibly hard-wearing and has an everlasting shiny surface. They have a high heat resistance (1600°C) and are chemical resistant, non-porous, and hygienic.
