Twyford Alcona Washdown Close Coupled WC Pan, Cistern & Seat, Open Back, GGAL04WH

Twyford Alcona Details

MFC: GGAL04WH

Twyford Alcona Floorstanding Washdown Close Coupled WC Pan with Cistern and Seat - Open Back

Manufacturing Code of this Product: GGAL04WH
It Comes in a White Finish
Overall Weight: 26.33kg
Comes with a Flush Rim
Supplied with Fixings and Fittings
Water Supply Connection On the Bottom Right
Perfect for Home Bathrooms, Rentals, and Refurbishment Projects
Long-Lasting, Easy-to-Clean Glazed Ceramic Resists Stains and Scratches
EN 997 Compliant: Tested for Superior Flushing Performance and Water Efficiency

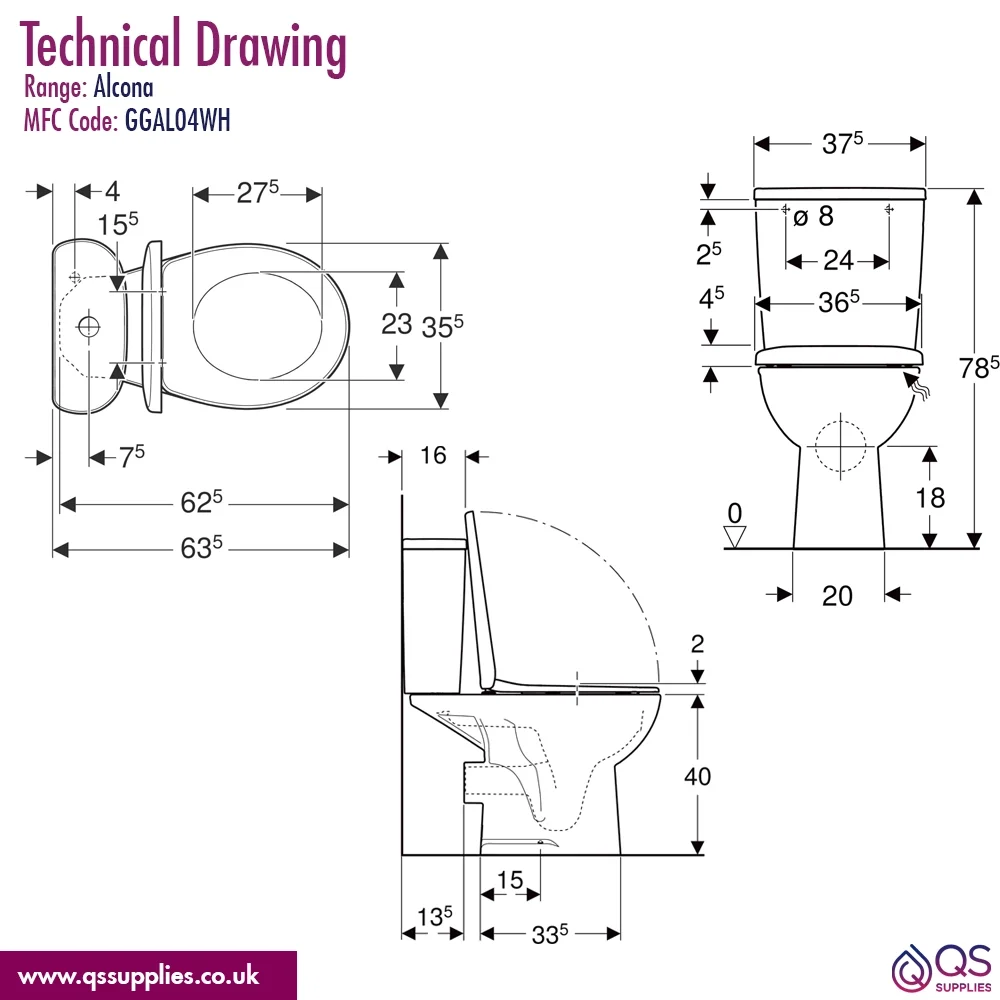

Refer to the Technical Diagram for Complete Technical Dimensions
Details of Pan:
Washdown Model
Size [mm]: 355 x 625 x 400mm [Width x Depth x Height]
Size [cm]: 35.5 x 62.5 x 40cm [Width x Depth x Height]
Outlet: Horizontal
Crafted from High-Quality Vitreous China Material
Details of Cistern:
Dual Flush Cistern
Size [mm]: 375 x 160 x 365mm [Width x Depth x Height]
Size [cm]: 37.5 x 16 x 36.5cm [Width x Depth x Height]
Half Flush: 2.6L
Full Flush: 4L
Eco-Friendly Water Saving
Crafted from High-Quality Vitreous China Material
Details of Seat:
Premium Seat
Size [mm]: 365 x 435 x 45mm [Width x Depth x Height]
Size [cm]: 36.5 x 43.5 x 4.5cm [Width x Depth x Height]
Crafted from Duroplast Material
Resistant to Chemicals and Scratches
Smooth, Non-Porous Surface for Enhanced Hygiene
No Fading, Discolouration, or Yellowing Over Time
Fitted with Sturdy Metal Hinges for Long-Term Durability

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Alcona
⤷ Toilet Design
: Open Back
⤷ Colour
: White
⤷ Weight in kg
: 26.33
⤷ Warranty/Guarantee
: 10-Year [Pan, Cistern] 2-Year [Seat]
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Installation Type
: Floor Standing
⤷ Water Saving
: Yes
⤷ Pan Width
: 355
⤷ Pan Height
: 400
⤷ Toilet Overall Height
: 765
⤷ Projection (Depth)
: 625
⤷ Cistern Included
: Yes
⤷ Cistern Width
: 375
⤷ Cistern Type
: Dual Flush
⤷ Cistern Height
: 160

⤷ Flush Type
: Dual Flush
⤷ Full Flush Volume in litres
: 4
⤷ Half Flush Volume in litres
: 2.6
⤷ Flush Mechanism
: Push Button
⤷ Cistern Lever Or Button Placement
: Top
⤷ Outlet
: Horizontal
⤷ Configuration
: Pan with Cistern and Seat
⤷ Height
: 400
⤷ Seat Included
: Yes
⤷ Seat Finish
: White
⤷ Fixings included
: Yes
⤷ Barcode
: 4064746082764
⤷ Bowl Shape
: Round
⤷ Cistern Depth (projection)
: 160
⤷ Base width
: 20
⤷ Base Depth (projection)
: 335
⤷ Base to centre of outlet
: 180

Additional Info & Downloads

This item can also be found in:

Open Back Toilets

Twyford Alcona Floorstanding Washdown Close Coupled WC Pan with Cistern and Seat - Open Back

£175.00

RRP: ~~£289.00~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

Washdown Model

A washdown toilet uses the weight of the water and gravity to push out the toilet waste from the toilet bowl. The washdown toilet is designed with a short and wide trapway, so that waste can quickly enter the trapway using just the force of water from the tank. A washdown model includes a push-button flush and has a skirted design with a smaller water surface area and a short trapway and can easily handle heavy loads without getting clogged.

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

Duroplast

It is an artificial material made with a polymer blend invented in Germany. This durable and long-lasting material is most widely used in the manufacture of toilet seats and can also resist harsh cleaners.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Eco-Friendly

This feature saves you more on water consumption and bills. While maintaining optimal water pressure, these showers provide a comforting and soothing experience.
