Deva Pendle Chrome Pull Out Kitchen Mixer Tap. Swan Neck Swivel Spout, PEN104

Deva Pendle Details

MFC: PEN104

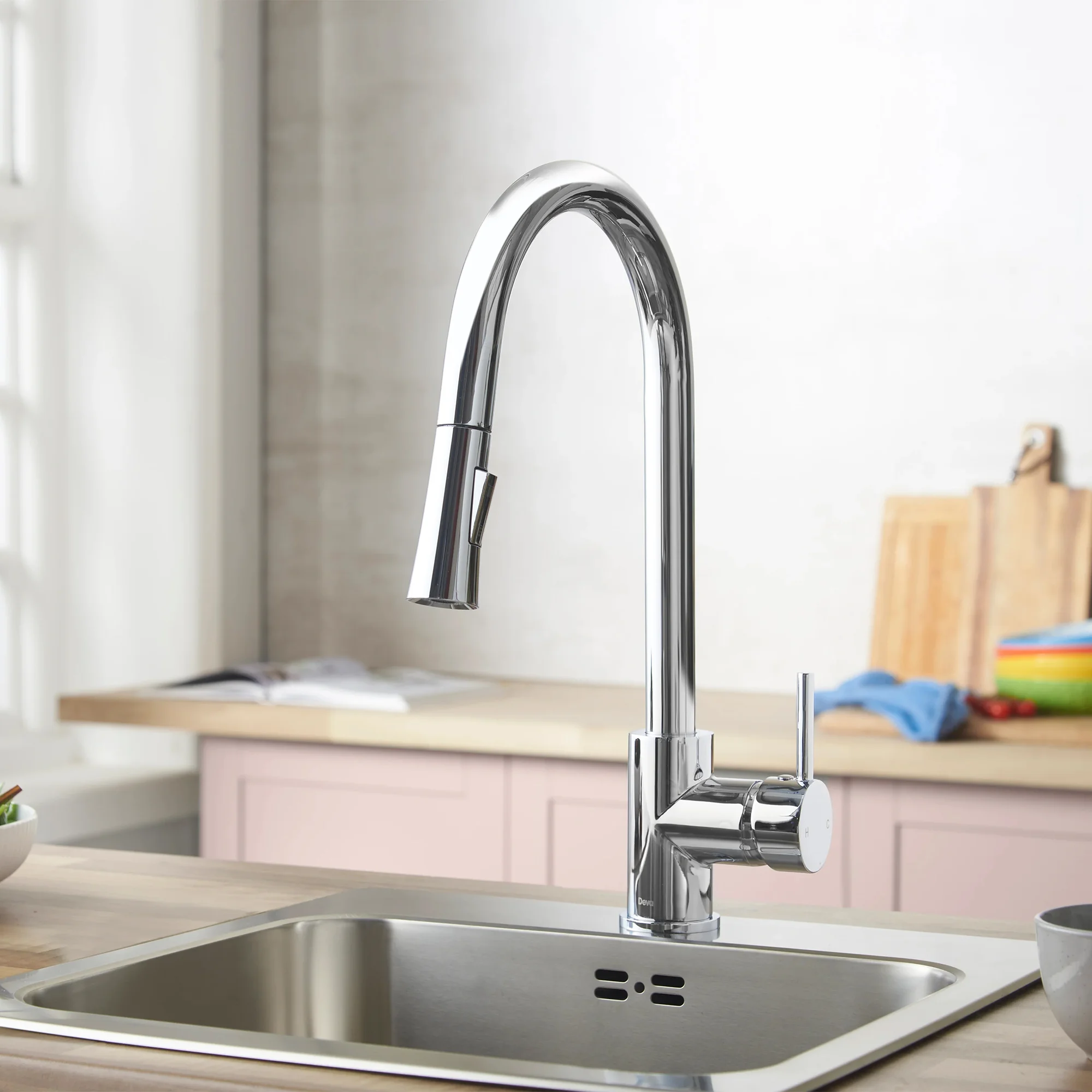

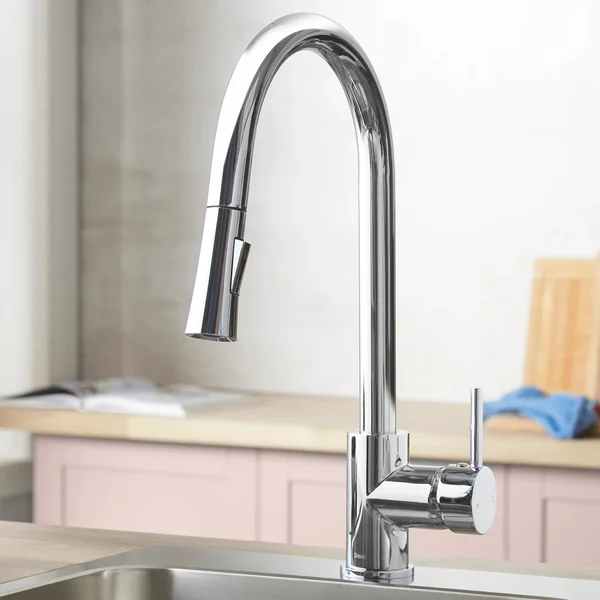

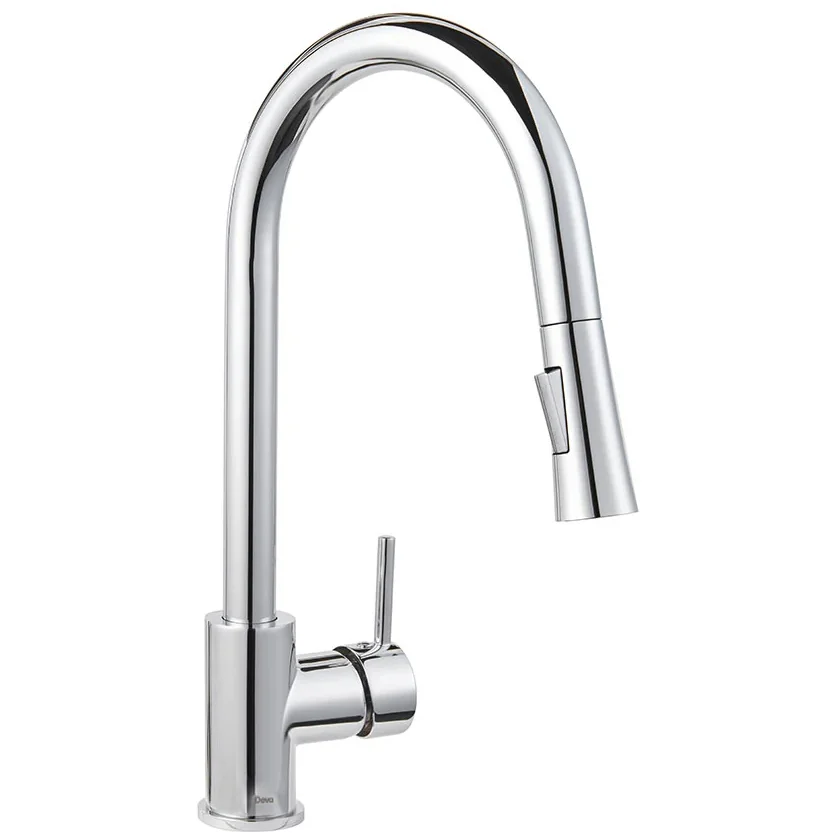

Deva Pendle Chrome Pull Out Kitchen Mixer Tap with Swan Neck Swivel Spout - Stick Handle.

Manufacturing Code of this Product: PEN104
It Comes in a Chrome Finish
Threaded Fixing Nut
Inlet Connections: 1/2 Inch BSP
Two Functions – Standard Flow and Spray
Easy Fit - Complete with Flexi Tails
Size [mm]: 260 x 419mm [Depth x Height]
Size [cm]: 26 x 41.9cm [Depth x Height]
Base to Spout: 190mm [19cm]
Centre of the Inlet to Centre of the Outlet: 213mm [21.3cm]

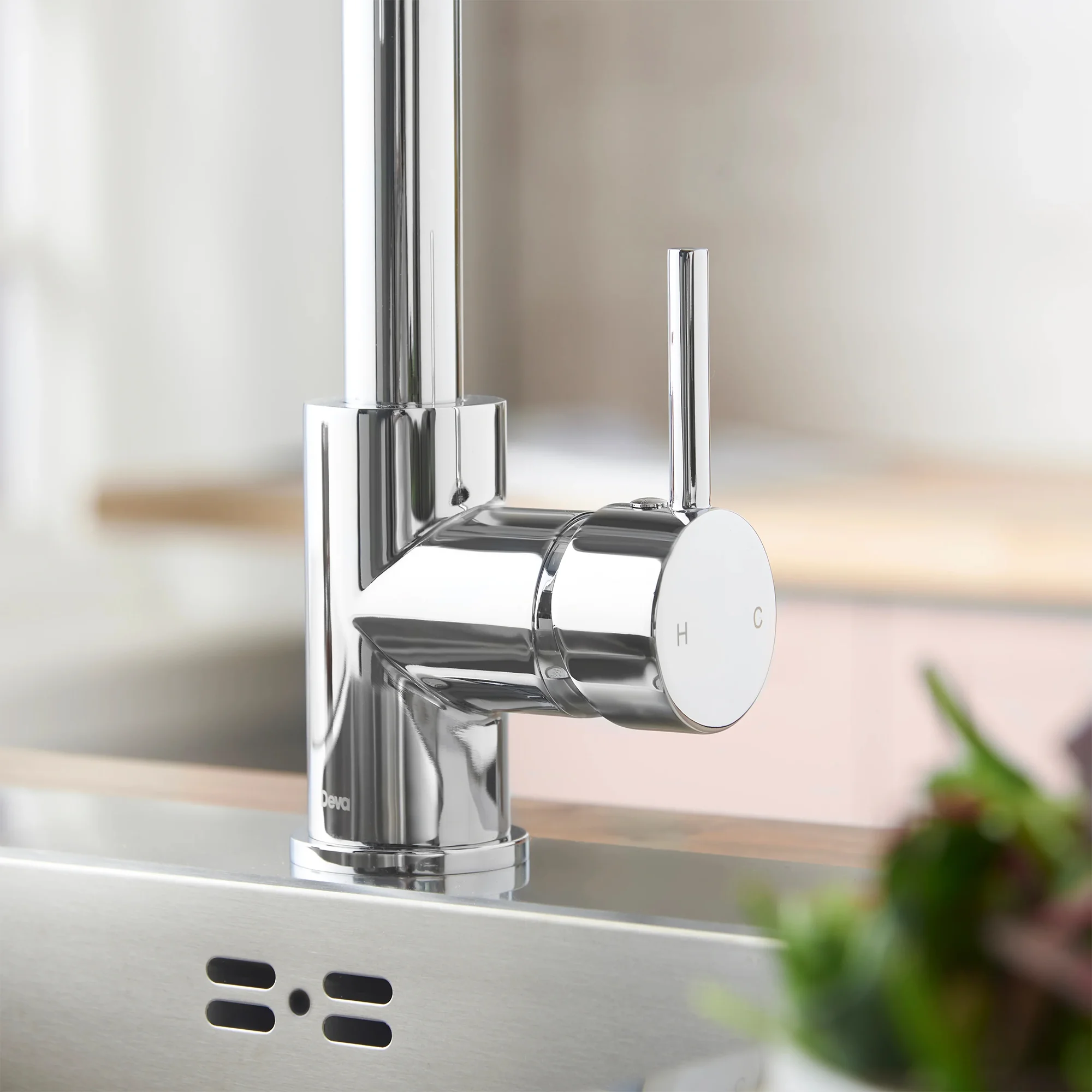

Operation: Tilt and Turn Lever for Temperature and Flow
Ceramic Cartridge for Smooth Operation and Longer Life

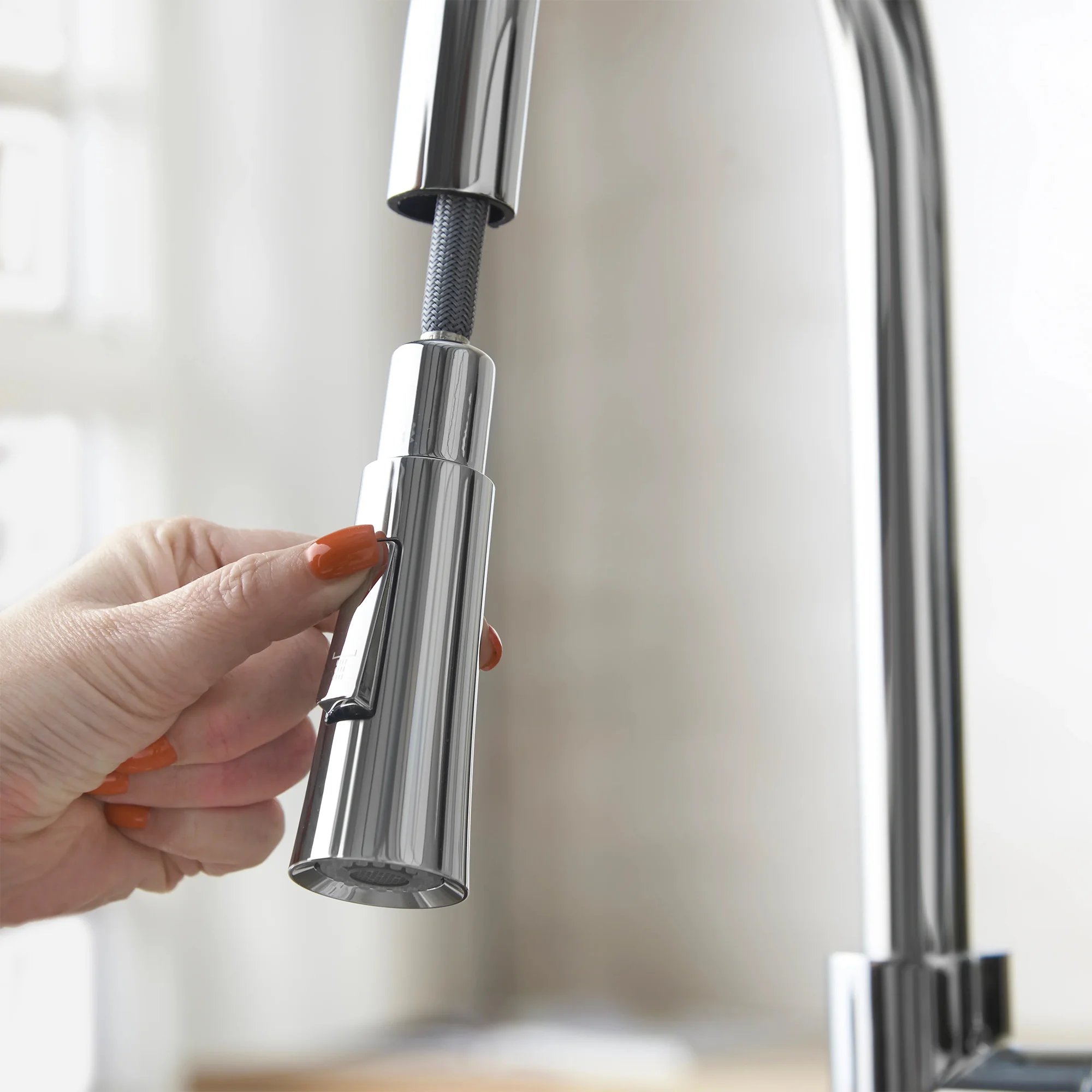

Weighted Pull-Out Rinser - Ideal for Rinsing Pots and Pans
Suitable for All Plumbing Systems
Suitable for High Water Pressure Systems
Requires a Minimum of 0.5 Bar to a Maximum of 5.0 Bar of Water Pressure

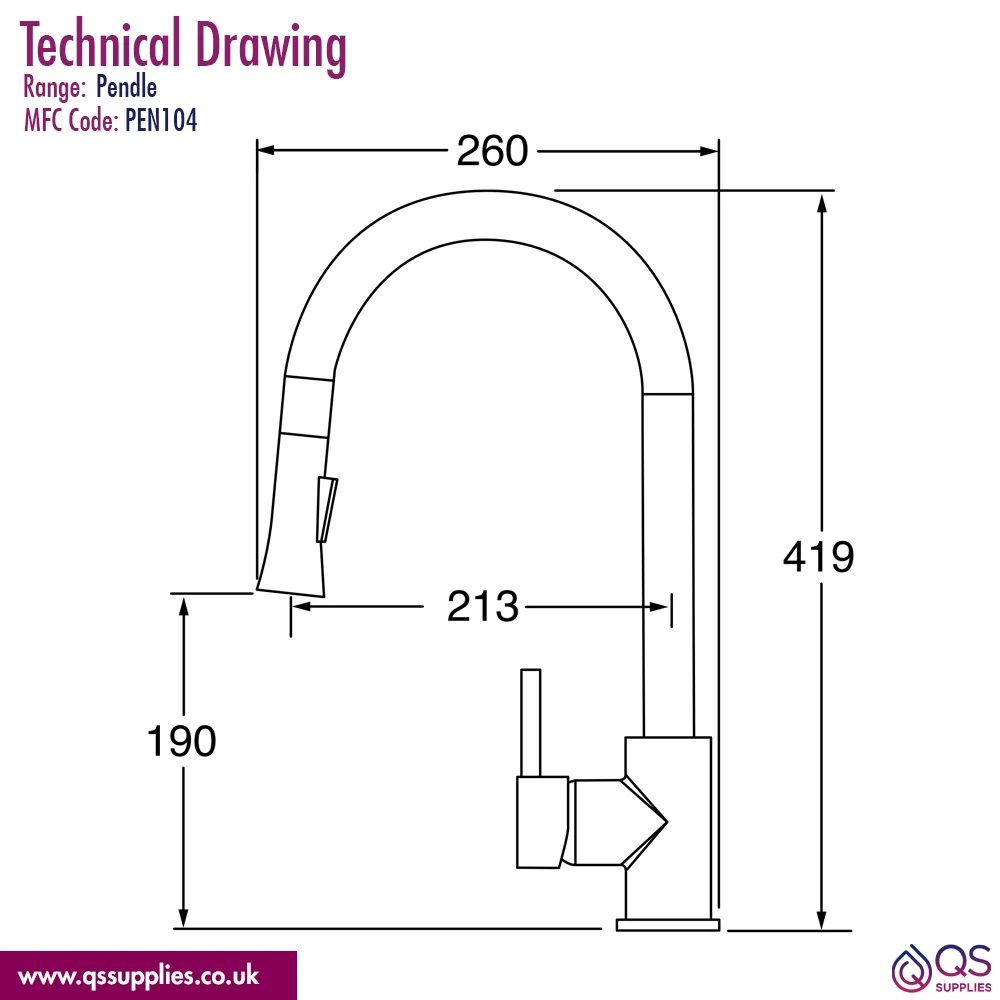

Refer to the Technical Drawing for Size Details
Download the Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Pendle
⤷ Handle Position
: Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 12 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Swivel
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Cartridge
⤷ Spout Swivel
: Yes

⤷ Base To Spout
: 190
⤷ Spout Reach
: 213
⤷ Overall Height
: 419
⤷ Depth
: 260
⤷ Inlet Connections
: 1/2" BSP
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Handle Style
: Stick
⤷ WRAS Approved
: Yes
⤷ Pull Out Spray
: Yes
⤷ Spout Flow
: Standard Flow & Spray
⤷ Compliance/Approvals/Standard
: KIWA Approved
⤷ Barcode
: 5057199881649
⤷ Product Type
: Kitchen Taps
⤷ Tails
: Flexi

Additional Info & Downloads

Download the Installation Instruction Pdf File

This item can also be found in:

Deva Pendle Chrome Pull Out Kitchen Mixer Tap with Swan Neck Swivel Spout - Stick Handle

£119.79

RRP: ~~£259.56~~

Stock Availablity: 3 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.

Swivel-Spout

The respective apparatus is engineered to move sideways or at certain angles, which helps the spout cover a greater area than would be possible in a fixed position.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Flexible Tail Pipes

Flexible Tails, or "Flexi" Tails, are one of the easiest methods to connect the plumbing pipework to the tap fitting. Mixers generally have two tails, one for the hot water supply and the other for the cold. These tailpipes consist of rubber inside a braided metal and come in many sizes.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
