Deva Lace Contemporary Chrome Bath Filler Tap, Loop Handles, LACE108

Deva Lace Details

MFC: LACE108

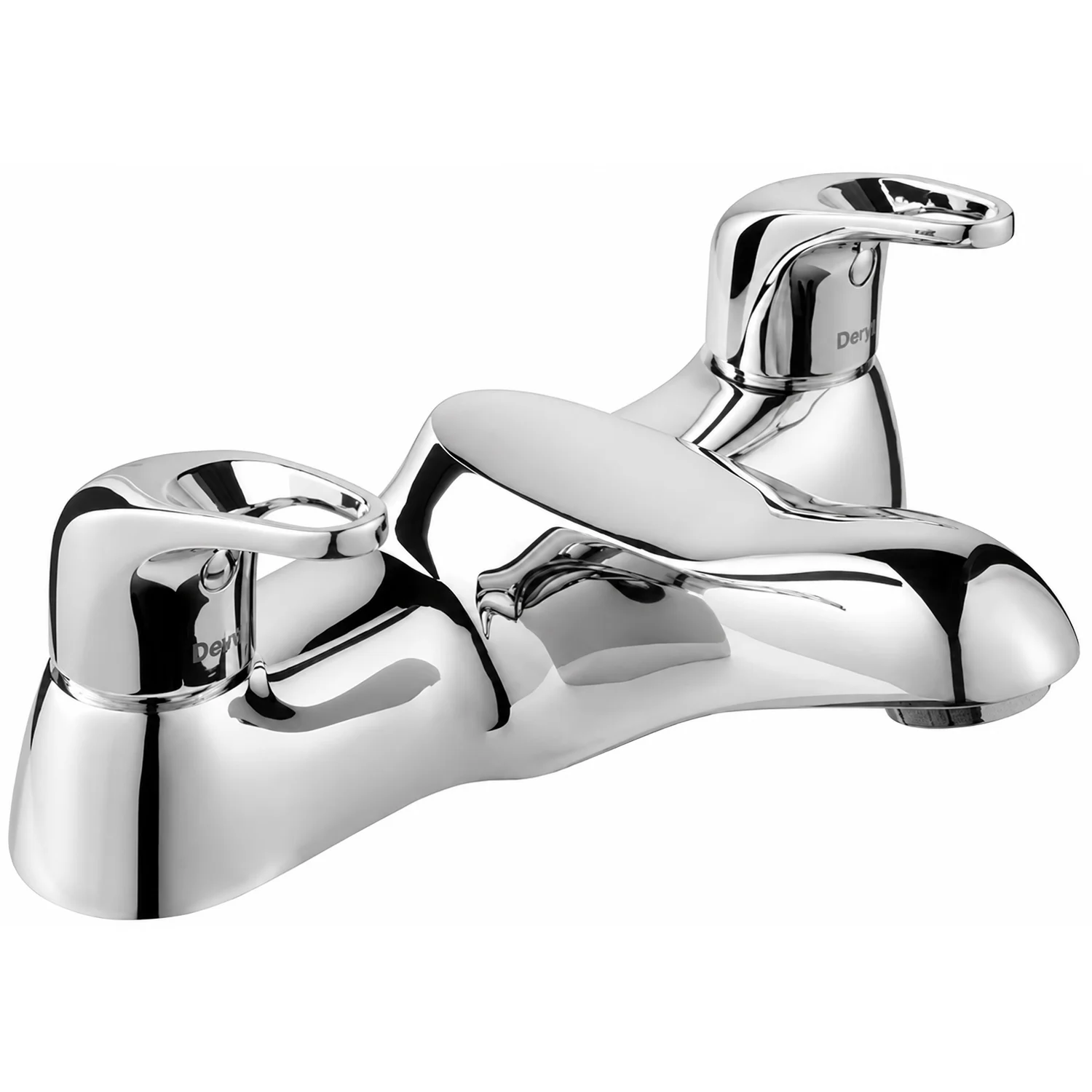

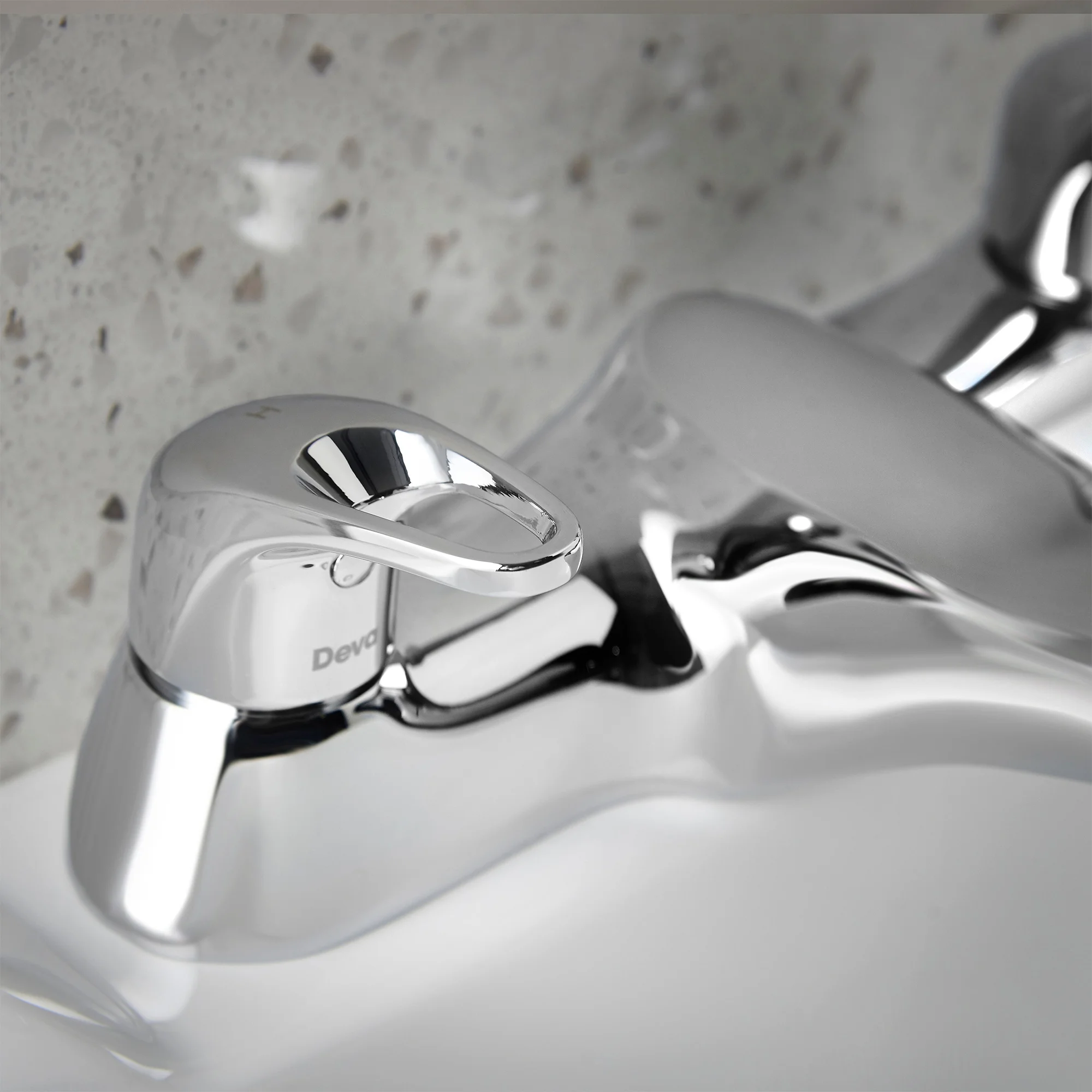

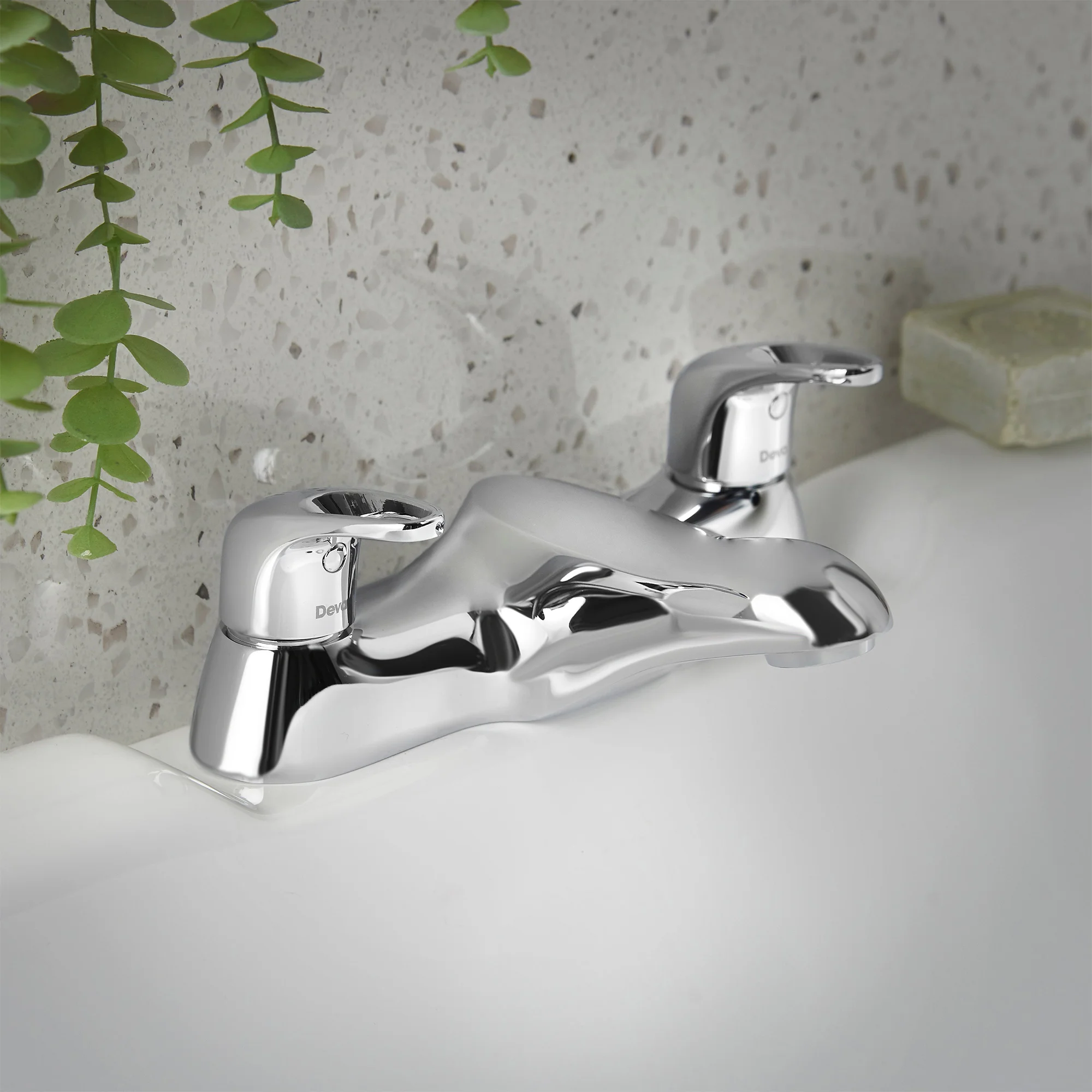

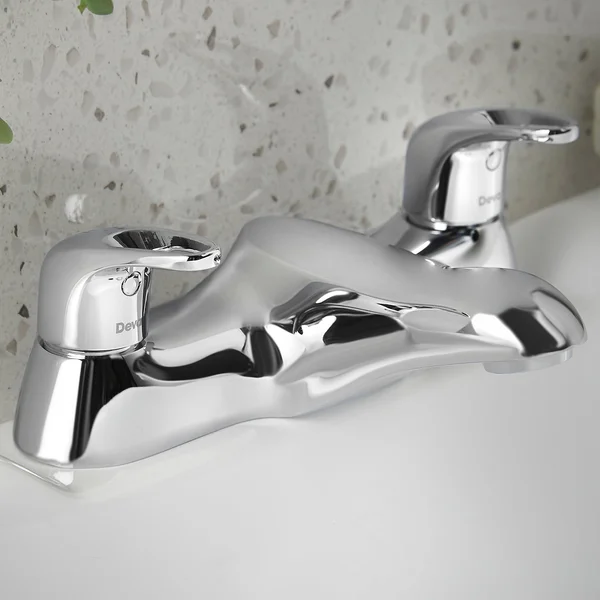

Deva Lace Contemporary Chrome Bath Filler Tap with Loop Handles - Deck Mounted.

Key Features

✔Manufactured using Brass Material
✔WRAS and KIWA Approved Product
✔Supplied with Brass Backnuts
✔Valve/Cartridge Type: 1/4 Turn Ceramic Disc
✔12-Year Warranty from the Manufacturer Against any Manufacturing Defects

Choice of Variations: Without Kit, With Shower Kit

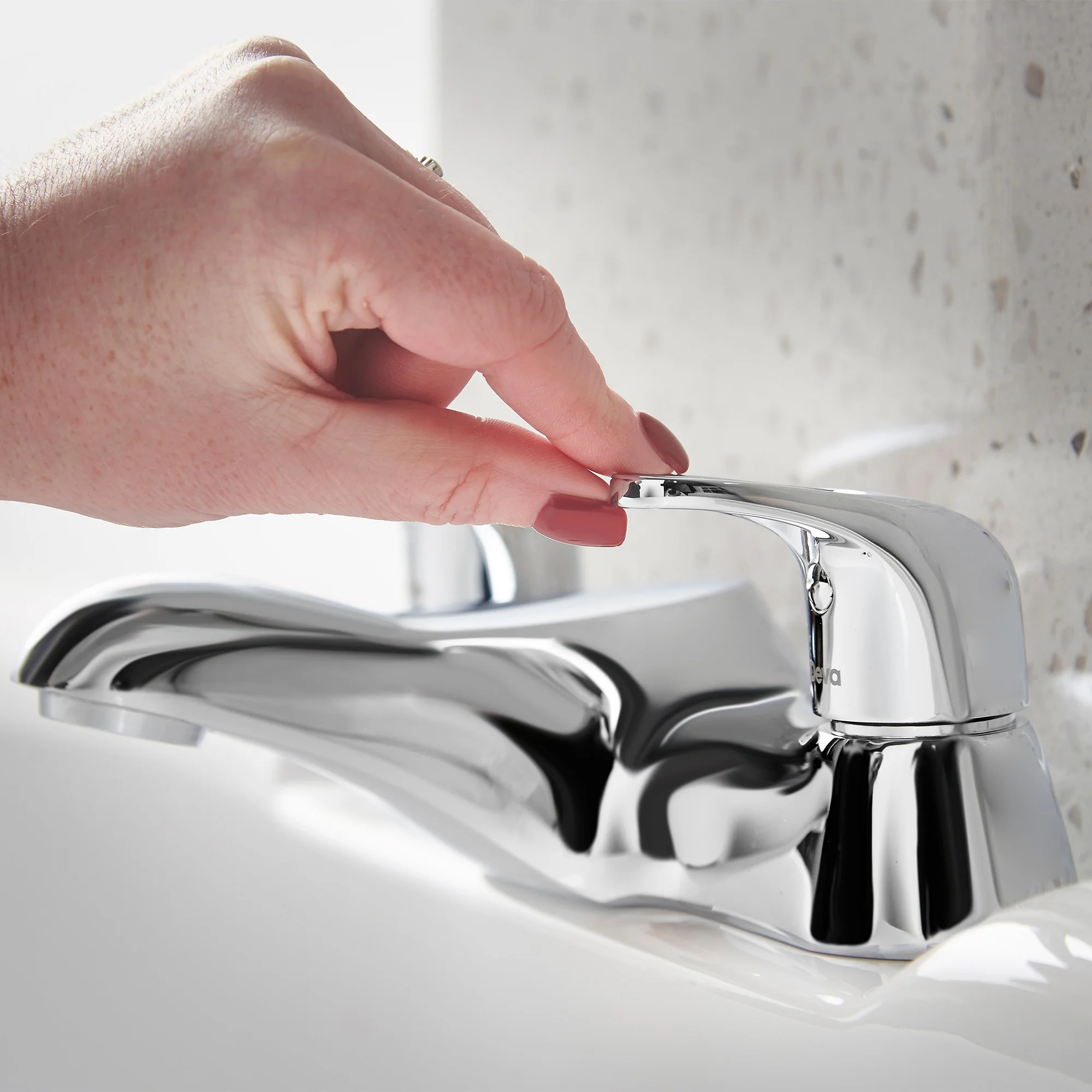

Ceramic Disc Handles Ensure a Smooth Operation and Longer Life
Size [mm]: 230 x 155 x 94mm [Width x Depth x Height]
Size [cm]: 23 x 15.5 x 9.4cm [Width x Depth x Height]
Base to Spout: 34mm [3.4cm]
Centre of the Inlet to Centre of the Outlet: 106mm [10.6cm]
Inlet Centre: 177mm [17.7cm]
Inlet Connections: 3/4 Inch BSP
Suitable For Low and High Pressure Systems
Requires a Minimum of 0.1 Bar to a Maximum of 5.0 Bar of Water Pressure

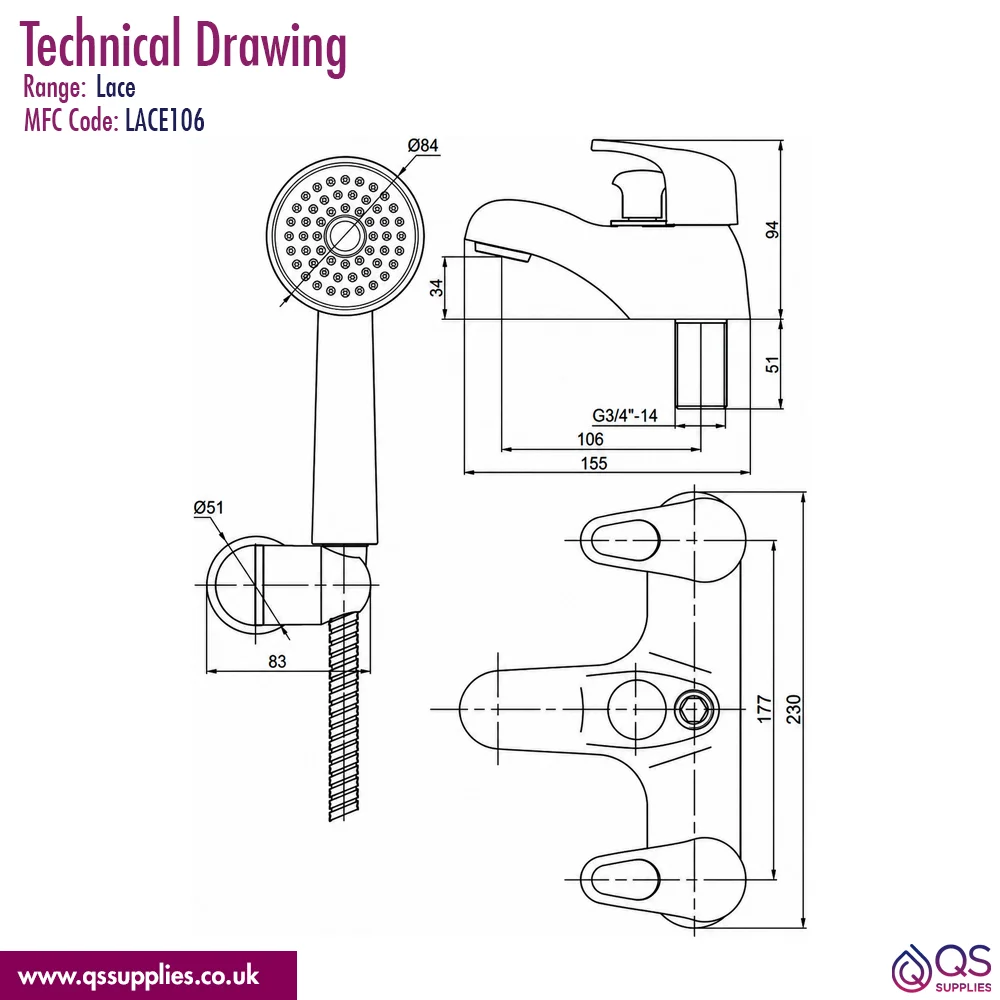

Refer to the Technical Drawing for Size Details
Download the Product Data Sheet PDF File from the Additional Info Section

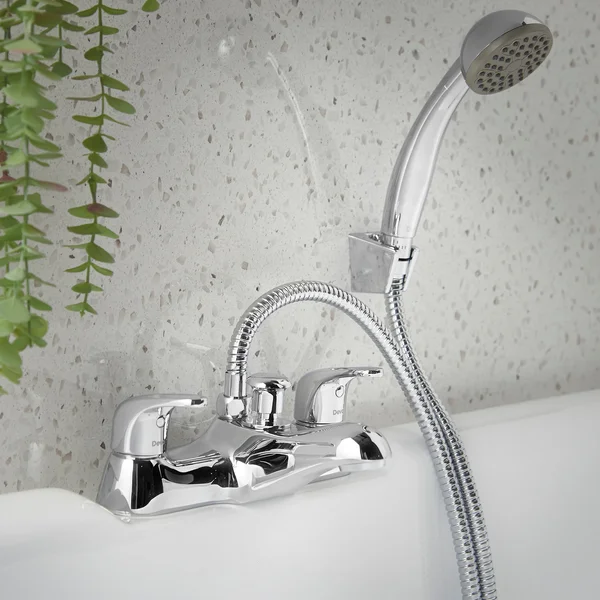

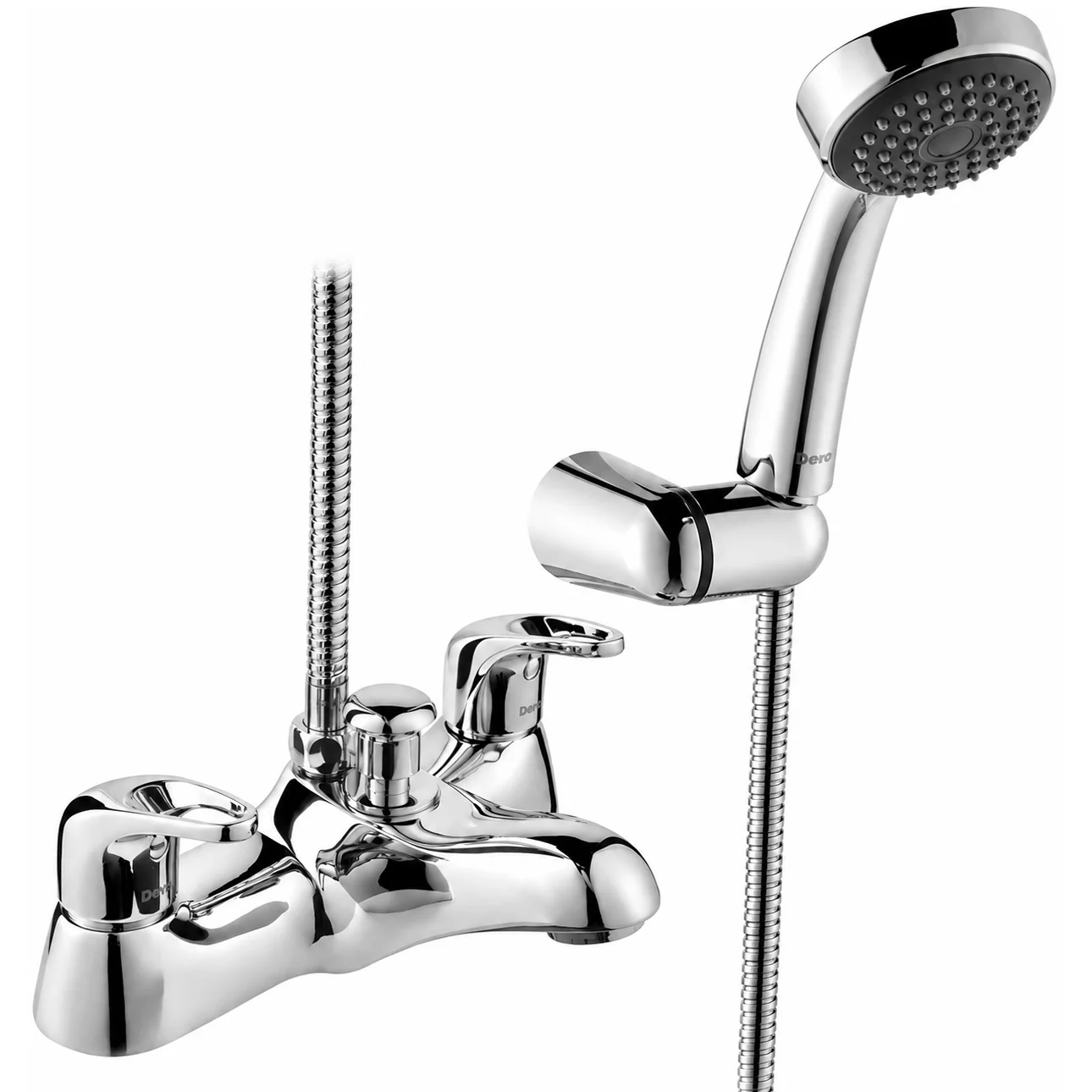

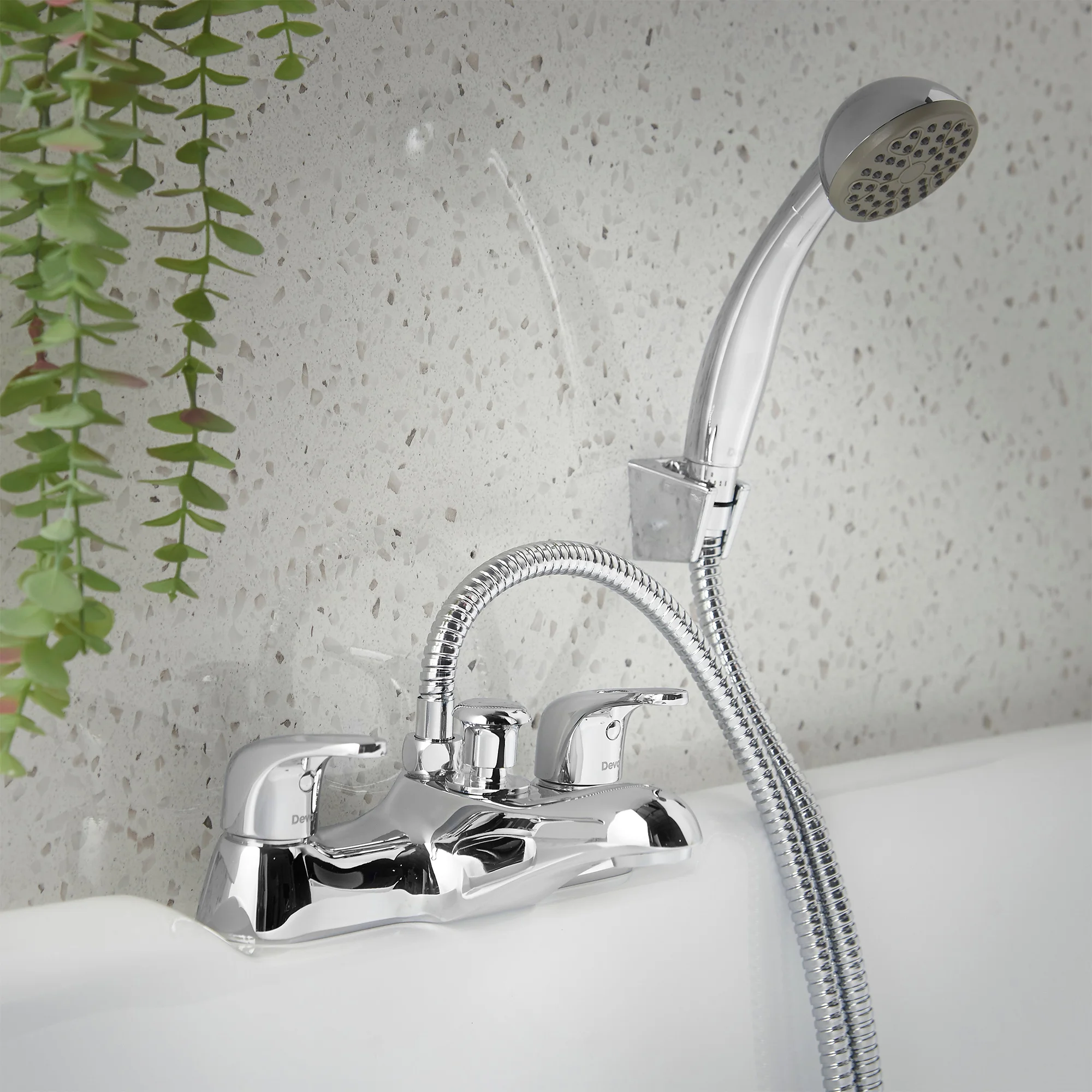

Details of With Shower Kit:

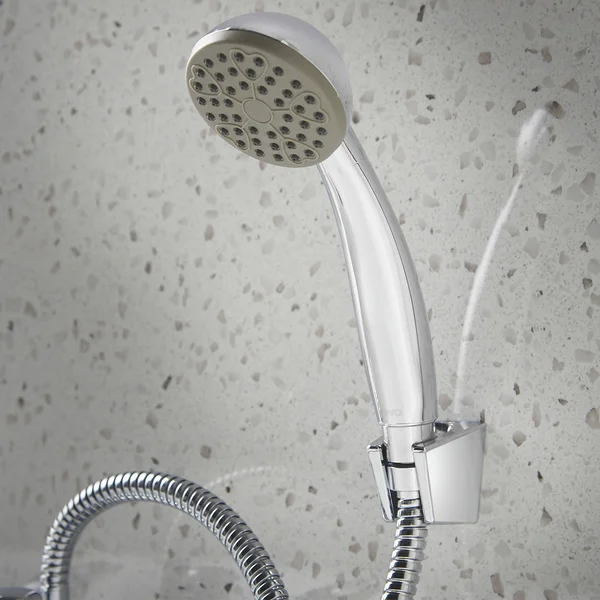

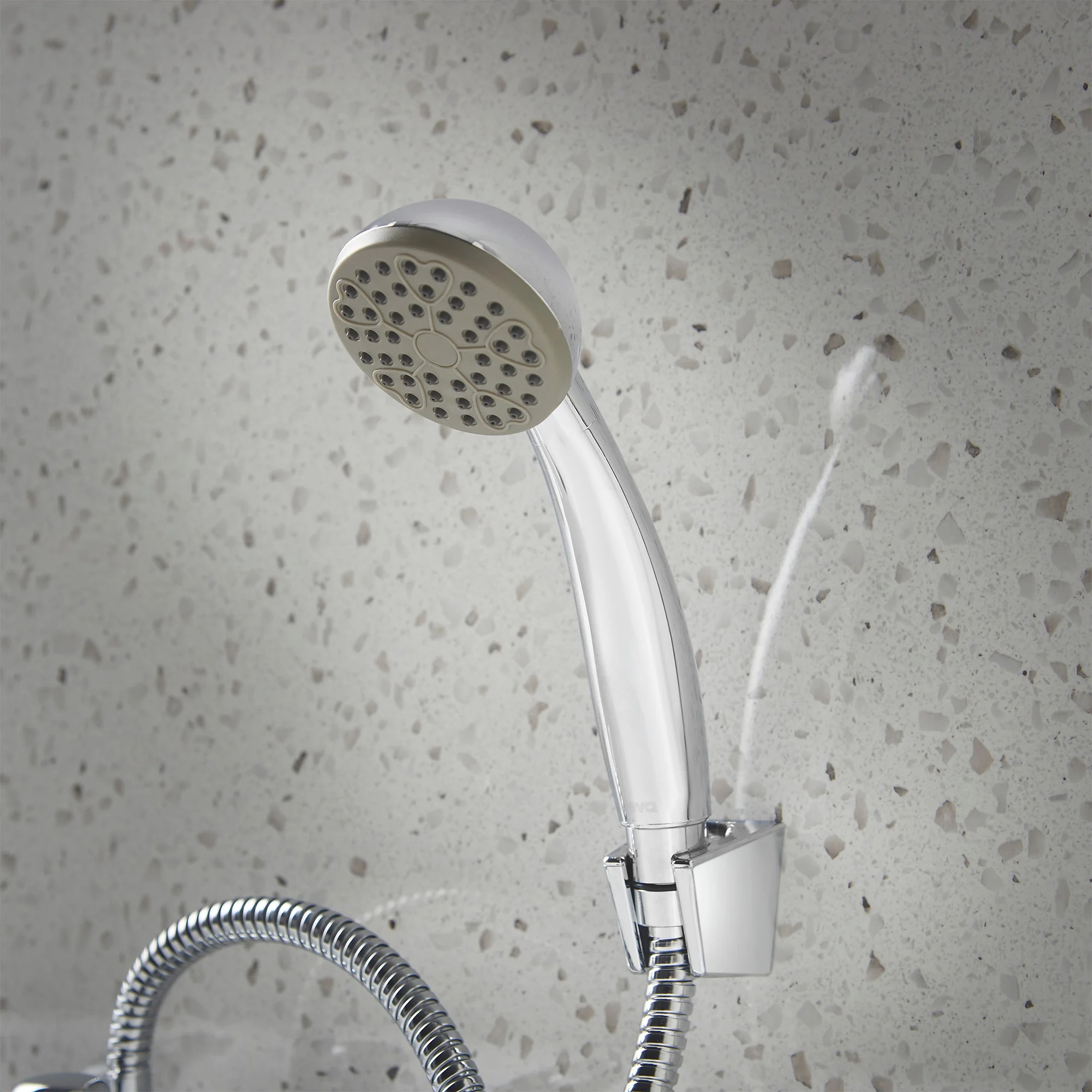

Handset Material: ABS
Diameter of Handset: Ø84mm [8.4cm]
Comes Complete with Single Mode Shower Kit and Wall Bracket

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Lace
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 12 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed
⤷ Valve Included
: Ye
⤷ Valve/Cartridge Type
: Ceramic Disc
⤷ Base To Spout
: 34
⤷ Spout Reach
: 106

⤷ Overall Height
: 94
⤷ Width
: 230
⤷ Max. Deck Thickness
: 51
⤷ Inlet Connections
: 3/4” BSP
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Handle Style
: Loop
⤷ WRAS Approved
: Yes
⤷ Depth
: 155
⤷ Number of Handles
: 2
⤷ No. of Tap Holes
: 2
⤷ Compliance/Approvals/Standard
: KIWA Approved
⤷ Barcode
: 5057199881588
⤷ Product Type
: Bath Mixer Taps
⤷ Maximum Operating Pressure (Bar)
: 5.0

Additional Info & Downloads

Download the Product Data Sheet Of Without Kit Pdf File Download the Product Data Sheet Of With Kit Pdf File

This item can also be found in:

Technical Images

Deva Lace Contemporary Chrome Bath Filler Tap with Loop Handles - Deck Mounted

Without Kit

With Kit

£91.42

RRP: ~~£170.29~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

6 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

ABS Plastic

ABS, or Acrylonitrile butadiene styrene, is a thermoplastic polymer used to manufacture many non-food products. It is inexpensive and can be easily shaped and machined. It also features high strength, stiffness, increased chemical and temperature resistance, electrical insulation and a glossy look.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
