Deva Georgian Traditional Bridge Kitchen Mixer Tap, Swivel Spout, GBM305

Deva Georgian Details

MFC: GBM305

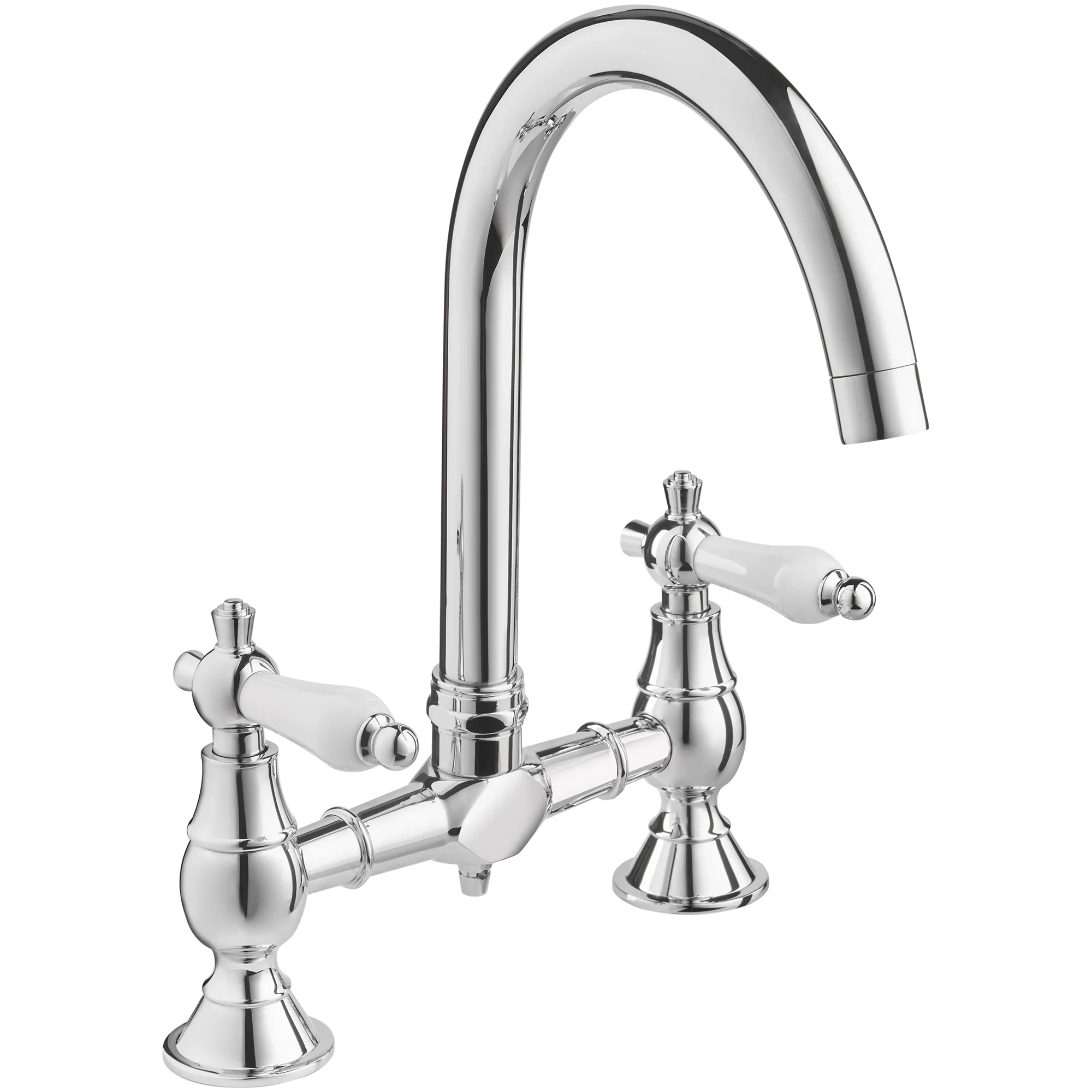

Deva Georgian Traditional Chrome Bridge Kitchen Sink Mixer Tap - Swivel Spout - Ceramic Handles.

Manufacturing Code of this Product: GBM305
Comes in a Chrome Finish
Separate Hot And Cold Controls
Ceramic Cartridge for Smooth Operation and Longer Life
Height: 383mm [38.3cm]
Base to Spout: 219mm [21.9cm]
Centre of the Inlet to Centre of the Outlet: 182mm [18.2cm]
Inlet Centre: 180mm [18cm]
Inlet connections: 1/2 Inch BSP
Suitable for Low and High Water Pressure Systems
Requires a Minimum of 0.1 Bar to a Maximum of 5.0 Bar of Water Pressure

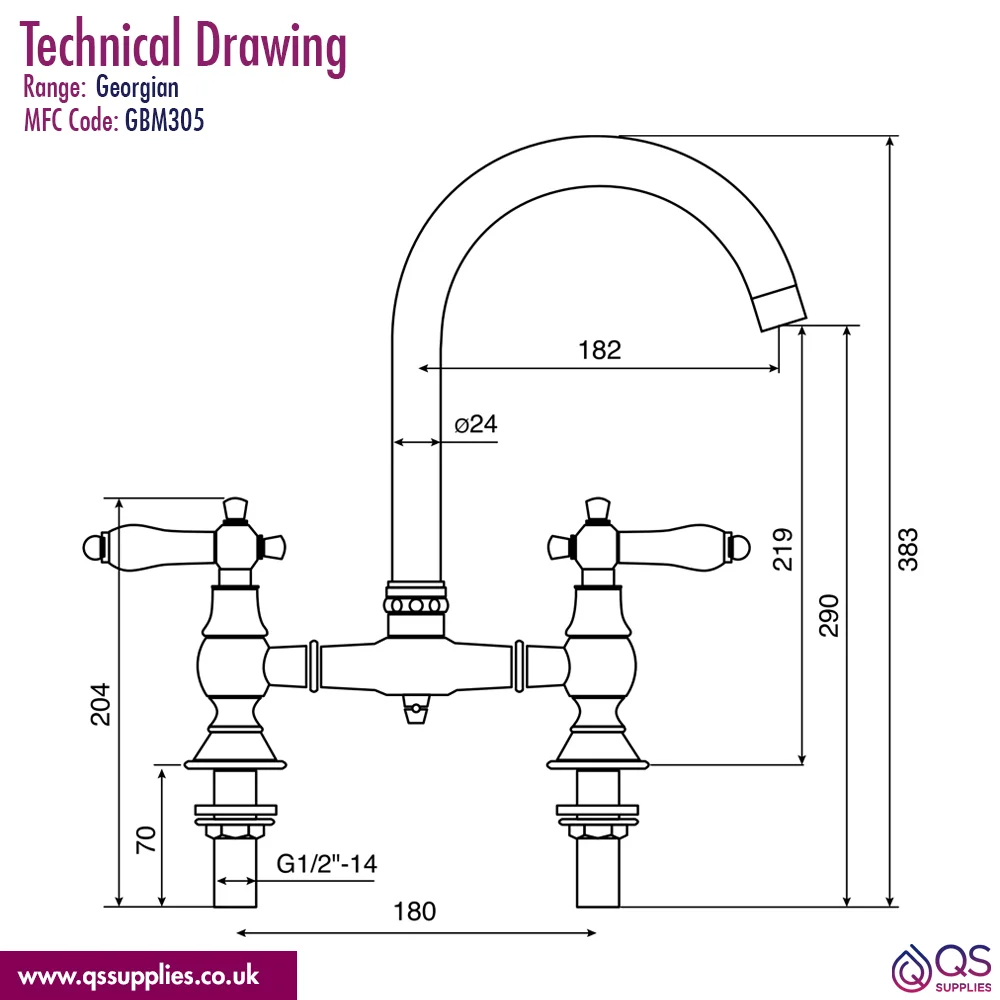

Refer to the Technical Drawing for Size Details
Download the Product Data Sheet PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Range
: Georgian
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 12 Years
⤷ Material
: Brass
⤷ Theme
: Traditional
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Swivel
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Disc

⤷ Spout Swivel
: Yes
⤷ Base To Spout
: 219
⤷ Spout Reach
: 182
⤷ Inlet Centres
: 180
⤷ Overall Height
: 383
⤷ Inlet Connections
: 1/2" BSP
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Handle Style
: Stick
⤷ WRAS Approved
: Yes
⤷ Deck Mount Drill Hole Diameter
: 70
⤷ Spout Flow
: Single
⤷ Barcode
: 5057199881519
⤷ Product Type
: Kitchen Bridge Taps

Additional Info & Downloads

Download the Product Data Sheet Pdf File

This item can also be found in:

Deva Georgian Traditional Chrome Bridge Kitchen Sink Mixer Tap - Swivel Spout - Ceramic Handles

£147.77

RRP: ~~£280.08~~

Stock Availablity: 5 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Swivel-Spout

The respective apparatus is engineered to move sideways or at certain angles, which helps the spout cover a greater area than would be possible in a fixed position.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
