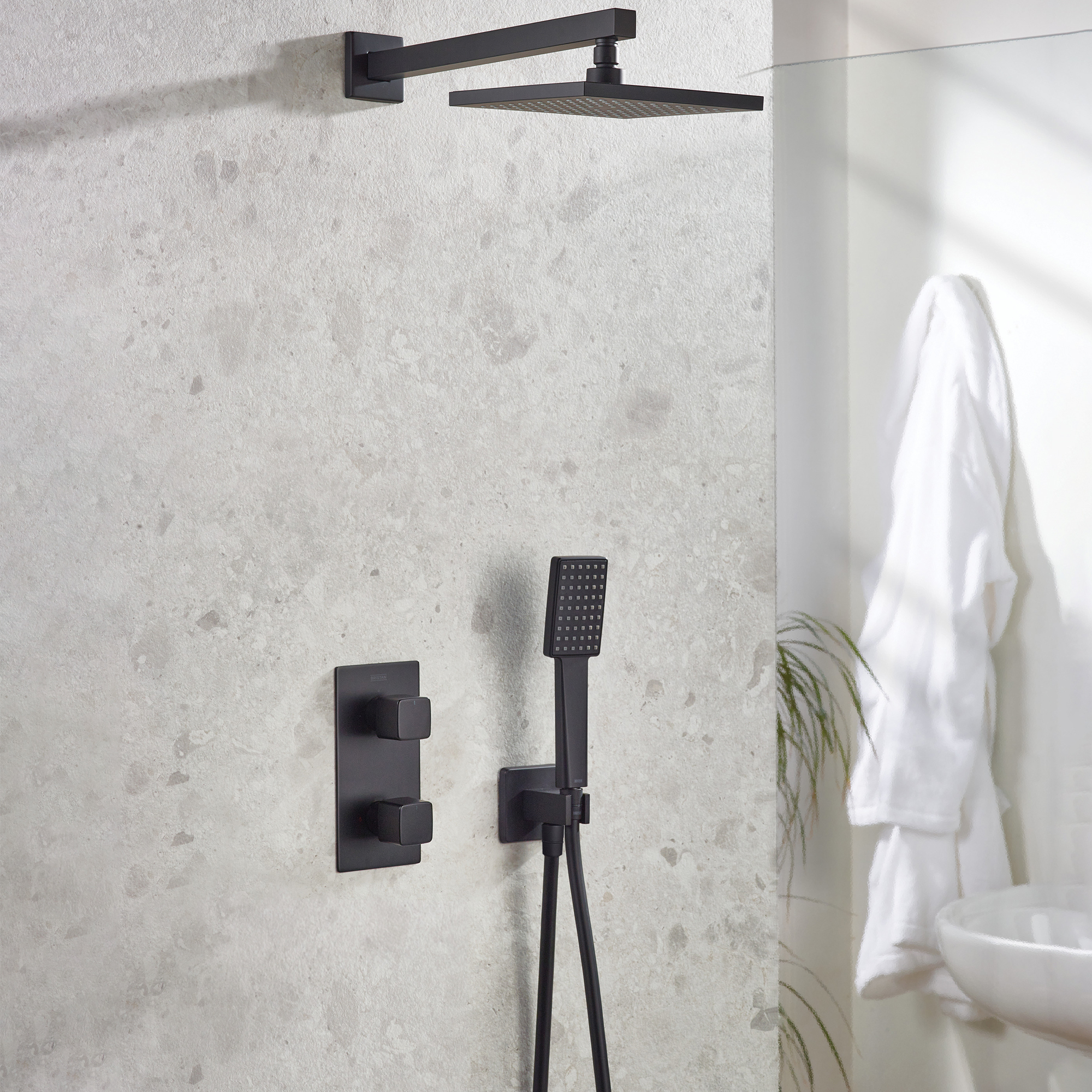

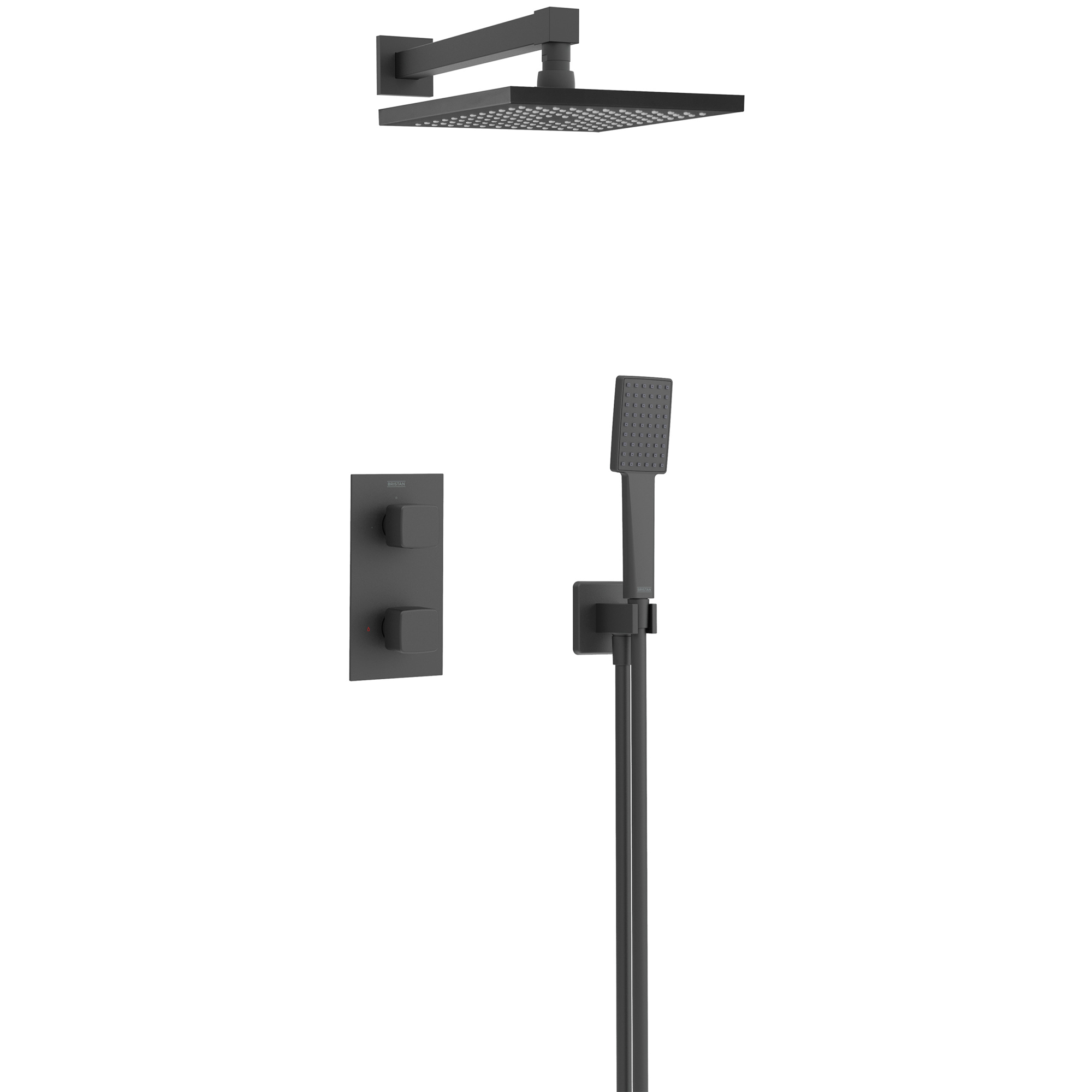

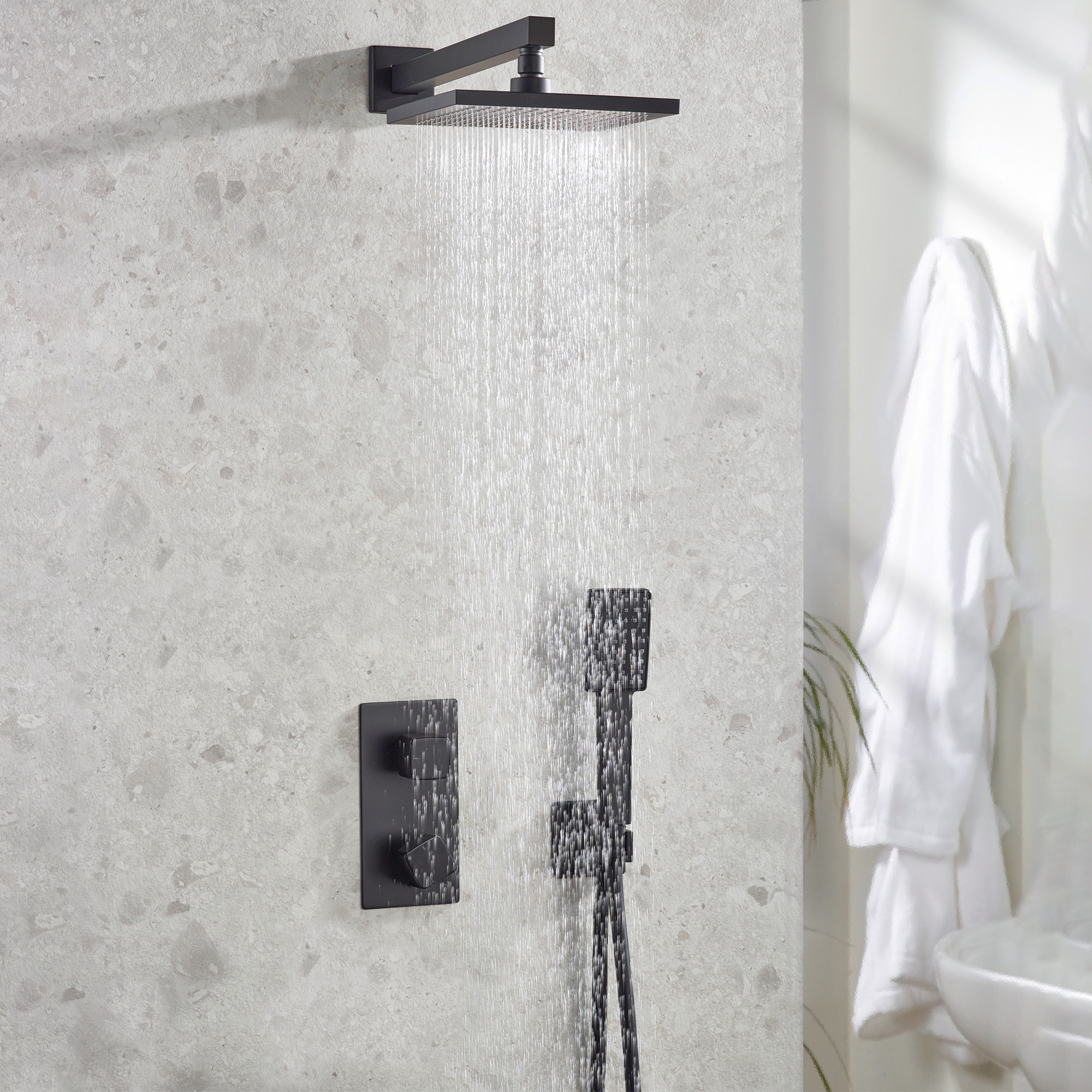

Bristan Cobalt Matt Black Concealed Thermostatic Valve, Fixed Head & Handset

Bristan Cobalt Details

MFC: COBALT BLK SHWR PK2

Cobalt Matt Black Concealed Thermostatic Shower Valve with Fixed Head and Handset.

Manufacturing Code of this Product:
It Comes in a Matt Black Finish
Manufactured Using ABS and Brass Material
Pack Includes:
Contemporary and Stylish Design
Valve/Cartridge Type: 3/4 Inch Ceramic Disc Valve 1/4 Turn
Suitable for All Plumbing Systems

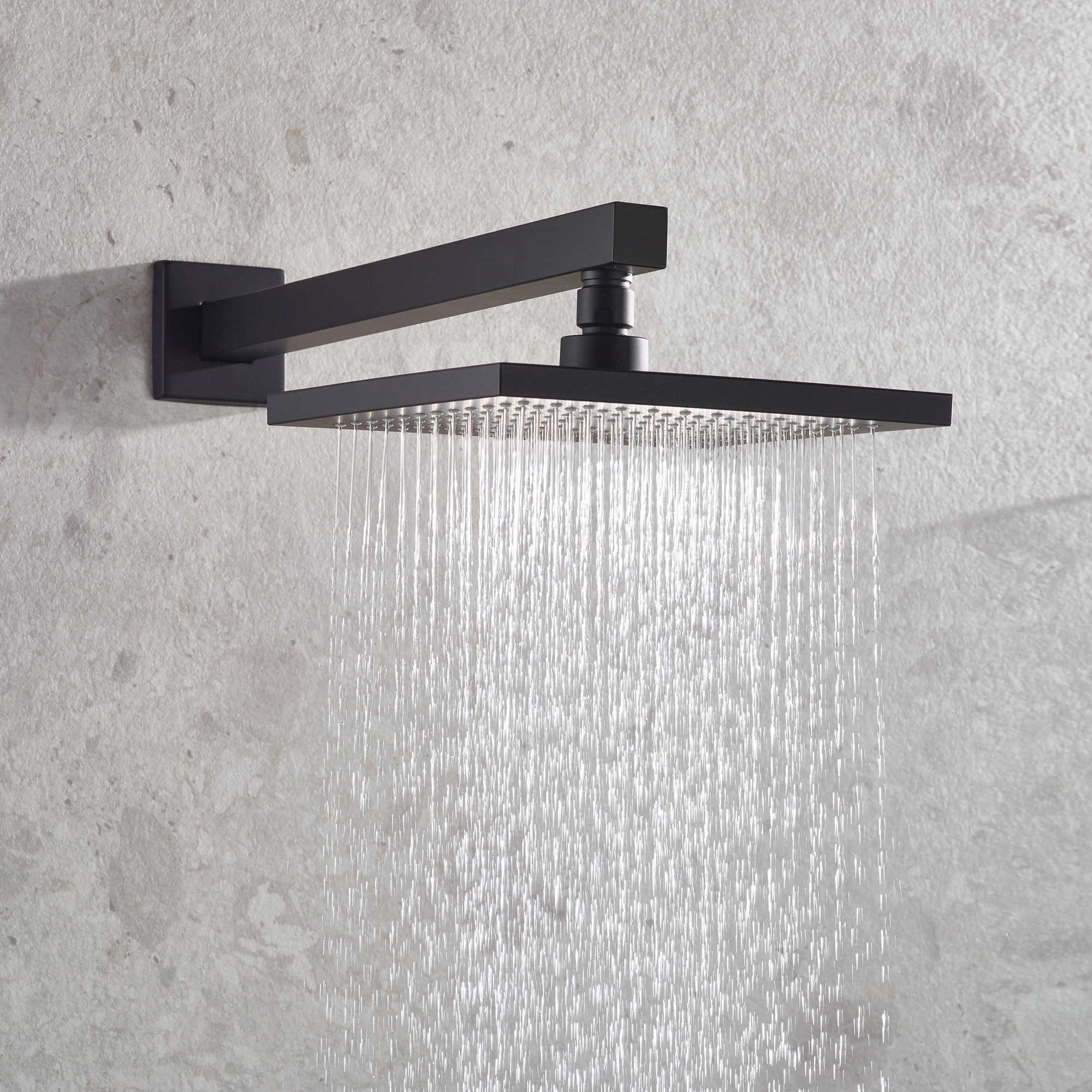

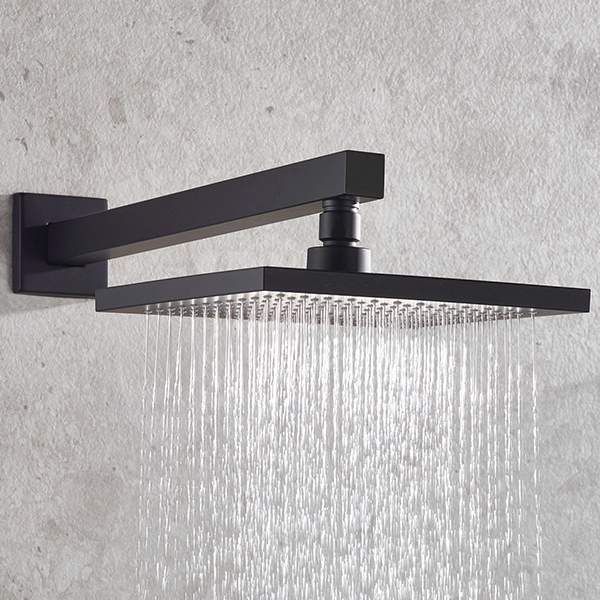

Size of Square Shower Head: 200 x 200mm [20cm x 20cm]
Shower Arm Length: 330mm [33cm]
Inlet and Outlet Connection of Shower Arm: G 1/2 Inch
Size of Valve [mm]: 100 x 200mm [Width x Height]
Size of Valve [cm]: 10 x 20cm [Width x Height]
Inlet Centre: 150mm [15cm]
Inlet Connections: 15mm Compression
Maximum Hot Water Supply Temperature: 65°C
Maximum Static Pressure: 10 Bar
Suitable for Low and High Water Pressure Systems
Requires a Minimum of 0.2 Bar to a Maximum of 5.0 Bar of Water Pressure
Keep Your Shower Performing Like New with Rub-Clean Nozzles That Wipe Clean Easily
Enjoy Peace of Mind with a 42°C Safety Stop, Including Override When Required
Shower safely with Automatic Shut-off Protection if the Hot or Cold Water Supply Fails
Easy Installation with an Adjustable Faceplate That Fits Total Wall Depths from 60mm to 75mm for a Perfect Flush Finish

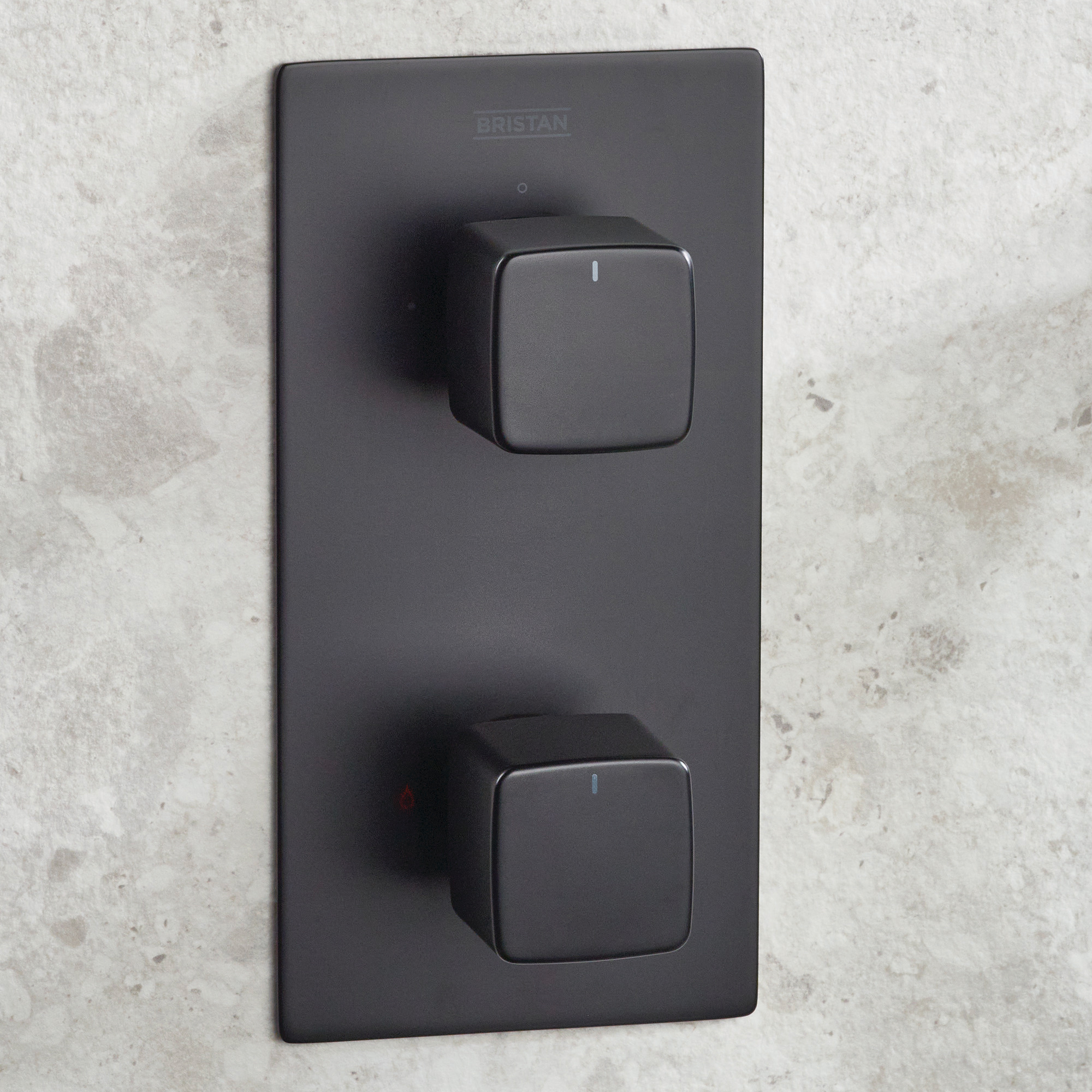

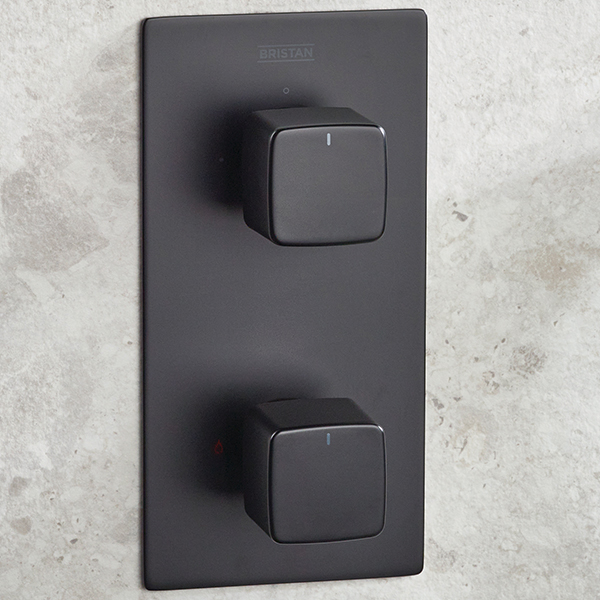

Control Your Perfect Shower Experience with Separate Flow and Temperature Controls for Precise Adjustment

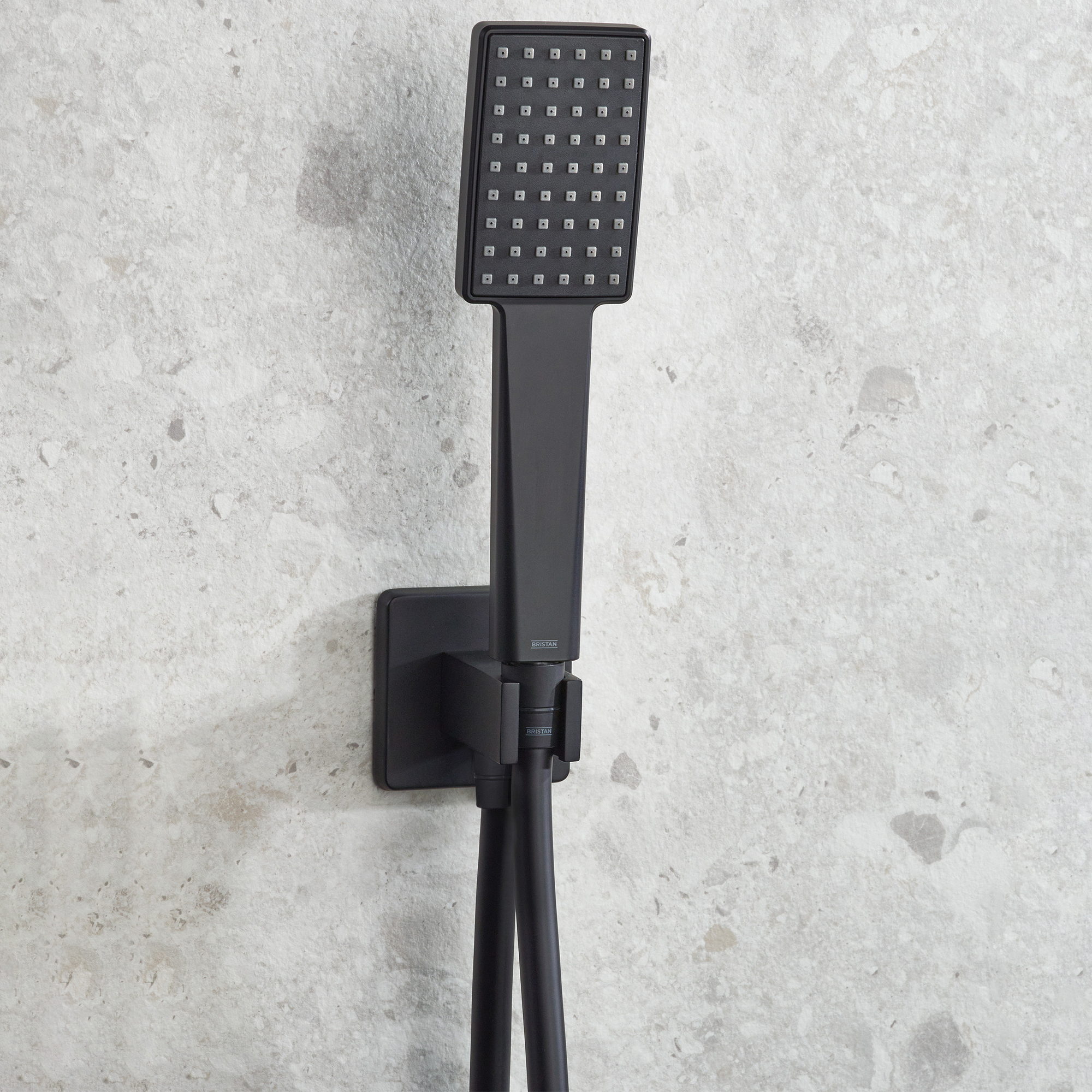

Switch Effortlessly Between Handset and Drench Head with the Integrated Diverter
Save Time On Maintenance with a Front-Access Cartridge for Quick Servicing
Refer to the Technical Drawing for Size Details
Download the Installation Instruction PDF File From The Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Matt Black
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: ABS & Brass
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: 3/4” Ceramic Disc Valve 1/4 Turn
⤷ Inlet Centres
: 150
⤷ Inlet Connections
: G 1/2"
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Hose Included
: Yes
⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 100
⤷ Backplate Height
: 200

⤷ Diverter Included
: Yes
⤷ Product Type
: Shower Set
⤷ Plumbing System Compatibility
: Yes
⤷ Showerhead Type
: Fixed
⤷ Showerhead Finish
: Matt Black
⤷ Numbered temperature control
: 42°C
⤷ Auto shutdown if hot or cold supplies fail
: Yes
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: 1
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 200 x 200
⤷ Diverter Type
: 2 Outlet Diverter
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

Download the Installation Instruction Pdf File

This item can also be found in:

Thermostatic Mixer Showers

Bristan Cobalt Matt Black Concealed Thermostatic Shower Valve with Fixed Head and Handset

£484.00

RRP: ~~£605.00~~

Stock Availablity: 10 Working Days Approx

QS Supplies

8 Features Included In This Product Explained

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Easy Fit Installation

The product is designed for fast and easy installation.

Drenching

Drenching in Bristan showers means these showers soak you thoroughly, giving you the most indulgent showering experience.

Rub Clean

Any limescale deposits can simply be wiped clean with a clean cloth - no need to scrub or use harsh cleaners.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

ABS Plastic

ABS, or Acrylonitrile butadiene styrene, is a thermoplastic polymer used to manufacture many non-food products. It is inexpensive and can be easily shaped and machined. It also features high strength, stiffness, increased chemical and temperature resistance, electrical insulation and a glossy look.
