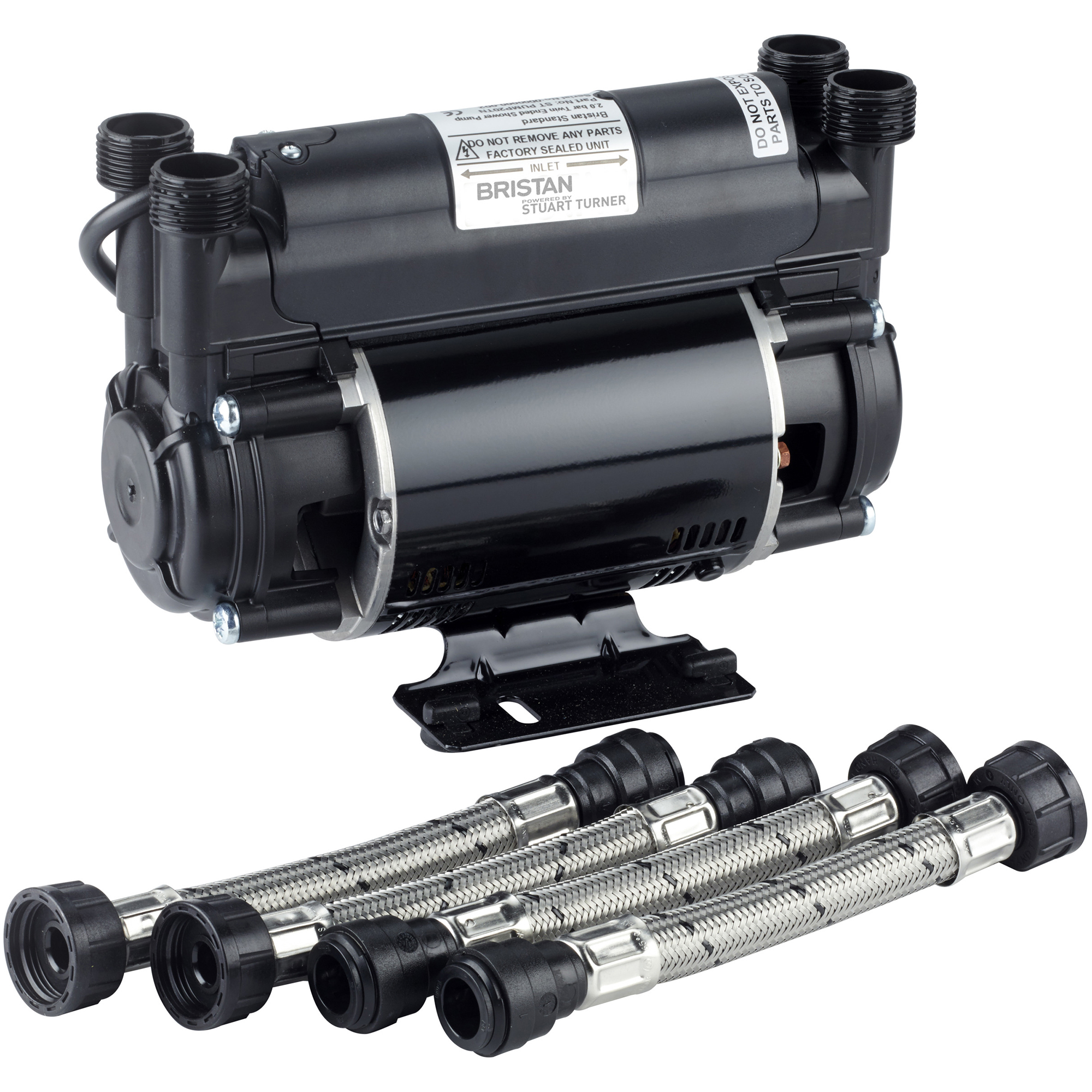

Bristan 1.5 Bar Twin Impellar Positive Head Shower Pump By Stuart Turner

Bristan 1.5 Bar Twin Impellar Positive Head Shower Pump By Stuart Turner.

• Manufacturing Code of this Product: ST PUMP15TN
• Power Supply: 230 Volts AC
• Power Consumption: 385 WATTS
• Inlet and Outlet Connection: Flexible Hose - 15mm Push Fit
• Suitable for Gravity-Fed Systems Only
• Max. Inlet Head: 10 Meters
• Max. Head [Closed Valve]: 15 Meters
• Motor Rating: 30 Minutes On / 30 Minutes off
• Max. Working Pressure: 3.0 Bar
• Pump Rating: 1.5 Bar / 32 LPM
• Max. Inlet Water Temperature: 65°C
• Size [mm]: 270 x 130 x 185mm [Length x Width x Height]
• Size [cm]: 27 x 13 x 18.5cm [Length x Width x Height]
• Twin Impeller for Boosting Two Water Supplies
• Fully Automatic Flow Switch Control - the Pump Automatically Starts When the Water Flow Exceeds 0.8 Litres Per Minute
• Pump rated at 1.5 Bar Pressure, Equivalent to 15 Meters Head Height
• Boost Both Hot and Cold Supplies with an Efficient Twin-Impeller Design
• Increase Flow Comfortably with Medium-Boost Pumping Power
• Reduce Noise Disruption tanks to Anti-Vibration Feet for Quiet Operation
• Count on Reliable Performance Even in Cold Conditions, with a Minimum Inlet Temperature of 4°C
• Protect Pump Longevity by Operating Within the Safe Maximum Inlet Temperature of 65°C
• Maintain Reliable Performance with Up to 60 Starts Per Hour
• Ensure Safe Operation Up to a 40°C Ambient Air Temperature
• Refer to the Technical Drawing for Size Details
• Download the Installation Instruction PDF File from the Additional Info Section
