Vado Velo Adjustable Round Thermostatic Shower Column, VEL-149T-RRK-RO-CP

Vado Velo Details

MFC: VEL-149T-RRK-RO-CP

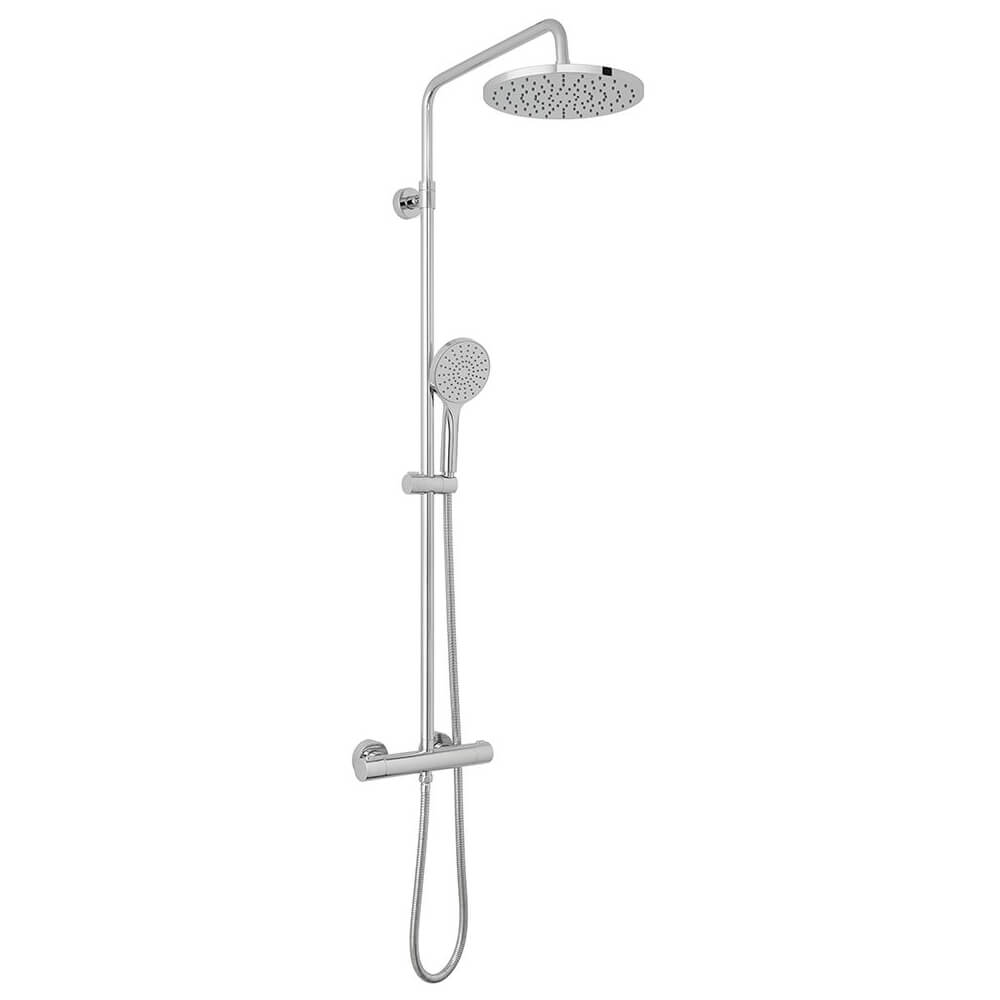

Vado Velo Adjustable Round Chrome Thermostatic Shower Column

Manufacturing Code of this Product: VEL-149T-RRK-RO-CP
Includes: Velo Exposed Thermostatic Shower Valve with Integrated Diverter and Adjustable Rigid Riser Single Function with Shower Head and Handset
Style: Round
Handles: 2 Handle
Valve Type: Exposed
Mounting: Wall Mounted
Shower Head Size: 250mm
Shower Type: Shower Column
Round Thermostatic Shower Valve with Integrated Diverter
Rigid Riser with a Single-Function Shower Head and a Shower Handset
Shower Head Diameter: 250mm [25cm]
Size of Handset [mm]: 110 x 251mm [Diameter x Height]
Size of Handset [cm]: 11 x 25.1cm [Diameter x Height]
210mm Height Adjustment Tolerance: 1080mm – 1290mm [Minimum - Maximum]
Size of Valve [mm]: 285 x 75mm [Width x Depth]
Size of Valve [cm]: 28.5 x 7.5cm [Width x Depth]
232mm Height Adjustment Tolerance: 1016mm – 1248mm [Minimum - Maximum]
20mm Depth Adjustment Tolerance: 70mm – 90mm [Minimum - Maximum]
Offset Connectors and Easy-Fit Brackets Included
Plumbing System Suitability: Pumped System
Requires a Minimum of 1.0 Bar to a Maximum of 5.0 Bar Water Pressure

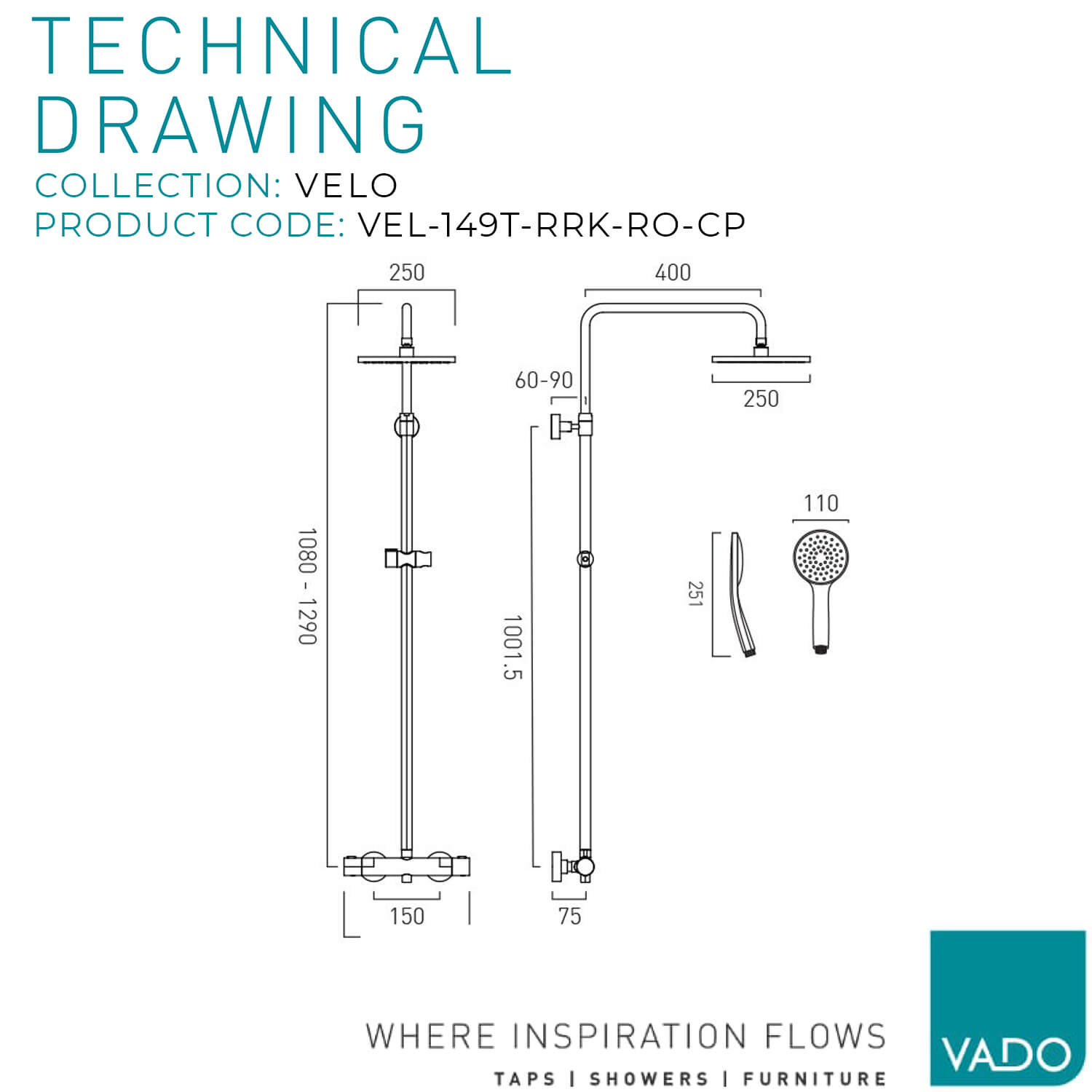

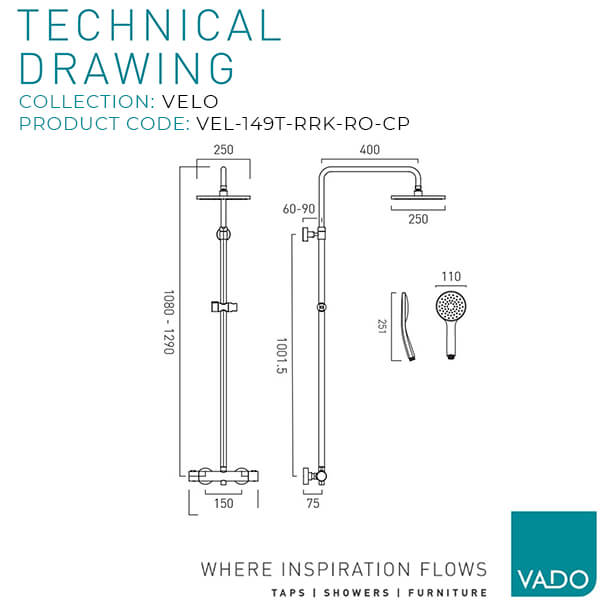

Refer to the Technical Diagram for Complete Technical Dimensions
Download the Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Year
⤷ Theme
: Modern
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Hose Included
: Yes
⤷ Temperature Control
: Thermostatic
⤷ Diverter Included
: Yes

⤷ Showerhead Finish
: Chrome
⤷ Riser Rail & Kit Finish
: Chrome
⤷ Handset Included
: Yes
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: Ø250
⤷ Rail Length
: 1080-1290

Additional Info & Downloads

Download the Installation Instruction Pdf File

Vado Velo Adjustable Round Chrome Thermostatic Shower Column

£357.00

RRP: ~~£595.00~~

Stock Availablity: 3 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...
