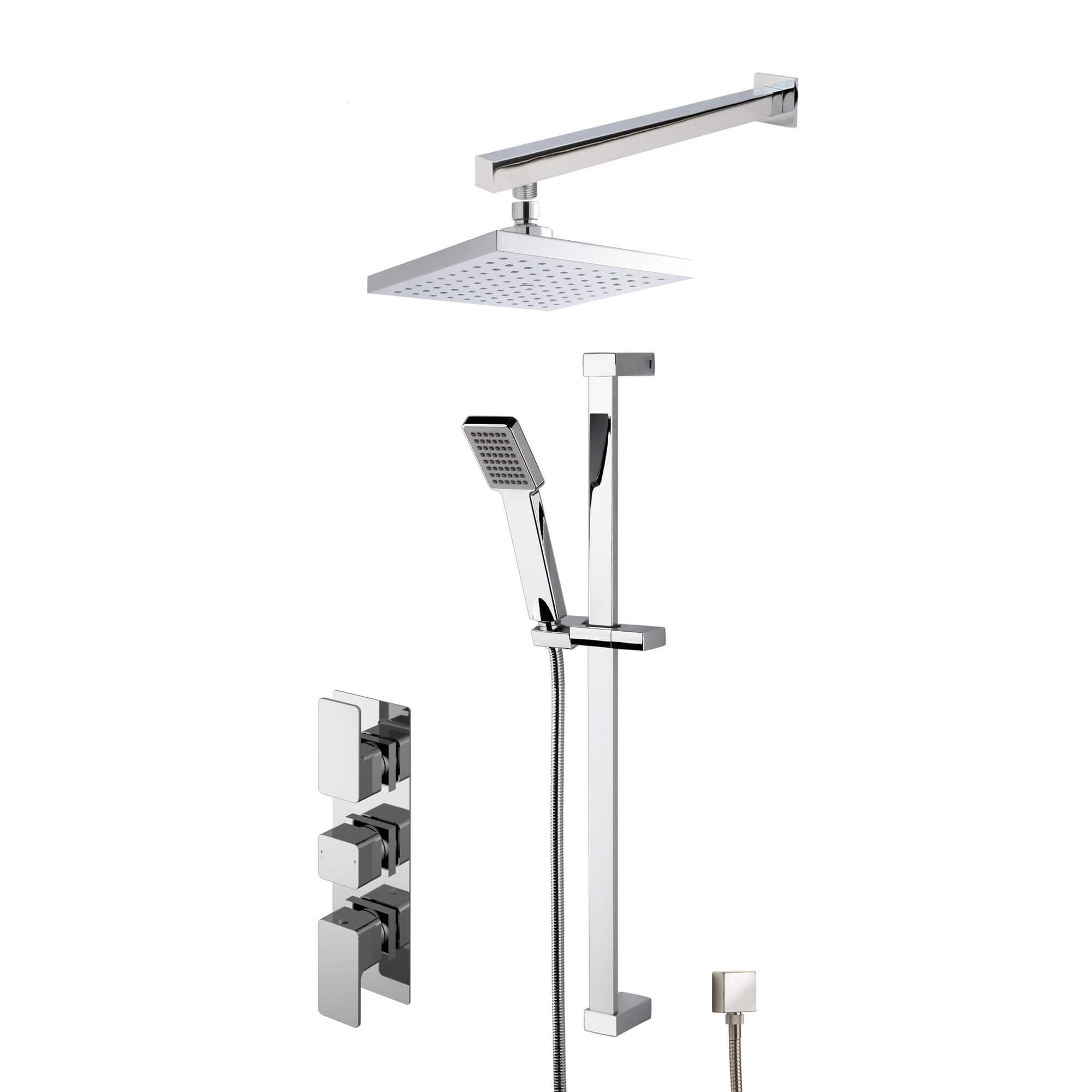

Nuie Windon Thermostatic Mixer Valve with Shower Head and Slide Rail Kit

Details

MFC: SBS43TR2

Nuie Windon Concealed Thermostatic Mixer Valve with Shower Head and Slide Rail Kit

Manufacturing Code of this Product: SBS43TR2
Complete Set in a Chrome Finish
Download Customer Data Sheet PDF File from the Additional Info Section
Refer to the Technical Drawing for Size Details
5-Year Guarantee from Nuie Against Manufacturing Defects
Specifications Of Thermostatic Valve:
WRAS and TMV2 Approved
Size [mm]: 80 x 135 x 298mm [Width x Depth x Height]
Size [cm]: 8 x 13.5 x 29.8cm [Width x Depth x Height]
Weight: 3.45kg
Manufactured Using Brass and ABS Material
Triple Thermostatic Valve with 2-Outlets
1/4-Turn Ceramic Disc Cartridge
Number of Outlets: 2
Suitable for Medium Water Pressure System
Requires a Minimum of 0.5 Bar of Water Pressure
Specifications Of Slide Rail Kit:
Height: 700mm [70cm]
Hose Length: 1500mm [150cm]
Inlet Connection: G1/2-Inch
Weight: 0.9kg
Manufactured Using ABS and Brass Material
Number of Outlets: 1
Suitable for Low Water Pressure System
Requires a Minimum of 0.1 Bar of Water Pressure
Specifications of Shower Head:
Size [mm]: 200 x 200 x 60mm [Width x Depth x Height]
Size [cm]: 20 x 20 x 6cm [Width x Depth x Height]
Weight: 0.72kg
Manufactured using Brass and ABS material
Mount type: Wall, Surface
Suitable for Low Water Pressure System
Required Minimum 0.2 Bar Water Pressure
Specifications Of Shower Arm:
Length: 350mm [35cm]
Weight: 0.5kg
Manufactured using Brass Material
Mount type: Surface, Wall
No of Outlet: 1
Specifications Of Outlet Elbow :
Size [mm]: 36 x 36mm [Width x Height]
Size [cm]: 3.6 x 3.6cm [Width x Height]
Weight: 0.24kg
Manufactured Using Plastic Material

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass, ABS
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: 1/4 Turn
⤷ Inlet Connections
: G 1/2 Inch
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Hose Included
: 1500
⤷ Configuration
: Thermostatic Shower Valve | Shower Head | Arm | Slide Rail Kit

⤷ Temperature Control
: Themostatic
⤷ Showerhead Finish
: Chrome
⤷ Riser Rail & Kit Finish
: Chrome
⤷ Handset Included
: Yes
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 200
⤷ Rail Length
: 700
⤷ Hose Retainer Included
: Yes
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

Download the Data Sheet Pdf File

This item can also be found in:

Shower Sets

Technical Images

Slide Rail Kit

Valve

Head, Arm & Wall Elbow

£378.80

RRP: ~~£947.00~~

IN-STOCK

Delivery in 2 Working Days Approx.

QS Supplies

6 Features Included In This Product Explained

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.
