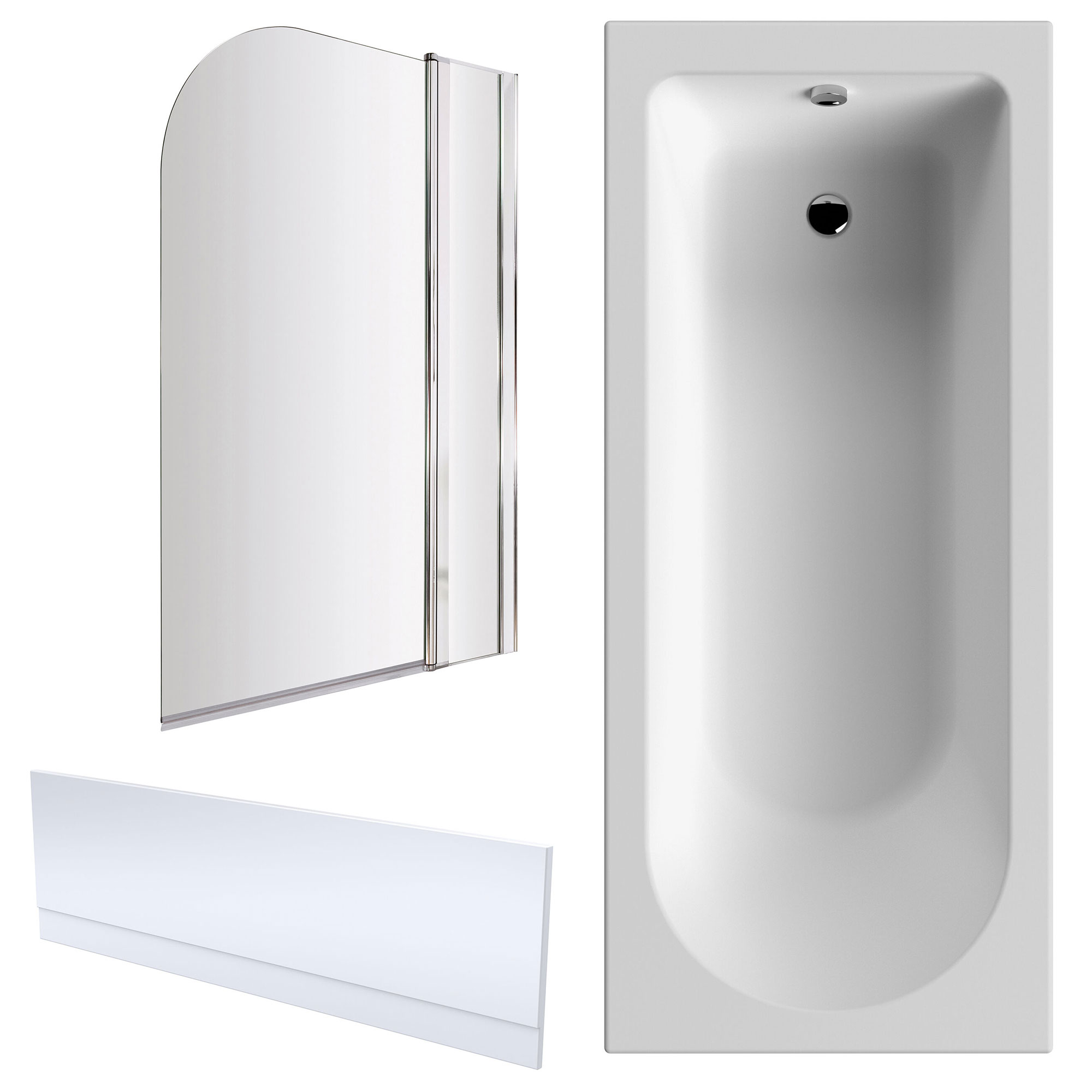

Nuie Round SE Acrylic Bath With Front Panel and Curved Bath Screen

Details

MFC: BAZSE009

Nuie Round Single Ended Acrylic Bath With Front Panel and Curved Bath Screen - 1700mm Length

Key Features

✔Bundle Includes: Bath, Front Panel, Bath Screen and Leg-set
✔Single Ended Round Bath
✔CE-Certified Bath
✔5-Years Guarantee from the manufacturer

Refer to the Technical Drawing for Technical details
Download the Customer Data Sheet PDF from the Additional Info & Download section
Details Of Bath
Available in 2 widths - 700mm and 750mm [Optional]
Size (mm): Length 1700 x Depth 360mm
Size (cm): Length 170 x Depth 36cm
Height including Panel: 525mm
Comes in a White Finish
4mm Acrylic Bath Construction
Water Capacity: 1700 x 700mm: 180 Litres & 1700 x 750mm: 166 Litres
Displaced Capacity: 1700 x 700mm: 110 Litres & 1700 x 750mm: 96 Litres
Supplied Undrilled for Taps
Overflow Included
Waste at the foot End
Comes complete with an Adjustable Leg-set
Weight: 17 Kg
Details Of Bath Panel
Straight Bath Panel with Plinth
Size (mm): Length 1700 x Height 525mm (Including 100mm Plinth)
Size (cm): Length 170 x Height 52.5cm (Including 10cm Plinth)
Thickness: 20mm
Comes in White Finish
Weight: 2.1 Kg
Material: Acrylic
Details Of Bath Screen
Comes with and without a towel rail [Optional]
Size (mm): Length 998 x Depth 24 x Height 1433mm
Size (cm): Length 99.8 x Depth 2.4 x Height 143.3cm
Curved from the top
Comes with 1 Fixed Panel and 1 movable panel
Swing-In and Swing-Out Dimension: 700mm
Semi-Frameless Design
Profile Material: Aluminium
Profile Finish: Chrome
6mm Safety Glass
Adjustment: minimum 983 and maximum 998mm
Supplied with Fixing
UKCA Certified Screen
Weight: 23.3 Kg
Waste shown in the Image is not included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Interior Shape
: Round
⤷ Bath Type
: Shower Bath
⤷ Position of Drain
: Waste at Foot End
⤷ Coating
: Standard
⤷ External Length
: 1700
⤷ External Width
: 700
⤷ Tub Depth
: 360
⤷ Feets Included
: Yes
⤷ Height Including Feet or Panel
: 525
⤷ Front Panel Included
: Yes
⤷ End Panel Included
: No
⤷ Colour
: White
⤷ Height of Rim
: 40
⤷ Distance Tub edge to centre of drain hole
: 280

⤷ Distance Top edge to centre of overflow hole
: 75
⤷ Diameter of overflow hole
: 52
⤷ Diameter of Drain hole
: 52 | 90
⤷ Rim Width
: 70 | 90
⤷ Shape
: Rectangular
⤷ Capacity in litres
: 180
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Acrylic
⤷ No. of Bathers
: 1
⤷ Theme
: Modern
⤷ Bath Screen Included
: Yes
⤷ Tap Holes
: Undrilled for Taps
⤷ Barcode
: 5056678407653

Additional Info & Downloads

Download the 1700 x 700mm Customer DataSheet Pdf File Download the 1700 x 750mm Customer DataSheet Pdf File

This item can also be found in:

Shower Baths

Technical Images

Nuie Round Single Ended Acrylic Bath With Front Panel and Curved Bath Screen - 1700mm Length

1700 x 700mm Bath

1700 x 750mm Bath

£359.20

RRP: ~~£898.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.

UKCA Certified

UKCA or the UK Conformity Assessed marking is a mandatory UK product marking for products sold across Great Britain, equivalent to the CE Marking in Europe. UKCA will be used to replace the CE Marking. CE marking will no longer be valid in England, Scotland and Wales except in Northern Ireland from the 1st of January 2021, and the CE mark will stay valid until the 1st of January 2023. A product with UKCA marking shows that the product complies with the UKCA Marking requirements.

Front Panel

A front bath panel is a decorative accessory that is used to cover the front-facing side of a bathtub for a neat and polished look. It also conceals plumbing and framework and comes in different sizes, textures and materials.
