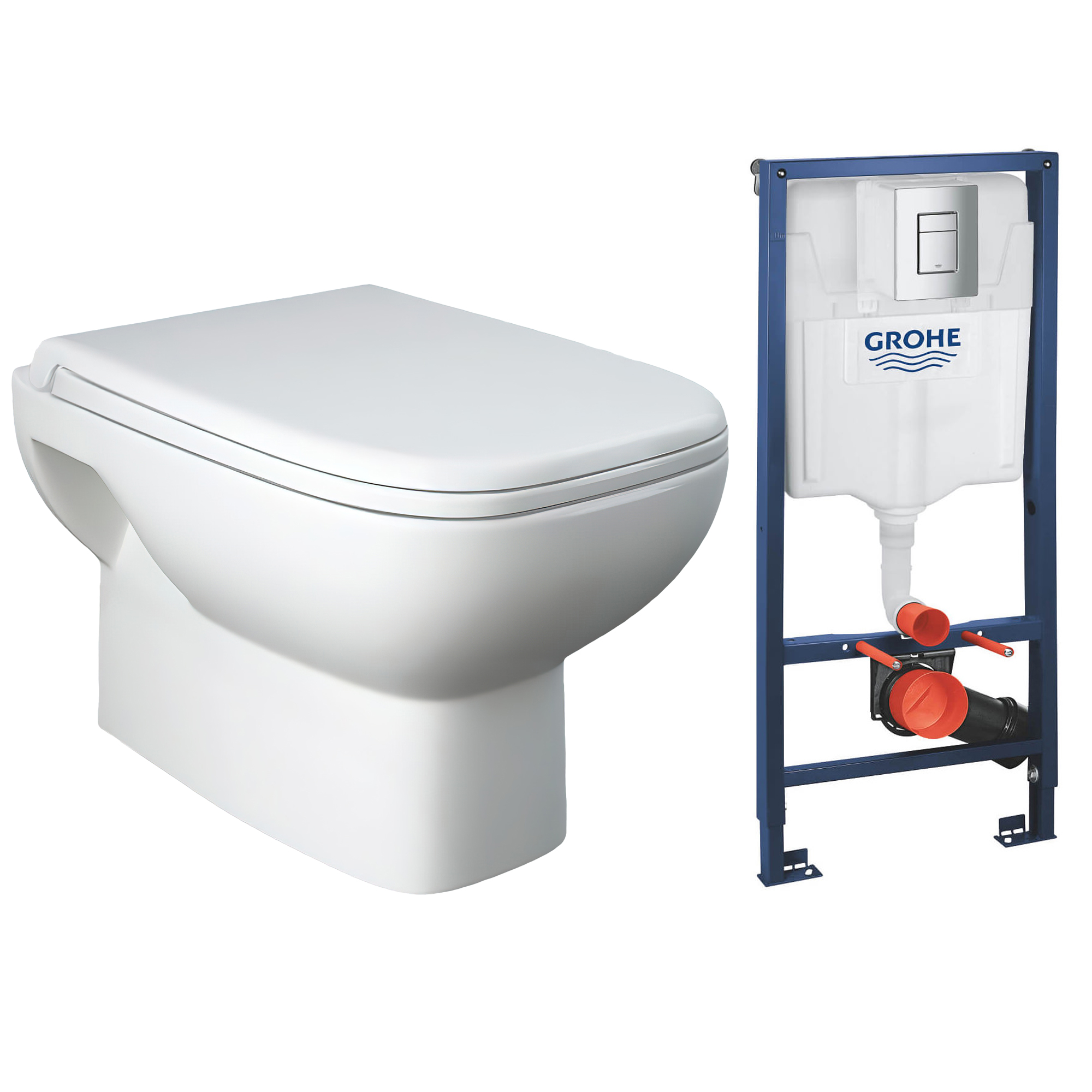

Grohe Rapid SL Large Concealed Frame WC Set with Wall Hung Toilet - 500 x 1130mm

Grohe Rapid SL Concealed Frame Set with Wall Hung Square Toilet - 500 x 1130mm

• Pack Includes:
• Wall Hung Toilet with Soft Close Seat
• Rapid SL Concealed Frame with Dual Flush Cistern
• Skate Air Dual Flush Button Flush Plate
• Pair of Wall Brackets
• Features of Toilet:
• Includes: Toilet Pan and Polypropylene Soft-Close Seat
• Made Using Vitreous China Material
• Suitable for Wall-Hung Installation
• WRAS Approved Product
• Size: 360 x 500 x 350mm [Width x Projection x Height]
• Trap Type: P-Trap
• Trapway Type: Concealed
• Bowl Shape: Square
• Weight: 23.7 Kg
• Toilet Seat Carry 2-Year Guarantee
• Features Of Frame:
• Size [mm]: 500 x 230 x 1130mm [Width x Depth x Height]
• Size [cm]: 50 x 23 x 113cm [Width x Depth x Height]
• Suitable for on-the-Wall Installations or Studded Walls
• Powder-Coated Steel Frame
• Self-Supporting for Dry-Cladding
• Completely Pre-Assembled
• Supplied with Fixed Connections
• Features Quick Adjustment, Lockable
• Includes Fixing Material
• TUV Approved
• Supplied 2x WC Fixing Bolts, Fixing Device for Ceramic
• Distance of Fixing Bolts 180mm/230mm
• PP Outlet Bend: Ø90mm
• Depth Adjustable Reducer Diameter: Ø90/100mm
• Inlet and Outlet Connecting Set
• Features Of Dual Flush Cistern
• 6/3 Litre Flush Mechanism
• Pneumatic Discharge Valve Offering 3 Modes of Operation: Dual Flush or Start/Stop or Single Flush
• Front or Top Actuation
• Water Supply from Left/Right or Back
• Low Noise [Group I, According to German Noise Specification]
• Insulated Against Condensation
• 1/2 inch Water Supply Connection, Including Integrated Angle Valve and Push-Fit Flexible Hose Union
• Shortable Inspection Shaft incl. Protection During the Construction Phase
• Features Of Skate Air Dual Flush Button Flush Plate:
• Size [mm]: 156mm x 197mm [Width x Height]
• Size [cm]: 156cm x 197cm [Width x Height]
• Suitable for Dual Flush or Start & Stop Actuation
• Ideal for Pneumatic Drop Valve AV1
• Suitable for Vertical and Horizontal Installation
• GROHE LongLife Chrome Finish
• GROHE EcoJoy - Less Water, Perfect Flow
• Features Of Wall Brackets:
• Suitable for On-the-Wall Installations
• Ideal for fixing the Elements on the Brick-Wall or in Front of the Studded Wall
• Steady Vertical Adjustment from 130mm to 230mm
• Cladding for Single or Series Installation
• Supplied in Pairs
