RAK Series-600 Contemporary Bathroom Pack

RAK Series-600 Details

MFC: NBA308|S600PAKNS|RAKSEAT014

RAK Series-600 Contemporary Bathroom En-Suite Pack

Contemporary and Stylish Complete Bathroom Suite
Refer to the Technical Drawing for Size Details

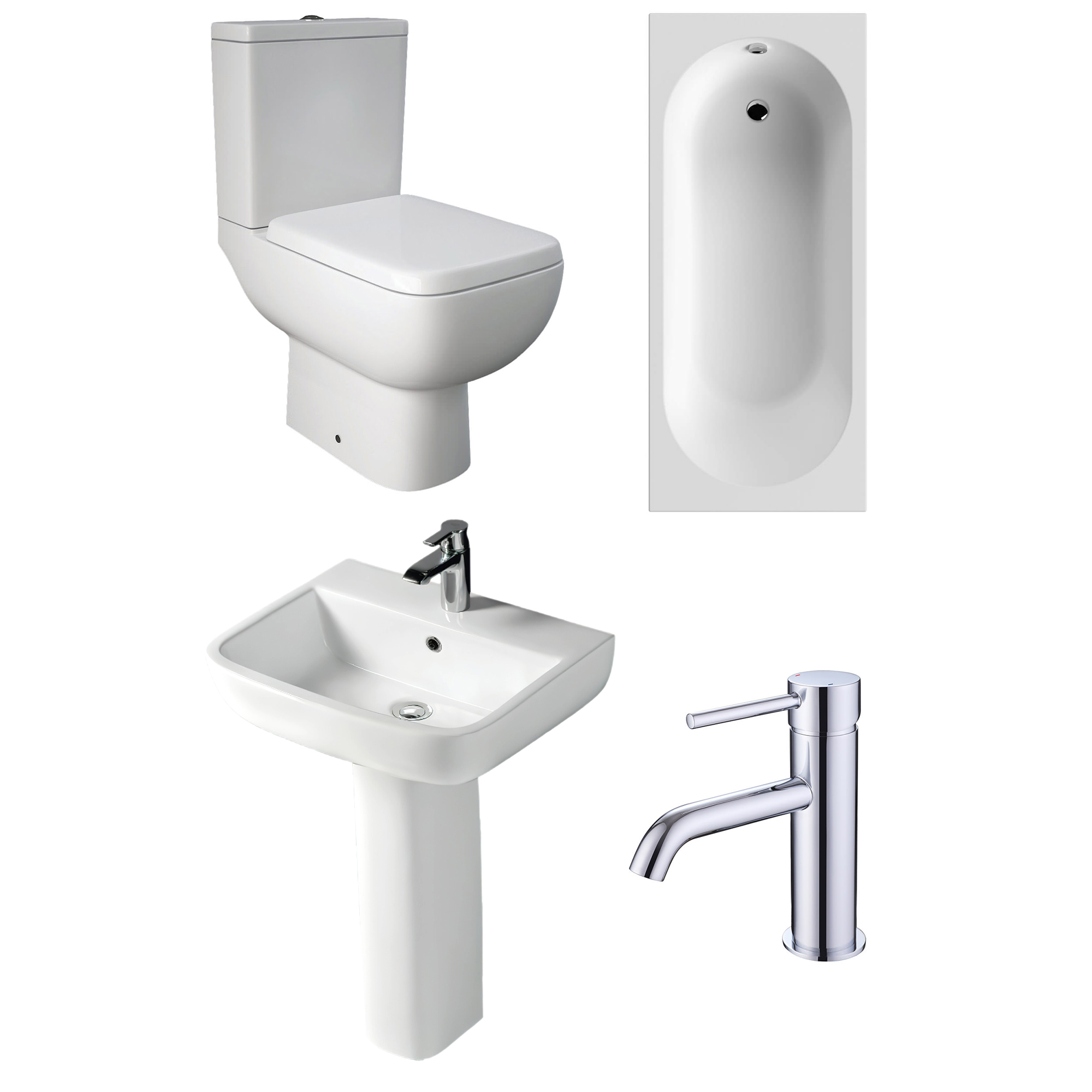

Bathroom Suite Includes:
Full Access Close-Coupled WC with Urea Soft Close Seat
Basin with Full Pedestal
Monobloc Basin Mixer Tap with Sprung Waste
1675 x 700mm Bath with Leg Set
Features of WC Pan:
Includes: Pan, Cistern and Wrap Over Soft-Close Seat
Made from Vitreous China Material
Installation Type: Floor-Mounted
Trap Type: P-Trap
Trapway Type: Concealed
Bowl Shape: Rounded Rectangle
3/6 Litre Dual Flush Cistern with Chrome Push Button
Weight: 46.6 Kg
Size: 365 x 600 x 775mm [Width x Projection x Height]
Features of Basin with Full Pedestal:
Made from Vitreous China Material
Fixings Included
Includes Overflow & Full Pedestal
Comes with 1 Taphole
Shape: Square
Taphole Location: Central
Weight: 22 Kg
Suitable for Wall-Mounted Installation
Size: 520 x 425mm [Width x Depth]
Overall Height with Pedestal: 810mm
Features of Monobloc Basin Mixer Tap:
Comes in Chrome finish
Supplied with G1-1/4 Inch Sprung Waste
Single Lever Handle
Brass Body with Zinc Handles
Suitable for all Plumbing Systems
Deck-Mounted Installation
35mm 110 Degree Turn Cold Start Ceramic Disc Cartridge
Fitting: M10 x 350mm G1/2 Inch BSP Female Flexible Tails
Neoperl Slim Aerator
Requires a Minimum of 0.5 Bar to a Maximum of 6.0 Bar Water Pressure
Hot and Cold Water Pressure, Preferably Balanced
Maximum Supply Pressure Differential Requirement No Greater Than 5:1
Complies with BS6920, BS EN200
Features of Bath:
Manufactured Using Sanitary Grade Acrylic
Supplied with Legset
Un-Drilled for Taps
Bath Waste Position: End of Bath
Size: 1675 x 700 x 370mm [Length x Width x Depth]
Single-Ended Bath
Overall Height: 390mm
Water Capacity: 160 Litre
Displaced Capacity: 90 Litre
Weight: 17 Kg
Bath Panel, Waste and Overflow are Not Included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Suite Includes
: Bath, Close-Coupled WC, Basin and Pedestal & Mixer Tap
⤷ Bath Size - (Length x Width x Depth)
: 1675 x 700 x 370
⤷ Bath Colour
: White
⤷ Bath Shape
: Rectangular
⤷ Tub Capacity in litres
: 160
⤷ Tub Material
: Acrylic
⤷ No. of Bathers
: 1
⤷ Basin Colour
: White
⤷ Basin Size - (Width x Depth x Height)
: 520 x 425
⤷ Sink Material
: Vitreous China
⤷ Basin Waste Included
: Yes
⤷ Basin Tap Included
: Yes
⤷ Pedestal Included
: Yes
⤷ Pedestal Type
: Full Pedestal
⤷ Height With Pedestal
: 810
⤷ Basin Tap Holes
: 1

⤷ WC Colour
: White
⤷ WC Pan Size - (Width x Depth x Height)
: 365 x 600 x 775
⤷ Cistern Included
: Yes
⤷ Cistern Type
: Close-Coupled
⤷ Flush Type
: Dual Flush
⤷ Full Flush Volume in litres
: 6
⤷ Half Flush Volume in litres
: 3
⤷ Flush Mechanism
: Push Button
⤷ Cistern Lever Or Button Placement
: Top
⤷ Toilet Material
: Vitreous China
⤷ Seat Included
: Yes
⤷ Seat Type
: Soft Close
⤷ Seat Finish
: White
⤷ Toilet Installation Type
: Floor Mounted
⤷ Warranty/Guarantee
: 25 Year
⤷ Theme
: Modern

Technical Images

Bath

Toilet

Basin & Full-Pedestal

Basin Mixer Tap

£422.00

RRP: ~~£1259.00~~

Stock Availablity: 6 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

Soft-Close Seat

Soft-closing seats are a new alternative to classic seats. Their modern design hinges allow them to close slowly and gently.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Cold Start

Tap flow always begins with cold water, and water mixing systems become active only when hot water is needed. The cold start prevents unnecessary energy expenditure.
