Grohe Wall Hung Rimless Toilet Pack & WC Frame Set 500 x 820mm, 38773000 & NCG340

Details

MFC: 38773000|NCG340

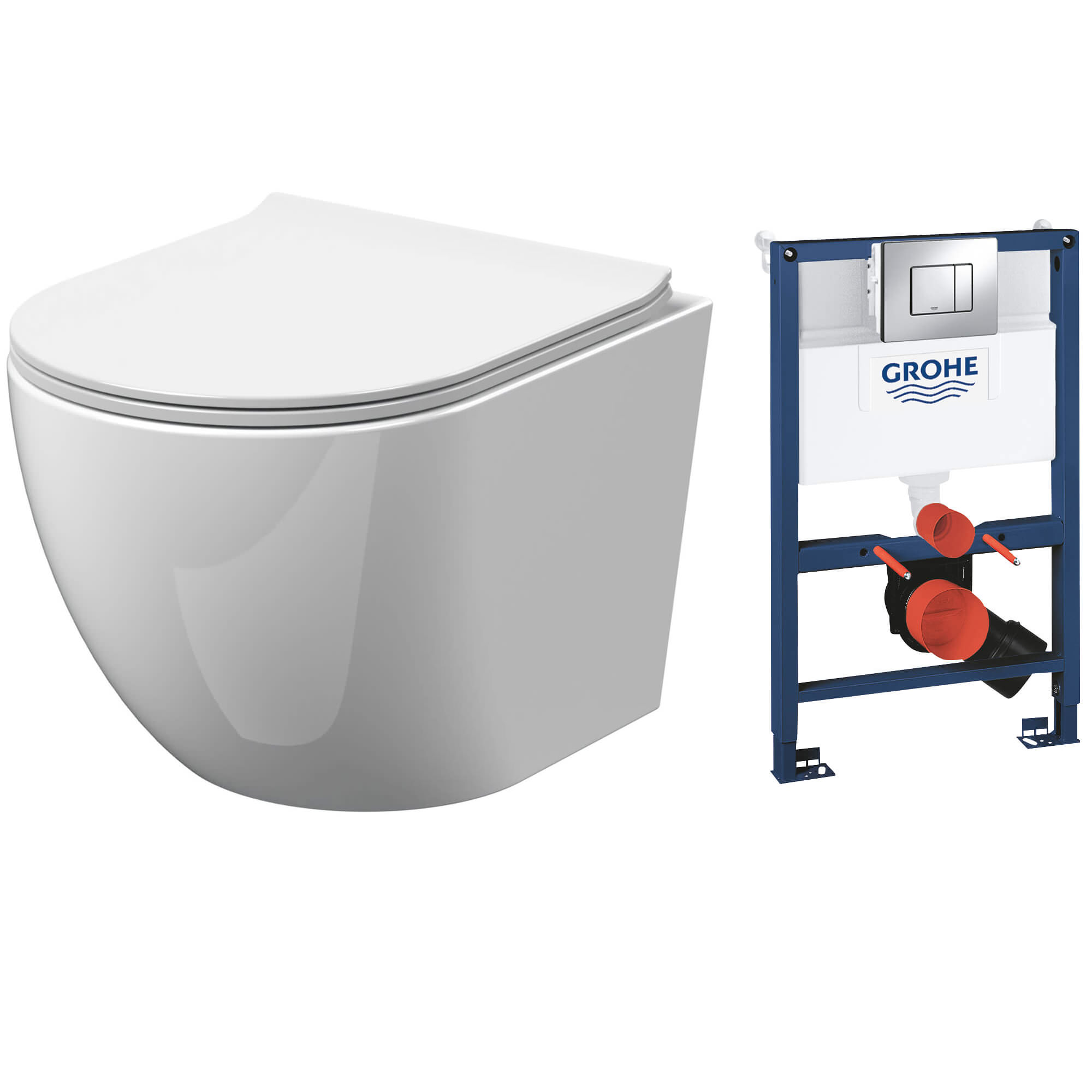

Grohe Wall Hung Rimless Toilet Pack with Rapid SL Concealed Frame Set - 500 x 820mm

Pack Includes:
Wall Hung Rimless Toilet with Soft Close Seat
Rapid SL Concealed Frame with Dual Flush Cistern
Skate Cosmopolitan Dual Flush Button Flush Plate
Pair of Wall Brackets
Features of Toilet:
Rimless WC Pan
Includes Soft-Close, Quick-Release Seat with Top-Fix Stainless Steel Hinge
Manufactured Using Vitreous China Material
Suitable for Wall-Hung Installation
Overall Size: 360 x 360mm [Width x Height]
Projection from Wall: 482mm (48.2cm)
Weight: 32kg
Seat Material: Urea
Features of Concealed WC Frame:
Size: 500 x 820mm [Width x Height]
Suitable for On-the-Wall Installations or Studded Walls
Powder Coated Steel Frame
Self-Supporting for Dry-Cladding
Supplied with Fixed Connections
Quick Adjustment, Lockable
Includes Fixing Material
TUV Approved
Supplied with 2 x WC Fixing Bolts, Fixing Device for Ceramic
Distance of Fixing Bolts 180mm/230mm
PP Outlet Bend Ø90mm, Reducer Ø90mm/110mm
Depth Adjustable
Inlet and Outlet Connecting Set
Features of Dual Flush Cistern:
6/3 Litre Flush Mechanism
Pneumatic Discharge Valve Offering 3 Modes of Operation: Dual Flush or Start/Stop, or Single Flush
Front or Top Actuation
Water Supply from Left/Right or Back
Low Noise (Group I, According to German Noise Specification)
Insulated Against Condensation
1/2 inch Water Supply Connection, Including Integrated Angle Valve and Push-Fit Flexible Hose Union
Shortable Inspection Shaft Including Protection During the Construction Phase
Features of Skate Cosmopolitan Dual Flush Button Flush Plate:
Size: 156mm x 197mm [Width x Height]
Suitable for Dual Flush or Start & Stop Actuation
Ideal for Pneumatic Drop Valve AV1
Suitable for Vertical and Horizontal Installation
GROHE LongLife Chrome Finish
GROHE EcoJoy - Less Water, Perfect Flow

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Suite Includes
: Toilet and WC Frame
⤷ WC Colour
: White
⤷ WC Pan Size - (Width x Depth x Height)
: 360 x 482 x 360mm
⤷ Toilet Overall Height
: 360
⤷ Rimless Toilet
: Yes
⤷ Cistern Included
: Yes
⤷ Cistern Type
: Concealed
⤷ Flush Type
: Dual Flush
⤷ Full Flush Volume in litres
: 6

⤷ Half Flush Volume in litres
: 3
⤷ Flush Mechanism
: Push Button
⤷ Toilet Material
: Vitreous China
⤷ Seat Included
: Yes
⤷ Seat Type
: Soft Close
⤷ Seat Finish
: White
⤷ Toilet Installation Type
: Wall Mounted
⤷ Warranty/Guarantee
: 5 Years
⤷ Theme
: Modern

Additional Info & Downloads

Download the Flush Plate Installation Instruction Pdf File

Technical Images

Toilet

WC Frame

£305.00

RRP: ~~£878.00~~

Stock Availablity: 6 Working Days Approx

QS Supplies

7 Features Included In This Product Explained

Rimless

A rimless toilet does not have a brim at its edge, from which the water usually flows when you flush. Instead of flowing from the top, such toilets shoot water towards their edge and around it, allowing no missing spots with filth remaining after a flush. These toilets also remove any spaces for germs to hide and breed, providing a hygienic alternative for your bathroom.

Soft-Close Seat

Soft-closing seats are a new alternative to classic seats. Their modern design hinges allow them to close slowly and gently.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Grohe EcoJoy

According to Grohe, the EcoJoy technology enables reduced water usage by your tap by up to 50%. It is done without compromising on the water spray, which allows a full jet of water from the tap and provides excellent value and comfort in a single unit.

Grohe StarLight

It is a durable, long-lasting surface that ranges from matte to shiny, like a diamond. This finish or long-lasting surface quality of every product from this manufacturer keeps it looking as good as new for years to come. The pledge of continuous improvement has refined this unique plating process to bring you a surface polish that is robust and immaculate and finds no match anywhere across the globe. A key contributing factor is rigorous quality control measures and regular healthy investments.

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.
