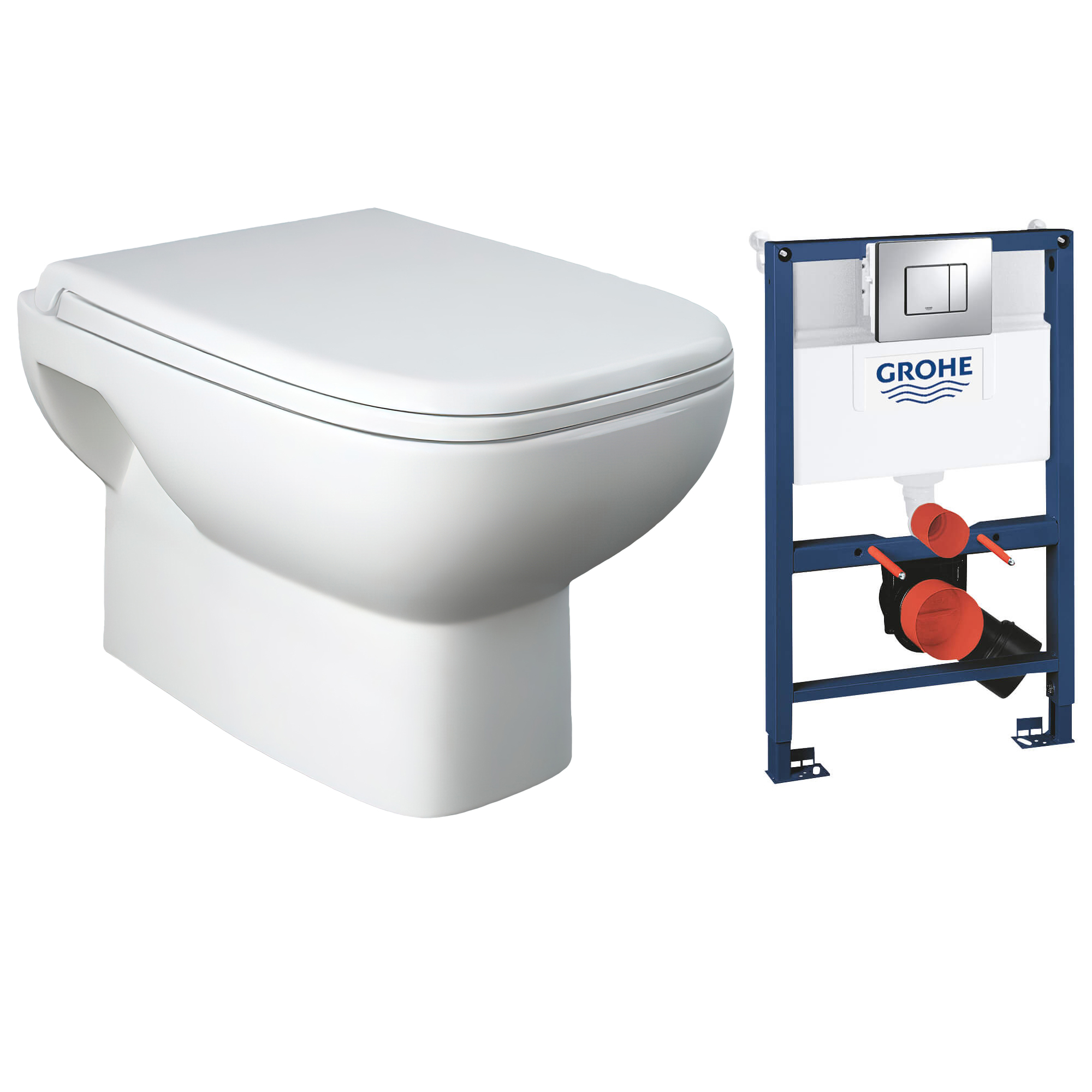

Grohe Rapid SL Concealed WC Frame Set with Wall Hung Toilet, 38773000 & ORG12AWHA

Details

MFC: 38773000|ORG12AWHA|ORI62SEATSC

Grohe Rapid SL Concealed Frame Set with Wall Hung Square Toilet - 500 x 820mm

Pack Includes:
Wall Hung Toilet with Soft Close Seat
Rapid SL Concealed Frame with Dual Flush Cistern
Skate Cosmopolitan Dual Flush Button Flush Plate
Pair of Wall Brackets
Features of Toilet:
Includes: Toilet Pan and Polypropylene Soft-Close Seat
Made Using Vitreous China Material
Suitable for Wall-Hung Installation
WRAS Approved Product
Size: 360 x 500 x 350mm [Width x Projection x Height]
Trap Type: P-Trap
Trapway Type: Concealed
Bowl Shape: Square
Weight: 23.7 Kg
Toilet Seat Carry 2-Year Guarantee
Features of Concealed WC Frame:
Size: 500 x 820mm [Width x Height]
Suitable for On-the-Wall Installations or Studded Walls
Powder Coated Steel Frame
Self-Supporting for Dry-Cladding
Supplied with Fixed Connections
Quick Adjustment, Lockable
Includes Fixing Material
TUV Approved
Supplied with 2 x WC Fixing Bolts, Fixing Device for Ceramic
Distance of Fixing Bolts 180mm/230mm
PP Outlet Bend Ø90mm, Reducer Ø90mm/110mm
Depth Adjustable
Inlet and Outlet Connecting Set
Features of Dual Flush Cistern:
6/3 Litre Flush Mechanism
Pneumatic Discharge Valve Offering 3 Modes of Operation: Dual Flush or Start/Stop, or Single Flush
Front or Top Actuation
Water Supply from Left/Right or Back
Low Noise (Group I, According to German Noise Specification)
Insulated Against Condensation
1/2 inch Water Supply Connection, Including Integrated Angle Valve and Push-Fit Flexible Hose Union
Shortable Inspection Shaft Including Protection During the Construction Phase
Features of Skate Cosmopolitan Dual Flush Button Flush Plate:
Size: 156mm x 197mm [Width x Height]
Suitable for Dual Flush or Start & Stop Actuation
Ideal for Pneumatic Drop Valve AV1
Suitable for Vertical and Horizontal Installation
Features Of Wall Brackets:
Suitable for On-the-Wall Installations
Ideal for fixing the Elements on the brick-Wall or in Front of the studded Wall
Steady Vertical Adjustment from 130mm to 230mm
Cladding for Single or Series Installation
Supplied in Pairs

Technical Specifications

Please note all the measurements are in 'mm'

⤷ WC Colour
: White
⤷ WC Pan Size - (Width x Depth x Height)
: 360 x 500 x 350
⤷ Toilet Overall Height
: 350
⤷ Cistern Included
: Yes
⤷ Cistern Type
: Concealed
⤷ Flush Type
: Dual Flush
⤷ Full Flush Volume in litres
: 6
⤷ Half Flush Volume in litres
: 3
⤷ Flush Mechanism
: Push Button

⤷ Cistern Lever Or Button Placement
: Front
⤷ Toilet Outlet
: Horizontal
⤷ Toilet Material
: Vitreous China
⤷ Seat Included
: Yes
⤷ Seat Type
: Soft Close
⤷ Seat Finish
: White
⤷ Toilet Installation Type
: Wall Mounted
⤷ Frame Finish
: Blue
⤷ Theme
: Modern

Additional Info & Downloads

Download the Flush Plate Installation Instruction Pdf File

Technical Images

Toilet

WC Frame

£310.67

RRP: ~~£748.62~~

Stock Availablity: 2-3 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

Soft-Close Seat

Soft-closing seats are a new alternative to classic seats. Their modern design hinges allow them to close slowly and gently.

Urea

Urea-formaldehyde is a plastic moulded under high pressure, offering durability, rigidity, and resistance to scratches and chemicals.

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

Grohe Rapid SL Concealed WC Frame Set with Wall Hung Toilet - 500 x 820mm
