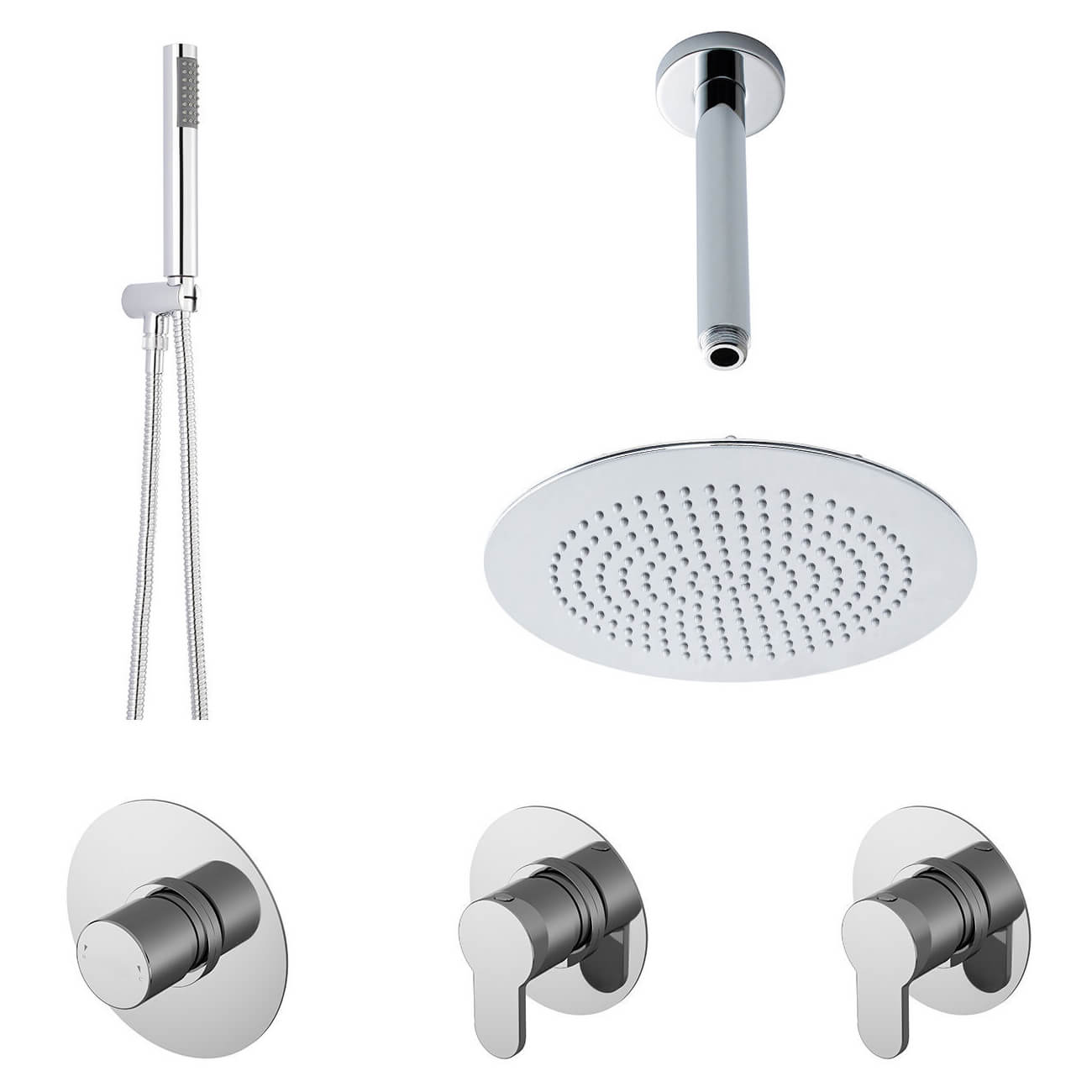

Nuie Thermostatic Mixer Shower Set - Concealed Valve with Head and Handset

Nuie Thermostatic Mixer Shower Set - Concealed Valve with Head and Handset

• Manufacturing Code of this Product: SBR131ST2
• Complete Set in a Chrome Finish
• Download Customer Data Sheet PDF File from the Additional Info Section
• Refer to the Technical Drawing for Size Details
• 5-Year Guarantee from Nuie Against Manufacturing Defects
• Specifications Of Shower Handset Kit:
• Hose Length: 1500mm (150cm)
• Diameter of the Holder: 30mm (3cm)
• Inlet Connection: G 1/2 Inch
• Installation Type: Surface and Wall
• Contemporary Square Design
• Single-Function Handset
• Suitable for Low-Pressure Water System
• Requires 0.1 Bar of Operating Water Pressure

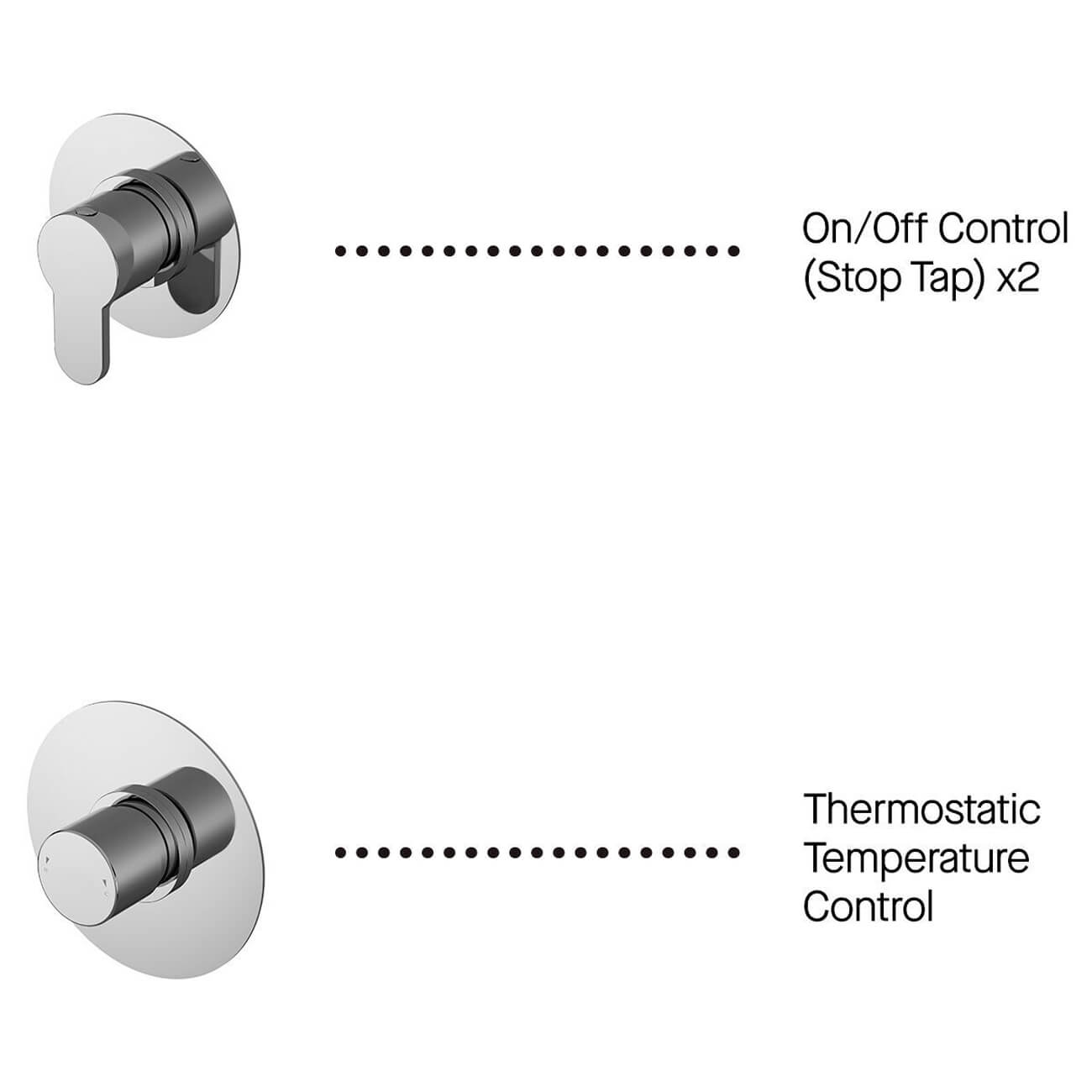

• Specifications Of Thermostatic Shower Valve:
• Size [mm]: 100 x 104 x 100mm [Width x Depth x Height]
• Size [cm]: 10 x 10.4 x 10cm [Width x Depth x Height]
• Thermostatic Temperature Control Design
• Inlet and Outlet Connection: G.1/2
• Pipe Size: 15mm (1.5cm) (1/2-Inch BSP)
• Suitable for Low-Pressure Water System
• Manufactured using Brass Material
• Mount Type: Recessed/Wall
• Number of Outlets: 1
• Suitable for Low Water Pressure System
• Required Minimum 0.1 Bar Water Pressure
• Specifications Of Stop Shower Valve:
• 2x Concealed Stop Shower Valve
• Size [mm]: 100 x 104 x 100mm [Width x Depth x Height]
• Size [cm]: 10 x 10.4 x 10cm [Width x Depth x Height]
• Suitable for Low-Pressure Water System
• Manufactured using Brass Material
• Mount Type: Recessed/Wall
• Number of Outlets: 1
• Suitable for Low Water Pressure System
• Required Minimum 0.2 Bar Water Pressure
• Specifications Of Shower Arm:
• Installation: Ceiling Mounted
• Length: 400mm (40cm)
• Inlet Connection: G1/2-Inch
• Weight: 0.32kg
• Manufactured Using Brass Material
• Specifications Of Showerhead:
• Diameter: Ø300mm (30cm)
• Weight: 1kg
• Manufactured Using Stainless Steel Material
• Suitable for Medium Water Pressure System
• Requires a Minimum of 0.5 Bar of Water Pressure
