Nuie White L-Shaped Shower Bath Including Panel And Screen, BAZSS010

Details

MFC: BAZSS010

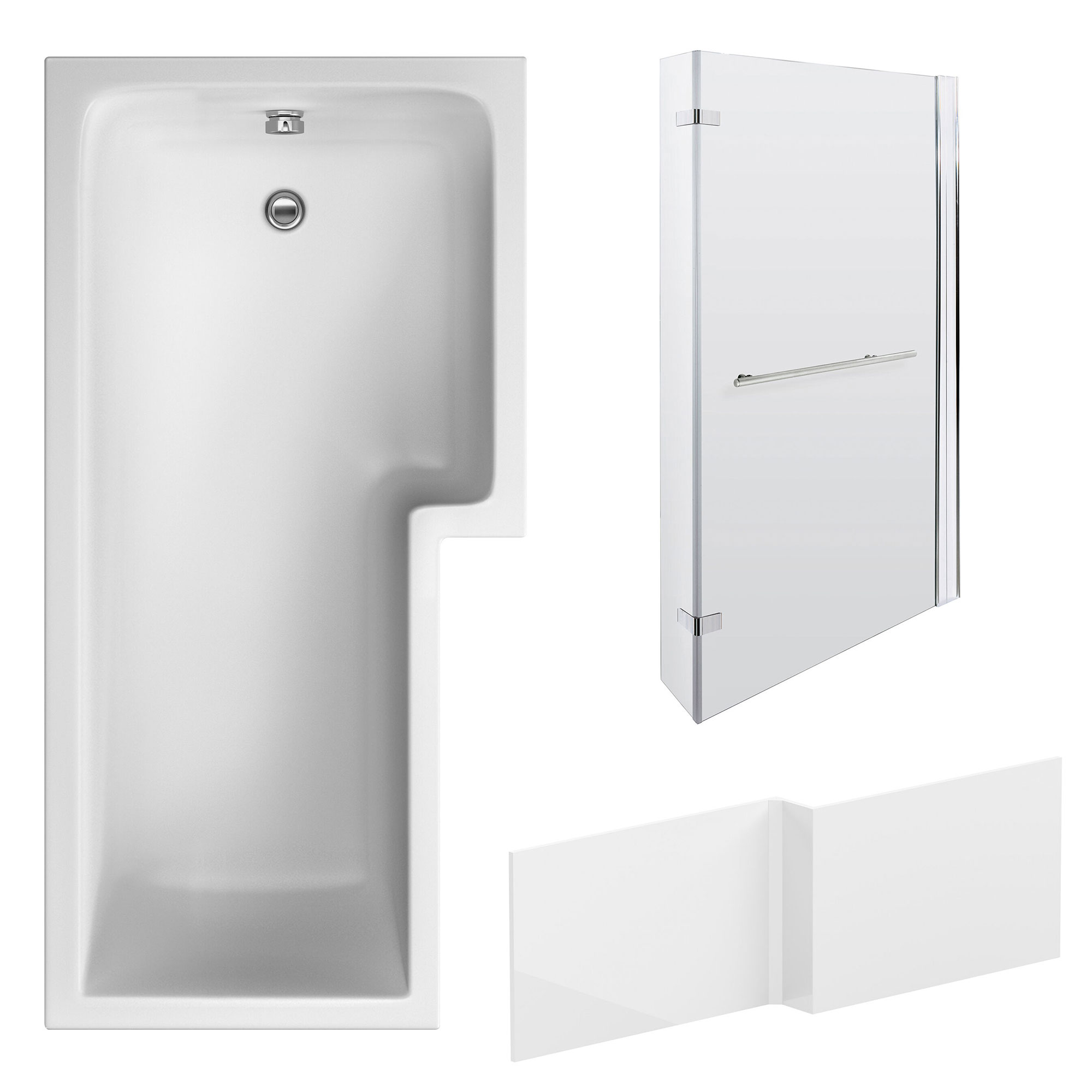

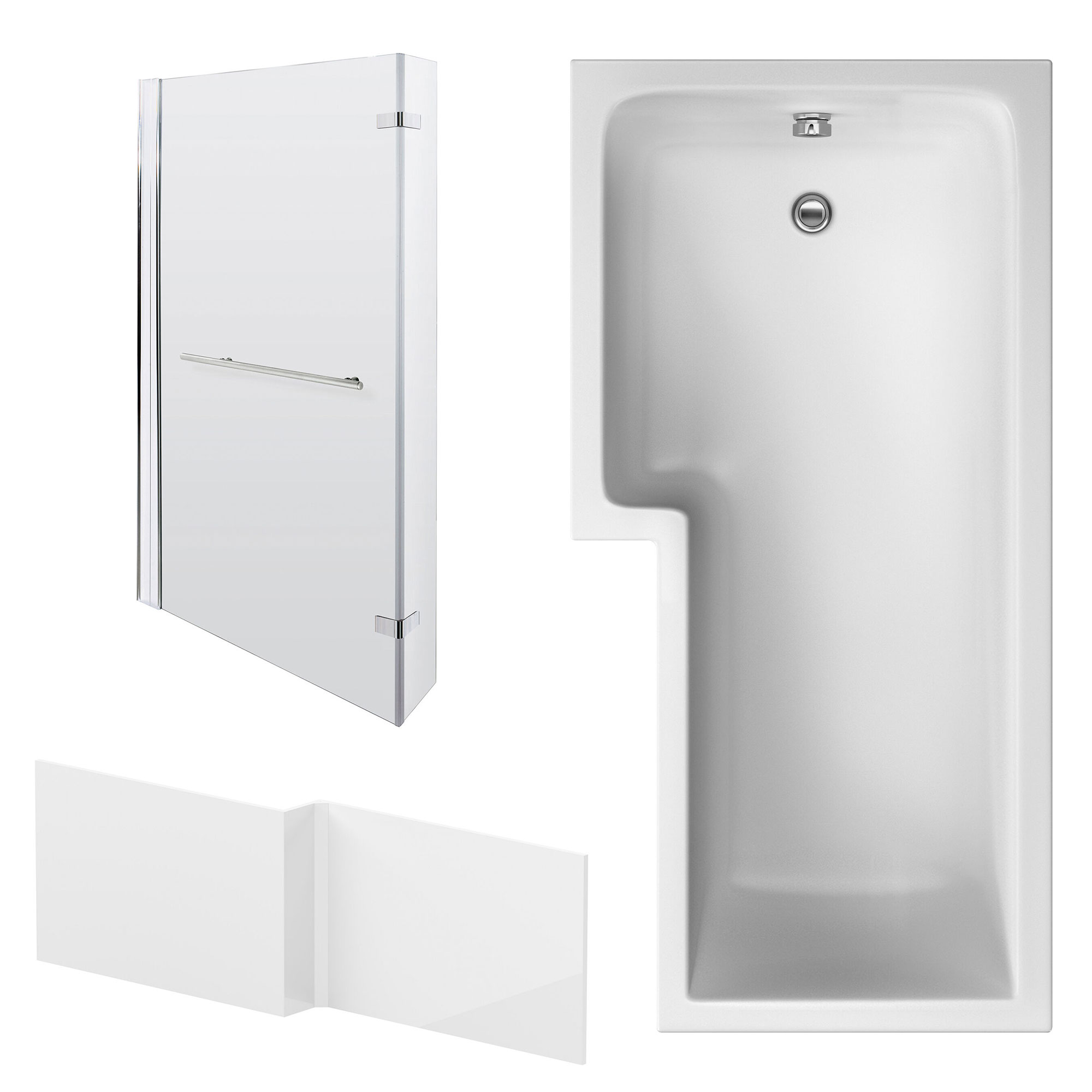

Nuie White L-Shaped Shower Bath Including Panel And Screen with Towel Rail 1700 x 850mm.

Key Features

✔Pack includes: Shower Bath, Bath Front Panel, Shower Screen with Return Panel and Leg-set
✔Variants available: Left and Right Hand [Optional]
✔Leg-set and Overflow included
✔5-Years guarantee from Nuie against manufacturing defects

Refer to the technical Drawing for more technical details
Download the Customer Datasheet PDF from the Additional Info and Download section
Details of Shower Bath
Size (mm): Length 1700 x Width 700/850 x Height 400mm
Size (cm): Length 170 x Width 70/85 x Height 40cm
Comes in White Finish
Material: 4mm Acrylic
Weight: 24.5 Kg
Water Capacity: 235 Litres
Displaced capacity: 165 Litres
Style: Contemporary
CE Certified product
Supplied Undrilled for Tap holes
Details of Bath Screen
Shower Screen with Return panel
Comes with Chrome finish Towel Rail
Size (mm): Width 815 x Depth 174 x Height 1416mm
Size (cm): Width 81.5 x Depth 17.4 x Height 141.6cm
Semi-Frameless design
Frame Material: Aluminium
6mm Glass
Adjustment: Minimum 800 to Maximum 815mm
Weight: 22.4 Kg
Supplied with fixing
UKCA Certified Screen
Bath Panels:
Size (mm): Length 1700 x Depth 150 x Height 500mm
Size (cm): Length 170 x Depth 15 x Height 50cm
Shape: Square
Style: Contemporary
Finish: European White
Material: Acrylic
Weight: 3.4 Kg
Brassware, Taps and Waste Shown in the Image are not included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Interior Shape
: Rectangular
⤷ Bath Type
: Shower Bath
⤷ Position of Drain
: Waste at Foot End
⤷ Coating
: Standard
⤷ External Length
: 1695
⤷ External Width
: 705 | 855
⤷ Tub Depth
: 400
⤷ Feets Included
: Yes
⤷ Height Including Feet or Panel
: 50
⤷ Front Panel Included
: Yes
⤷ End Panel Included
: No
⤷ Colour
: Gloss White

⤷ Internal Bottom Length
: 1175
⤷ Internal Bottom Width
: 317 | 469
⤷ Distance Top edge to centre of overflow hole
: 270
⤷ Rim Width
: 76 | 78 | 105
⤷ Capacity in litres
: 235
⤷ Handed Type
: Right Hand
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Acrylic
⤷ Theme
: Modern
⤷ Bath Screen Included
: Yes
⤷ Tap Holes
: Undrilled for Taps
⤷ Barcode
: 5056678408902

Additional Info & Downloads

Download the Customer Datasheet for Right Hand Bath Pdf File Download the Customer Datasheet for Left Hand Bath Pdf File

This item can also be found in:

Large Baths

Technical Images

Nuie White L-Shaped Shower Bath Including Panel And Screen with Towel Rail 1700 x 850mm

Right Hand Bath

Left Hand Bath

Bath Panel

Bath Screen

Leg-Set

£426.40

RRP: ~~£1066.00~~

STOCK AVAILABLITY: 2-3 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.

UKCA Certified

UKCA or the UK Conformity Assessed marking is a mandatory UK product marking for products sold across Great Britain, equivalent to the CE Marking in Europe. UKCA will be used to replace the CE Marking. CE marking will no longer be valid in England, Scotland and Wales except in Northern Ireland from the 1st of January 2021, and the CE mark will stay valid until the 1st of January 2023. A product with UKCA marking shows that the product complies with the UKCA Marking requirements.
